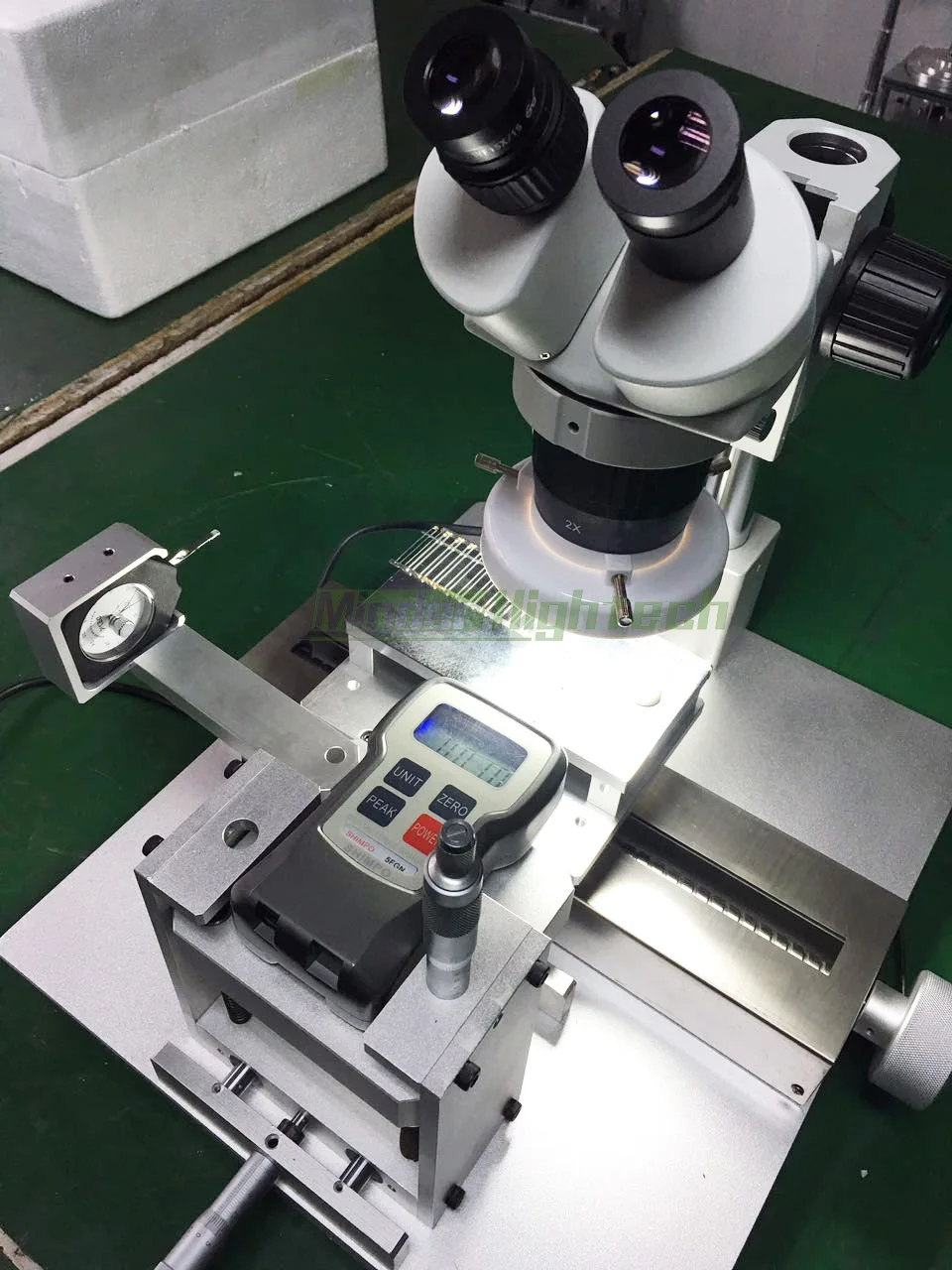

Introduction:

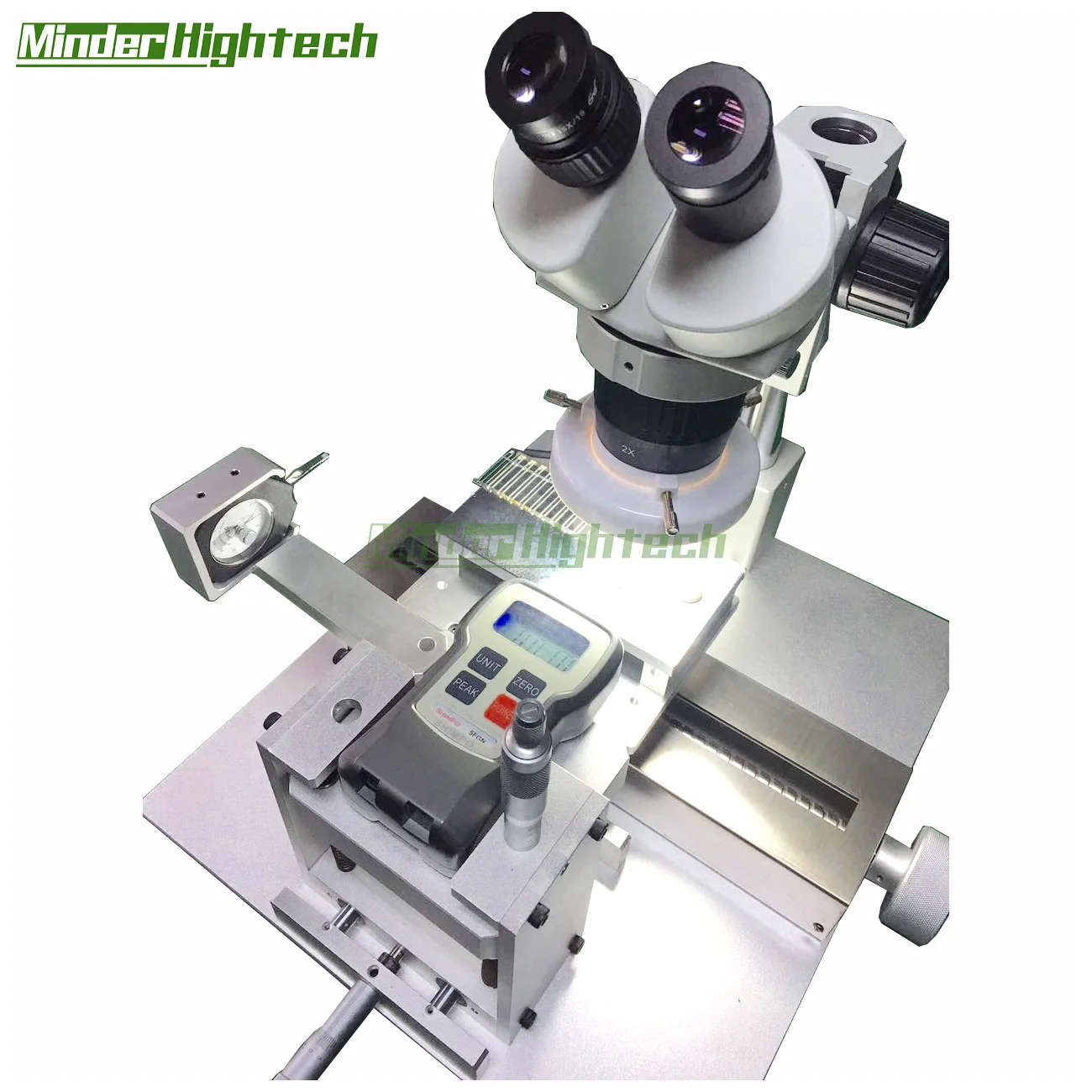

This pull tester is designed for testing the pull strength of the wire and the push strength of the gold ball on the chip and the die bonding strength(COB).
Specification：
Dimension |
350mm*400mm*500mm |
Power in |
220V |
Power |
5W |
Microscope |
15/30X OR 20/40X |
Push strength range |
0-5000G (accuracy: 0.001KG) Meter brand: SP |
Pull strength range |
0-30G (accuracy:1G) Meter brand: DESK |
Jig |
depend on product (Standard jig: COB, DIP ,SMD, High power LED) |
Precision lead screw |
stroke:200MM |
Micrometer |
0-25MM (2 pcs) |
Precision slide |
4PCS |
Weight |
30kg |

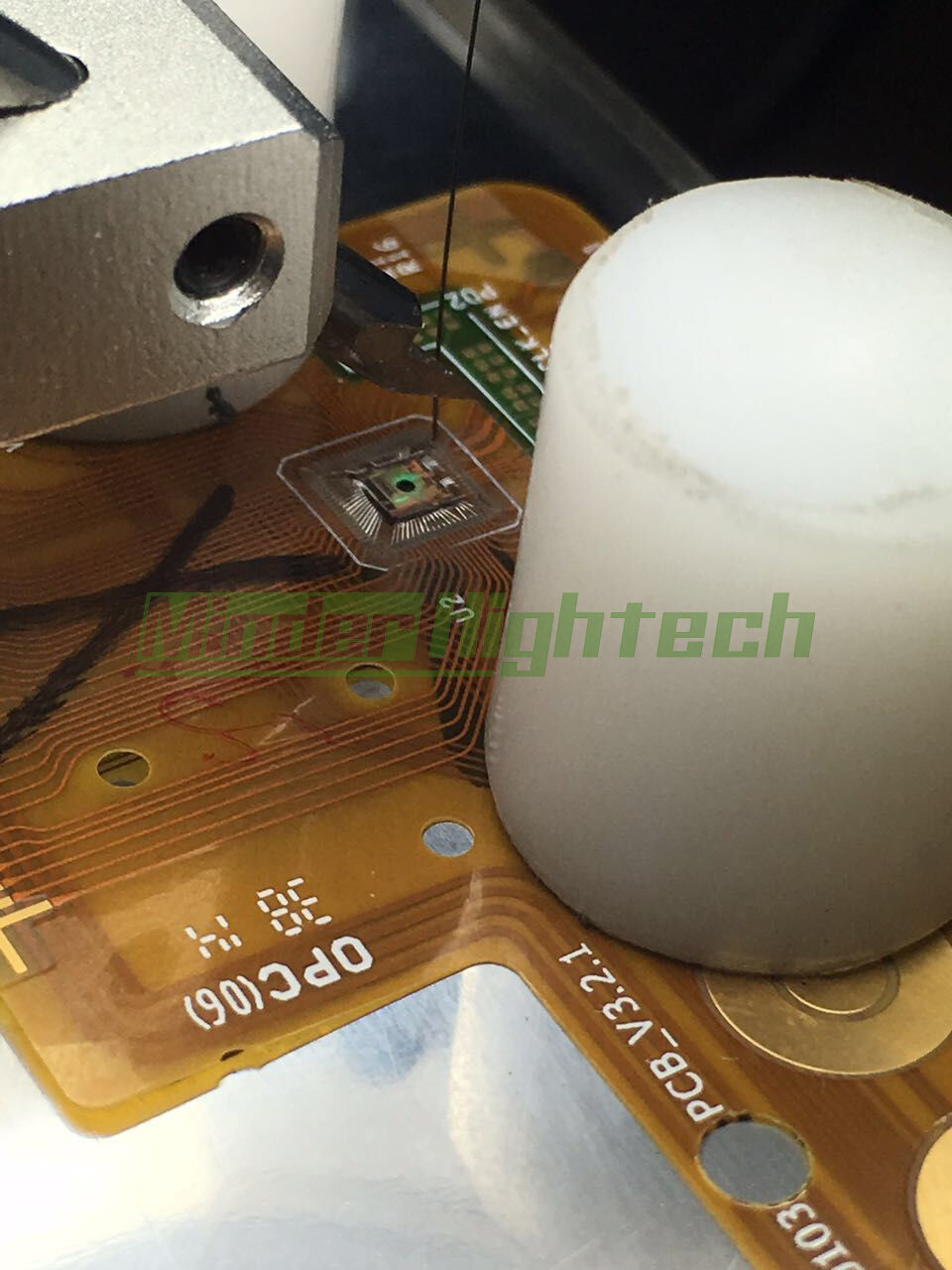

Push-pull force test magnetic clip fixture:

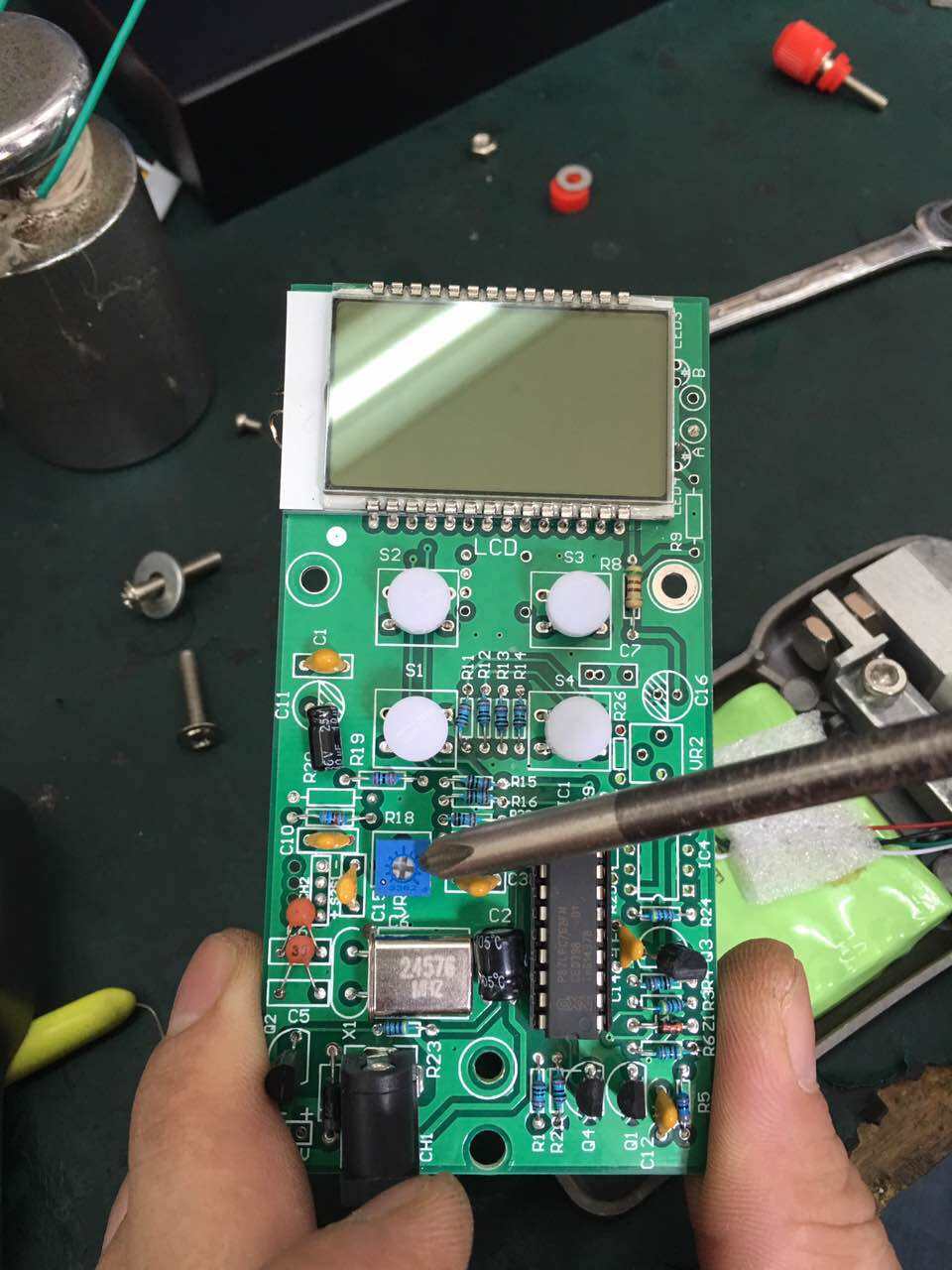

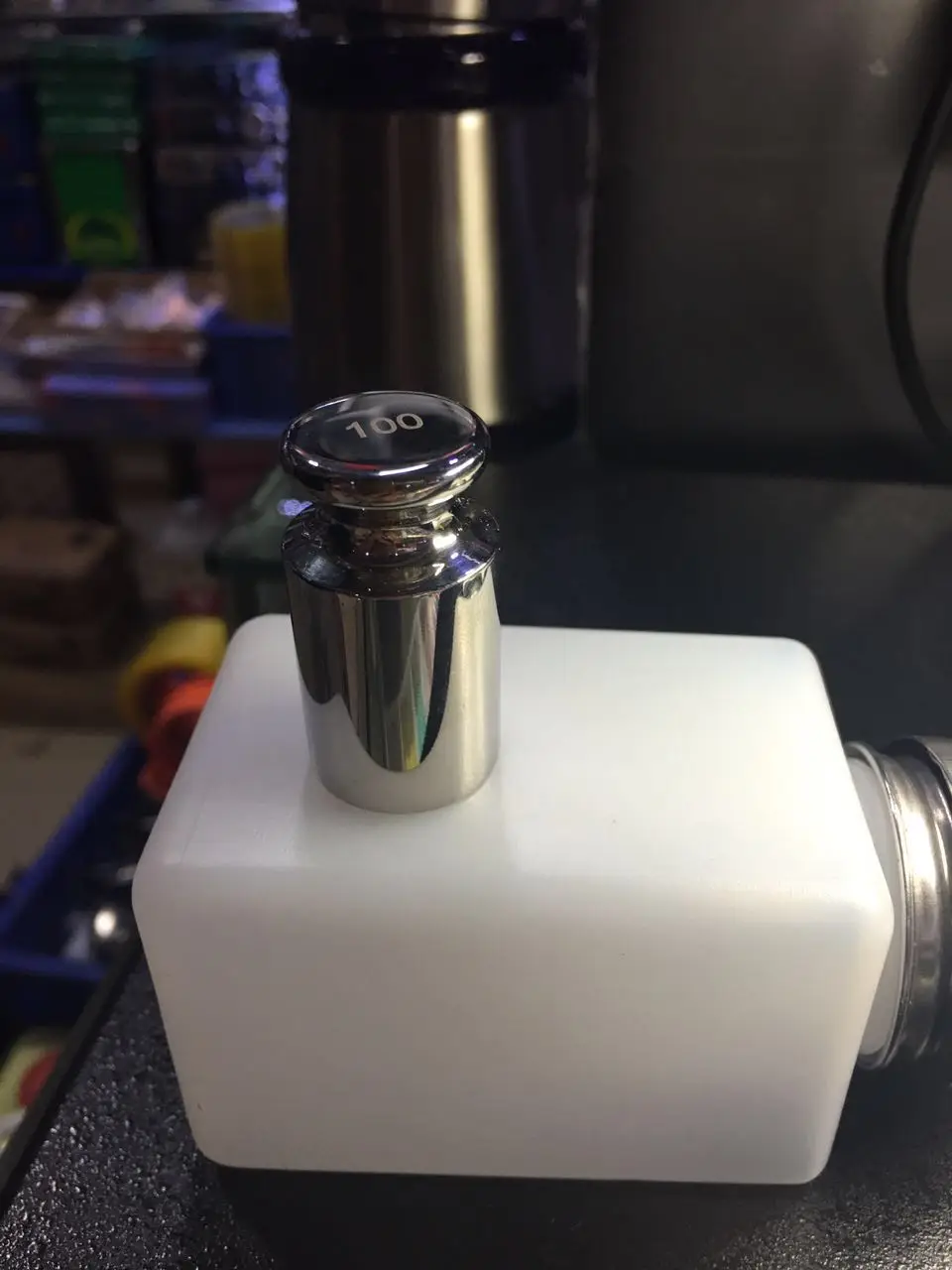

Thrust meter calibration:

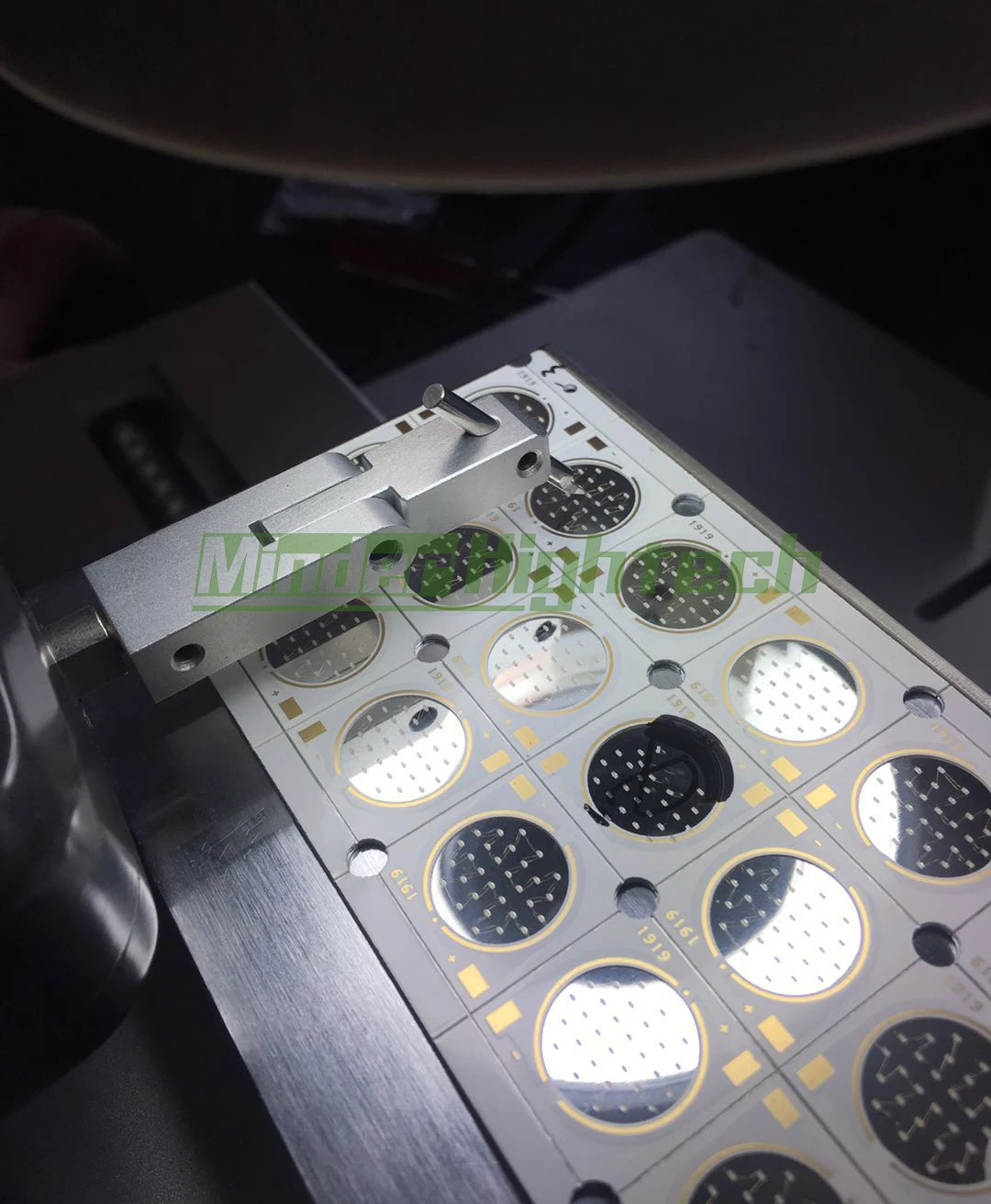

ball shear testing:
Operation:
