Equipment Features:

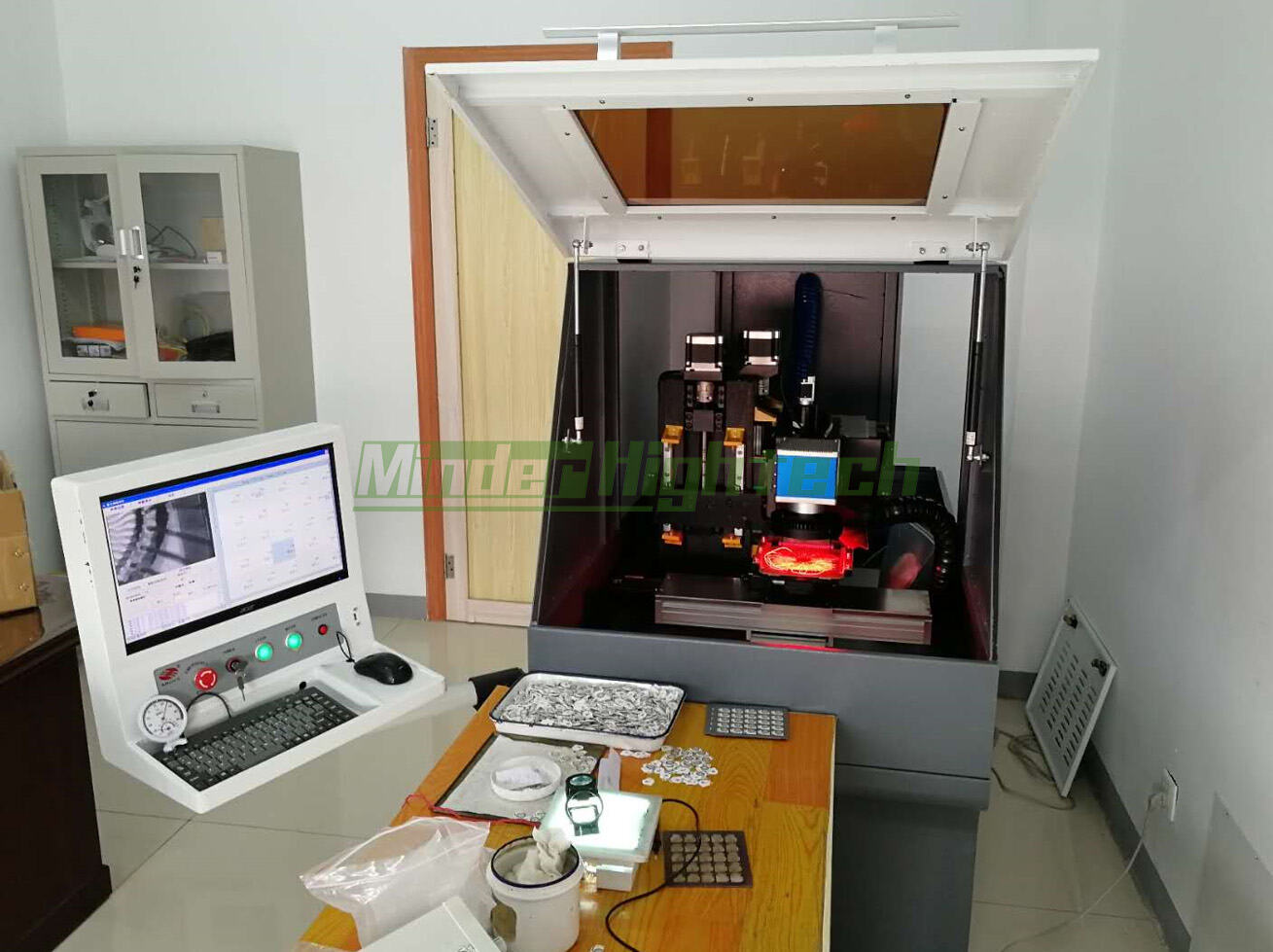

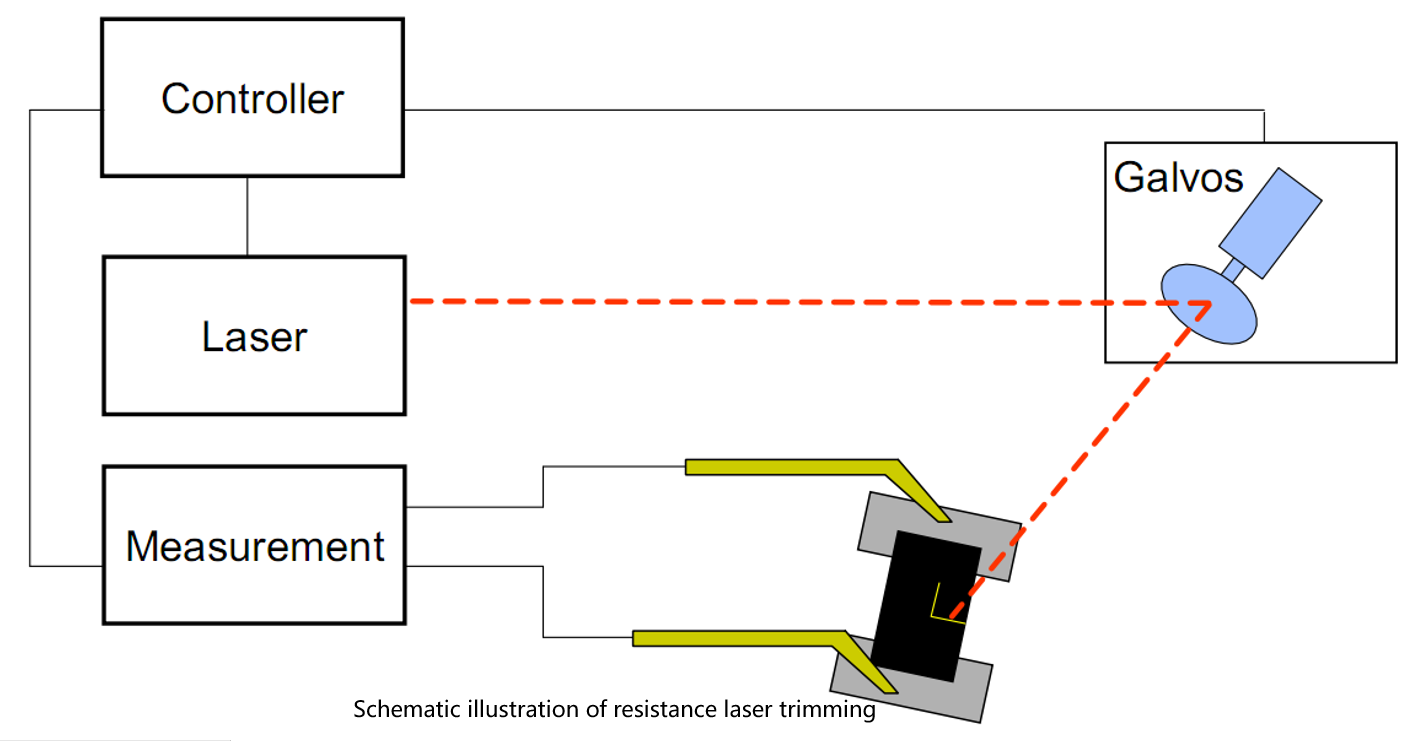

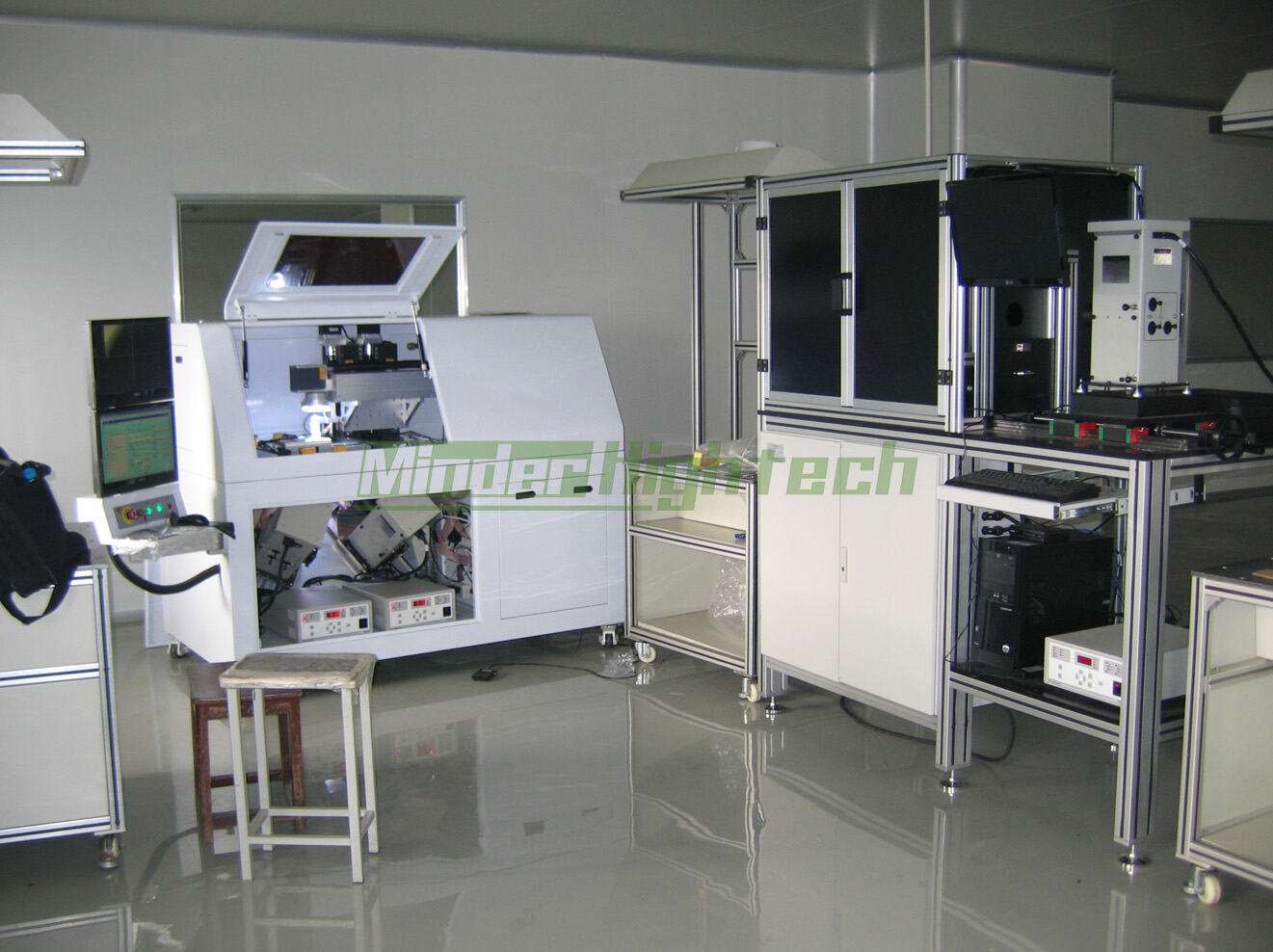

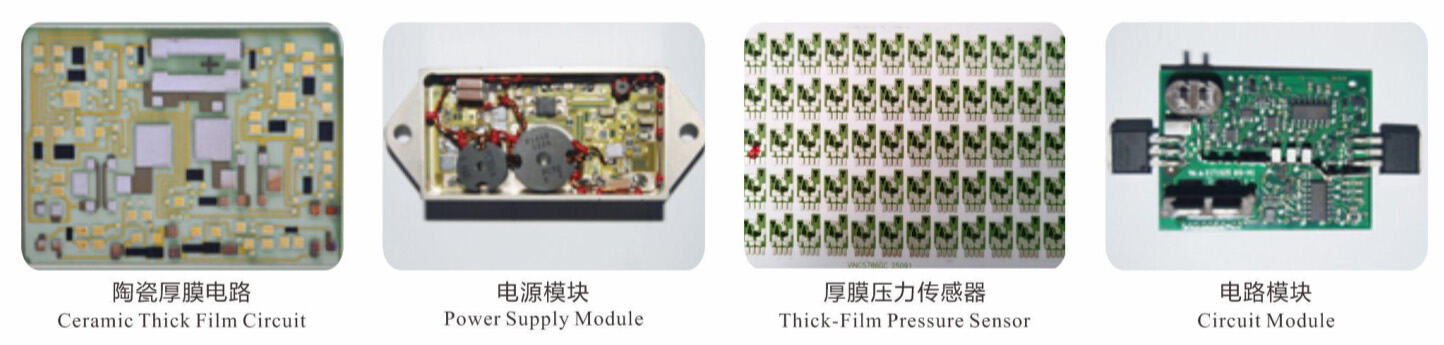

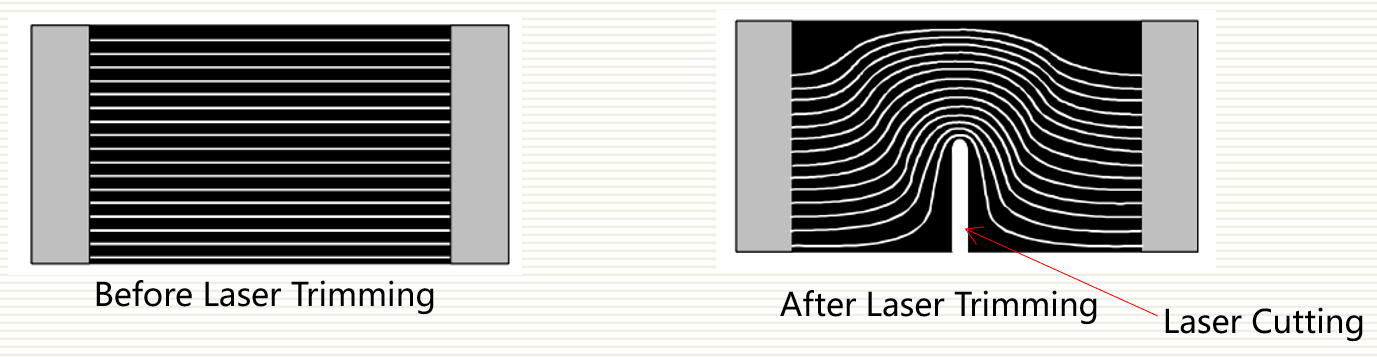

1. This equipment is designed for laser trimming of high-end thick-film circuits. Its core components feature imported configurations.
2. Including a solid-state laser imported directly from Germany for superior cut quality.
3. Equipped with a high-precision linear motor XY platform,
4. It incorporates achromatic imaging technology and image recognition positioning capabilities. The latest generation measurement and control system delivers outstanding measurement accuracy and speed.
5. The marble worktable ensures excellent machine stability.
Technical Parameters:
Model |
MDSG-LT70 |
Laser wavelength |
1064nm |
Laser power |
7W@10KHz |
Typical Spot Size |
35μm |
Focusing Method |
Automatic, computer program controlled. |
Cooling Method |
Air cooling |
Laser Beam Movement Range |
50mm x 50mm (optional) |
Movement resolution |
1μm |
Repeat Positioning Accuracy |
±2.5µm |
Movement Mode |
Linear motor with grating ruler |
Motion Range |
300mm*300mm |
Repeat Positioning Accuracy |
±1.5µm |
Resistance Measurement Method |
4-wire measurement |
Resistance Measurement Accuracy |
±0.02% (medium resistance) |
Resistance Measurement Range |
0.1Ω-50MΩ |
Measurement Speed |
4µs/measurement |
Zero and Full-Scale Error Correction |
Automatic correction |
Probe Definition |
Programmable arbitrary setting |
Probe Card Specification |
Standard P48, ESI brand compatible. |
Equipment Dimension |
1430 x 913 x 1747mm |
Weight |
617Kg |
Operating Conditions (Water, Electricity, Gas) |
Humidity: <70%; Power supply: AC 220V 2.5kW; Compressed air: <0.6MPa, <40L/min |
