Automatic Wire Bonder for TO-220 TO-3

Model: MDAWB-3721

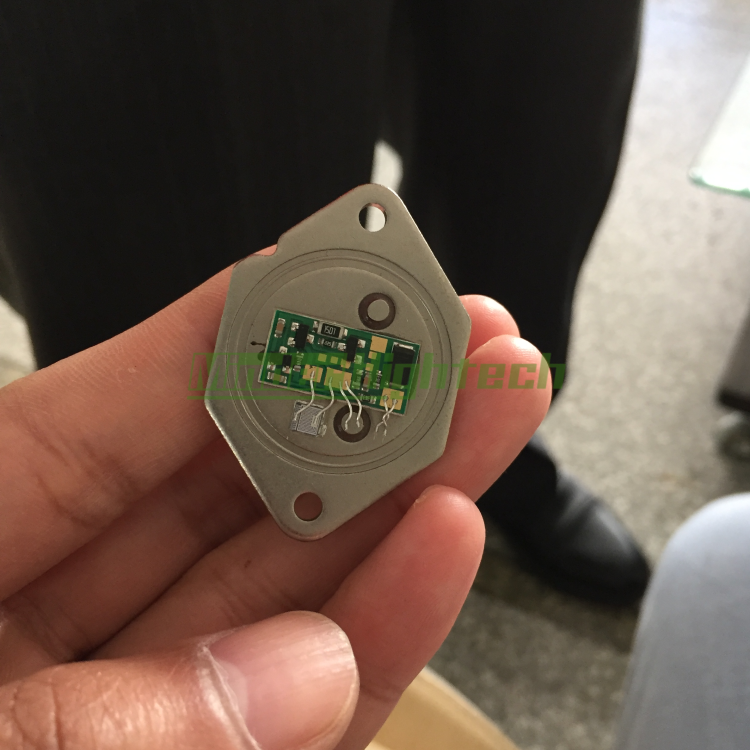

Applications: mainly used in the TO - 220, TO - 3 p encapsulating large, medium power transistor, SCR, field effect tube, large current fast recovery rectifiers, schottky diode semiconductor power devices in welding lead.
Get a Free Quote
Product Description

MDAWB-3721 Wire Bonder for TO-220

Automatic ultrasonic thick aluminium wire welding press MDAWB-3721, national first using spin welding head way, adopting digital automatic frequency tracking ultrasonic system, digital control of pressure regulating function, first-class image recognition device, full closed-loop motion control circuit. Really realize China coarse aluminium wire bonding machine fully automated
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press factory
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press supplier
Features
To adopt advanced technology for image recognition and homing technology, realized the automatic and accurate positioning of solder joints.

Strong rich digital ultrasound to ensure the solder joint quality is stable and reliable.
Automatic frequency tracking ultrasonic system and reasonable welding head design to ensure the quality of the solder joints.

Original digital pressure control system to ensure constant output to ensure the consistency of the solder joints. blanking agencies use a variety of electronic induction on institutions and get an electric shock control, to ensure the reliability of the automatic up-down material
The reasonable design of fixture and unique way of feeding to ensure the welding quality and greatly improve the work efficiency.

Precision mechanical transmission mechanism and reliable industrial computer and independent intellectual property rights of software to ensure the precision of the welding position.

Has no weld, pay-off anomalies on a variety of fault alarm stop function, greatly reducing the roa, not at the same time, greatly increased the production. More operable and humanization.

Optional automatic welding line tension testing device, can be more effective is the supervision of the welding line quality.

Adopt computer control, operation interface in Chinese new employee training can operate on its own one day, a month can be skilled Operation, one person can operate more machine at the same time, greatly improving the work efficiency
Applications
MDAWB-3721 is mainly used in the TO - 220, TO - 3 p encapsulating large, medium power transistor, SCR, field effect tube, large current fast recovery rectifiers, schottky diode semiconductor power devices in welding lead.
Detail
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press factory
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press supplier
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press supplier
Specification
Power supply: 220 vac plus or minus 10%, 50 hz, reliable grounding, maximum rate of about 800 w
Drive source: 4 ~ 6 kg/C ㎡
Ultrasonic power: 0 ~ 30 w, one, two welding automatic switching
Weldable aluminium silk diameter: 125 ~ 500 um (5 ~ 20 mil)
Welding time: 10 ~ 500 ms, 2 channel
Welding stress: 30 ~ 1200 g, 2 channel
Welding speed: about 1300 ~ 1300 / h (TO - 220 double)
Welding Angle: - 90 ~ 90 degrees
The visual system: PR microscope magnification of 0.5 times
PR floodlight: white light, brightness is adjustable
Shape size: 1260 mm * 1860 mm * 760 mm
Weight: 480 kg
Power supply:
220 vac plus or minus 10%, 50 hz, reliable grounding, maximum rate of about 800 w
Drive source:
4 ~ 6 kg/C ㎡
Ultrasonic power:
0 ~ 30 w, one, two welding automatic switching
Weldable aluminium silk diameter:
125 ~ 500 um (5 ~ 20 mil)
Welding time:
10 ~ 500 ms, 2 channel
Welding stress:
30 ~ 1200 g, 2 channel
Welding speed:
about 1300 ~ 1300 / h (TO - 220 double)
Welding Angle:
- 90 ~ 90 degrees
The visual system:
PR microscope magnification of 0.5 times
PR floodlight:
white light, brightness is adjustable
Shape size:
1260 mm * 1860 mm * 760 mm
Weight:
480 kg
Factory
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press factory
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press supplier
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press supplier
Why Choose Us
We have many senior experts in the welding industry, skilled in craftsmanship, and can provide long-term and perfect technological services.
Pre-sale and after-sale technical support, 7*24 hours engineer service online.
Complete product technical training to ensure that customers use high-quality and stable equipment.
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press factory
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press details
Packing & Delivery
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press manufacture
Automatic wire bonder machine MDAWB-3721 wire Bonder for TO-220 TO-3 Automatic ultrasonic thick aluminium wire welding press factory

FAQ

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.



2. About Sample:

We can provide sample production services for you, but you may provide some fees.



3. About Payment:

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.



4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.



5. Installation and Debugging:

After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.



6. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.



7. After-sale Service:

All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
