Products Description

1. Operation with handheld LCD panel teach box, which is easy to program and learn. 2. Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path. 3. Excellent teaching function to support array, graphical browsing, three dimensional elliptic, common graphical library inserting, group editing and so on. 4. MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents. 5. The size of glue, speed of glue spread, dispensing time, time of halting dispensing can be set by parameters. 6. With Second special dispensing controller, glue outflow is quite stable without leaking and dripping. 7. The function of automatic gel prevention can effectively prevent glue curing from jamming needle head. 8. Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD, Coral Draw, etc. ) to generate a variative of file formats(such as, . NC, . AI, . DXF, . JPG, . BMP, scanner, etc. ） 9. It is applied to fluid dispensing, such as, UV glue, AB glue, COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.

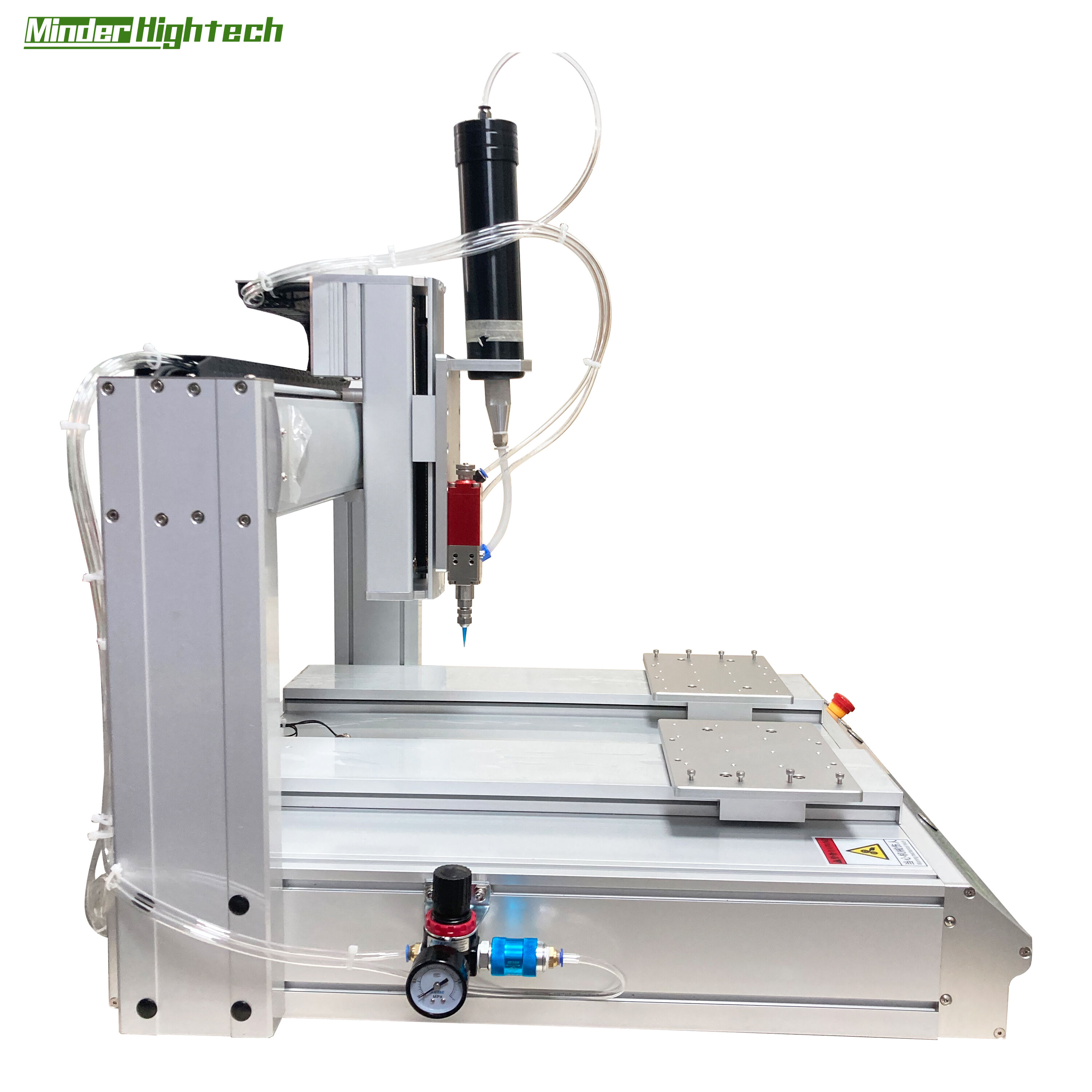

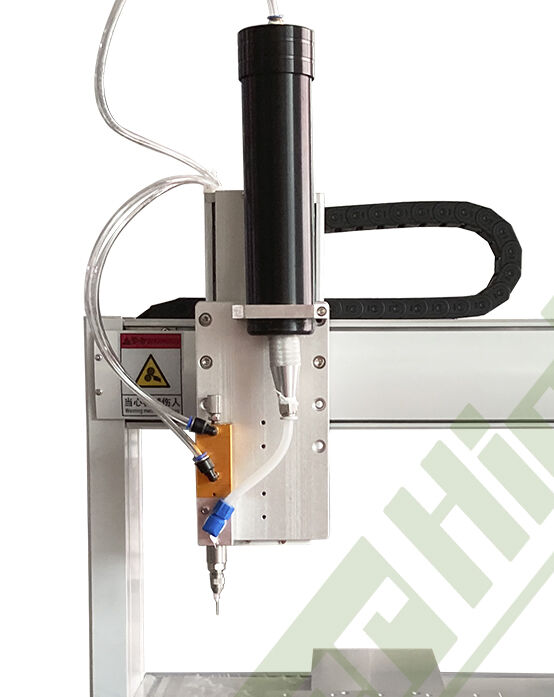

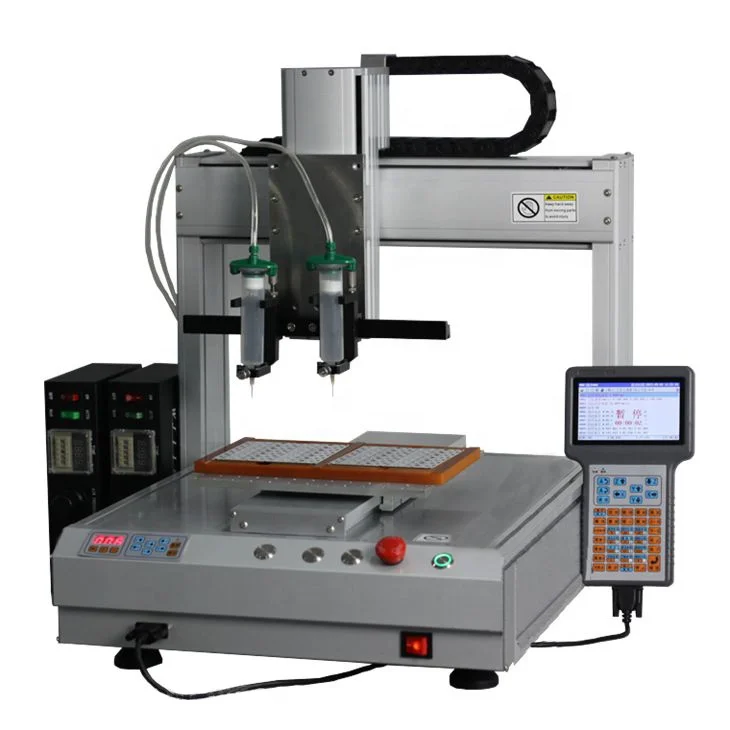

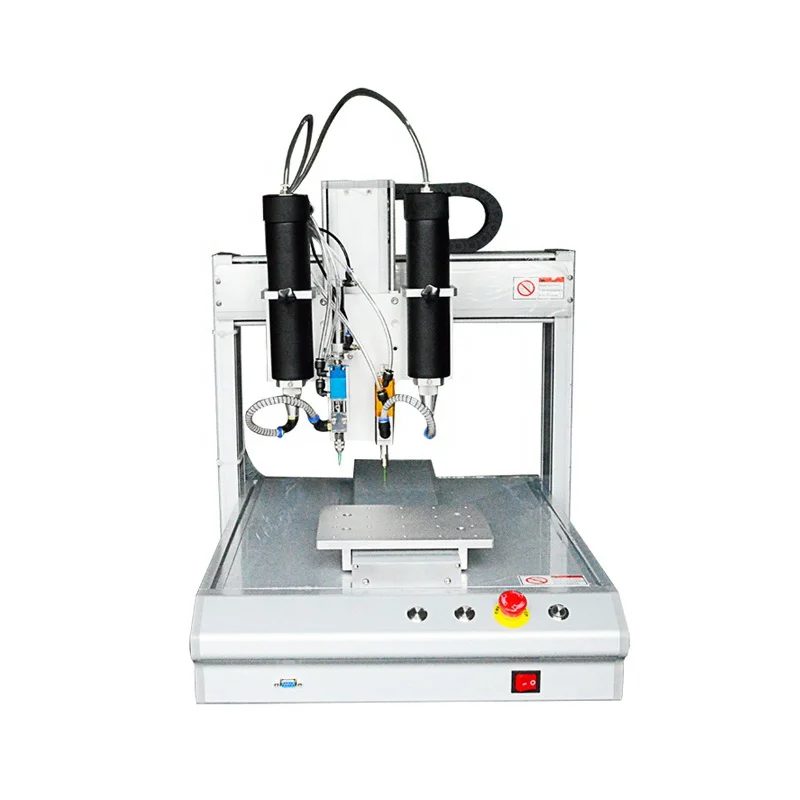

Syringe dispenser single Y single head

PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine manufacture

PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine details

R-axis rotary syringe dispensing machine

PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine supplier

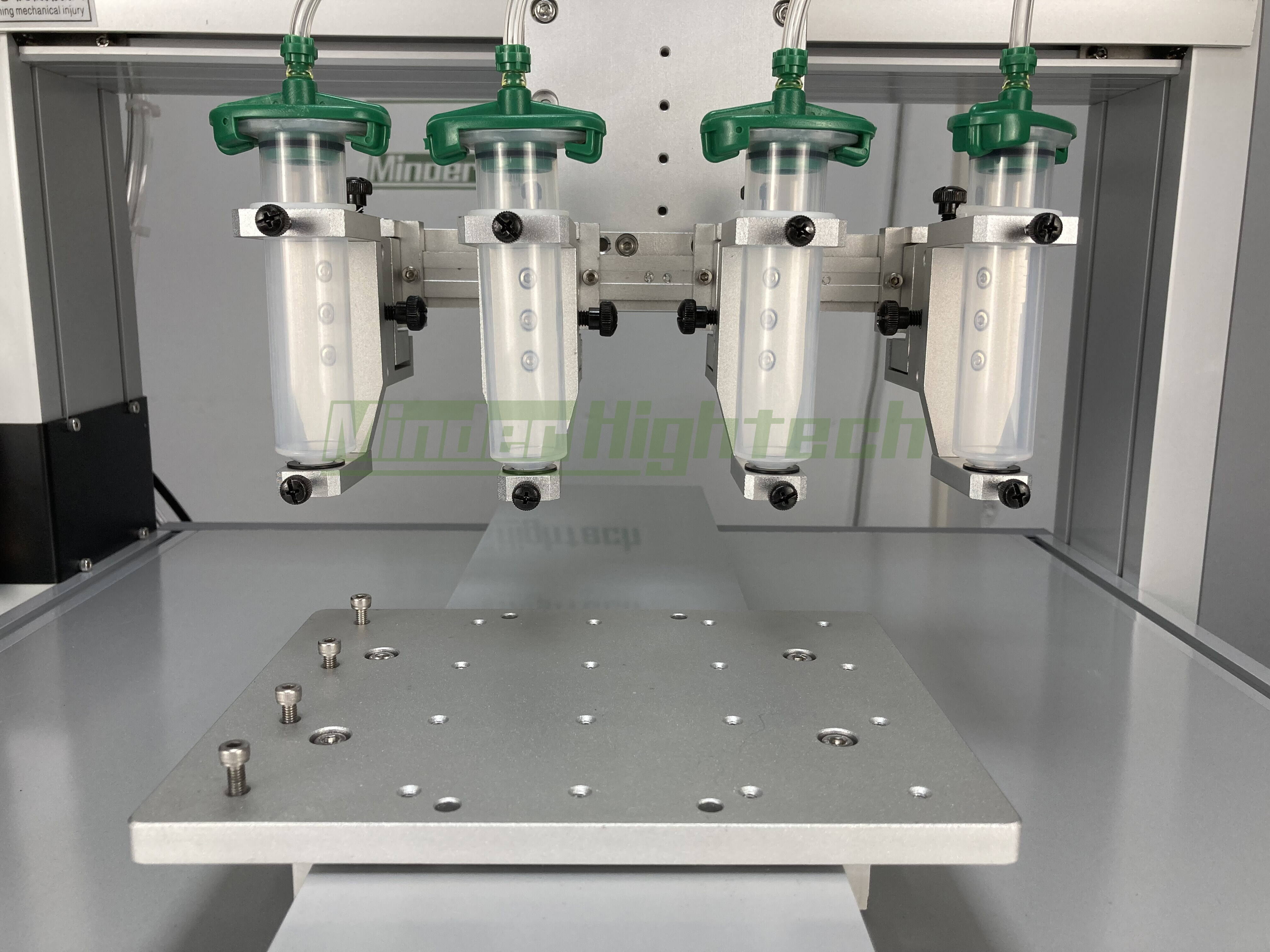

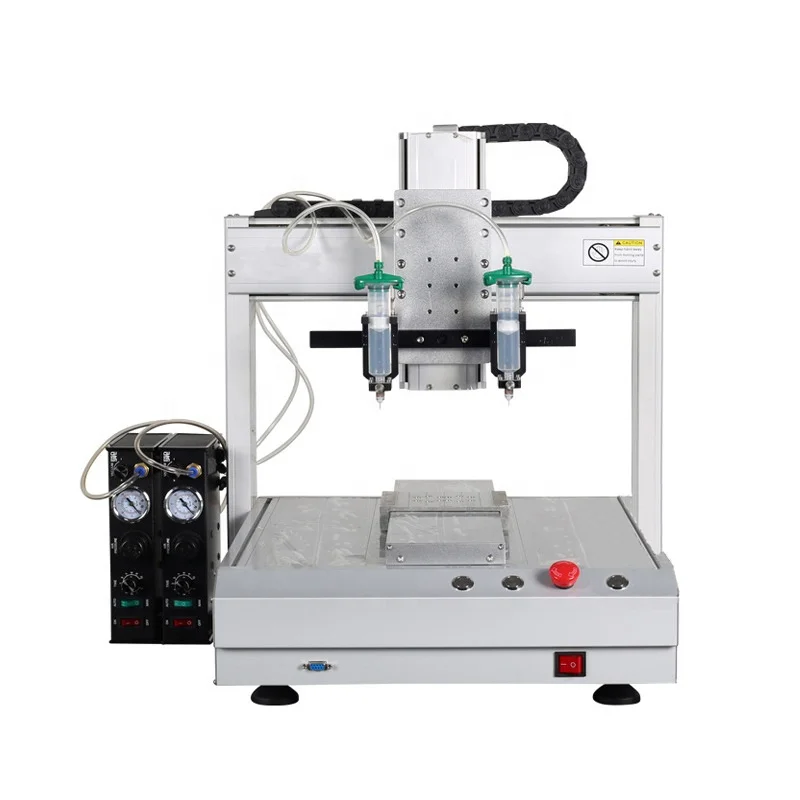

Syringe dispenser single Y 4 syringe

Feature

• Desktop type, can be placed on the production line.
• DIY mode, free matches of axis and heads, head number range is 1~12.
• Optional Full English marked machine body, to be international application.
• Multi-axis design with high rigidity aluminum alloy.
• Double Y axis type, automatic working alternatively, saving the time of placing object.
• The glue automatic feeding, safe and silence.
• Main components of the machine are high quality, ensure the reliability and accuracy.
• Optional Interface of English/Chinese.
• Fixture and tooling available. Contact us for customization.

Specification

Model Limit size (700 * 700mm)

MD-DD-T3311

MD-DD-T4411

MD-DD-T5511

MD-DD-T53311

MD-DH-T3311R

MD-DH-T4411R

MD-DH-T5511R

MD-DH-T53311R

Stroke X

300mm

400mm

500mm

300mm

400mm

500mm

Stroke Y1

300mm

400mm

500mm

300mm

400mm

500mm

300mm

Stroke Y2

300mm

Stroke Z

100mm

Dispensing cylinder

3CC/5CC/10CC/30CC/55CC/100CC/200CC/300CC/500CC

Min discharge

0.01ML

The glue frequency

5 times/sec

Environmental requirements

Temperature: 5℃-40℃, Humidity: 20%-90%

Max Load

Synchronous belt: 8kg/3kg, Precision guide way: 8kg/3kg

Transmission mode

stepping motor （ customized servo motor）

Dispensing head

Plastic needle/TT needle

Moving method

point to point/linear/circle

Programing interface

teaching box/PC

Position accuracy

+-0.01mm

Repeat accuracy

+-0.01mm

Speed

0.1-800mm/sec

Available Graph

line/circle/arc/continuous line/3d irregularity line

Program storage

100groups/1000points per group

Port

RS232

Drive mode

Guide

Taiwan HIWIN guide rail

Wire road

HIWIN screw rod

Belt

Italy Lartey synchronous belt

Power

AC 110V-220V/50/60Hz

Air

0.5Mpa

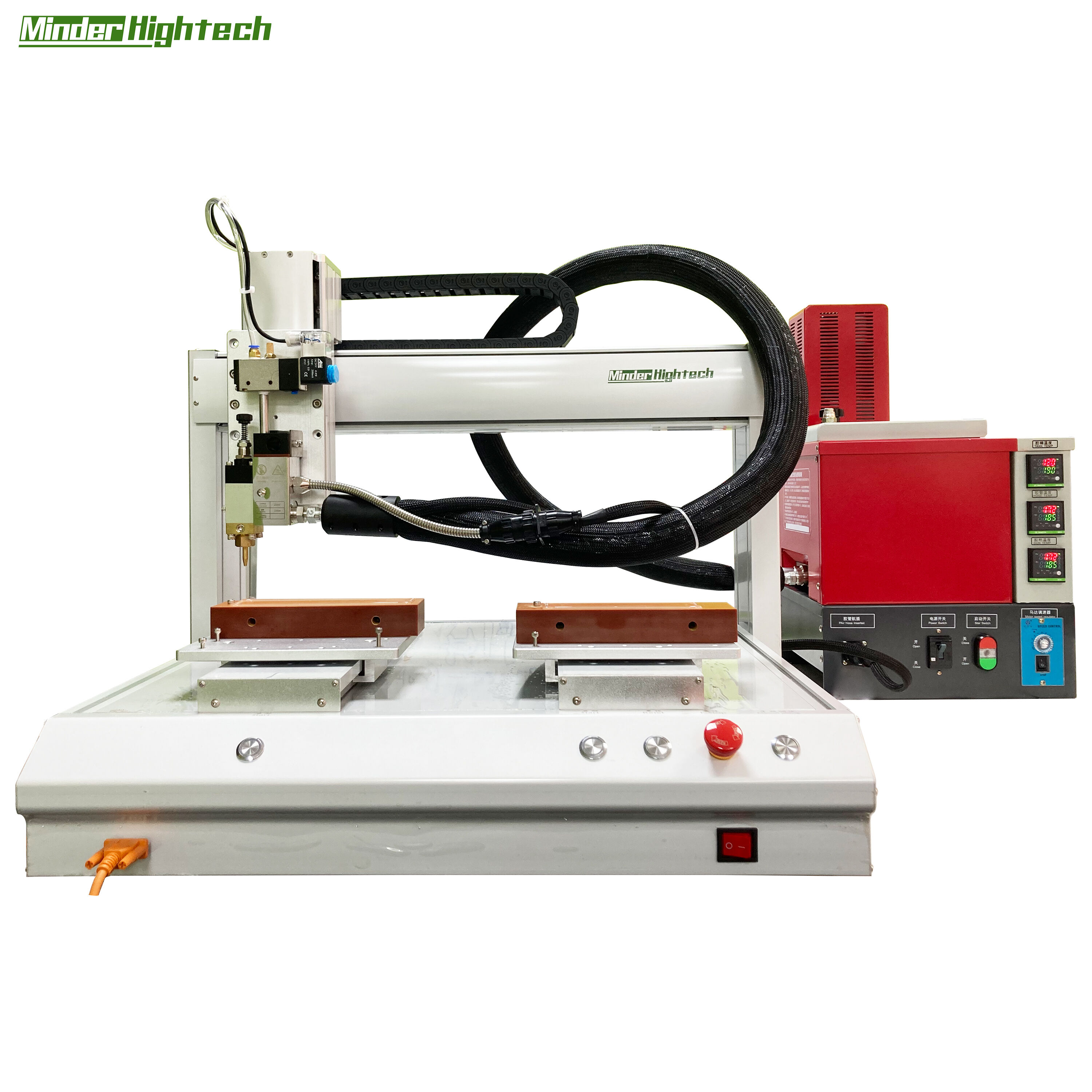

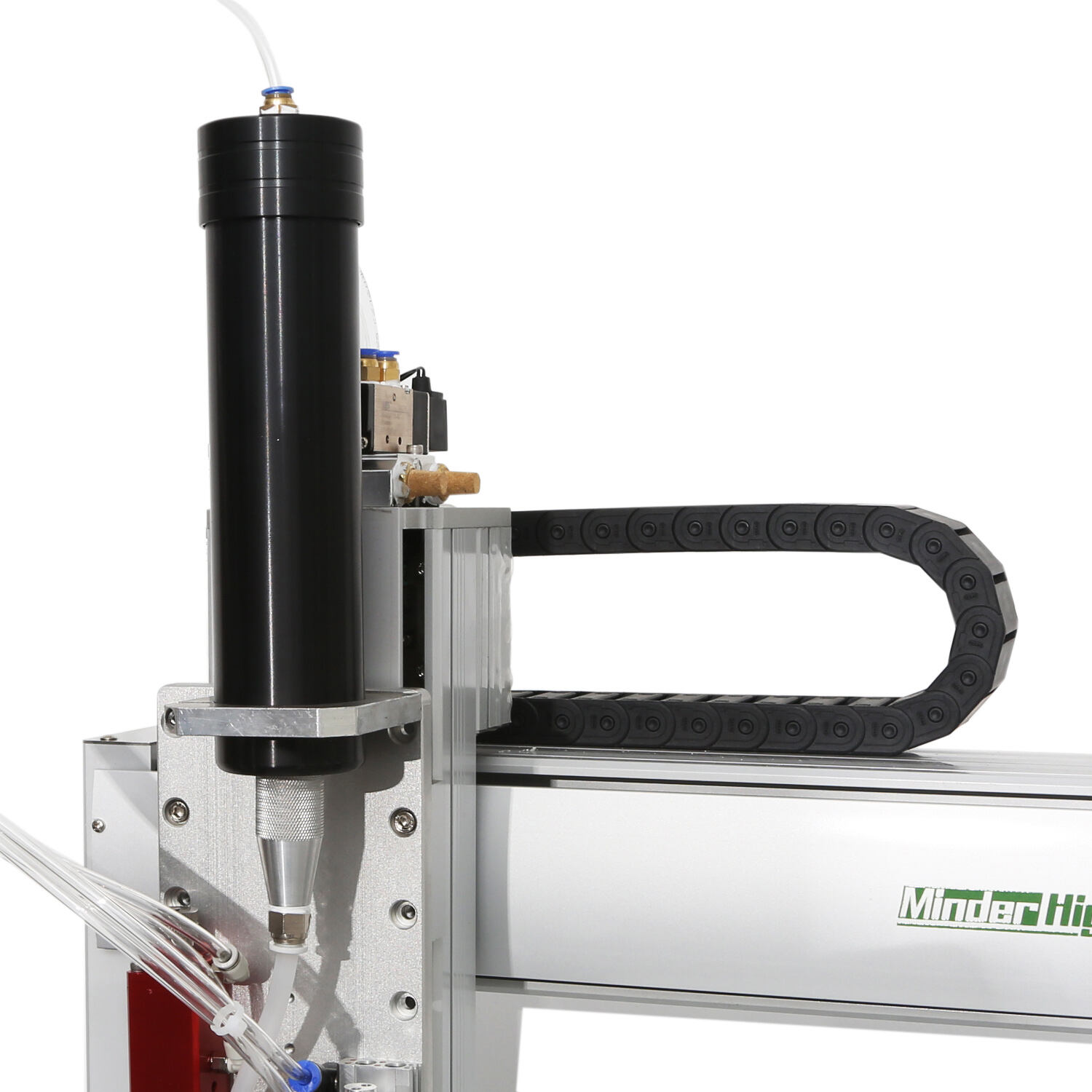

10CC/30CC Hot melt glue dispenser

Specification

Model	MD-DH-T3311	MD-DH- T4411	MD-DH-T5511	MD-DH-T53311	MD-DH-T54411
Stroke X	300mm	400mm	500mm	500mm	500mm
Stroke Y1	300mm	400mm	500mm	300mm	400mm
Stroke Y2	no	no	no	300mm	400mm
Stroke Z	100mm	100mm	100mm	100mm	100mm
Rotary R axis	No R axis(optional with R axis customized)
Rated speed	500mm/s (X-Y-Z), Max: 1000mm/s
Syringe needle	Default 1 PCs (optional 2 PCS)
Glue thickness	0.3-1.6mm
Temperature	normal—200℃
Heating	150w, 30 second to 200℃
Drive	Precision stepping motor/servo motor+synchronous belt/ball screw
Motion mode	Point to point; line; circle
Positioning Accuracy	+- 0.02(mm)
Program	Control Teaching Box/PC
External	RS232
Program storage	100groups/1000points per group（computer）
Power	3*220V50/60Hz
Air	0.5Mpa

5L/10L Hot melt glue dispenser

Specification

Model	MD-HT3311	MD-HT4411	MD-HT5511	MD-HT53311	MD-HT54411
Stroke X	300mm	400mm	500mm	500mm	500mm
Stroke Y1	300mm	400mm	500mm	300mm	400mm
Stroke Y2	no	no	no	300mm	400mm
Stroke Z	100mm	100mm	100mm	100mm	100mm
Rated speed	500mm/s (X-Y-Z), Max: 1000mm/s
Heating tank capacity	5L/10L
Glue thickness	0.3-1.6mm
Temperature	normal—250℃
Heating	150w, 15 second to 250℃
Drive	Precision stepping motor/servo motor+synchronous belt/ball screw
Motion mode	Point to point; line; circle
Positioning Accuracy	+- 0.02(mm)
Maximum viscosity	100000CPS
Glue melting speed	7kg / hour
Glue output	1ml-15ml (optional)
Program	Control Teaching Box/PC
External	RS232
Program storage	100groups/1000points per group（computer）
Power	110v/220V50/60Hz
Air	0.5Mpa

Feature

1. The temperature is uniform and the temperature deviation is ± 1 ℃.
2. Hot melting point glue head with different capacity can be selected.
3. Glue out smoothly, break glue simply, do not draw wire.
4. Advanced motion control algorithm, can paint point, line, plane, arc, circle and other irregular shape, automatic interpolation function.
5. The size, flow rate, speed, time of glue all can be set flexible.
6. suitable for the rod type, grain type etc hot melt glue and all types of hot melt adhesives.

Product Description

The Silicone dispensing robot series multi-function glue machine has the function of complete functions, uniform glue, simple operation, etc. The glue can be adjusted freely. It is suitable for the application of round objects in various types of assembly lines. It is an essential equipment for bulbs, pots, solar energy, circular industrial products, and electro-acoustic components. The machine control uses a single-chip CMOS integrated circuit and an advanced, highly reliable and non-contact thyristor as the control system. It has the characteristics of fast switching speed, high working frequency, long life and no noise operation. The selected components of the machine are carefully screened, all of which are made of high quality components, which can work continuously for a long time. The dispenser is an automated machine that specifically controls the fluid and drops or coats the fluid onto the surface of the product or inside the product. The machine is mainly used for glue, paint and other liquids in the product process, precise point, injection, coating, dripping to the precise position of each product, to achieve dot, line, round or arc.

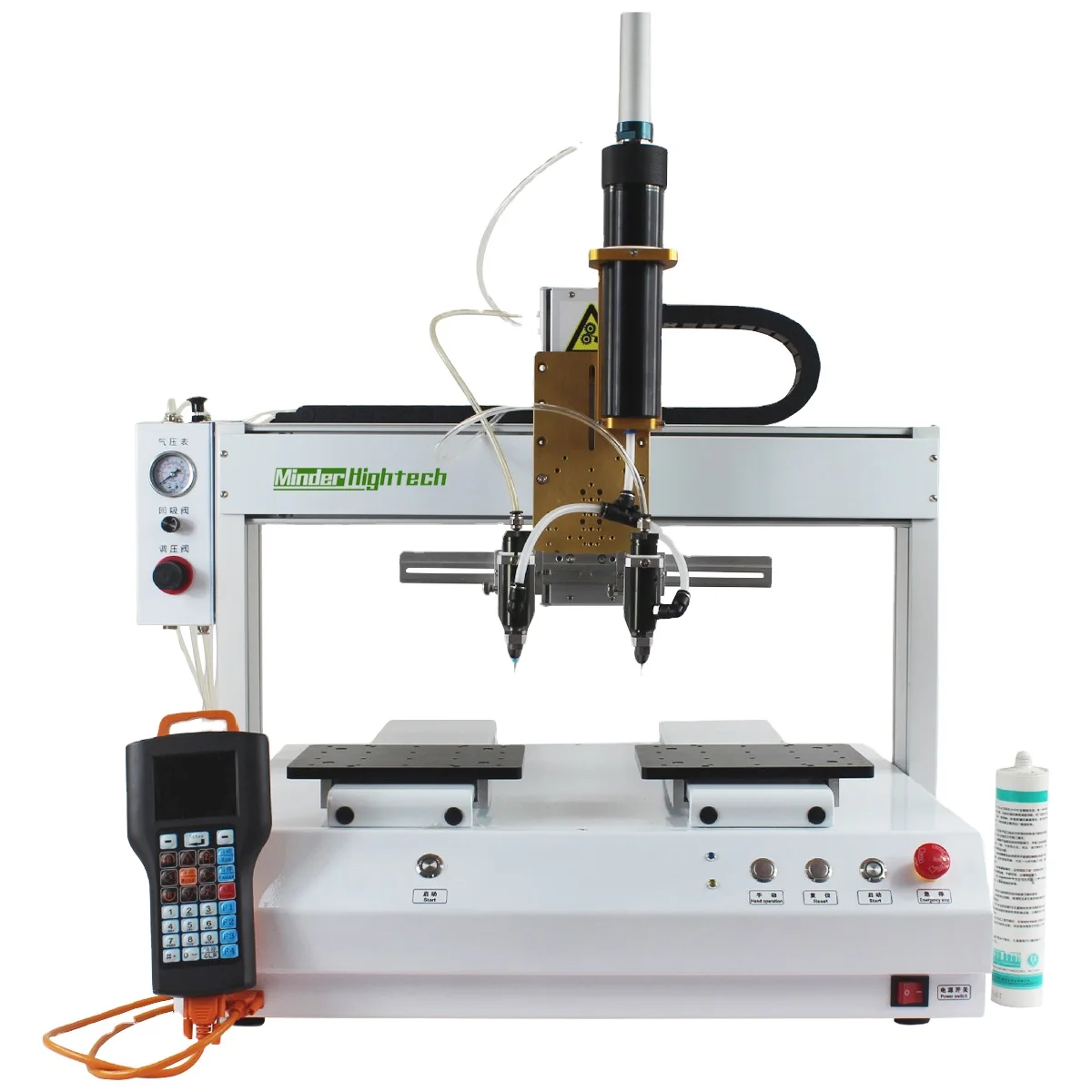

Silicon dispenser dual Y without R axis

Single component Silicone dispensing robot

Specification

Model	MD-DD-T3311	MD-DD-T4411	MD-DD-T5511	MD-DD-T53311	MD-DD-T54411
Stroke X	300mm	400mm	500mm	500mm	500mm
Stroke Y1	300mm	400mm	500mm	300mm	400mm
Stroke Y2	no	no	no	300mm	400mm
Stroke Z	100mm	100mm	100mm	100mm	100mm
Glue capacity	300ml-330ml
Driving method	stepping motor / servo motor
Applicable viscosity value	≤10000cps
Gluing time	0.8-5 S / time
Glue amount	0.01-5 ml /time
Spit frequency	1-250 (times / minute)
Moving method	point to point/linear/circle
Programing interface	teaching box/PC
Repeat accuracy	+-0.02mm
Speed	0.1-800mm/sec
Available Graph	line/circle/arc/continuous line/3D irregularity line
Program storage	100groups/1000points per group
Port	RS232
Power	AC110V- 240V/50Hz
Air	0.5Mpa

Function and characteristics

1, Newly improved design of the glue machine line, the whole machine power dose not exceed 15W
2, Two-piece air source input structure. After the air pressure comes out from the air compressor, the gas contains water and impurities, which causes the solenoid valve to get stuck and loses sensitivity. After adding two-piece, the problem can be improved obviously.
3, The optional precision pressure regulating valve is specially designed to adjust the amount of dispensing glue. Compared with similar products, this regulating valve has more stable air pressure and more accurate air outlet size.
4, Pneumatic accessories: the original Taiwan Air TAC solenoid valve, cylinder; and the slider driven by the cylinder has special treatment to ensure never fall off.
5, Machined brass turntable with hole in the middle and reverse suction function with an accuracy of

0.01 mm
6, Machined brass applicator, compact and convenient, stable and resistant to corrosion
7, Aluminum motor shield to protect the motor
8, All stainless steel casing, beautiful appearance; gas path and circuit are completely separated, eliminating the possibility of moisture corrosion of the gas path affecting the circuit. In addition to the circuit board, other components are distributed in order above the machine for easy maintenance.

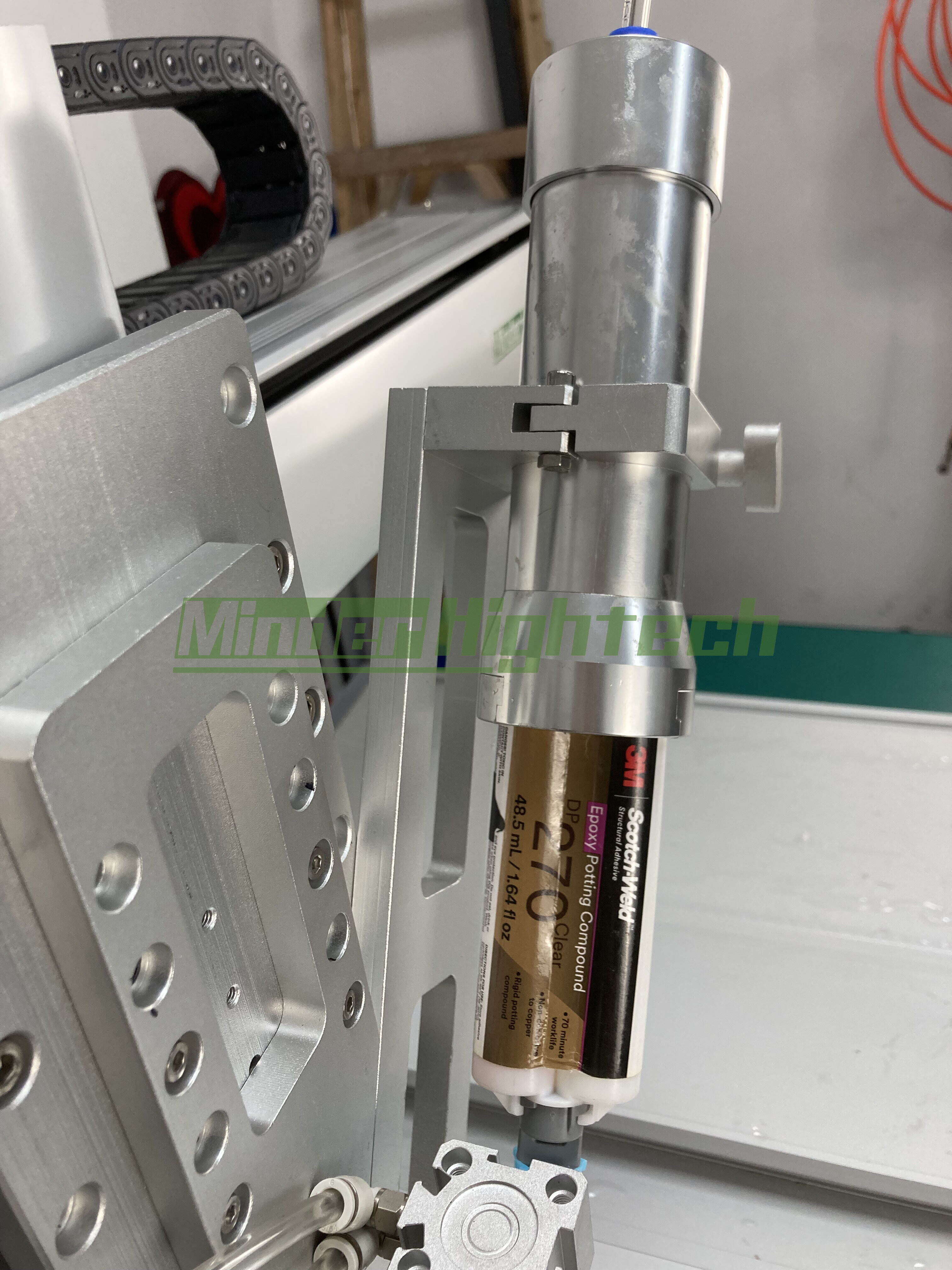

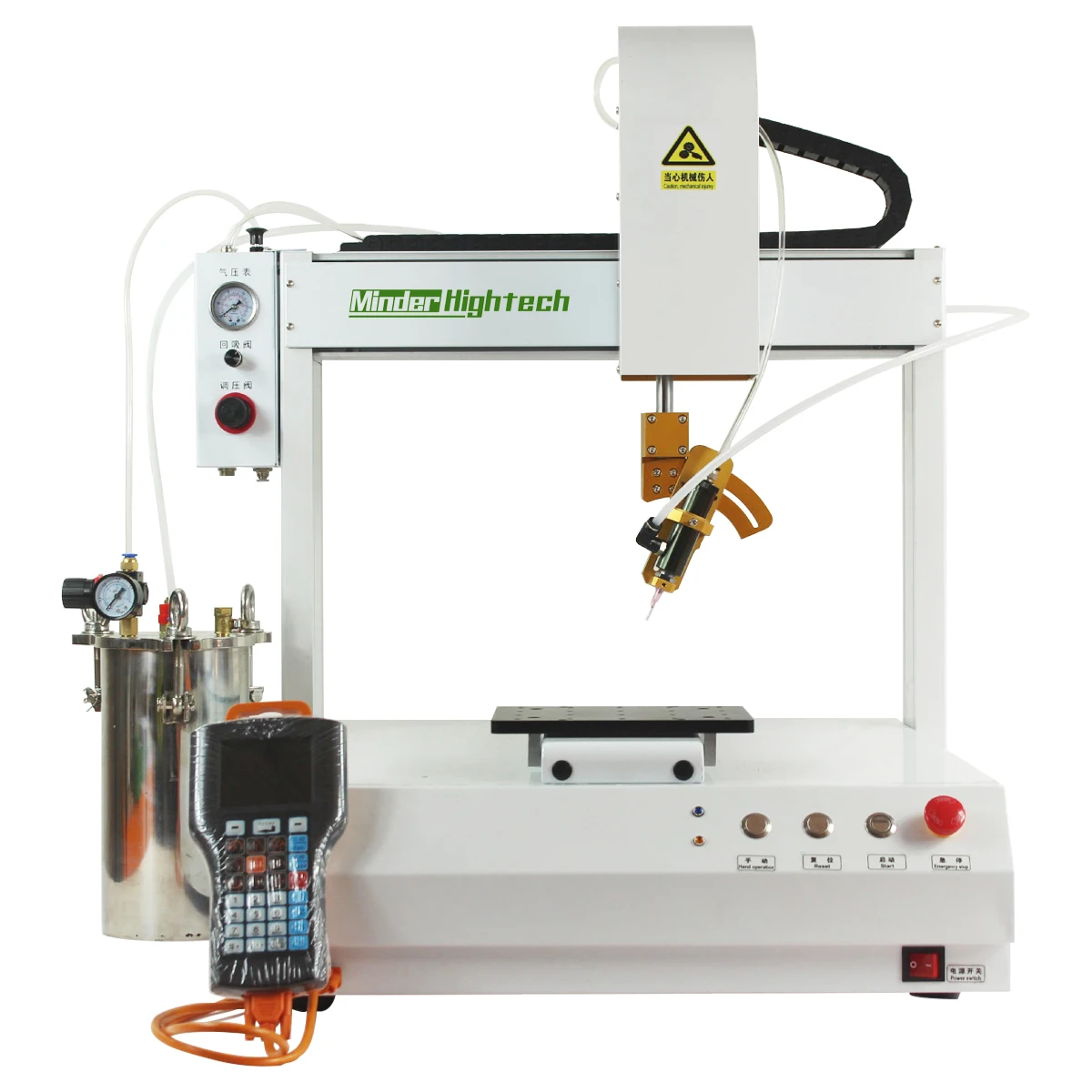

Desktop Automatic AB glue machine

Features:

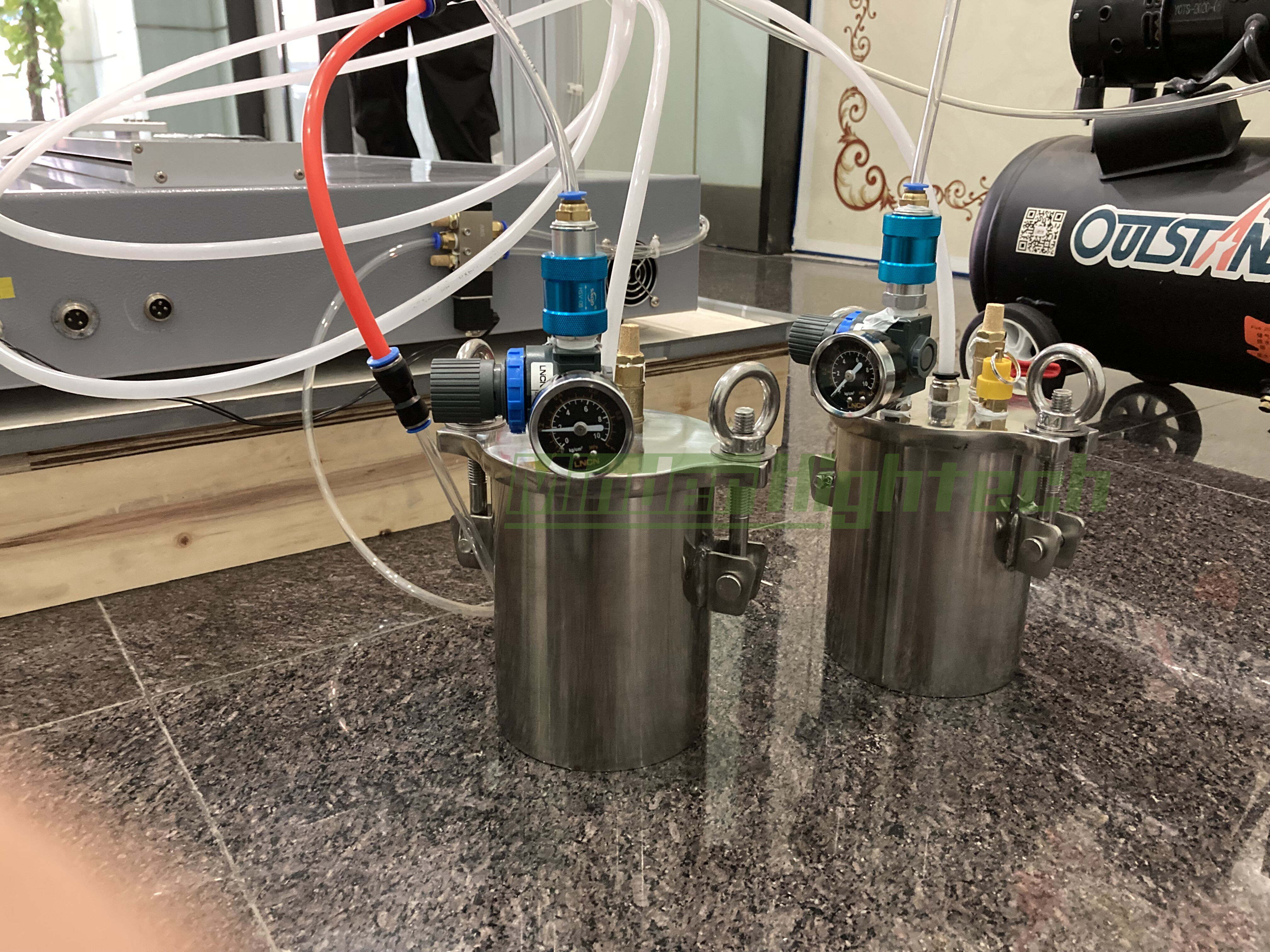

1. The dispenser with a pressure barrel meets the continuous work of the production line.
2. Changing glue is fast and convenient, with low waste rate, saving time for changing glue and increasing productivity;
3. Large capacity, uniform and smooth dispensing, accurate dispensing;
4. Corrosion resistance, pressure resistance, durability, each dispensing cycle has a back suction force, which limitedly solves the serious problem of glue leakage and wire drawing;
5. Built-in tip recalibration sequence for easy dispense tip change alignment. L shape dispense vertically;
6. Material volume, speed, time, pulse time adjustable;
7. Automatic anti-curing function avoid needle clogging and dripping, outflow of glue is stable.
8. Excellent PC compatibility and Logoshop software enable to import mainstream design software(such as Auto CAD, Coral Draw, etc. ) to generate a variative of file formats(such as, . NC, . AI, . DXF, . JPG, . BMP, scanner, etc. ).

Model	MD-AB3311	MD-AB4411	MD-AB5511	MD-AB53311
Stroke X(head1)	300mm	400mm	500mm	500mm
Stroke X(head2)	0	0	0	300mm
Stroke Y1	300mm	400mm	500mm	300mm
Stroke Y1	0	0	0	0
Stroke Z	100mm	100mm	100mm	100mm
Dispensing system(head)	1
Driving method	stepping motor / servo motor
Moving method	point to point/linear/circle
Programing interface	teaching box/PC
Repeat accuracy	+-0.02mm
Speed	0.1-800mm/sec
Available Graph	line/circle/arc/continuous line/3d irregularity line
Program storage	100groups/1000points per group
Port	RS232
Power	AC 110v-220V, 50/60Hz
Minimum discharge	0.01ml(customized)
Tank capacity	1L/2L/3L/5L/8L/10L/15L/20L/25L/30L/40L/50L(customized)
Main Configuration	Italy Lartey belt
		HIWIN lead rail
		OMRON relay

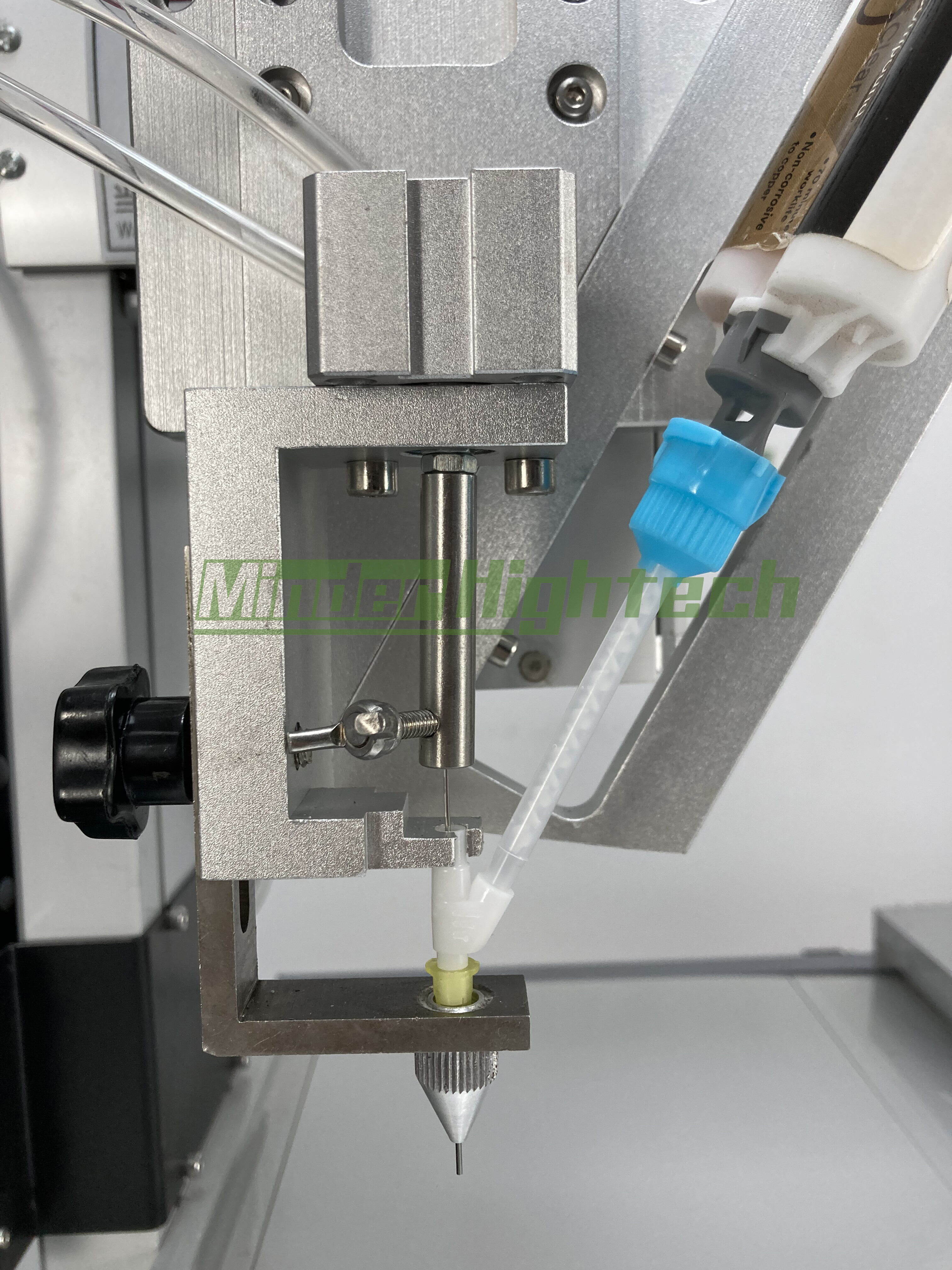

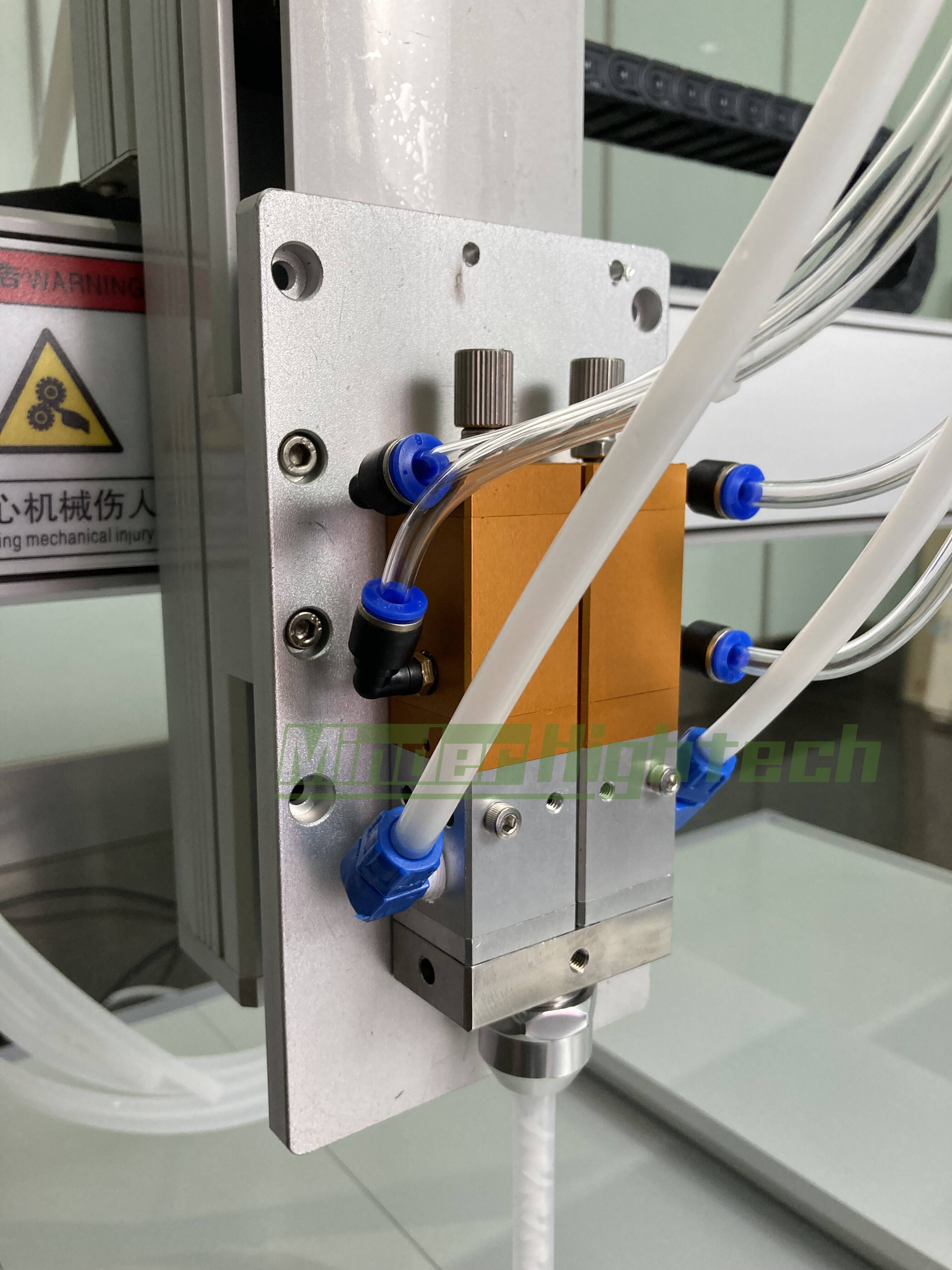

auto Desktop AB glue dispensing

Characteristic:

1. The lightweight double liquid dispensing machine with flashlight AB dispensing valve is easy to operate and suitable for dropping 1: 1 and 2: 1 4: 1 10: 1 two-component glue, such as epoxy resin, silica gel, AB glue, etc 2. AB dispensing machine is suitable for dispensing products in different industries. It can realize different processes such as bonding, pouring, coating, sealing, filling, drip and so on, and multi-form dispensing, such as linear, arc, circular, irregular route and so on. 3. Minder-hightech automatic dispensing machine AB dispensing machine has high-precision dispensing technology, high-speed and bottom noise effect, and the electrostatic eliminator can eliminate static electricity within ± 100V.

Model	MD-AB3311	MD-AB4411	MD-AB5511	MD-AB53311
Stroke X	300mm	400mm	500mm	500mm
Stroke Y1	300mm	400mm	500mm	300mm
Stroke Y1	0	0	0	300mm
Stroke Z	100mm	100mm	100mm	100mm
Driving method	stepping motor / servo motor
Moving method	point to point/linear/circle
Programing interface	teaching box/PC
Repeat accuracy	+-0.02mm
Speed	0.1-800mm/sec
Available Graph	line/circle/arc/continuous line/3D irregularity line
Program storage	100groups/1000points per group
Port	RS232
Power	AC 110v-220V, 50/60Hz
Minimum discharge	0.01ml(customized)
Applicable glue Proportion	50ml(1: 1/2: 1/4: 1/10: 1) Other specifications: 250ml/490ml(other proportions)
Main Configuration	Italy Lartey belt
		HIWIN lead rail
		OMRON relay

Factory

Minder-Hightech PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine supplier

Minder-Hightech

Presenting the PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine, the clear ultimate answer dispensing epoxy glue with precision. This AB Dispensing Robot device is created for effectiveness and precision, allowing you to get the ongoing work done faster along with greater results.

This PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine is ideal for use within many different companies, from electronic devices manufacturing to commercial engineering. It’s meant to dispense exact levels of epoxy glue onto printed circuit boards (PCBs) and other materials with simplicity. The Minder-Hightech item is incredibly easy to use, with a simple control and intuitive pc software that even beginners can master.

The Minder-Hightech PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine is versatile and customizable to meet up with up your needs being precise. The item is made of a variety of dispensing recommendations, enabling you to use glue in a selection of different patterns and thicknesses. You might adjust the suit speed dispensing size and complexity of your project.

This PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine is developed to last, having a durable construction will withstand regular utilized in demanding work environments. Its built to work with a selection of different epoxy glues, rendering it a versatile guitar you'll rely on for a long time for you to come.

The Minder-Hightech PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine is an essential device for any workshop whether you are a specialist engineer or even a hobbyist. It is a reliable and accurate device will allow you to have the work done faster and a lot more effortlessly. You are able to rely upon the Minder-Hightech brand to offer quality and innovation, why wait? Invest in a Minder-Hightech PCB Benchtop Automatic Epoxy Glue Dispenser / AB Dispensing Robot Machine and initiate experiencing the benefits yourself today.
