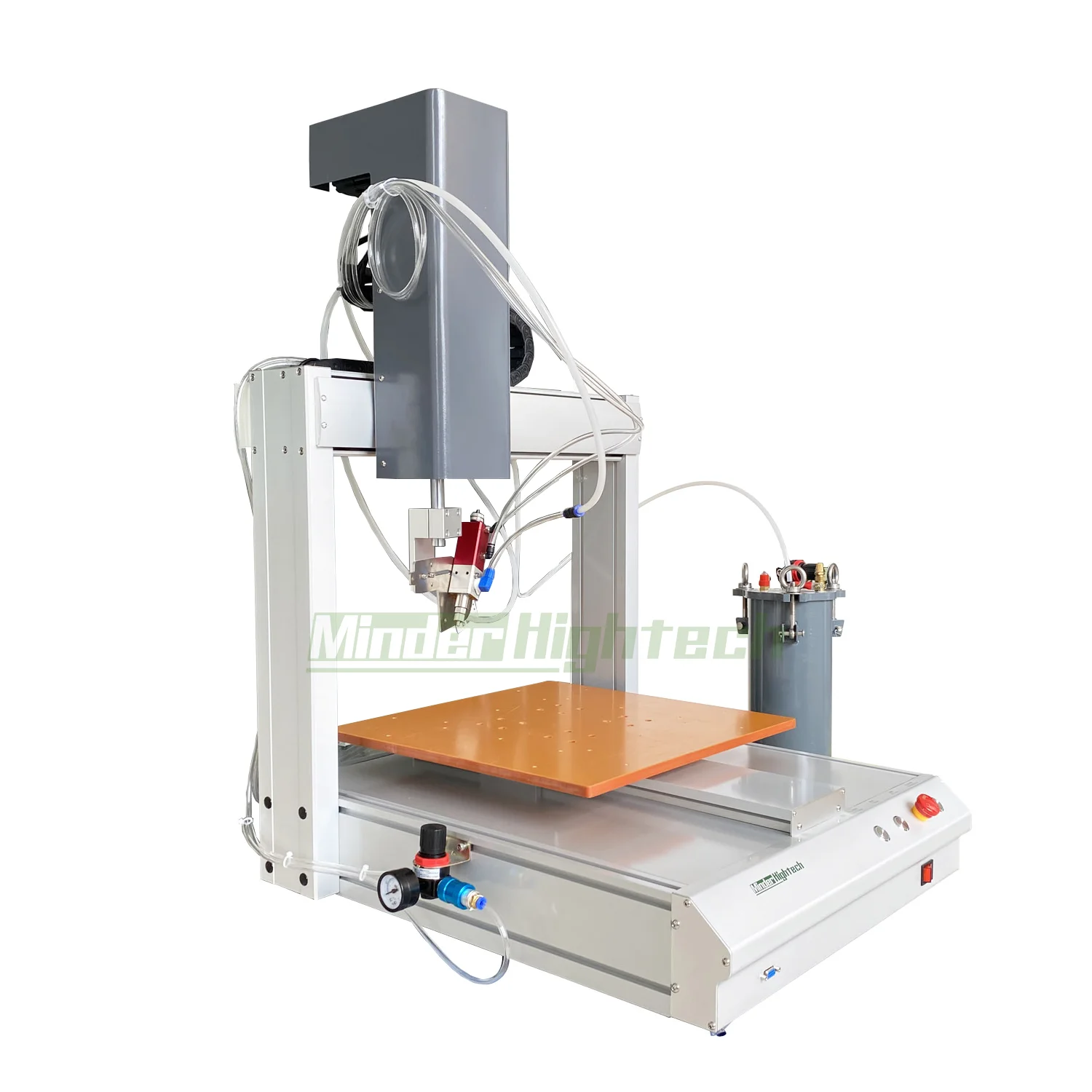

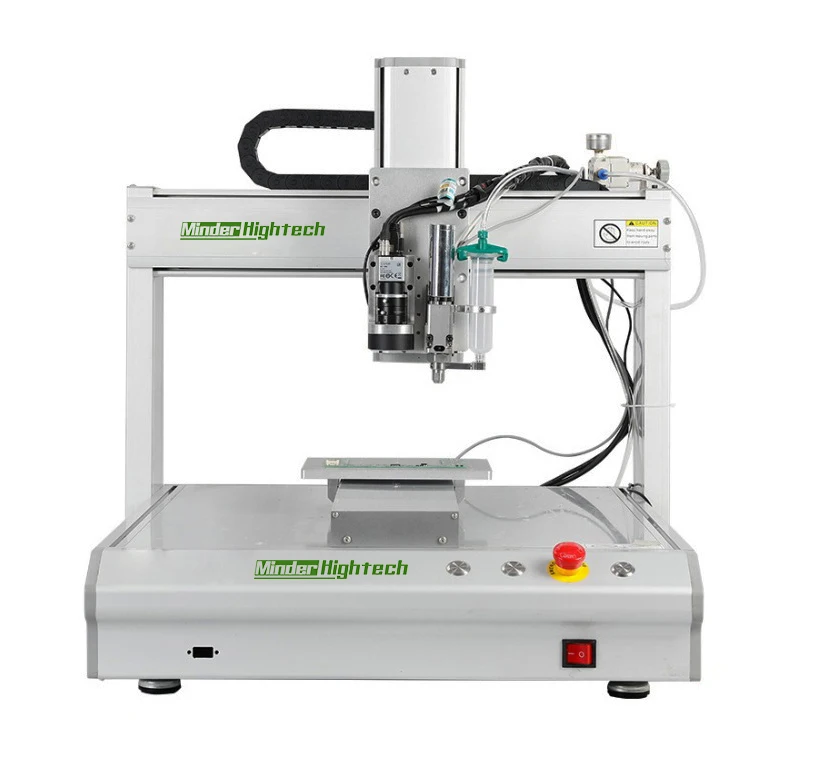

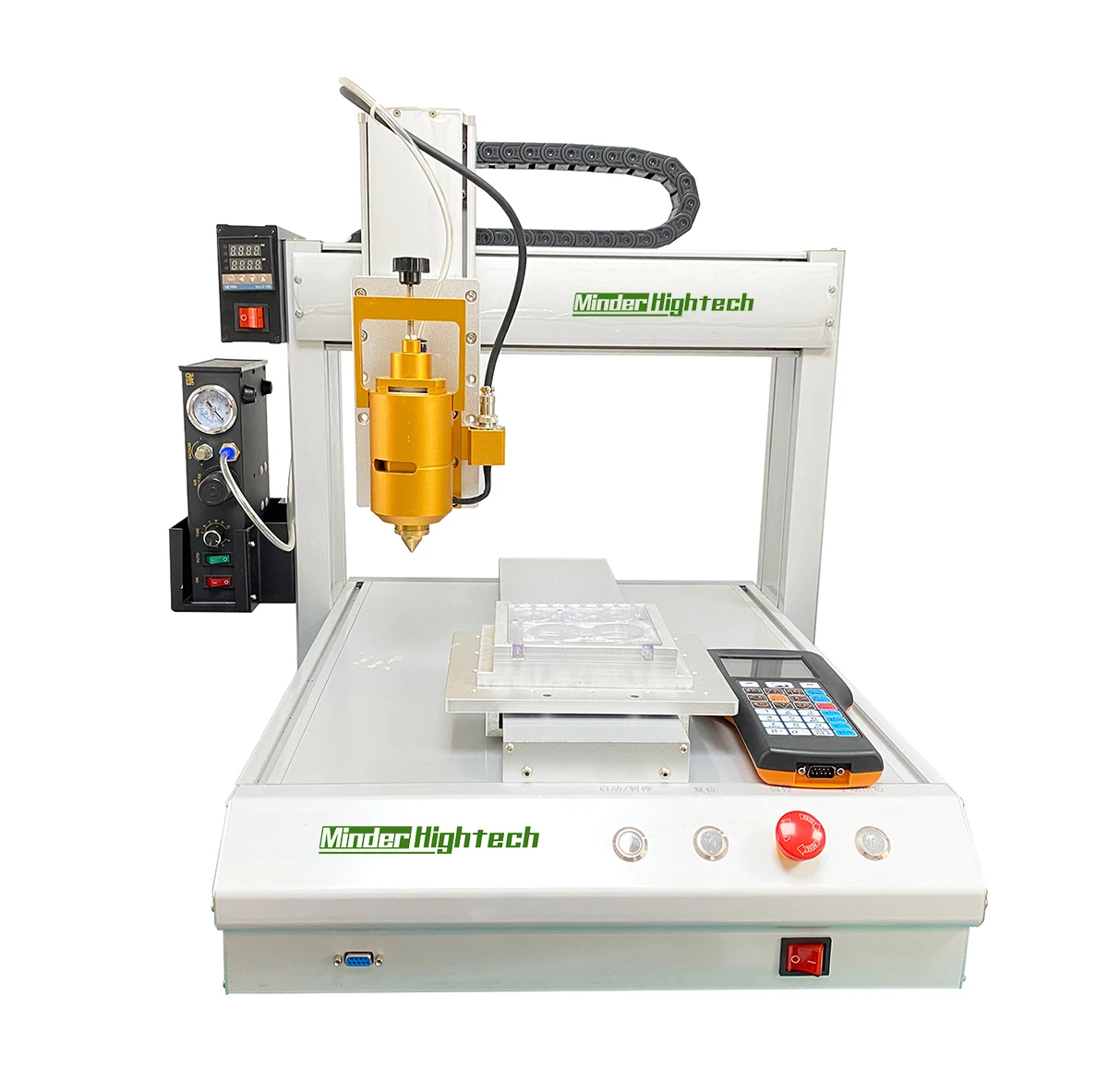

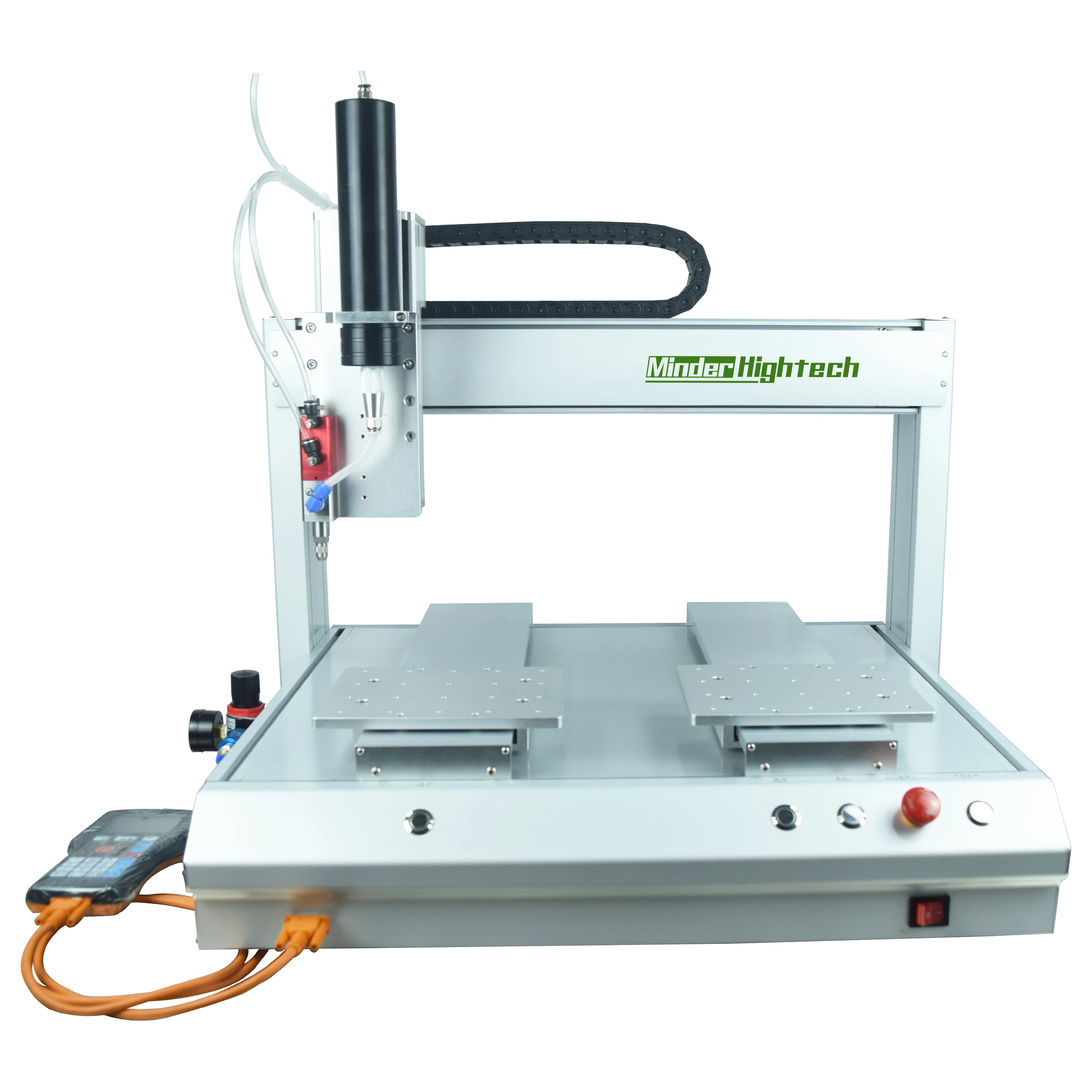

4 Axis Automatic glue dispensing machine
Distinguishing Feature
It runs alternately with a double platform, saving the time for the product to be taken and put.
It is independent of the mold. It is an aluminum profile casting structure with beautiful appearance.
The temperature is uniform, and the temperature deviation is ±1℃.
Its glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor, and the trail is accurate.

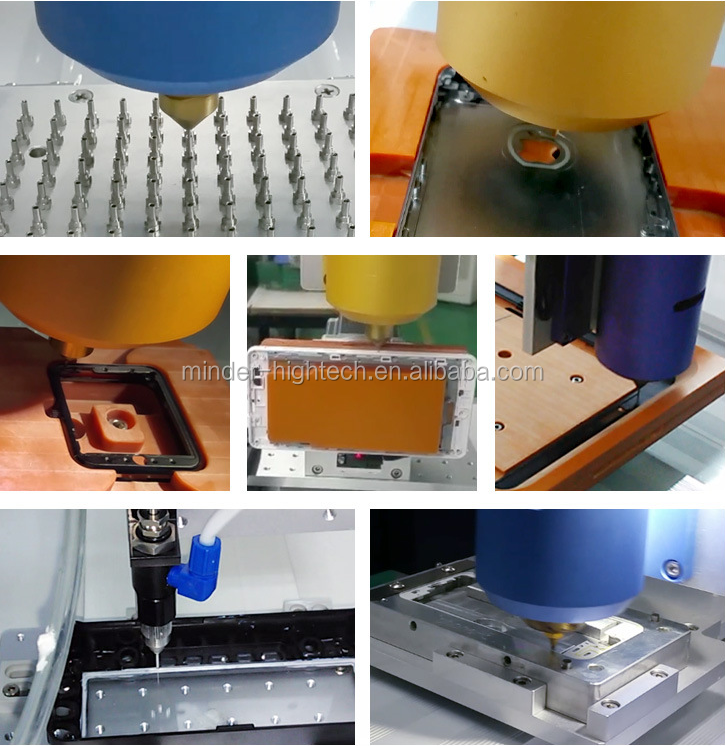

It can finish any shape point glue, such as space point, line, arc, etc.
It contains a variety of glue needles, syringes, glue valves and controllers to meet different requirements.
Technical Parameter
| Model | MD-5331R | MD-331R | ||||
| Trip | 500/300/300/100/360° | 300/300/100/360° | ||||
| Programmatically | Import teaching programming or graphics | |||||
| Motion graphics | Point, line, arc, circle, curve, multiple lines, spiral, ellipse | |||||
| Dispensing head | PUR needle/PUH needle | |||||
| Dispensing cylinder | 30ML OR 50ML | |||||
| Minimum discharge | 0.01ML | |||||
| The glue frequency | 5times/SEC. | |||||
| Load | Y/X axle load | 10kg | ||||
| Z axle load | 5kg | |||||
| Axial dynamic speed X/Y/Z | 0-600mm/sec | |||||
| Resolving power | 0.01mm/Axis | |||||
| Repeatability positioning accuracy | Screw drive | 0.01-0.02 | ||||
| Synchronous belt drive | 0.02-0.04 | |||||
| Program record mode | At least 100, 5000points each | |||||
| Display mode | LCD Teaching box | |||||
| Motor system | Japan precision micro stepping motor | |||||
| Drive mode | Guide | Taiwan HIWIN guide rail | ||||
| Wire road | HIWIN screw rod | |||||
| Belt | Italy Italy Lartey synchronous belt | |||||
| X/Y/Z axis synchronous belt for standard configuration, | ||||||
| Motion filing function | 3axis(3 dimensional space, any route can) | |||||
| Input power | Full voltage AC110V-220V | |||||
| External control interface | RS232 | |||||
| Motor control shaft number | 4 axis | 3axis | ||||
| Axis range | X | 500 | 300 | |||
| Y | 300 | 300 | ||||
| Y | 300 | |||||
| Z | 100 | 100 | ||||
| Outline size | 730/589/630 | 530/589/632 | ||||
| Body weight | 65kg | 45kg | ||||
Industry application
Plastic labels, zipper heads, key chains, bookmarks, key cases, U disk shells, MP3 shells, mobile phone lanyards, mobile phone ornaments, mobile phone holders, mobile phone wipes, wrist straps, silicone bracelets, silicone necklaces, PVC car mats, Refrigerator stickers, mouse pads, coasters, glasses silicone covers, etc. , suitable for clothing, shoes and hats, services, electronic appliances, toys, gifts, home, etc.

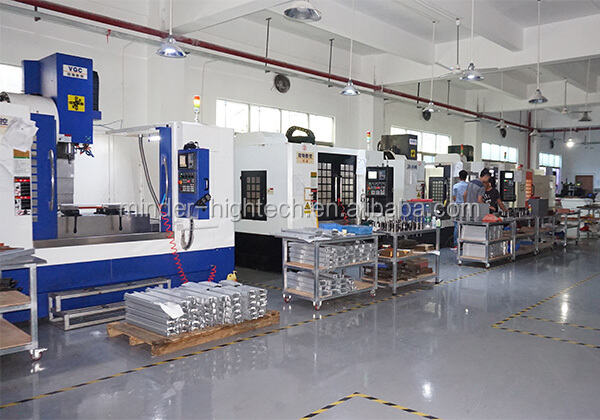

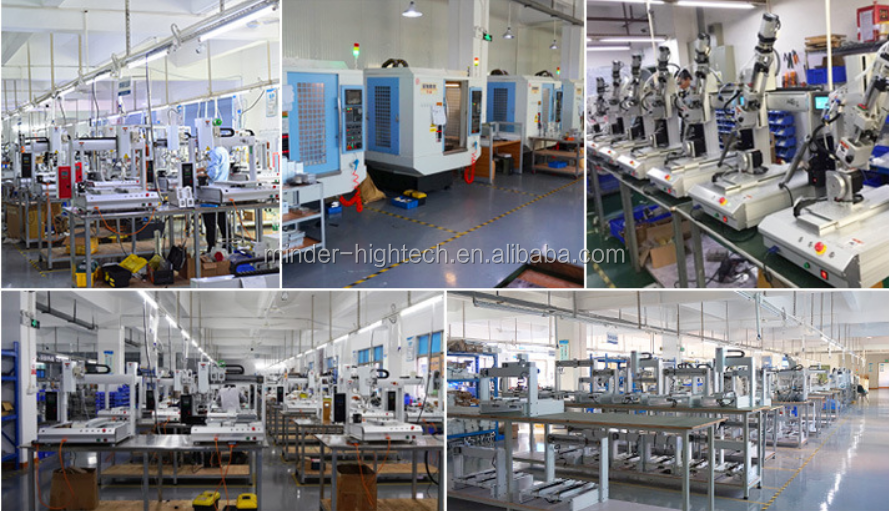

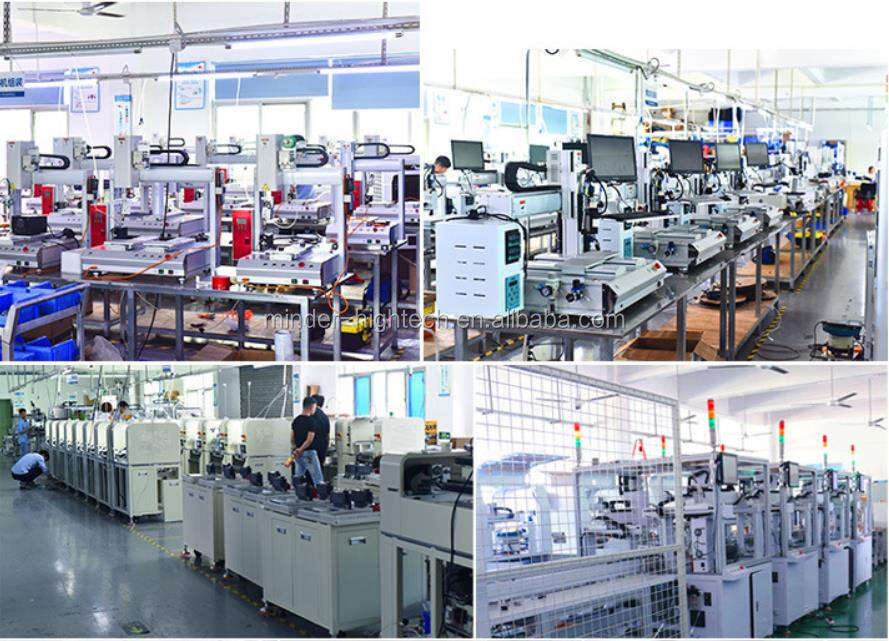

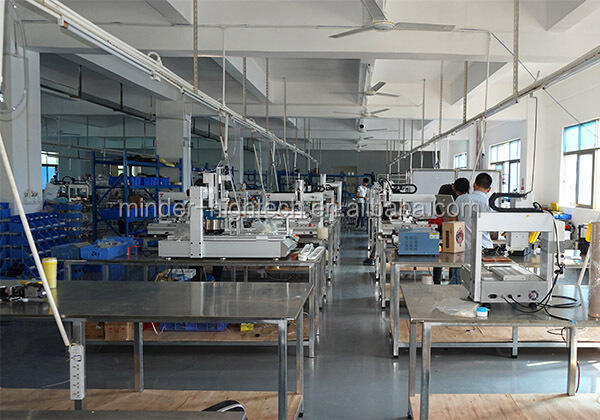

Factory Display
More type:
Minder-Hightech

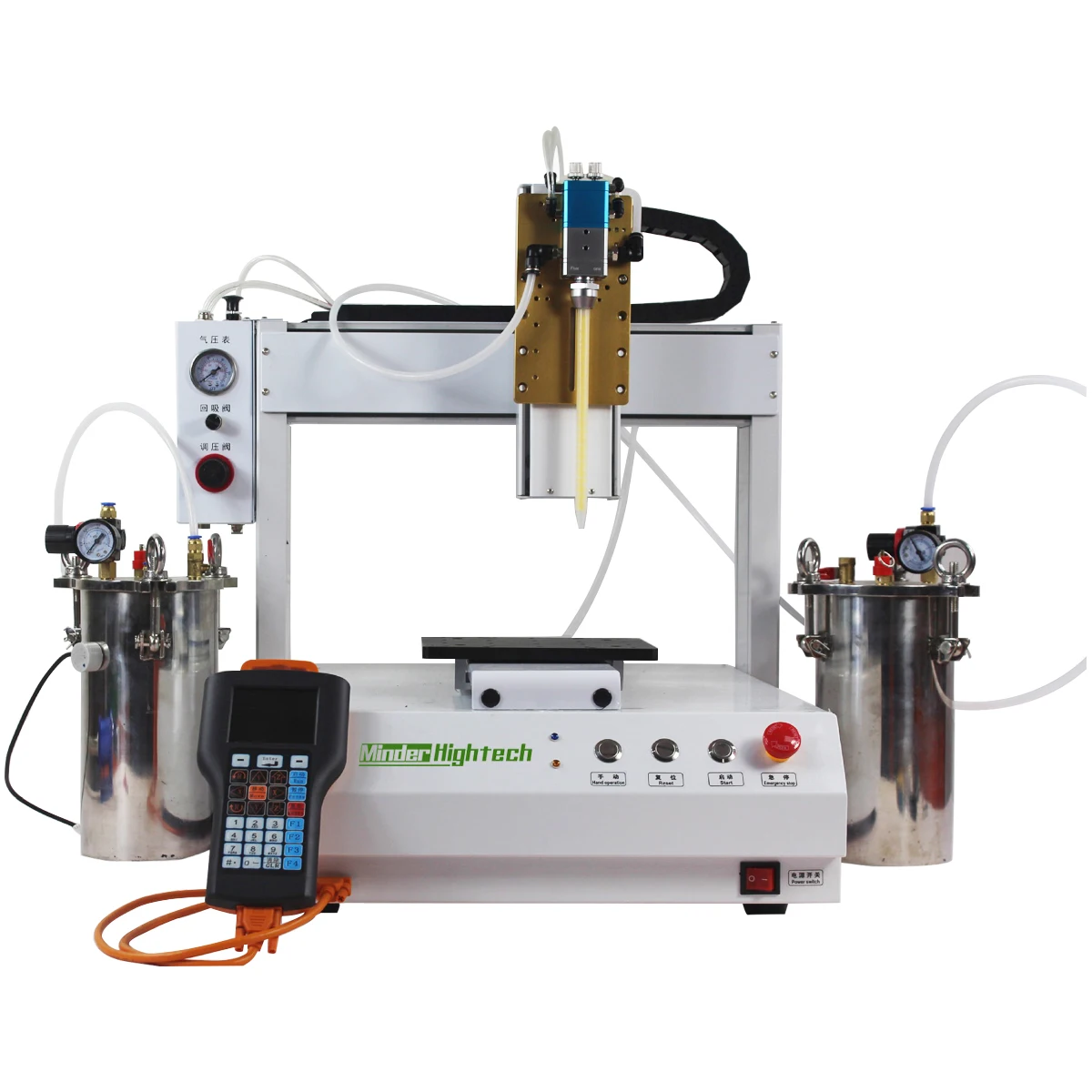

Providing the 4 Axis automatic desktop glue dispensing machine/AB Glue Dispenser robot/Ab Glue Mixing Dispensing Potting Robot Machine. This will be a high-grade, cutting-edge perfect device for anyone who's reached give AB glue efficiently. This dispenser might be the ideal gadget you're in the automobile market, aerospace, electronic devices, or even practically any type of area that will need the request of AB glue for you whether.
The 4 Axis automatic desktop glue dispensing machine/AB Glue Dispenser robot/Ab Glue Mixing Dispensing Potting Robot Machine is user-friendly. Simply course the machine along with the setups you need, tons up your AB glue of choice, view while the dispenser takes appropriate treatment of the others. This Minder-Hightech machine are produced potentially one of the absolute most challenging elaborate dispensing jobs along with simpleness along with 4 axes of motion.
The Minder-Hightech 4 Axis automatic desktop glue dispensing machine/AB Glue Dispenser robot/Ab Glue Mixing Dispensing Potting Robot Machine might be incredibly mobile small. Its own bit of dimension implies it might easily suit almost every workbench or even dining table, its own specific light-weight style it easy towards walk around as required., its own smooth contemporary style it shows up fantastic on any type of work environment.
Among lots of essential Benefits of this particular 4 Axis automatic desktop glue dispensing machine/AB Glue Dispenser robot/Ab Glue Mixing Dispensing Potting Robot Machine is its own ability towards blend the AB glue towards the ideal determination. Mixing AB glue is typically a challenging procedure nevertheless using this dispenser, you might be positive that every single drop of glue that appears is completely capable combined to become recreated. This conserves your opportunity helps towards guarantee your jobs are getting the top quality a lot sticky much a lot better feasible.
The Minder-Hightech 4 Axis automatic desktop glue dispensing machine/AB Glue Dispenser robot/Ab Glue Mixing Dispensing Potting Robot Machine could be flexible. It may give a wide range of a number of type of sticky, consisting of epoxy, silicone, polyurethane, much a lot extra. together with its own precise dispensing abilities precise movement, you might be positive you will obtain the ideal variety of sticky every single opportunity.
Lastly, the Minder-Hightech 4 Axis automatic desktop glue dispensing machine/AB Glue Dispenser robot/Ab Glue Mixing Dispensing Potting Robot Machine is reliable resilient. It is truly designed towards endure potentially the functioning problems most difficult, creating it the ideal choice for hectic work environments where resilience reliability are essential., together with its own user friendly style, you have the ability to invest much less opportunity fretting around your devices a lot more opportunity concentrating on function.
