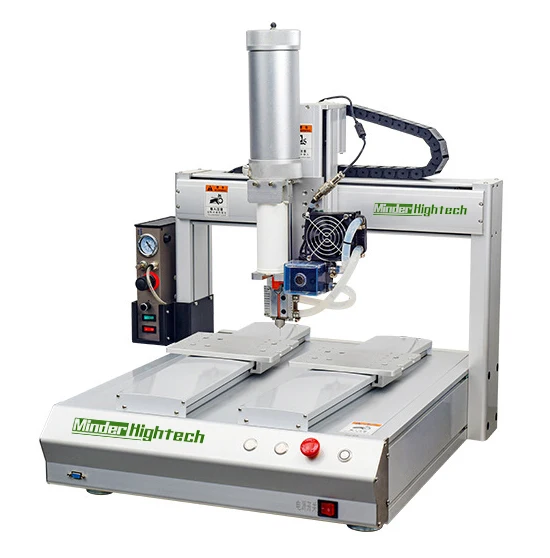

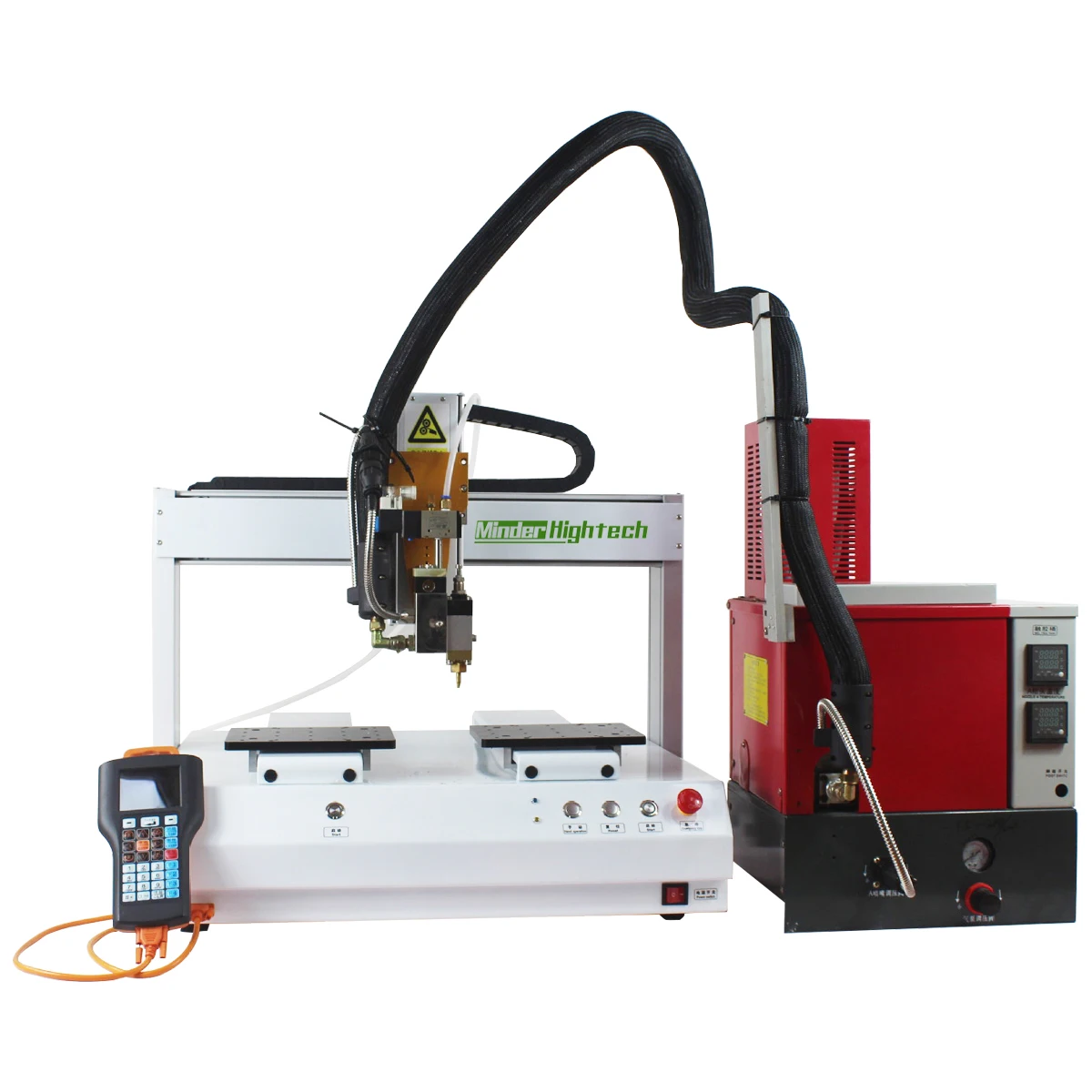

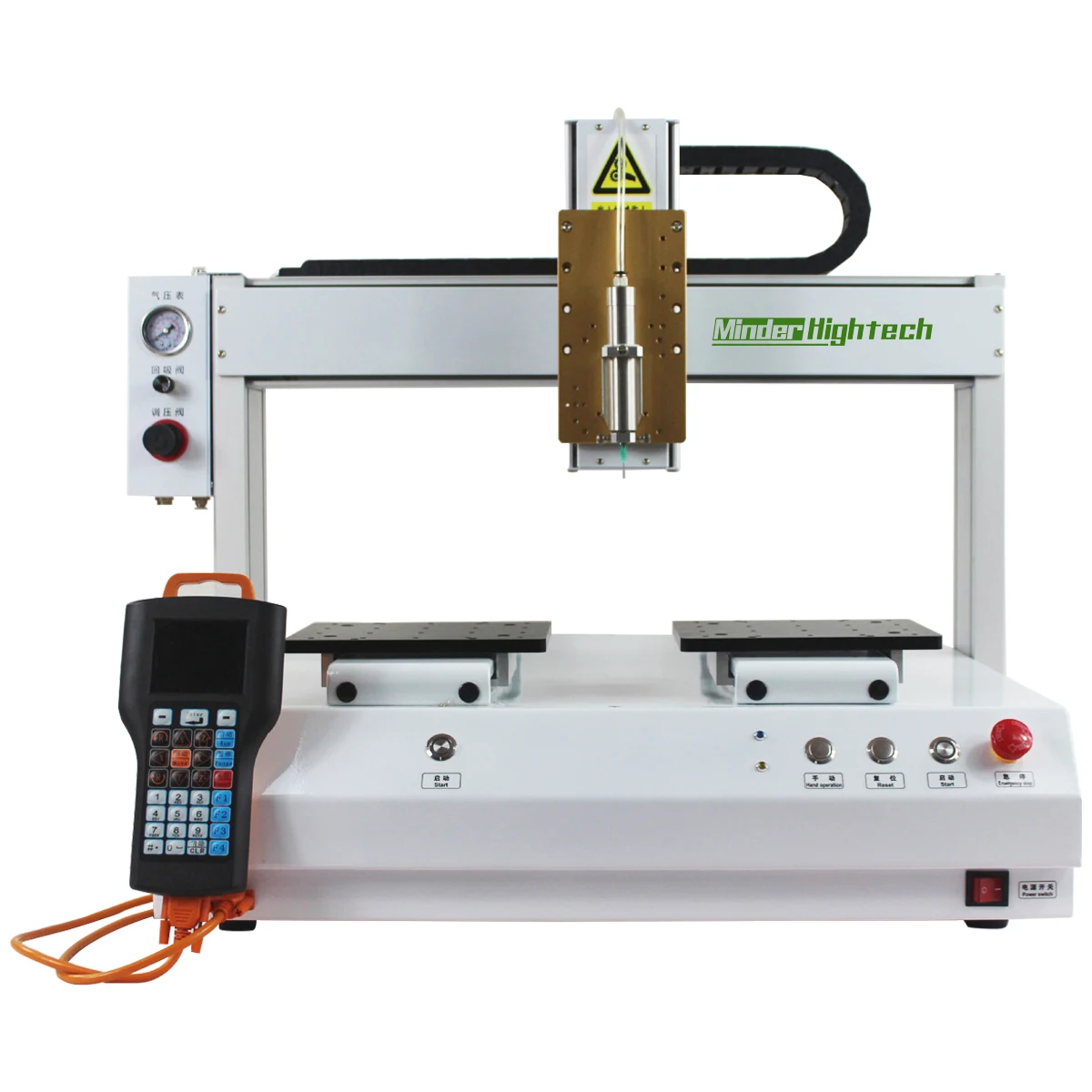

4-Axis Single Head Printing Ink Glue Dispenser
Features:
Desktop type, can be placed on the production line.
DIY mode, free matches of axis and heads, head number range is 1~12.
Optional Full English marked machine body, to be international application.
Multi-axis design with high rigidity aluminum alloy.
Double Y axis type, automatic working alternatively, saving the time of placing object.
The glue automatic feeding, safe and silence.
Main components of the machine are high quality, ensure the reliability and accuracy.
Optional Interface of English/Chinese.
Fixture and tooling available.
Suitable glue:
UV glue, AB glue, EPOXY(black glue), COB black glue, white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative. . .
Operating principle:
Compress the glue into the feed pipe connected to Piston Chamber by conpressing air into the glue botton(injector). When the piston is in the upstroke, the piston chamber is filled with glue. And When the piston is pushed down, the glue is extruded from the needle nozzle. The dispensing glue amount is decided by the distance of piston downstroke. The gule dispensing amount can be controlled by manual adjustment or by setting the program.
Improve dispensing speed, dispensing environment and dispensing quality.

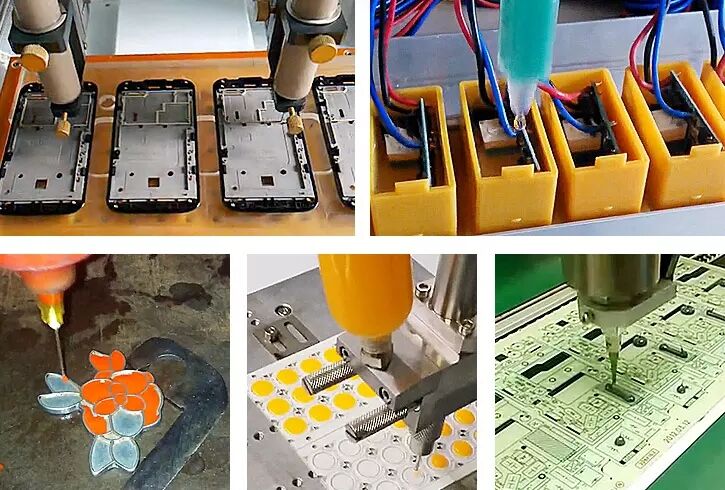

Application industry:
The electronics industry
Encapsulation mobile phones key point glue, battery, laptop battery encapsulation, computer speaker/receiver, coil dispensing, PCB dependend sealant, IC sealant, horn outside marks glue, sealant, PDA LCD sealant, IC packaging, IC bonding, casing of adhesive, optics processing, circuit component and the substrate adhesive, printed circuit board glue
Lighting industry
Led fluorescent powder dispensing led drive power supply heat conduction potting, hard light, soft article lamp potting, the ball bubble lamp, floodlight, such as sealing, led street lamps adhesive seal Wash the wall lamp, project-light lamp, lawn lamp, outdoor lamp potting, led lamp holder potting, led shoot the chimney and lamp cup adhesive seal.
The car industry
Lamp encapsulation, electric vehicle controller encapsulation, filters, oil filter, diesel filter, air filter), body and roof reinforcement plate coating, brake shoe, clutch and transmission belt potting, Windows sealed, plastic board, radiator tanks glue, glue filling auto sensor, automotive electronics and automotive electrical, instrumentation potting protection, mechanical parts such as mechanical seal coating.
Industrial electrical
Capacitors, transformers, relays, buttons and other adhesive sealing, motor coil coating, electric glue cupboard door sealing side.
Solar photovoltaic (pv)
Photovoltaic inverter heat conduction potting, potting solar battery box, solar component potting.
Construction engineering
Heat insulation aluminum, steel, aluminum honeycomb panel, building plank, fire doors, security doors, coating.
Hardware/home appliances/commodity/etc
Single station dispenser models:
Model |
DD-T2211 |
DD-T3311 |
DD-T4311 |
DD-T5511 |
DD-T2211R |
DD-T3311R |
DD-T4311R |
DD-T5511R |
||
Travel |
X |
200 mm |
300 mm |
400 mm |
500 mm |
200 mm |
300 mm |
400 mm |
500 mm |
|
Y |
200 mm |
300 mm |
300 mm |
500 mm |
200 mm |
300 mm |
300 mm |
500 mm |
||
Z |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
||
Head Number |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
||
Rotation Axis |
- |
- |
- |
- |
1 |
1 |
1 |
1 |
||
Max Speed |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
||
Repeated Accuracy |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
||
Size |
L |
480 mm |
580 mm |
580 mm |
780 mm |
480 mm |
580 mm |
580 mm |
780 mm |
|
W |
420 mm |
520 mm |
620 mm |
720 mm |
420 mm |
520 mm |
620 mm |
720 mm |
||
H |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
||
Weight |
45 kg |
55 kg |
65 kg |
75 kg |
45 kg |
55 kg |
65 kg |
75 kg |
||
Drive Method |
Step Motor/Servo Motor, Synchronous Belt/Ball Screw |
|||||||||
Moving Method |
Point to Point, Linear, Circle |
|||||||||
Programing Interface |
Teaching Box/PC |
|||||||||
Available Graph |
Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
|||||||||
Program Memory |
100 Group/1000 Point per group |
|||||||||
Port |
RS232 |
|||||||||
Voltage |
AC220V/50Hz |
|||||||||
Pressure |
4-7kgf/cm2 |
|||||||||

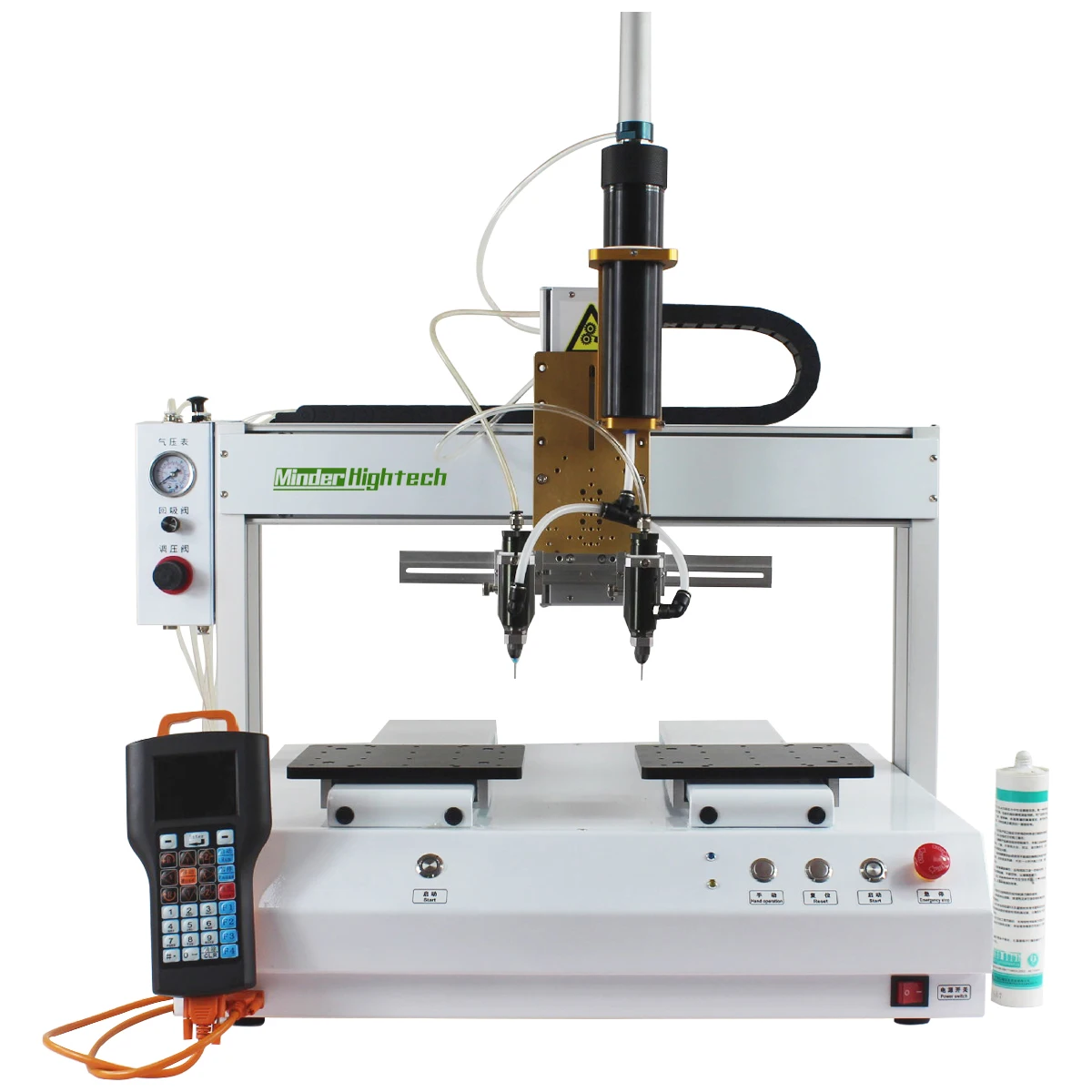

Double stations dispenser models:
Model |
DD-T43311 |
DD-T44411 |
DD-T53311 |
DD-T54411 |
DD-43312 |
DD-T44412 |
DD-T53312 |
DD-T54412 |
||
Travel |
X |
400 mm |
400 mm |
500 mm |
500 mm |
400 mm |
400 mm |
500 mm |
500 mm |
|
Y1 |
300 mm |
400 mm |
300 mm |
400 mm |
300 mm |
400 mm |
300 mm |
400 mm |
||
Y2 |
300 mm |
400 mm |
300 mm |
400 mm |
300 mm |
400 mm |
300 mm |
400 mm |
||
Z |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
100 mm |
||
Head Number |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
||
Rotation Axis |
- |
- |
- |
- |
- |
- |
- |
- |
||
Max Speed |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
500(1000) mm/s (X-Y-Z) |
||
Repeated Accuracy |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
±0.02 mm |
||
Size |
L |
580 mm |
680 mm |
580 mm |
680 mm |
580 mm |
680 mm |
580 mm |
680 mm |
|
W |
520 mm |
620 mm |
720 mm |
720 mm |
620 mm |
620 mm |
720 mm |
720 mm |
||
H |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
603 mm |
||
Weight |
70 kg |
75 kg |
75 kg |
80 kg |
70 kg |
75 kg |
75 kg |
80 kg |
||
Drive Method |
Step Motor/Servo Motor, Synchronous Belt/Ball Screw |
|||||||||
Moving Method |
Point to Point, Linear, Circle |
|||||||||
User Interface |
Teaching Box/PC |
|||||||||
Available Graph |
Line, Circle, Arc, Continuous Line, 3D Irregularity Line |
|||||||||
Program Memory |
100 Group/1000 Point per group |
|||||||||
Port |
RS232 |
|||||||||
Voltage |
AC220V/50Hz |
|||||||||
Pressure |
4-7kgf/cm2 |
|||||||||

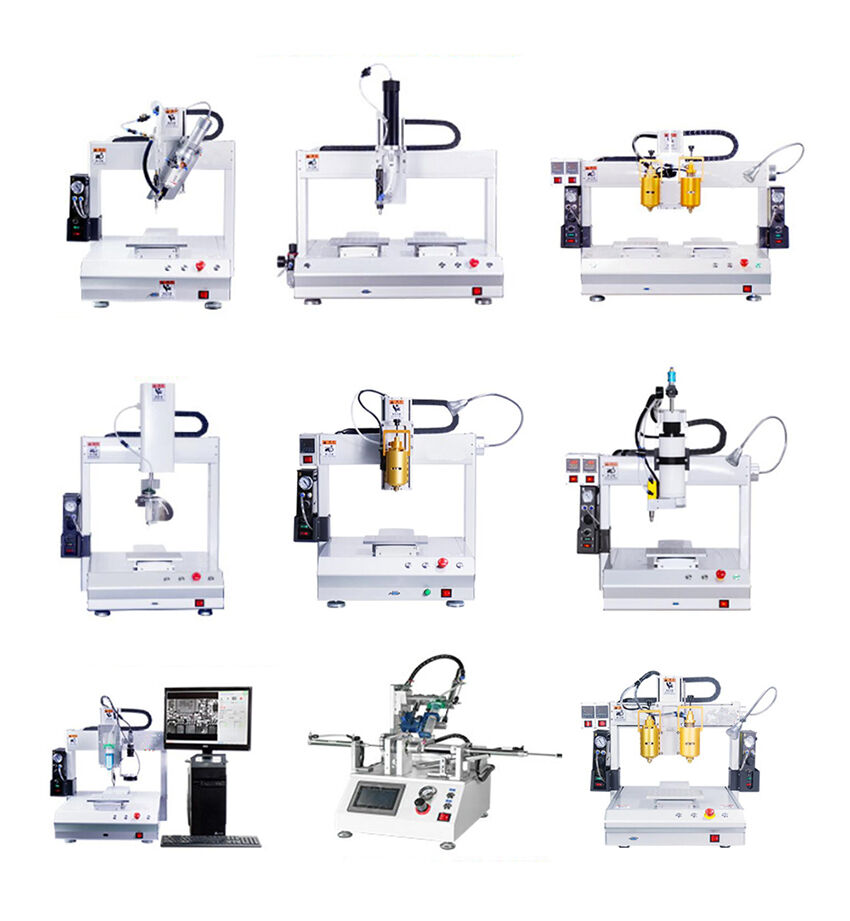

Dispenser robots:
Soldering robots:
Screw fastening robots:
Help customer analyze product project and provide solution.
Freely sample test.
Skilled jig design services.
Provide shipping/delivery information checking service.
One year guarantee, all life maintain promise.
24 hours feedback speed by email of others.
