Precision Dual-Pressure Square Welding Machine – NTC Resistor Lead Welding Machine

Introduction:

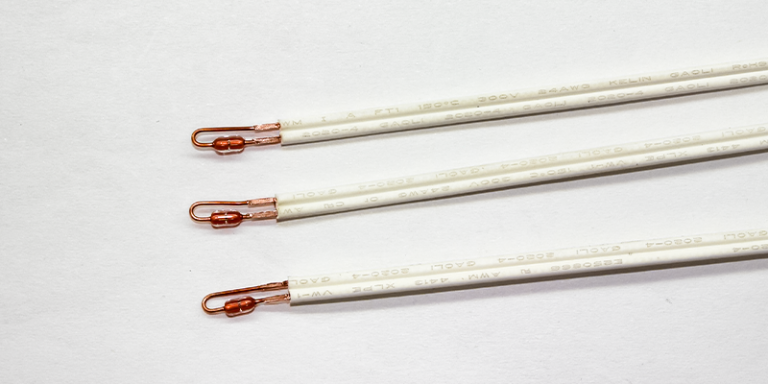

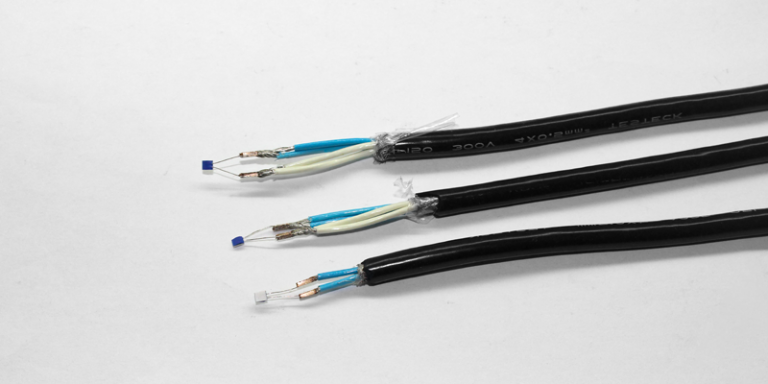

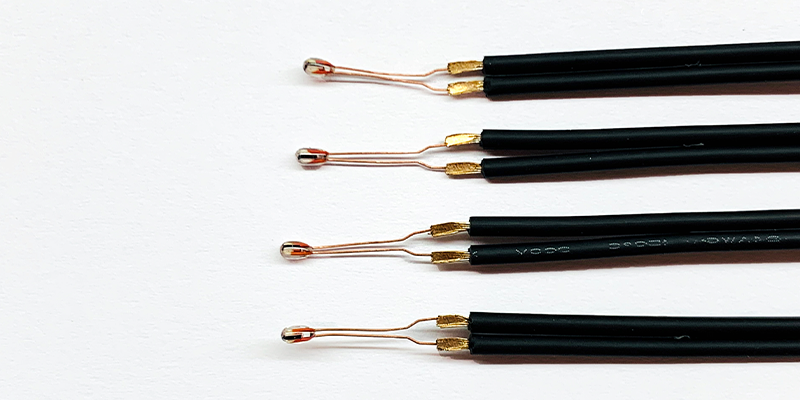

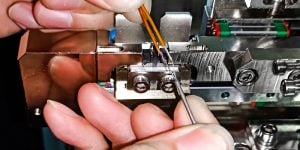

The precision dual-head square-crimp welding machine is commonly used for welding temperature sensor or resistor leads to wire harnesses or pins. It features a single power supply with dual outputs, enabling simultaneous welding at two points. Utilizing inverter DC technology, the machine delivers stable welding current and offers high precision in controlling welding time and pressure; this ensures strong weld joints while enhancing the visual quality of the workpiece.

Advantages:

1. Dual-output and dual-start capabilities allow for rapid switching between two welding points.

2. A single power supply enables simultaneous welding of two points.

3. Suitable for industries requiring simultaneous welding of two points on components such as filaments, fuses, discharge tubes, and resistors.

4. Stores 10 sets of parameters for easy use across various welding applications; utilizes EEPROM for data storage, eliminating battery lifespan issues.

5. Features three-stage heating settings with current ramp-up and ramp-down functions; offers a wide timing range (0–999 ms) to accommodate complex welding requirements.

6. Includes fault diagnosis and alarm functions for issues such as abnormal current, mains voltage limits, and overheating.

7. Rapid response speed with a current conduction control cycle of 0.25 ms—80 times faster than the 20 ms cycle typical of standard AC welding machines.

Specifications:

Maximum output current	3000A
Input voltage	220V
Stored welding schedules	10
Electrode force	160–480N
Electrode stroke length	Customizable
Rated power	10 kVA
Duty cycle	10%
Overall dimensions	500 × 400 × 280 mm
Opening/closing stroke	35 mm
Clamping width	1–2 mm
