Fully Automatic High precision Eutectic Machine TO9 Die attach Machine

Get a Free Quote
Product Description

MDAX-TOE10
Customized fully automatic
eutectic machine

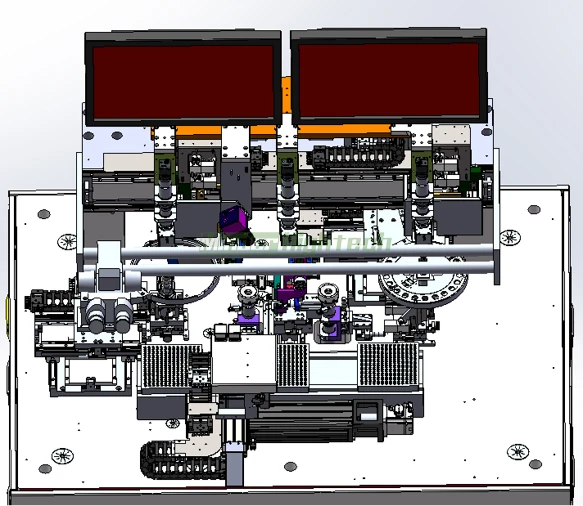

This machine is a high-precision eutectic machine designed specifically for TO9 materials. It consists of multiple sub-unit
modules:
1. Direct-drive solid crystal head, 360。nozzle rotation
2. Multi-pin design, convenient for adapting to wafer chips of different sizes
3. 1.3 million resolution visual system, positioning of wafers and frames
4. The base platform of the eutectic heating table adopts linear motor and high-precision grating ruler, with XY automatic
correction function
5. Automatic loading and unloading carrier, the base loading has flip function
6. Wafer table module, using linear motor and high-precision grating ruler
7. The crystal ring can be used for 6-inch standard mother and child rings
8. Constant temperature eutectic table
Specification
UPH
200 -400PCS(Chip related）
X, Y patch position accuracy
±10um
Patch angle accuracy
±1°
Patch pressure range and accuracy
20~300g ±10%
Crystal ring size and adaptability
8inch、6inch Wafer
Maximum camera accuracy
1um
Camera field of view
1.0mm~8mm
Number of nozzles
1PCS
Number of top pins
2PCS, multi pin (optional)
Eutectic Materials
TO9
Attachment materials
Heat sink, chip
Eutectic table size range
Width:12mm Length:12mm
Operating table height
950mm±30mm
Visual quantity
6 sets
Power supply
AC 220V/50Hz
Power consumption
1200 W
Compressed gas
4~6 Bar
Overall dimensions (WXDXH) (excluding loading and unloading machines)
1600*1300*1900mm
net weight
1200 Kg
Equipment performance characteristics
High speed: According to customer process requirements, the speed is the fastest in the industry
Accuracy: According to customer process requirements, the accuracy isthe highest in the industry (photolithography board + chip)
Accuracy: XY accuracy, ±10um, angle, ±1。
Pressure adjustment: 20g~300g adjustable
Linear head (360。rotating nozzle)
Various image positioning solutions (appearance, feature points, edge search, circle search)
CPK quality tracking detection
Constant temperature heating platform
Mapping image index function
Detection of debris or serious defects before eutectic
Detection of chip position and angle after solidification
Product classification, process parameter storage function
Application of multiple visual algorithms

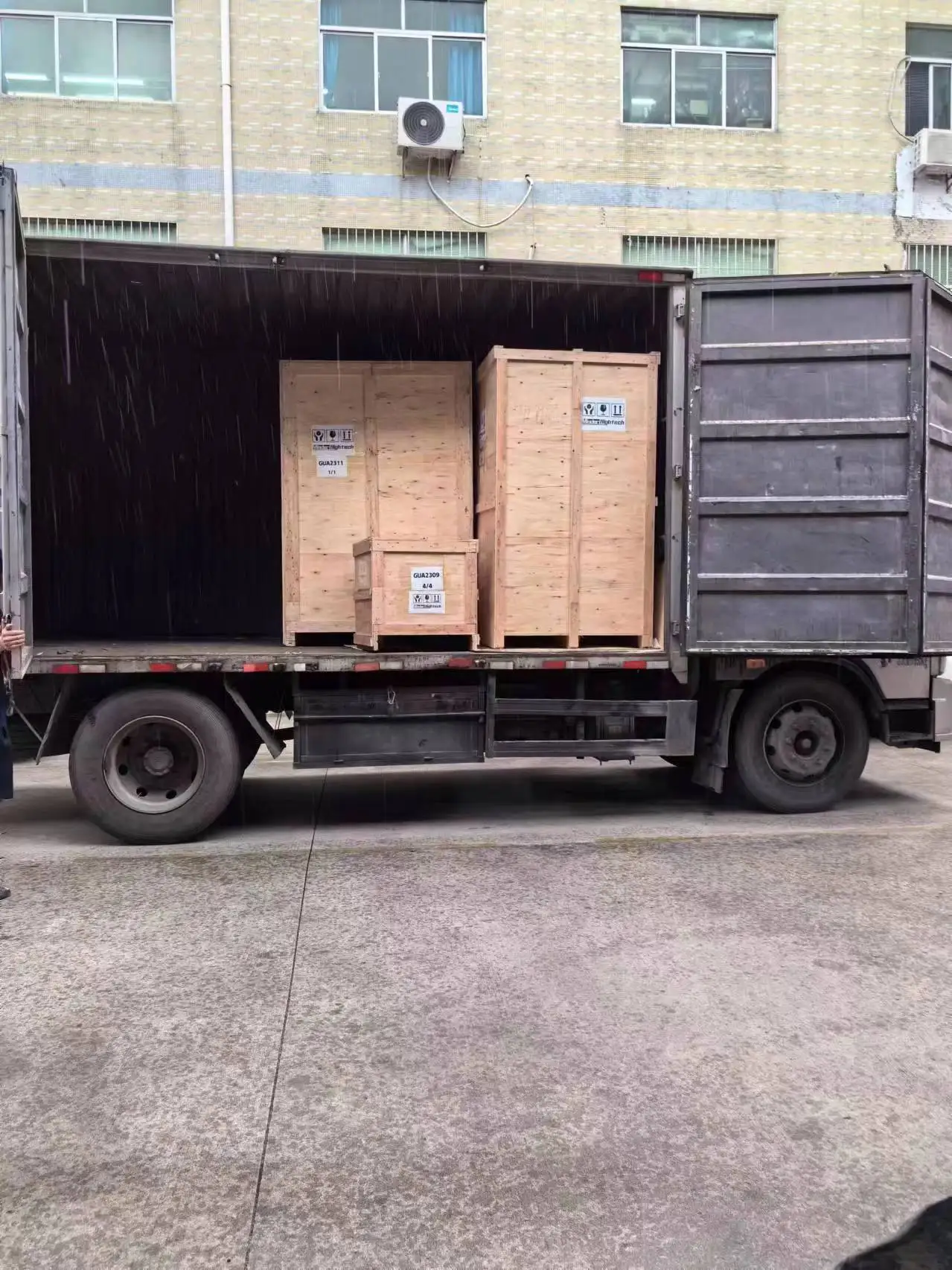

Packing & Delivery
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the
equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
