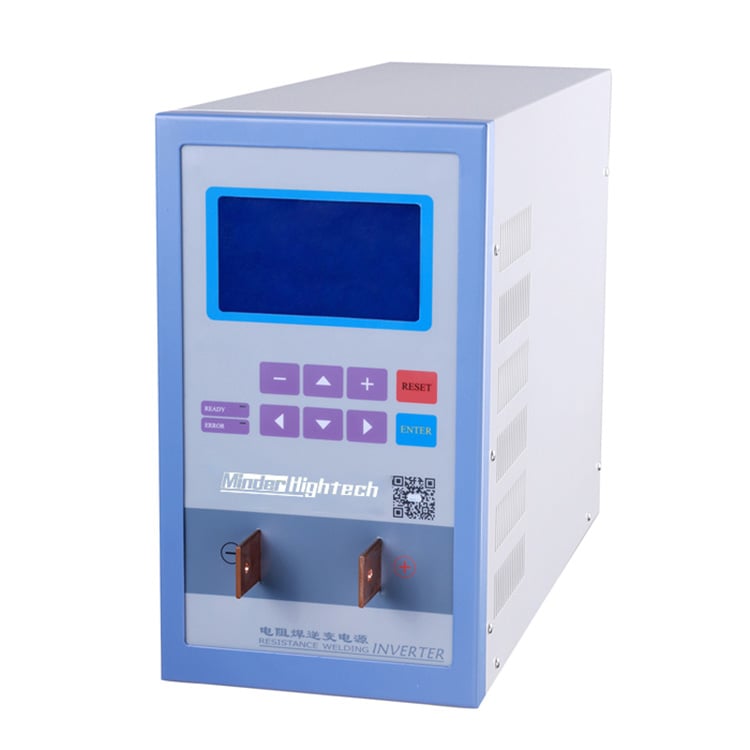

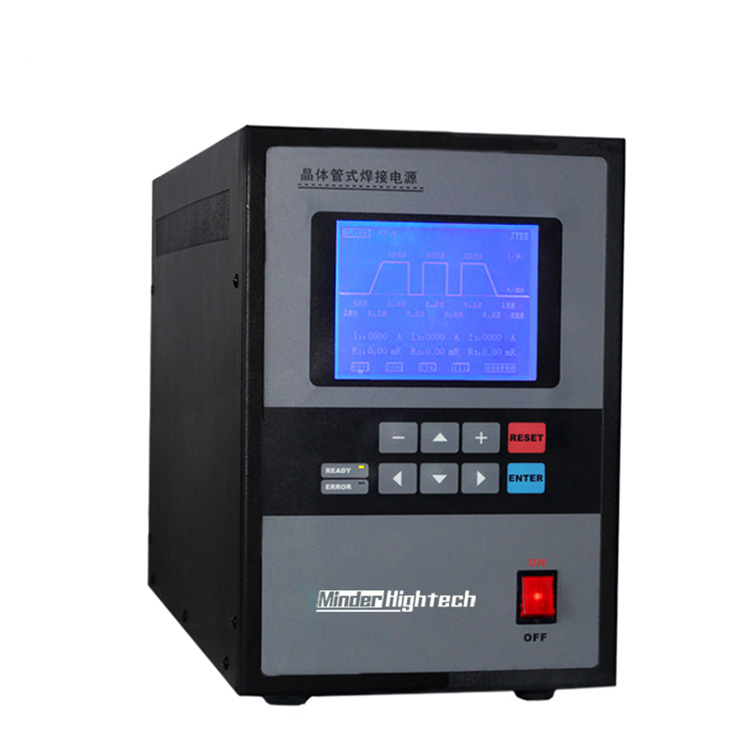

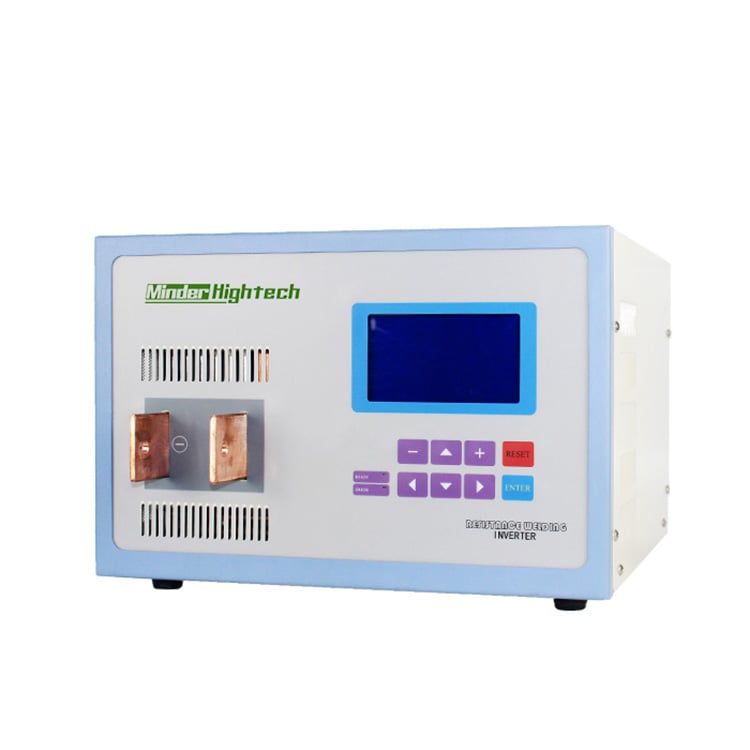

Model:JYD-01L/ JYD-02L/ JYD-03L /JYD-04AL/AT /MD-MND5000
Controlled by microcontroller (MCU) with current, voltage, power feedback control or Pulse Width control.
The inverter bridge adopt soft-switching technology, reducing switch losses and electromagnetic interference
Enhanced system protection by multiple fault diagnosis.
20 sets of parameter storage, adapt to various welding requirements.
Displaying parameters and functions by LCD.
Data storage in EEPROM, no battery life problem.
Type |
JYD-01TL(AL) |
JYD-02TL(AL) |
JYD-03TL(AL) |
JYD-04LB |
JYD-04AL/AT |
MD-MND5000 |
Line voltage(V) |
220V/3~380V |
3~380V |
||||
Rated capacity(kVA) |
4 |
6 |
10 |
12 |
12 |
13 |
Max Output current(DCA) |
1200 |
2500 |
3600 |
4000 |
4000 |
5000 |
Duty cycle(%) |
10 |
|||||
|
lnverting frequency(kHz) |
4 |
|||||
Control modes |
Constant current, constant voltage, constant power, constant pulse width |
Constant current |
||||
Process stage |
11 |
9 |
||||
Welding pulses |
13 |
2 |
||||
Upslope and downslope |
yes |
|||||
Schedules |
20 |
|||||
Weight(kg) |
18 |
20 |
22 |
33 |
20 |
38 |
Application:
