Automatic Wire Bonder MDAWB-4NL400

Model: MDAWB-4NL400

Product Description

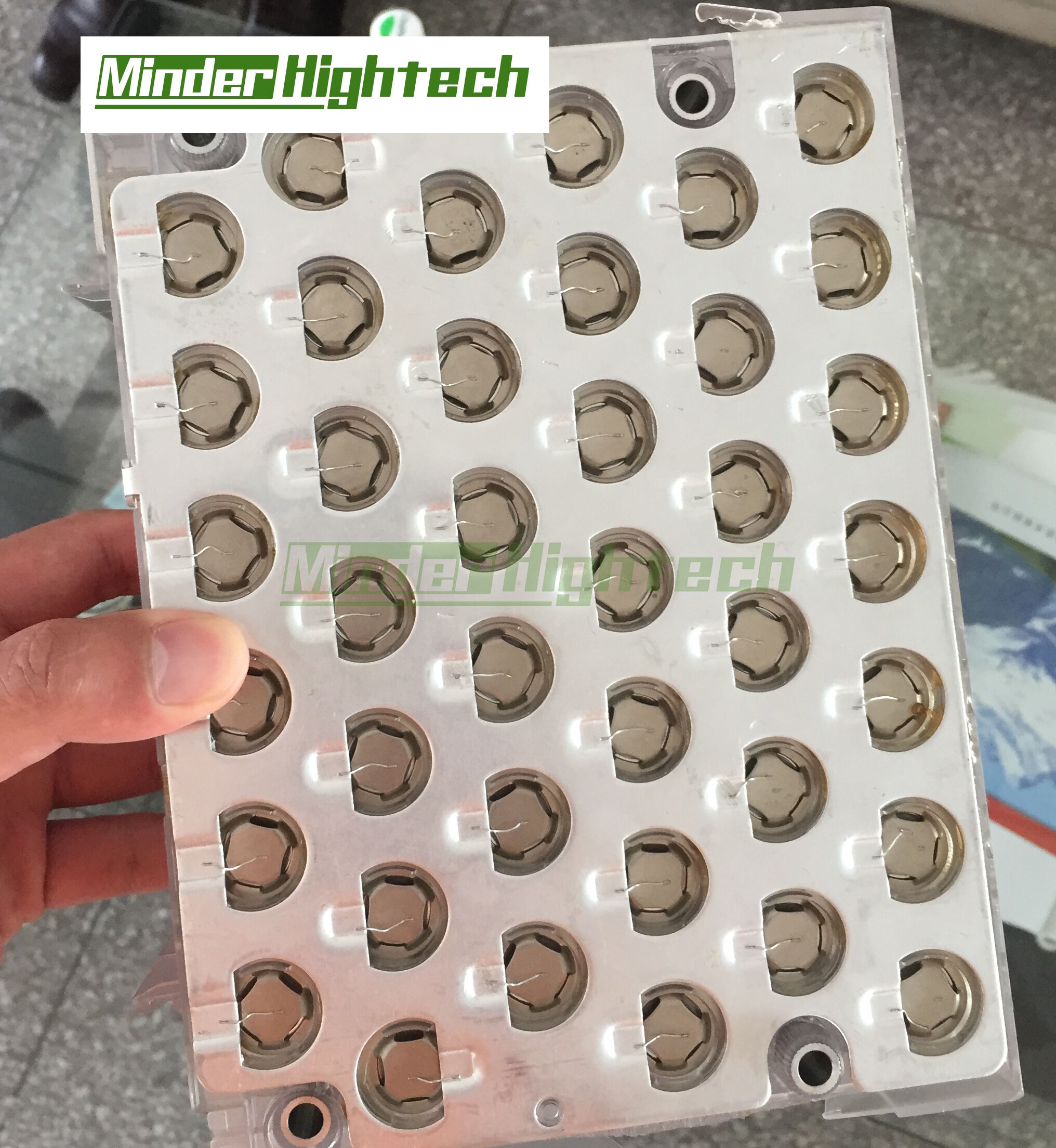

Main Application:

18650,26800,21700
lithium battery wire bonding.or other connection
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine factory
Advantage:
1,First using rotary bonding head.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
Specification
Specification:
Power:220v,50Hz,800w.
Suit for aluminum wire:125-500um(5-20mil)

Ultrasonic:
frequency:60kHz.
Power:0-30w. automatic changing between first bonding and second bonding.
X axis accuracy:0.02mm.
Time:10-500ms. (multi channel.)

Bonding pressure:50-1200g(multi channel)
Bonding speed:2s/wire.depending on other situation.


Working area:
XY:400*800mm(with Rail transportation from left to right, can connect to production line).
Z:50mm.
C:+-90degree.
Dimension:1500mm*2200mm*1900mm
Weight:~1220KG
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine supplier
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine manufacture
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine manufacture
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine manufacture
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine details
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine factory
Packing & Delivery
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine details
MDAWB-4NL400 Automatic Wire Bonder / Wire bonding machine details

FAQ

1. About Price:

All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.



2. About Sample:

We can provide sample production services for you, but you may provide some fees.



3. About Payment:

After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.



4. About Delivery:

After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.



5. Installation and Debugging:

After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.



6. About Warranty:

Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.



7. After-sale Service:

All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
