Water Jet Deflash Solution WJ

Get a Free Quote
Product Description
Water Jet Deflash Solution

Application:

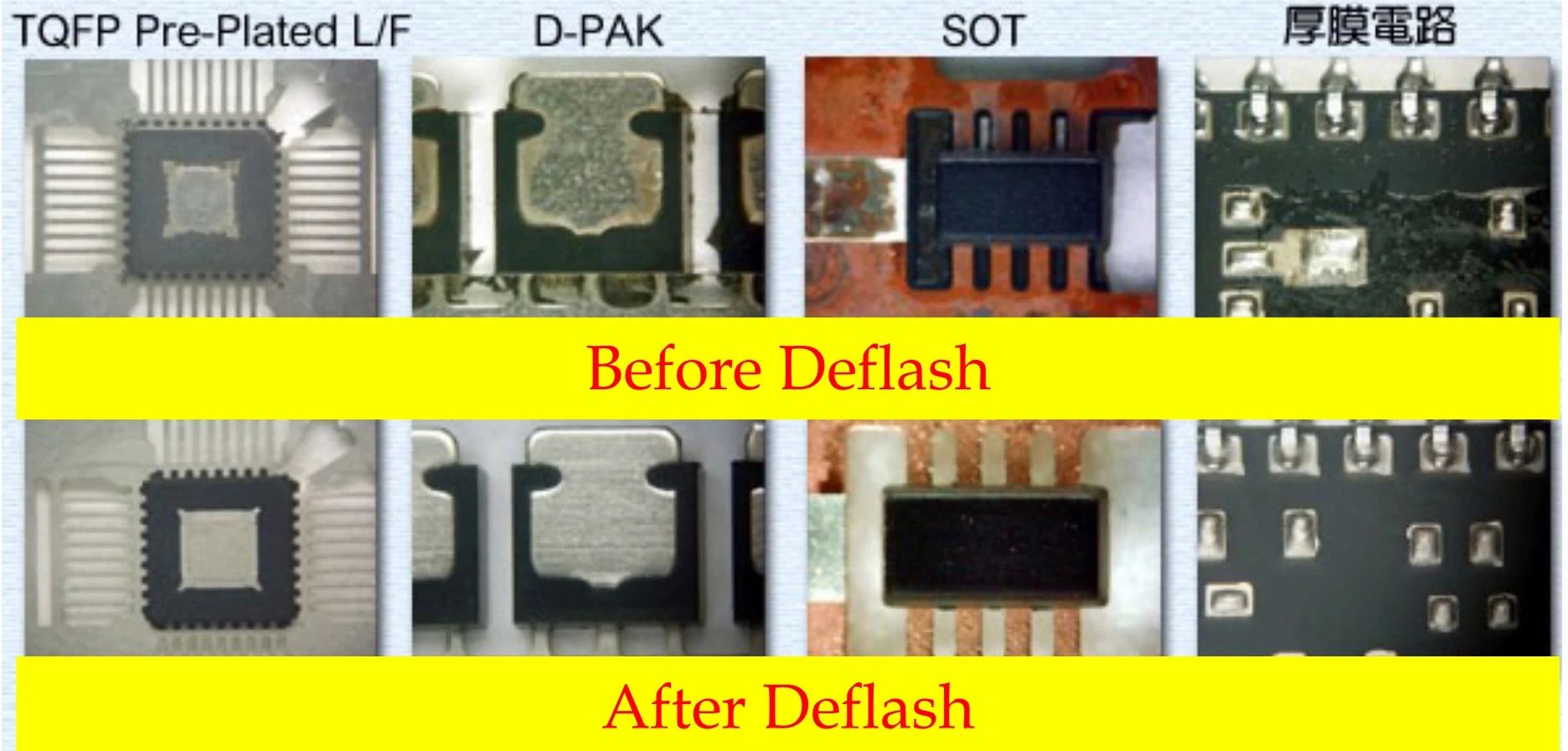

Used for deflash after the molding process of semiconductor IC , LED, TO, SOT, QFN, DFN etc…
According product performance and lead frame plating material, choose suitable solutions for deflash.
Normally have two solution.
1, MDWF-CDA8030(Chemical Deflash) + MDWF-WJ8030(wafer jet)
2, MDWF-EDWJ8030(Electrolysis Deflash + Water Jet)
According our experience NiPdAu plating need ED, other no need. final requirement pending on Chip performances. In MDWF-EDWJ8030
which with ED unit can also work when ED unit is selected power off.
Suitable lead frame (can customize)
length
140-245mm
width
50-80mm
thickness
0.2-3mm
Process:
MDWF-CDA8030(Chemical Deflash)
Automatic upload >>chemical immerse>>bubble cleaning(optional ultrasonic cleaning)>>download
MDWF-WJ8030(water jet)
Automatic upload>>water jet>>ultrasonic cleaning>>spray drying>>oven drying>>download
MDWF-EDWJ8030(Electrolysis Deflash + Water Jet)
Automatic upload>>Electrolysis deflash>>water jet>>ultrasonic cleaning>>spray drying>>oven drying>>download

Character and basic configuration:

Water jet unit: jet nozzle:16pcs diamond nozzle; 1pcs 30HP high pressure pump. automatic pressure adjustment system.
Ultrasonic unit: 600W(1000mm)
Spray drying: 7set air nozzle,7.5kw/set. (1150mm)
Oven drying: 120C degree, (1000mm)

Size:

MDWF-CDA8030(Chemical Deflash): 2800*1500*2000mm customize
MDWF-WJ8030(water jet):4800*1100*1600mm (customize)
MDWF-EDWJ8030(Electrolysis Deflash + Water Jet): 10800*1100*1600mm (customize)
Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. The company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the
equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
