Product Description

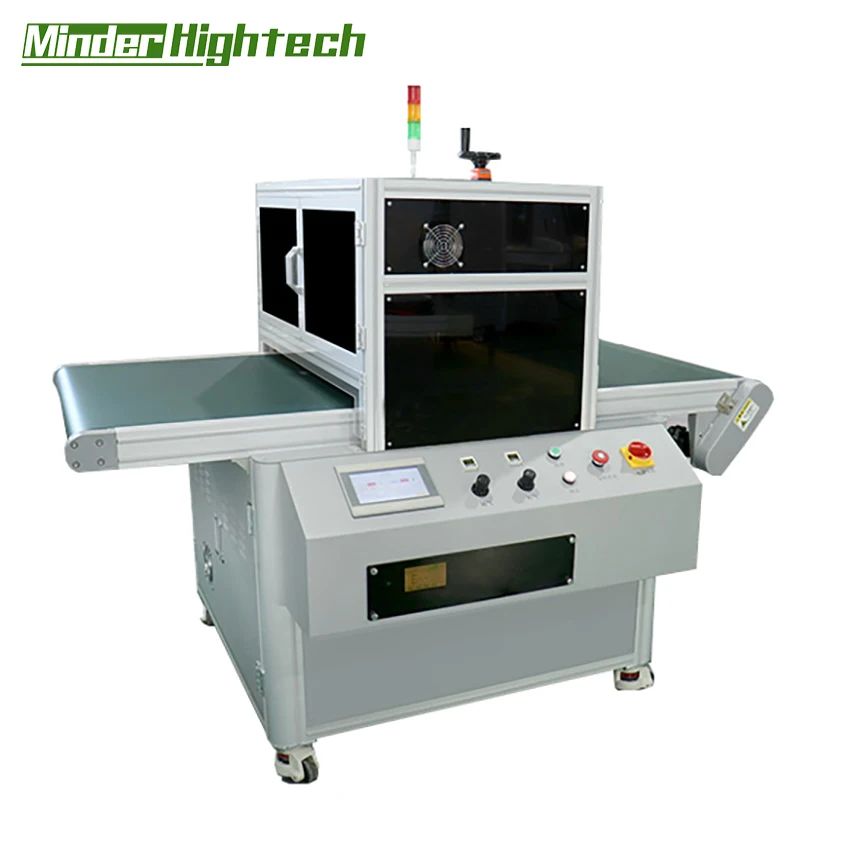

Wide-range Radio Frequency Plasma Cleaning Machine

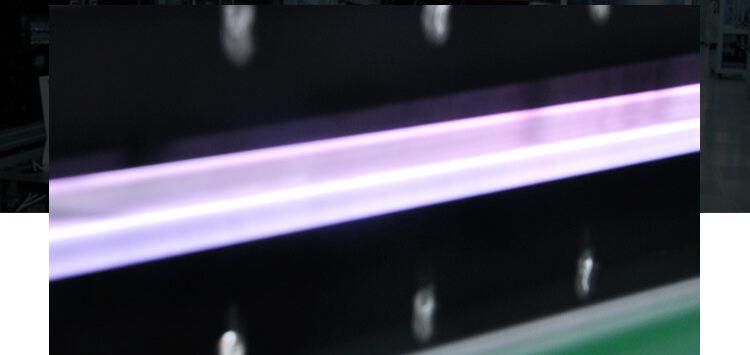

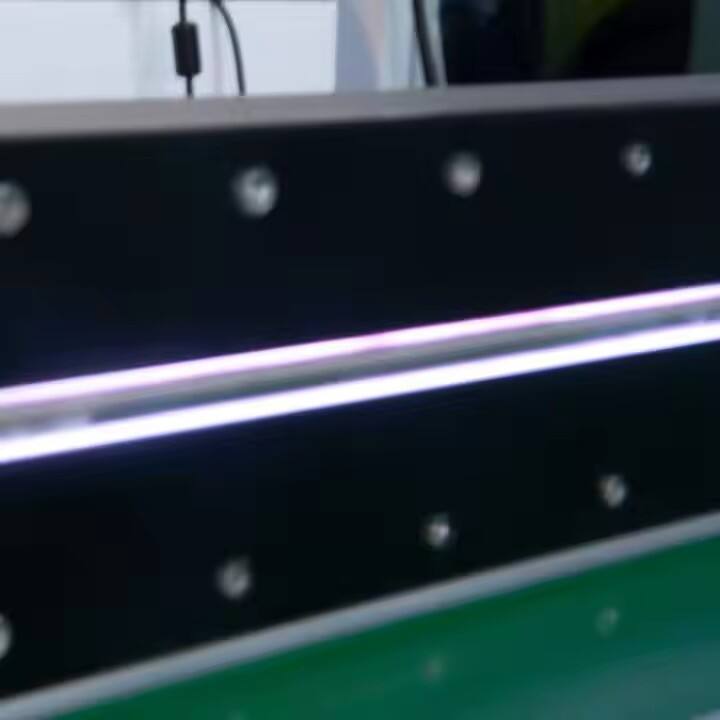

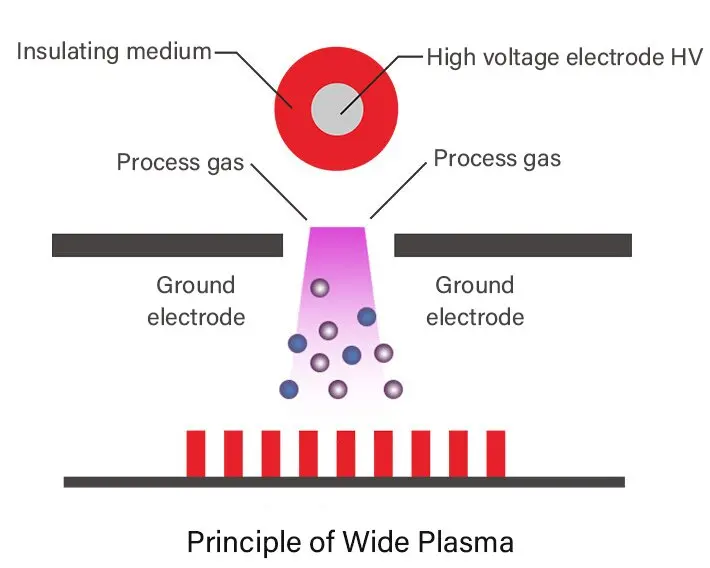

By placing a dielectric between metal electrodes and utilizing the graded phenomenon on the surface of the dielectric, a uniform electric field is formed to generate plasma.
Plasma modules are suitable for various narrow spaces and can be installed on production lines to achieve continuous production operations.
Low gas cost, using N2/CDA mixed gas.
Customization can be made according to the width of the product.

Working principle of plasma cleaning

Plasma surface treatment is to apply sufficient energy to the gas to ionize it into plasma. The "active" components of plasma include: ions, electrons, atoms, active groups, etc.
Plasma treatment is to treat the surface of the sample by using the properties of these active components, so as to achieve the purpose of cleaning, modification, and etching. There are two main reactions between plasma and the surface of the material. One is chemical reaction by free radicals, and the other is physical reaction by plasma.

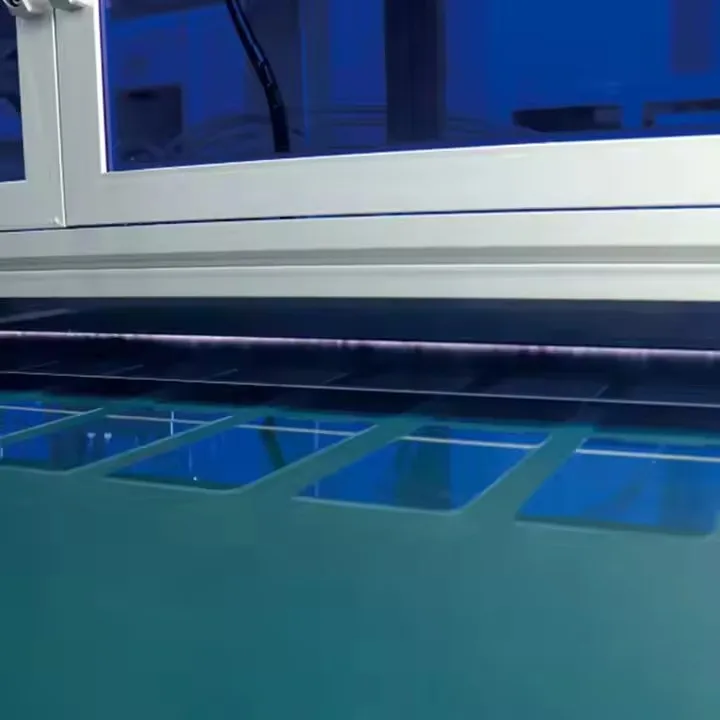

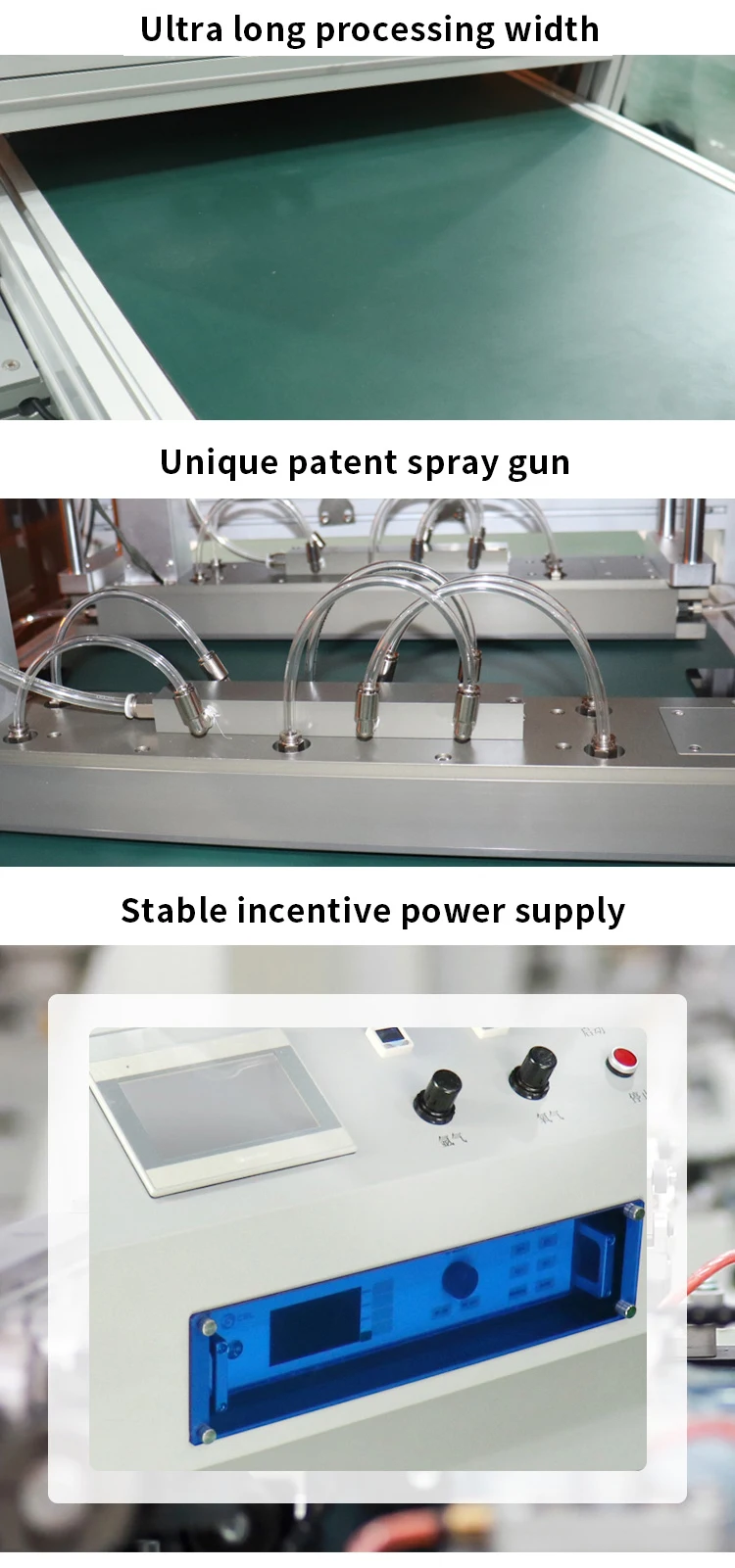

Increase processing width

With 800mm processing width, processing time per unit area is longer, while processing area is larger, greatly improving
processing efficiency

Unique patented spray gun

Adopting a unique plasma generation structure, the normal processing temperature is less than 35℃, uniform and stable, and it is not easy to appear arc breaking, partial arc, arc starting and other phenomena.

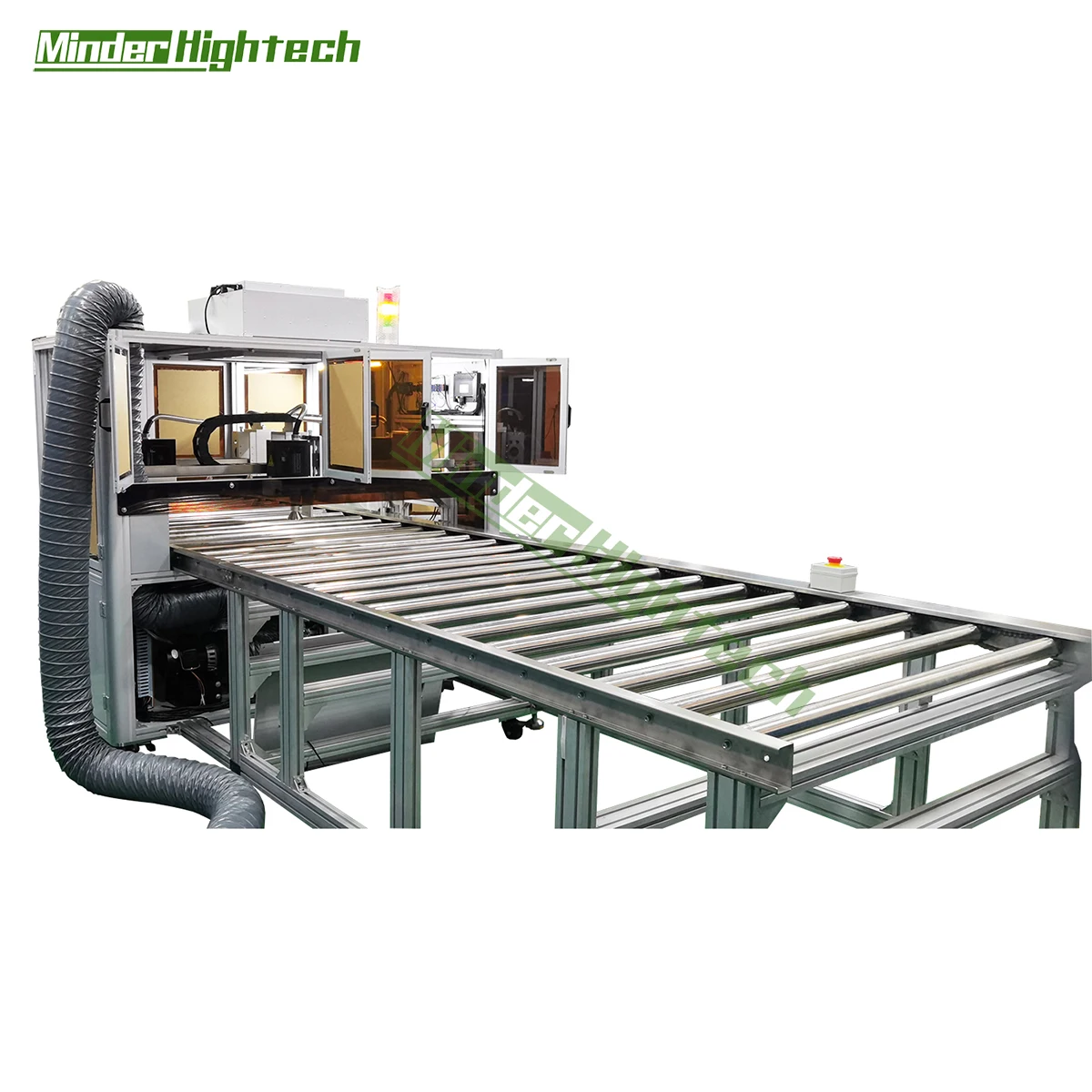

Customized solution

Wide linear plasma cleaning machine can be customized gas
Matching and automation solutions to meet the cleaning needs of industry products

Normal processing temperature <35℃

The insulating material of the outer layer of the high voltage electrode HV makes the processing temperature of the wide plasma equipment lower

Specification

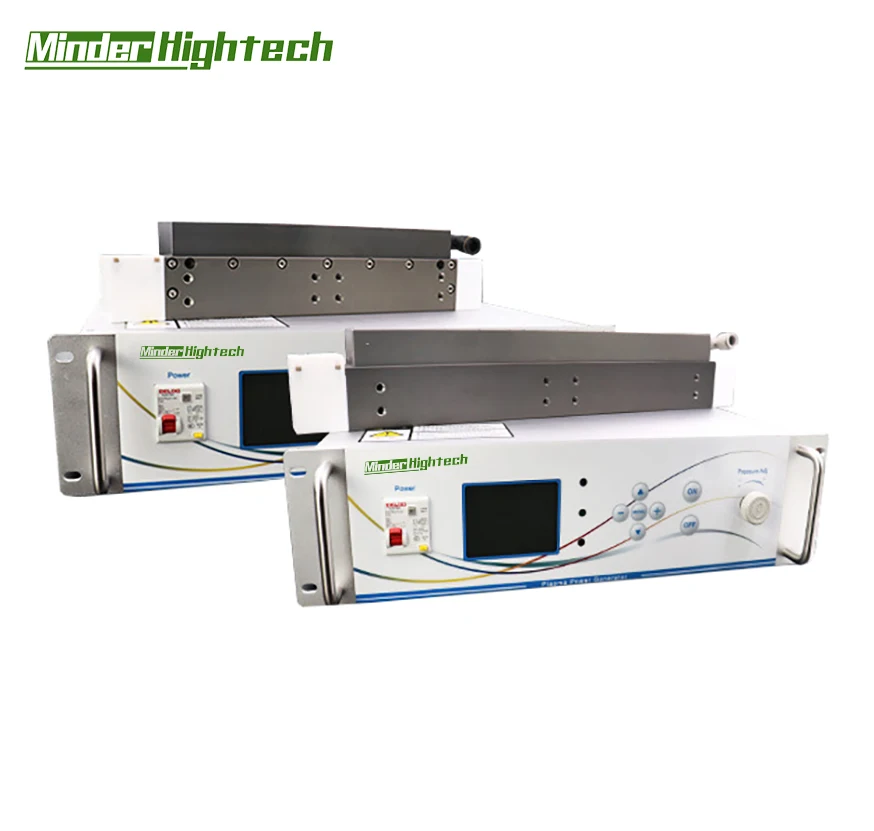

Plasma power host specifications 280Z
Chassis size	538x480x137mm(Length x width x height)
Weight	15KG
Input power	220V, 50/60Hz, 3-wire, 20A
Power frequency	25-50KHz
Plasma output power	750-1100W adjustable
Power factor	≥0.95
Power output accuracy	士1%
way to control	Digital control, optional local control and remote control
Configuration space	Place it in a well-ventilated place (ring mirror temperature <30°c), reserve a space of 150mm or more for heat dissipation on the left, right and above, and reserve 100mm of wiring space at the rear
Configuration space

Plasma power host specifications 410Z
Chassis size	538x480x137mm(Length x width x height)
Weight	15KG
Input power	220V，50/60Hz，3wire，20A
Power frequency	25-50KHz
Plasma output power	750-1100W adjustable
Power factor	≥0.95
Power output accuracy	士1%
way to control	Digital control, optional local control and remote control
Configuration space	Place it in a well-ventilated place (ring mirror temperature <30°C), reserve a space of more than 150mm for heat dissipation on the left, right and above, and reserve 100mm of wiring space at the rear
Configuration space

Packing & Delivery

Company Profile

Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.

FAQ

1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
