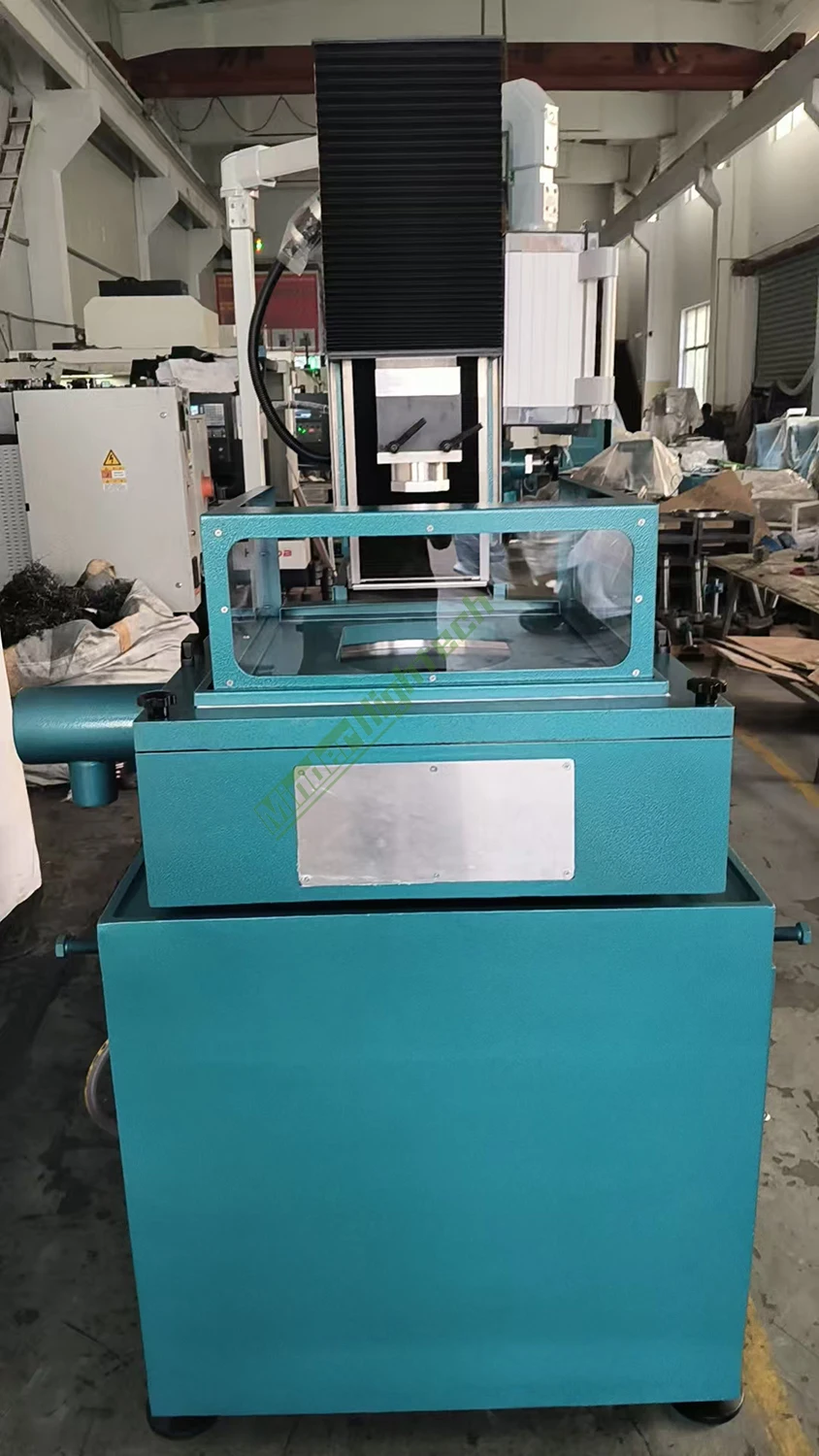

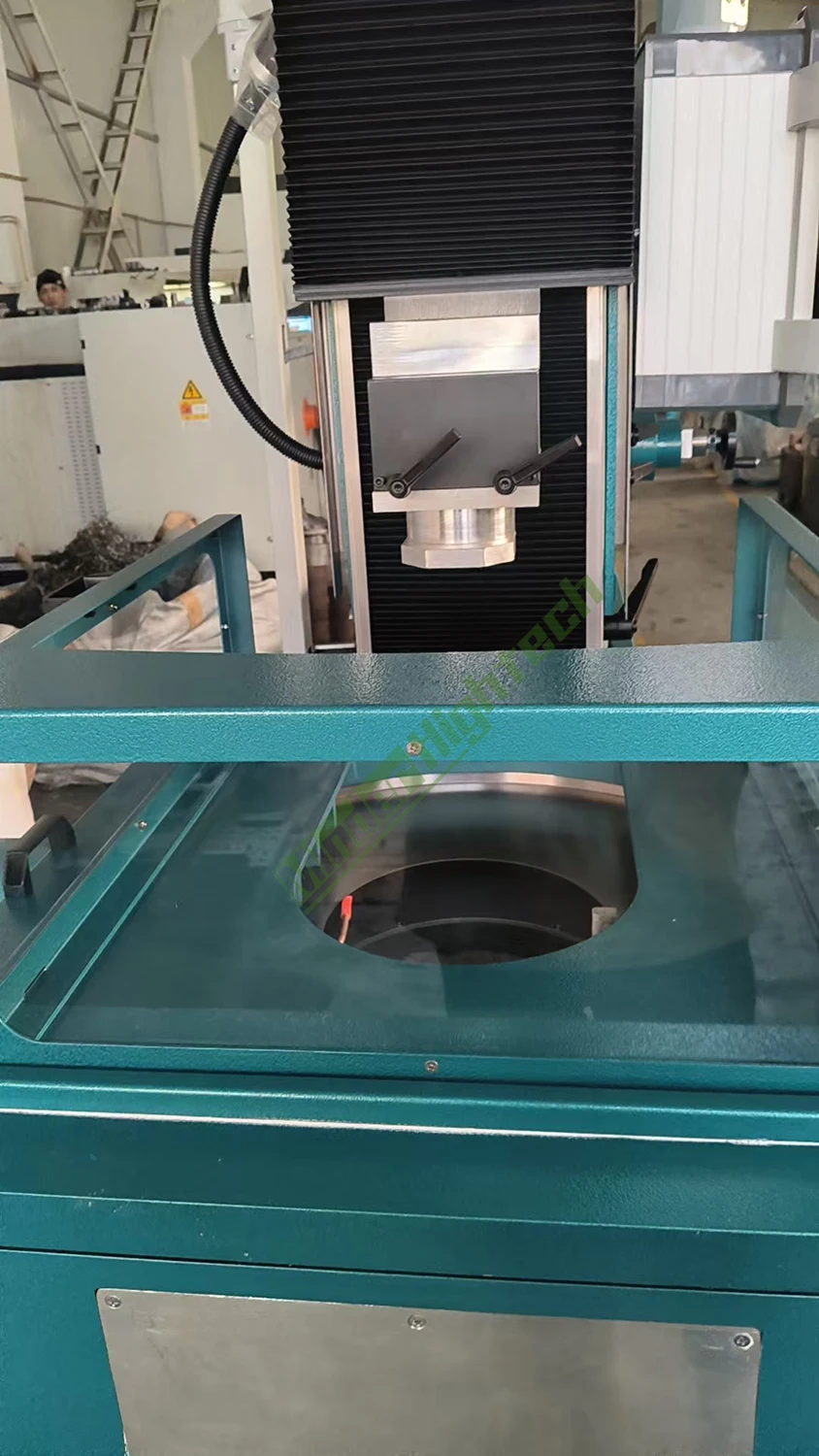

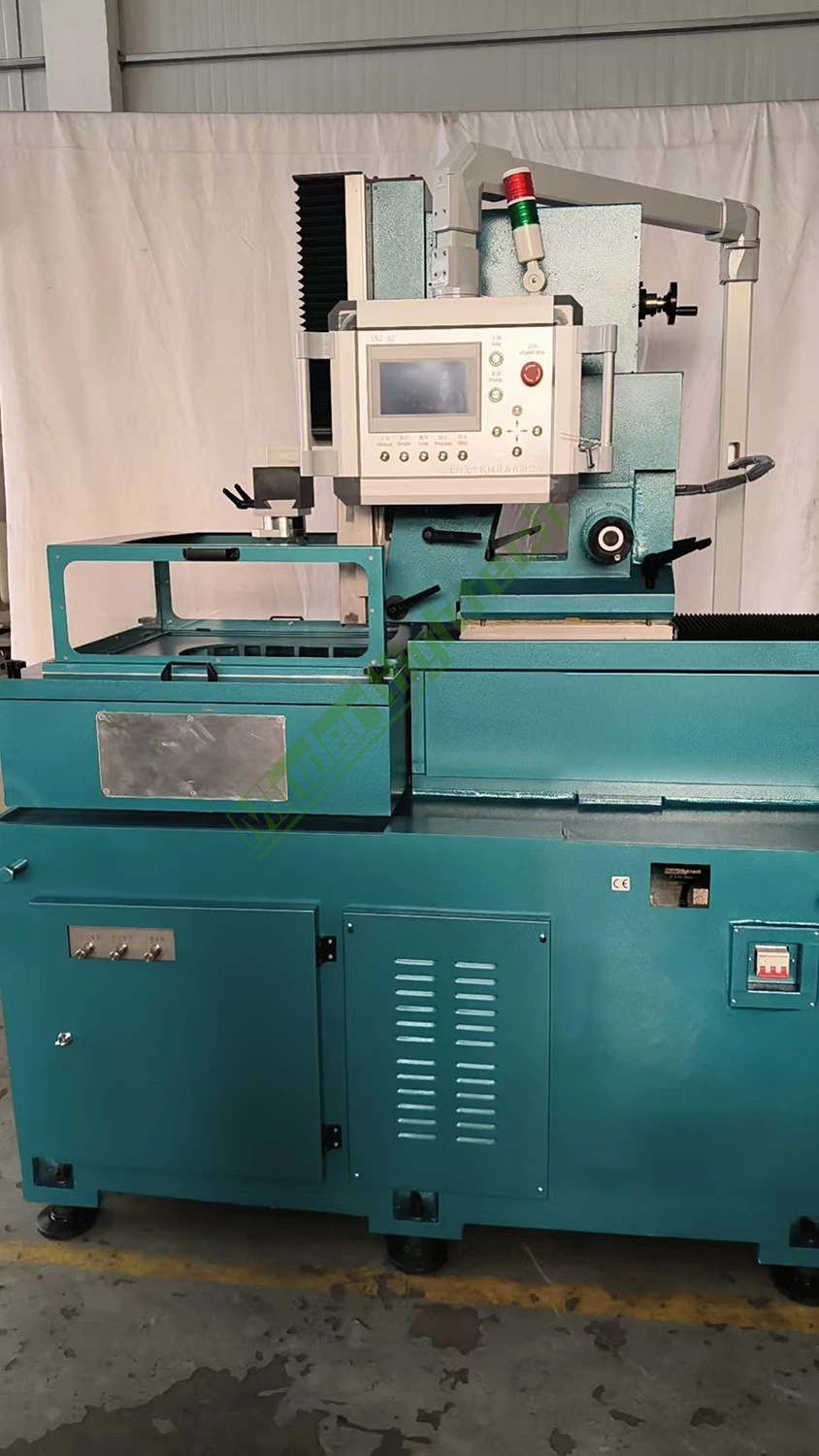

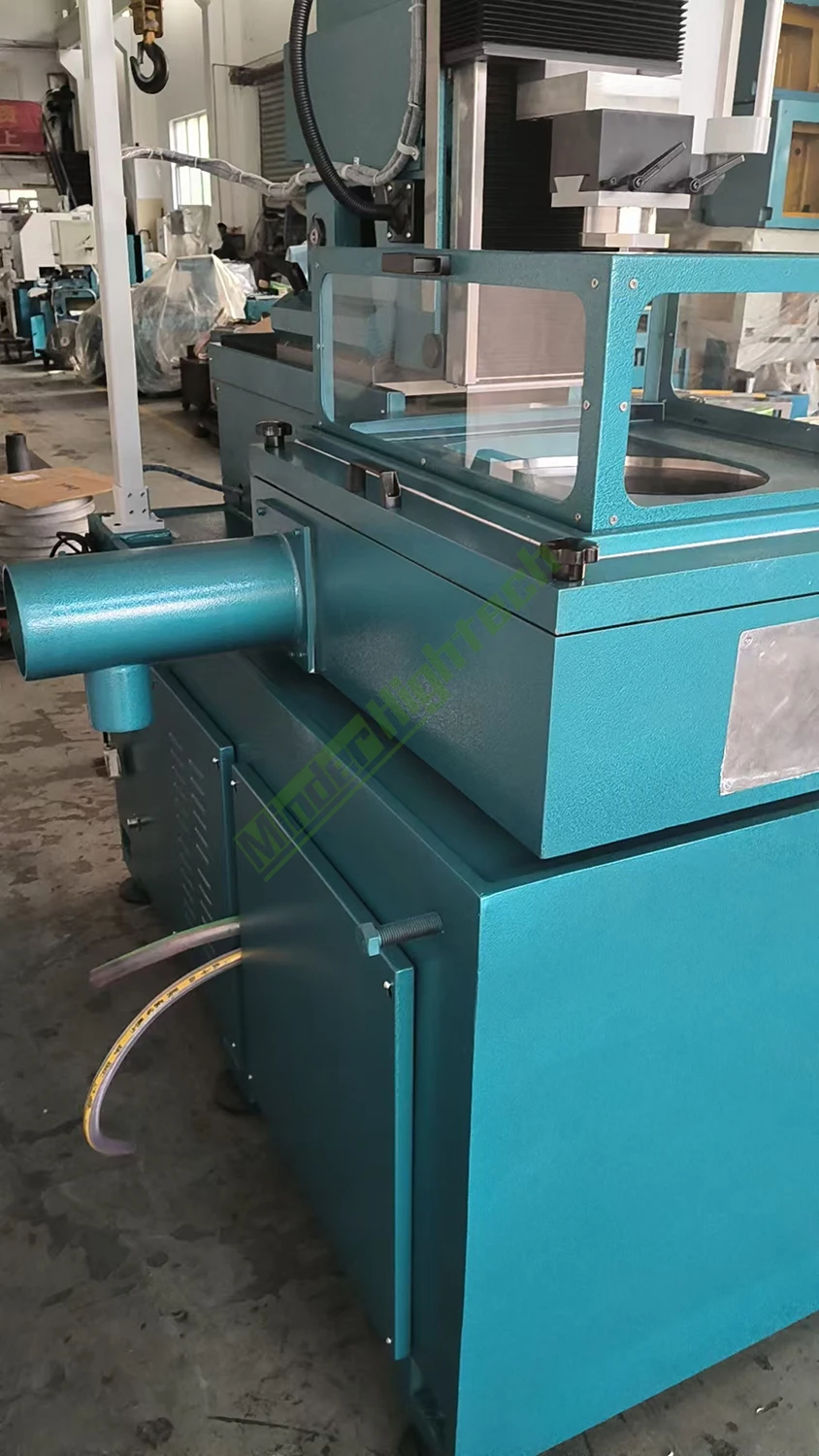

Vertical Inner Diameter Circle slicer / Wafer ID Vertical Slicer

Get a Free Quote
Product Description

Vertical Inner Diameter Circle Slicer

It is mainly used for high-precision cutting of brittle and hard materials such as crystals, ceramics, rare earth magnets, gems, glass, etc.
Vertical spindle structure, using precision ball bearings imported from Japan, the spindle is driven by a low-noise motor through a flat belt to rotate smoothly and at high speed. It has high operating precision, strong rigidity and long service life.

Feed component:

The feed component is also called the Z-axis system. Its function is to complete the precision feeding of the workpiece through a servo motor, a precision coupling and a high-precision ball screw, relying on a high-precision linear guide. This mechanism also has manual operation to tilt the Z-axis system forward, backward, left and right, with a tilt angle of 0~±7°.

Moving component:

The movement of the moving table relies on a high-precision linear guide, and the servo motor drives the screw to rotate through a high-precision reducer. Its transmission characteristics are high precision, stable operation, and compact structure. The idle stroke speed, cutting speed, and return speed can be set arbitrarily within a certain range.

Frequency conversion control:

The spindle motor is controlled by a frequency converter, with a smooth start and smooth operation.

Interface display:

High-resolution imported touch screen display makes operation convenient and intuitive.
Specification
Item
Parameter
1
Workpiece's maximum cutting diameter (mm)
Φ153
2
Workpiece's maximum cutting length (mm)
400
3
Inner circle blade specifications (mm)
690×241×0.15或690×235×0.15
4
Sheet thickness setting range (mm)
0.001~68.000
5
Sheet number setting range (mm)
0~500
6
Sheet head thickness setting range (mm)
0.001~68.000
7
Sheet thickness minimum feed amount (mm)
0.001
8
Sheet thickness feed repeatability (mm)
±0.003 (1mm equivalent feed)
9
Z-axis rotation angle range - left and right direction
±7º
Z-axis rotation angle range - front and back direction
±7º
10
Spindle speed
High speed, medium speed, low speed
11
Trolley feed speed (cutting speed) (r/min)
0.06~200
12
Trolley return speed (r/min)
0.06~900
13
Power consumption KW
3.5
14
Power supply
Ac380V±5%,50HZ
15
Coolant capacity (L)
80
16
Equipment dimensions (length × width × height) (mm)
1550×900×2400
17
Equipment weight (kg)
3000
18
Working environment
Temperature 20±4℃, humidity 40%~80%
Air pressure 86~106Kpa

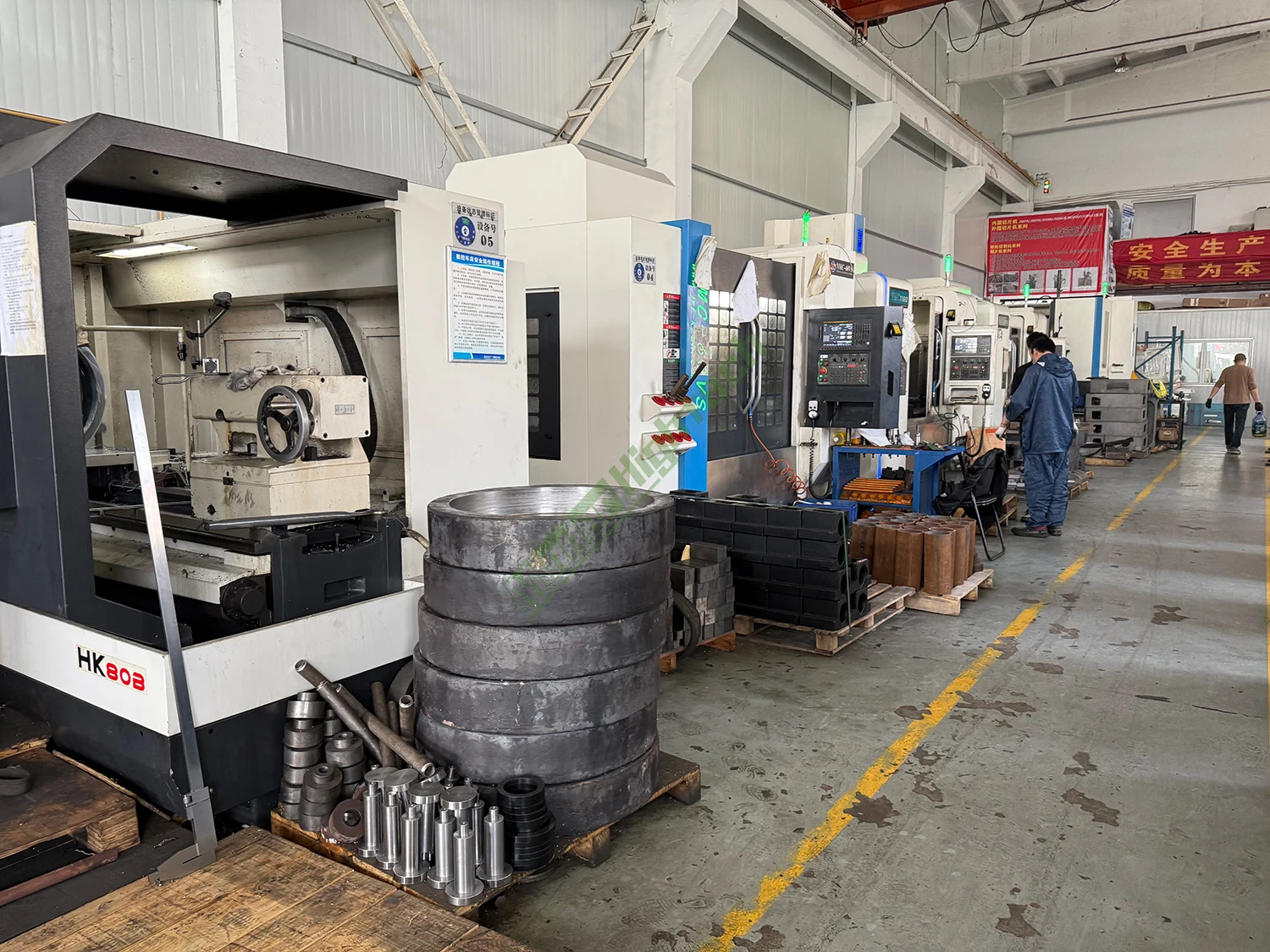

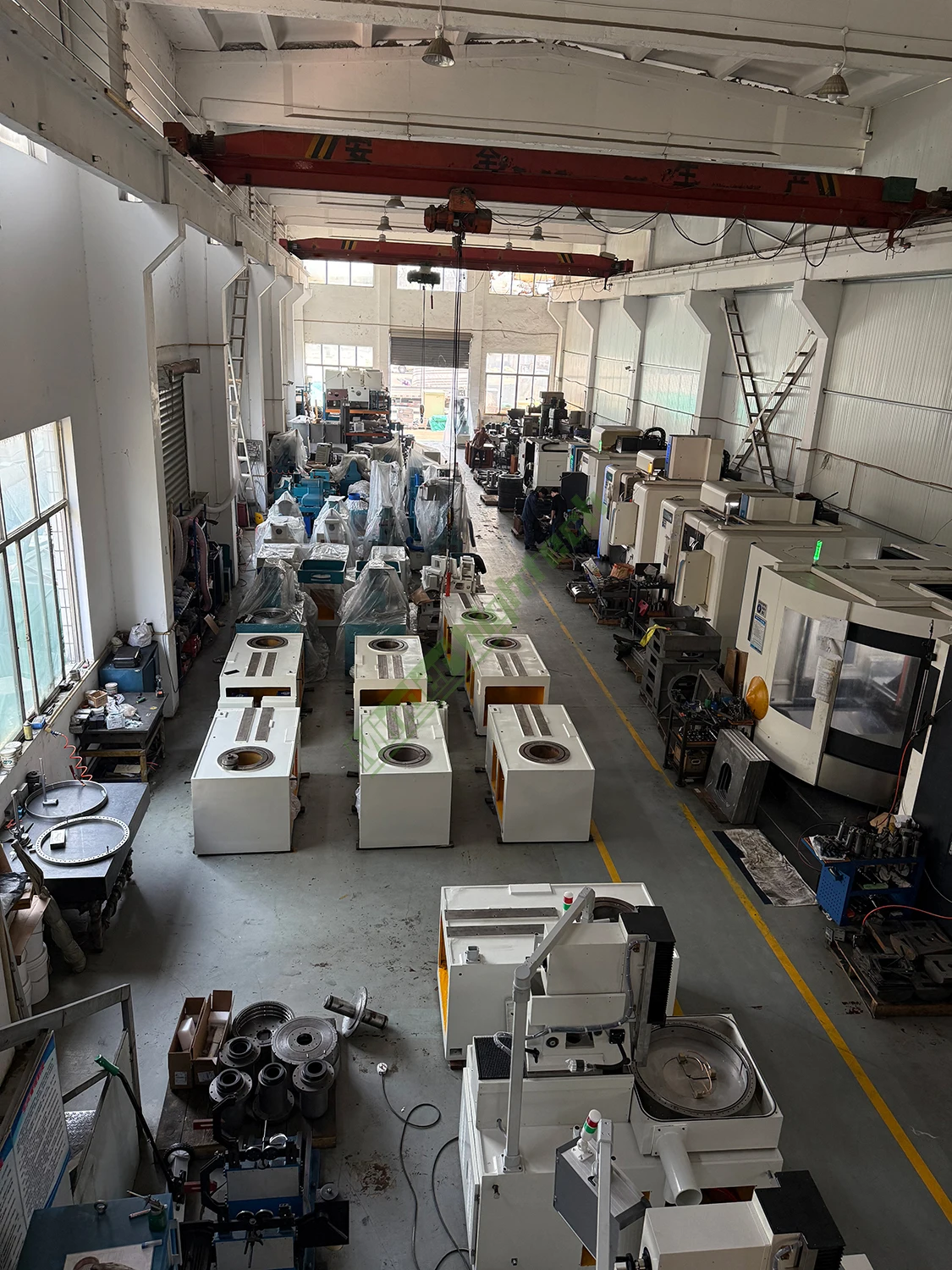

Factory Real Shot

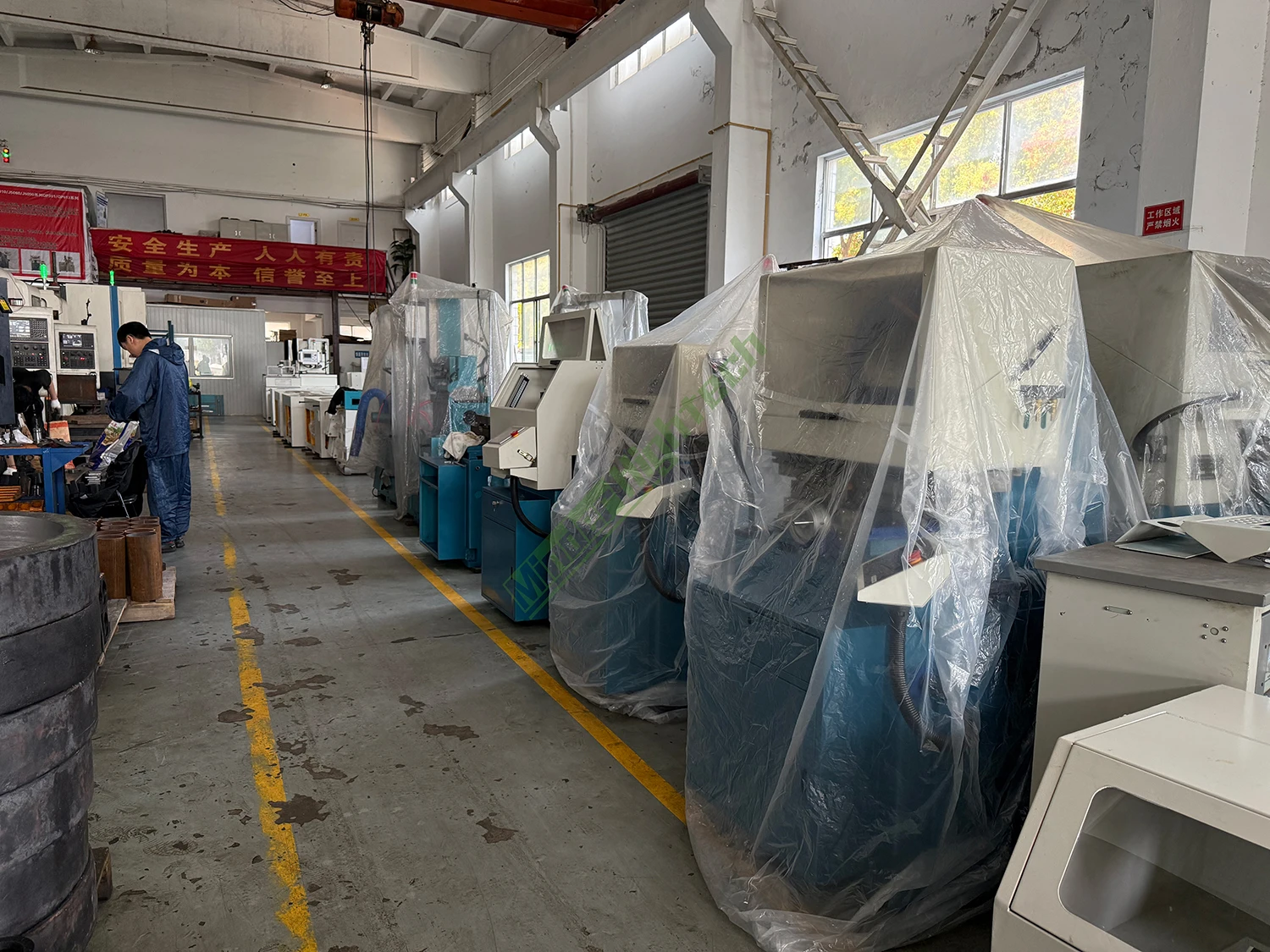

Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
