Table top Milling Cutter Divider PCB Router Separator

Get a Free Quote
Product Description

Table Top Milling Cutter Divider / PCB Router Separator

1. Machine drive using servo + lead rod, higher precision plate
2. Instead of manual breaking, manual cutting plate, cutting stress is small improve product quality, reduce product scrap rate
3. Using instructional programming, with point, line, circle, arc and other path editing function

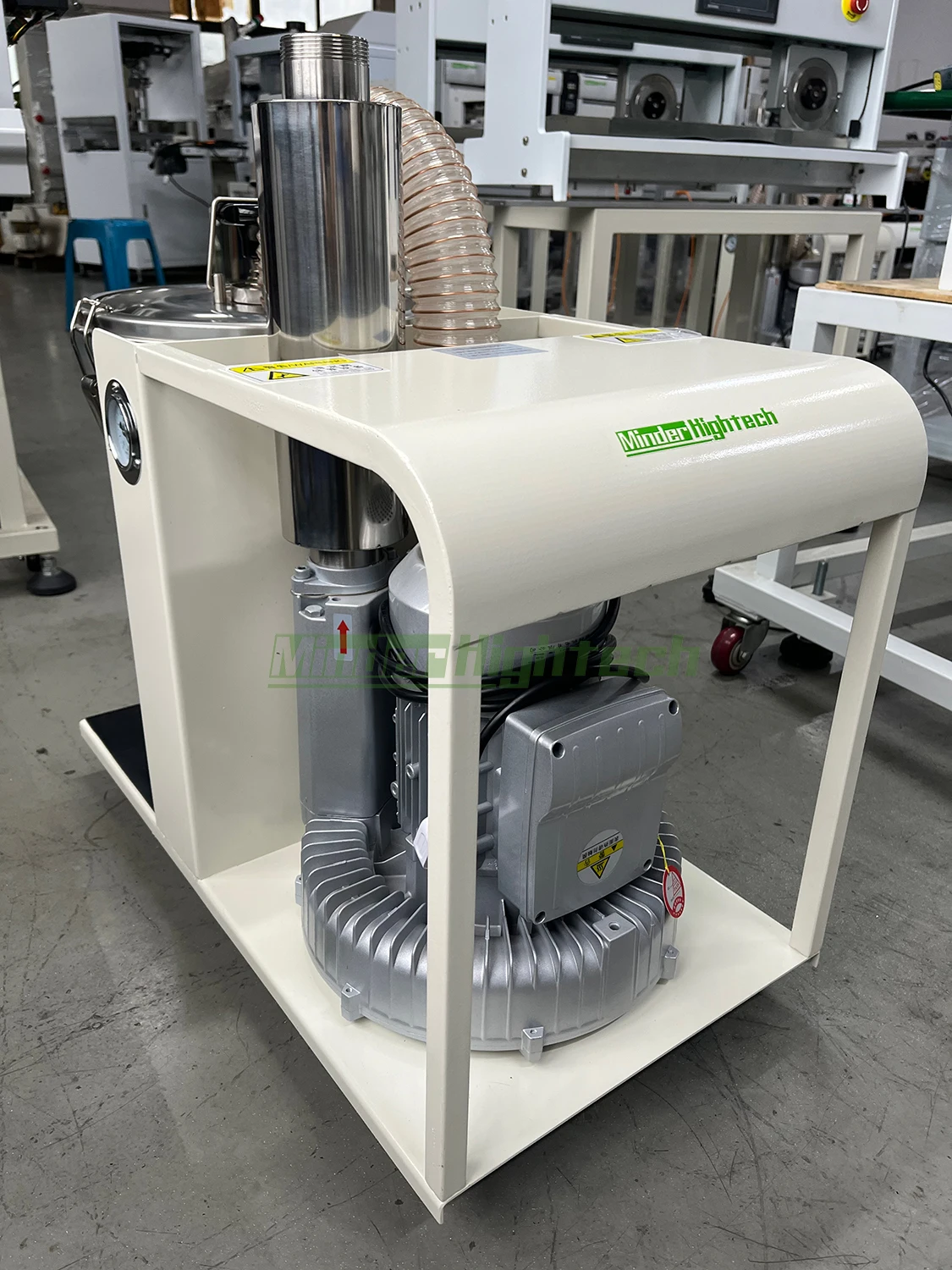

4. Equipped with dust collection system to keep PCB and working face clean
5. With automatic execution function, automatic reset, output setting.processing time and other functions
6. All transmission mechanisms are protected against dust and stolen goods to improve the life and performance of the machine
7. The machine has an emergency stop switch, spindle motor overheating and servo motor overload detection
Application
SMT, smart phones, smart wearables, Precision instruments, tablet computers, Automotive electronics, Military Products, Aerospace, semiconductors, medical devices, communications, White Goods, LED, etc
Specification
Equipment model
MD-300
working stroke
300x 350x 100 (MM)（Customizable itinerary）
Milling cutter specification
0.8/1.0/1.2/1.5
cutting thickness
0.5-5 (MM)
Vacuum cleaner suction
1800mmH2O
Gas flow
48kg/s
cutting accuracy
±0.1 (MM)
repetition accuracy
±0.02 (MM)
milling cutter diameter
0.8-3.0 (MM)
spindle speed
40000rmp/min
maximum cutting speed
100MM/S
coordinate maximum movement speed
800MM/S
drive way
servo/step (optional)
control mode
motion control card / single chip microcomputer
Programmatically
teaching/guiding diagram
dust collection way
suction up/Down (optional)
working voltage
AC220V/50-60HZ
working pressure
0.5-0.7MPA
equipment power
1KW
overall dimension(L/W/H)
570x700x 690 (MM)
equipment weight
85 KG

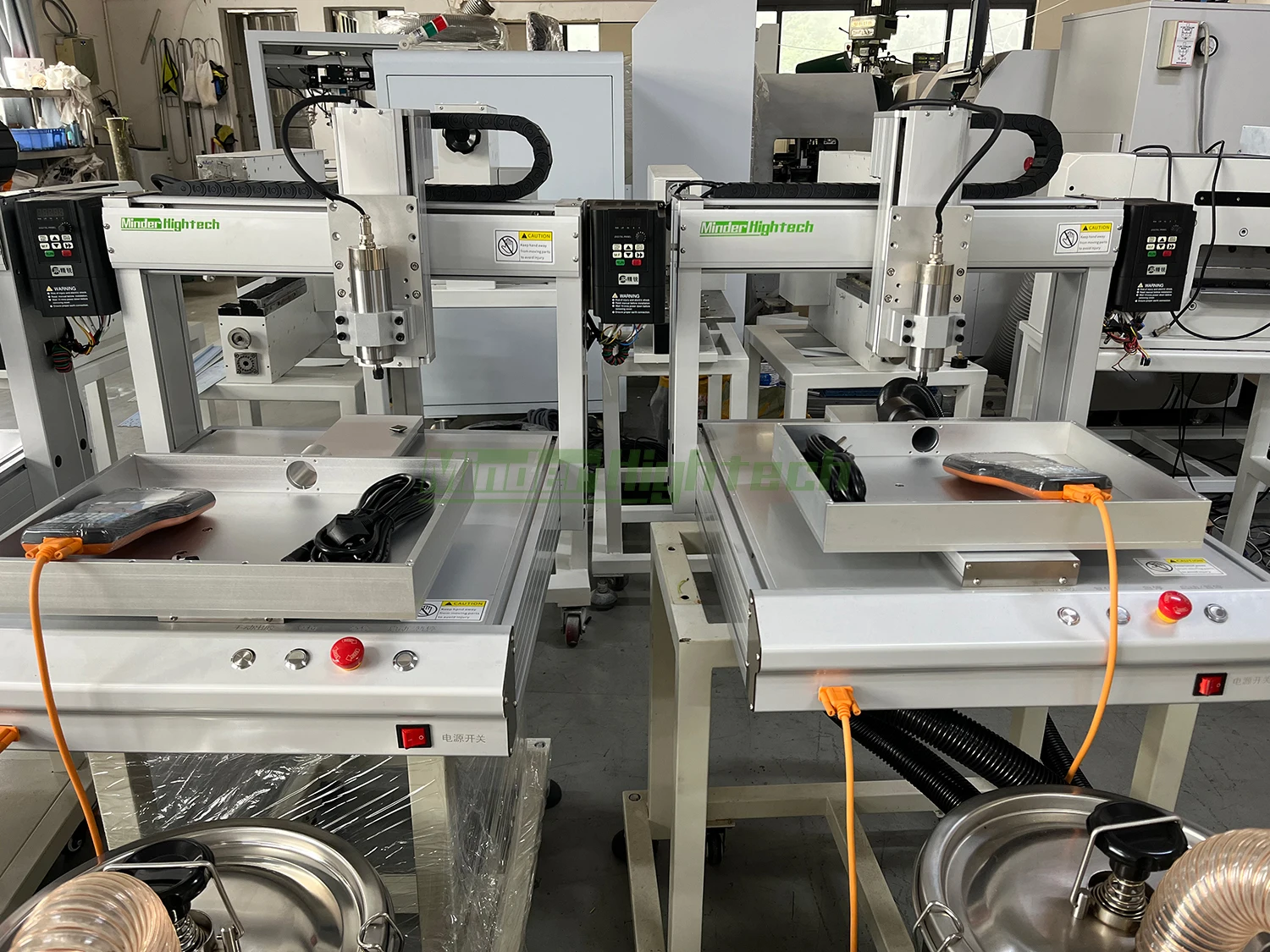

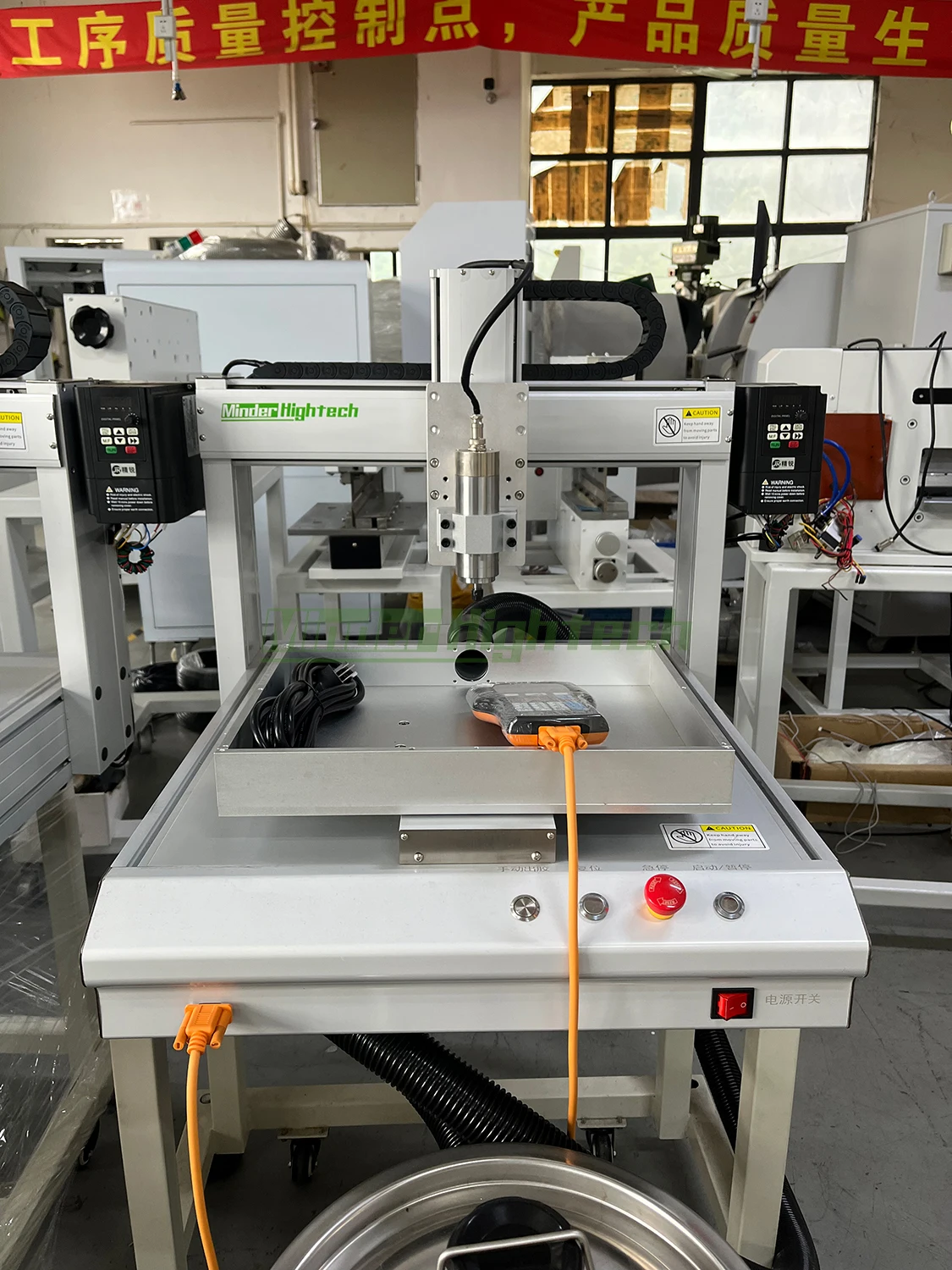

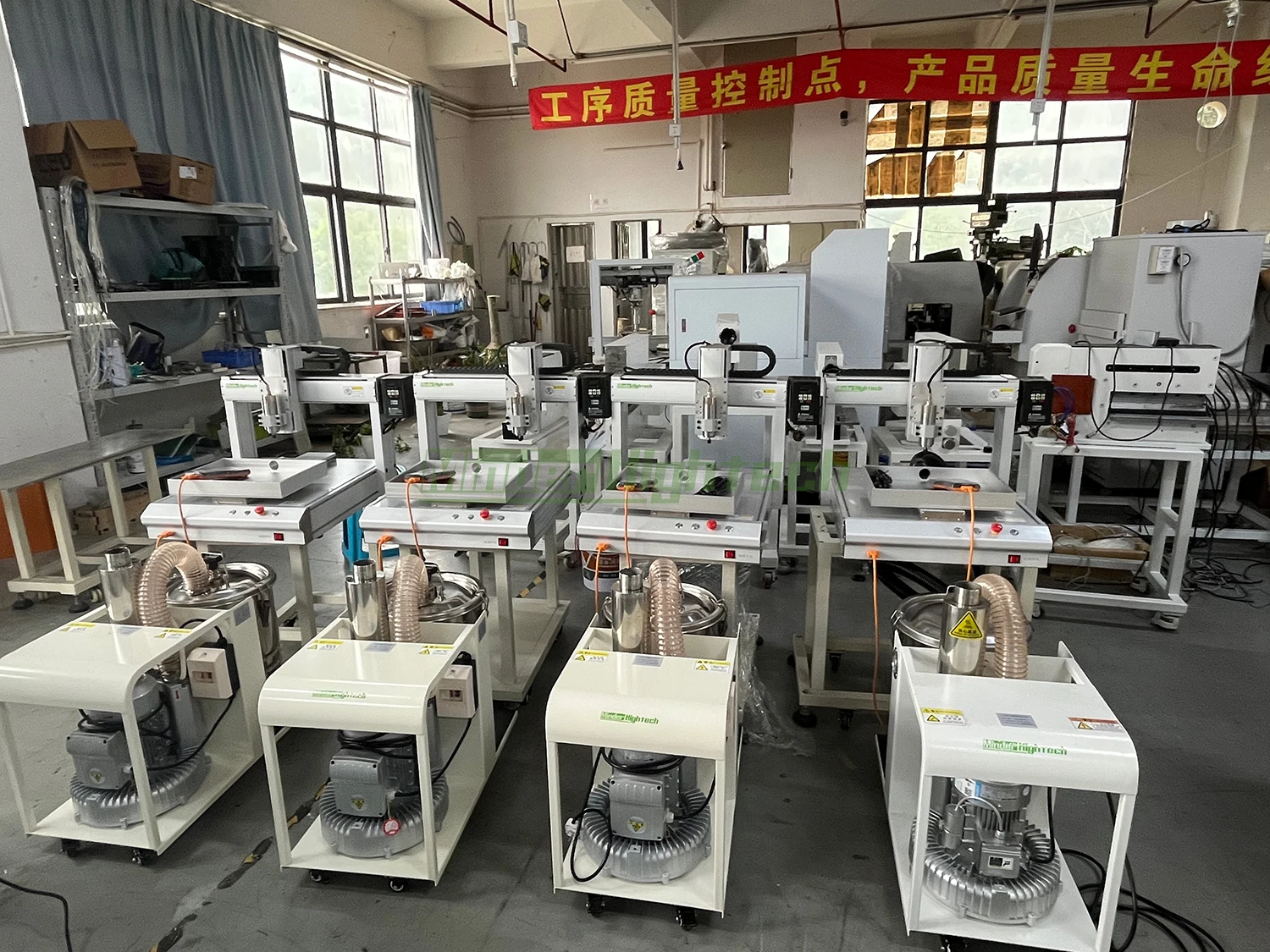

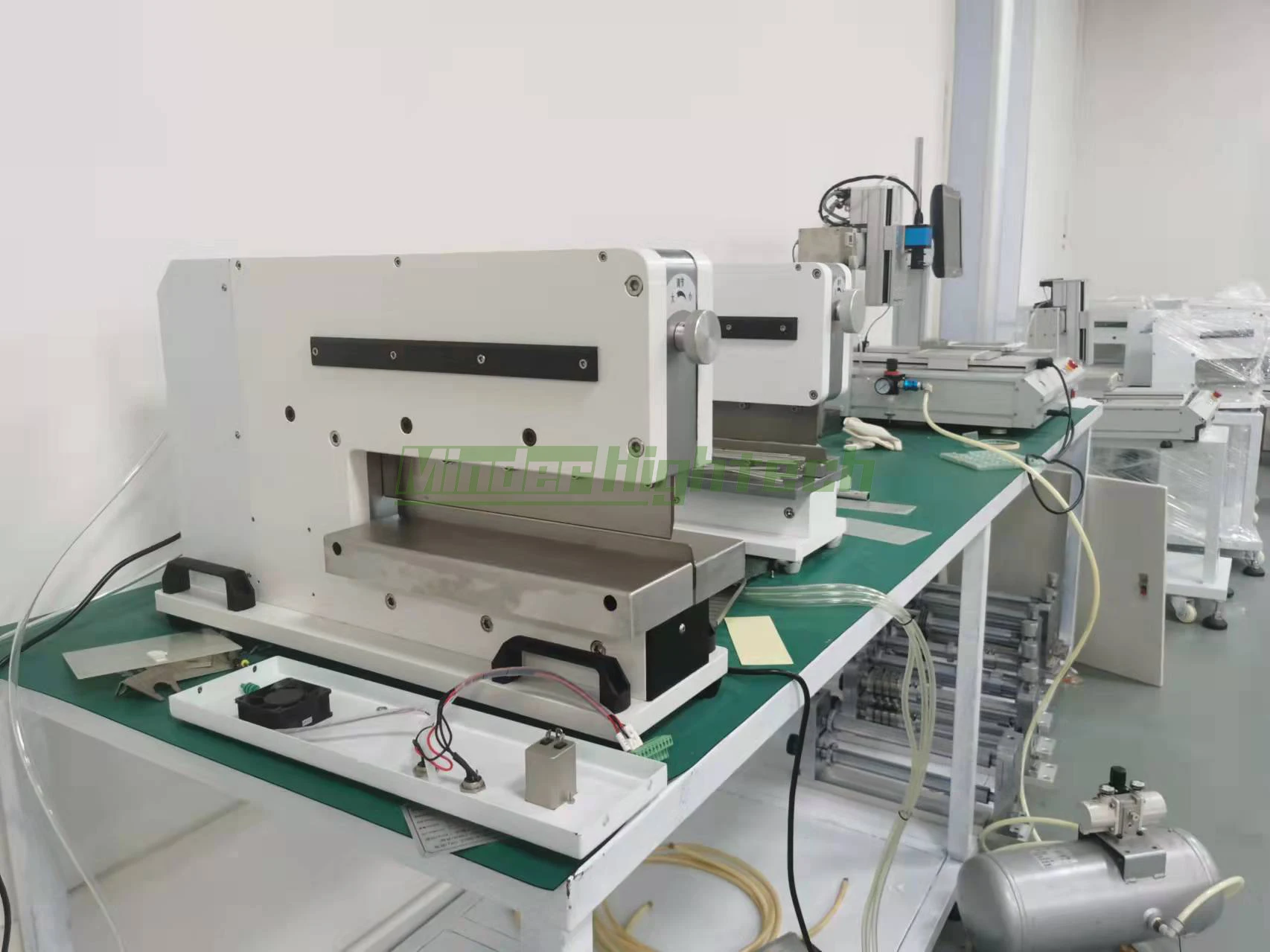

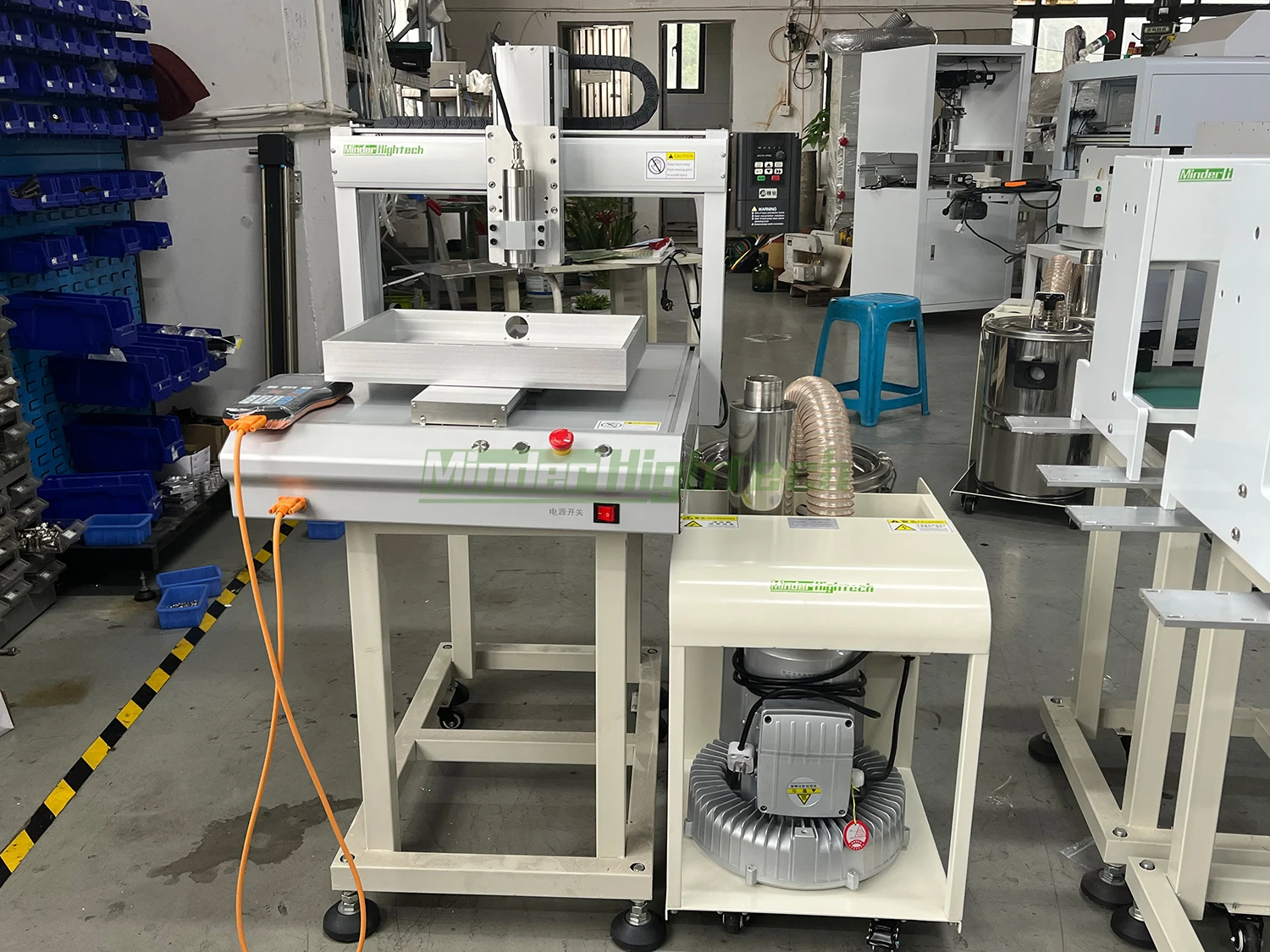

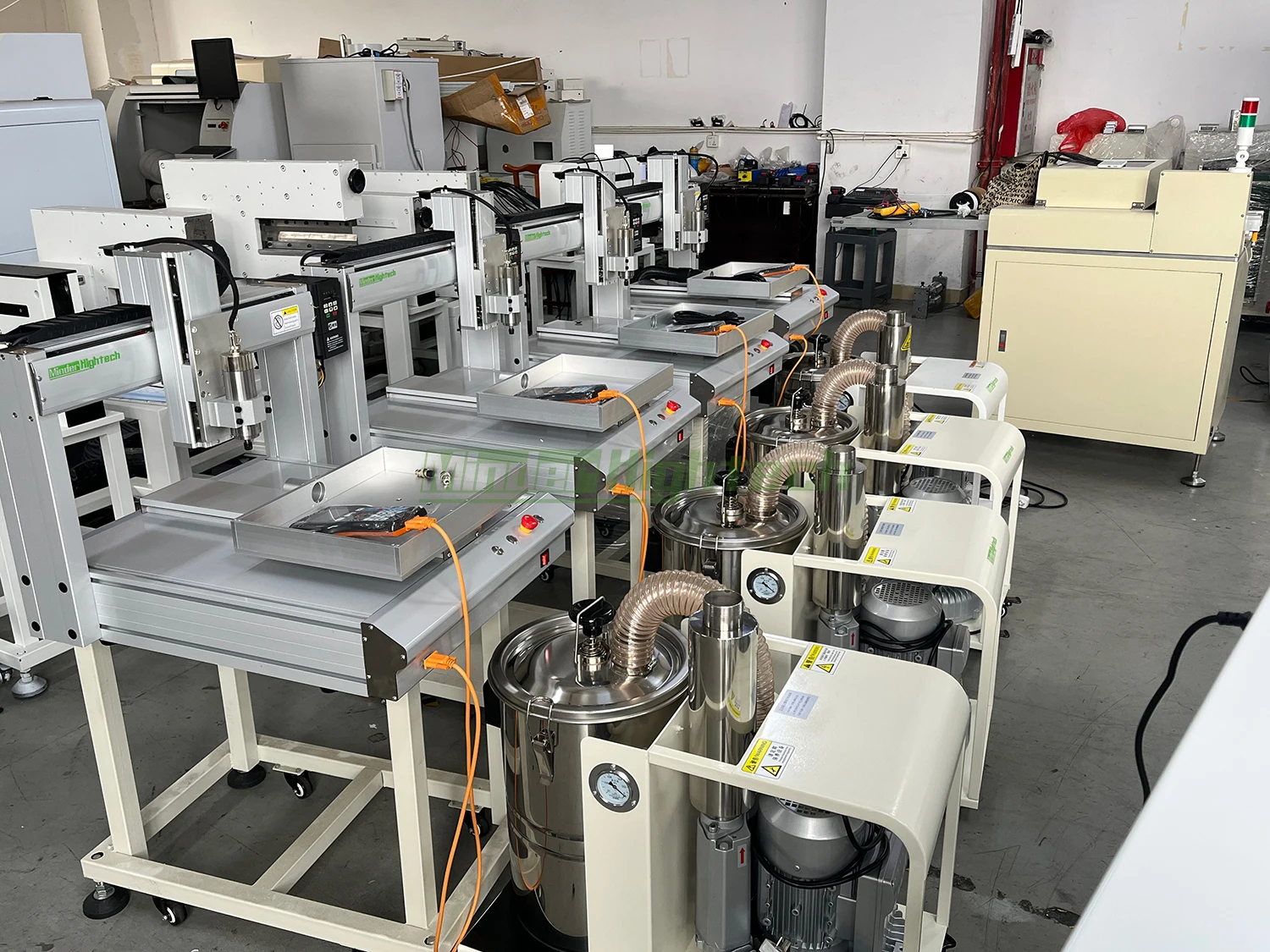

Factory Real Shot
Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
