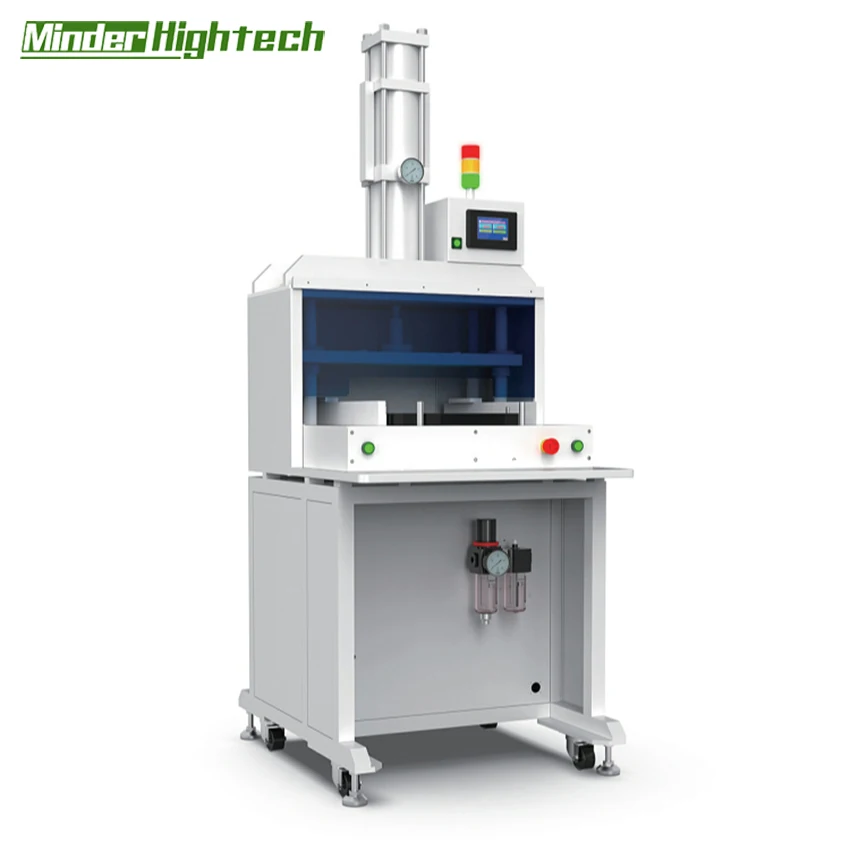

Punch plate splitting machine Punch type PCB Separator

Get a Free Quote
Product Description

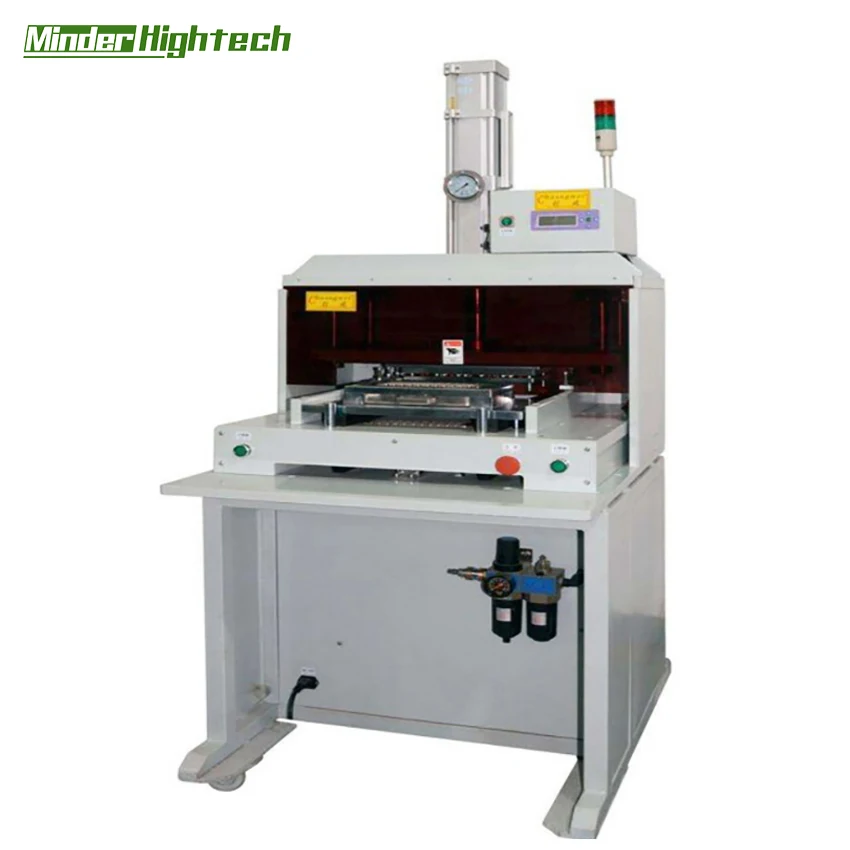

Punch plate splitting machine/Punch type PCB separator

It is applicable to the slitting of PCB stamp hole, curved PCB / FPC soft board, LED aluminum substrate and FPC. Widely used in automobile, power supply, computer, home appliance, mobile phone, connector, led and other industries.
Advantages
1. Mold change is convenient, and the touch screen has a special password. for mold change to ensure safe operation
2. With high and low pressure alarm function to ensure the same punching products
3. Accurate counting, convenient production statistics day output and total output
4. Pneumatic supercharging power, quiet, no oil pollution, energy saving and environmental protection, convenient maintenance
5. The punch shear stress is small, avoid tin crack, crack, edge, rough edge and other bad phenomenon
6. Special mold design, precise punching, higher service life, punching times up to 500,000 times
7. It is applicable to the slitting of PCB stamp hole, curved PCB / FPC soft board, LED aluminum substrate and FPC.
8. Widely used in automobile, power supply, computer, home appliance, mobile phone, connector, led and other industries.
Specification
Equipment model
D08
Equipment output
8T(Can be customized)
plate area
330x220 (MM)
stamping plate thickness
0.08-3.5 (MM)
partition type
glass fiber board. aluminum substrate. copper substrate FPC
dividing accuracy
±0.05 (MM)
working voltage
220V/50-60HZ
working pressure
0.5-0.7 MPA
equipment power
50W
overall dimension L/W/H
750x670x1500 (MM)
equipment weight
450 KG

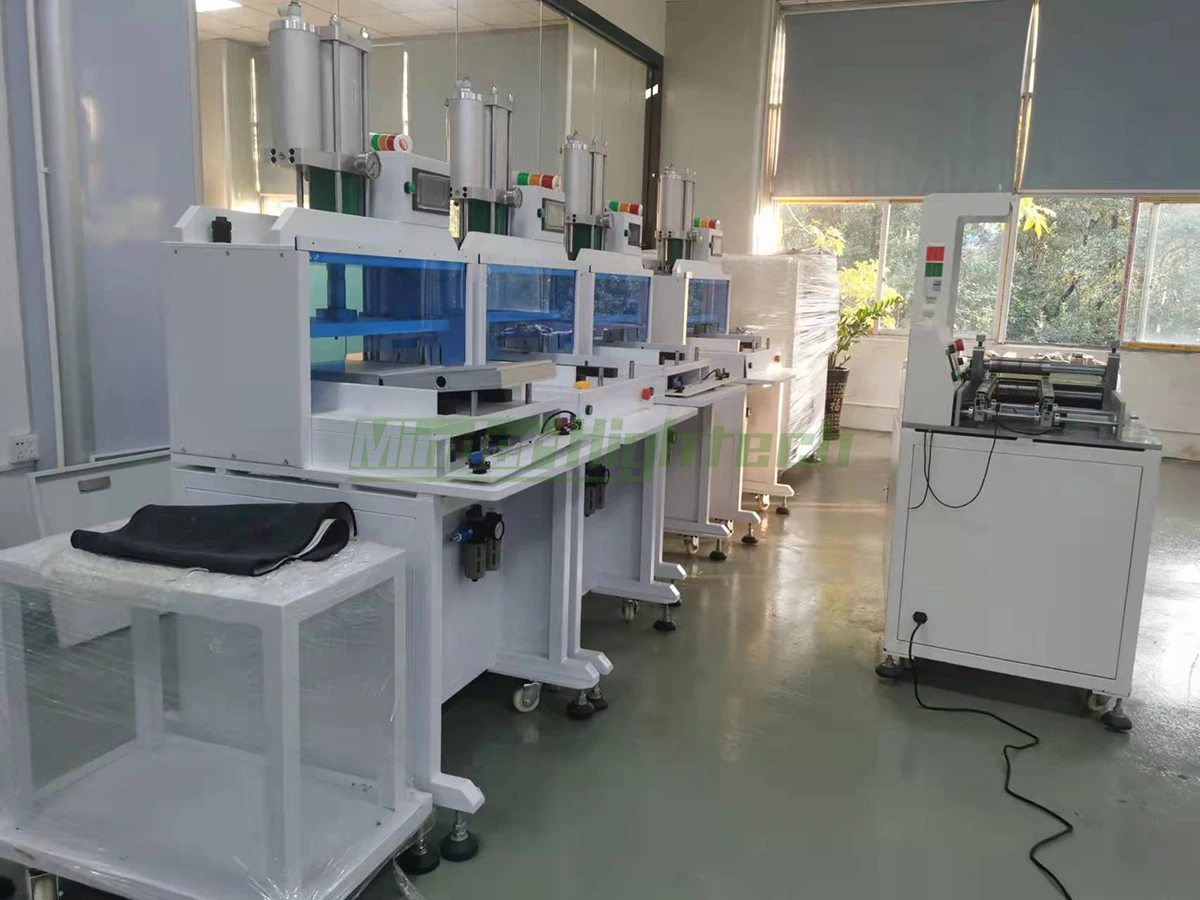

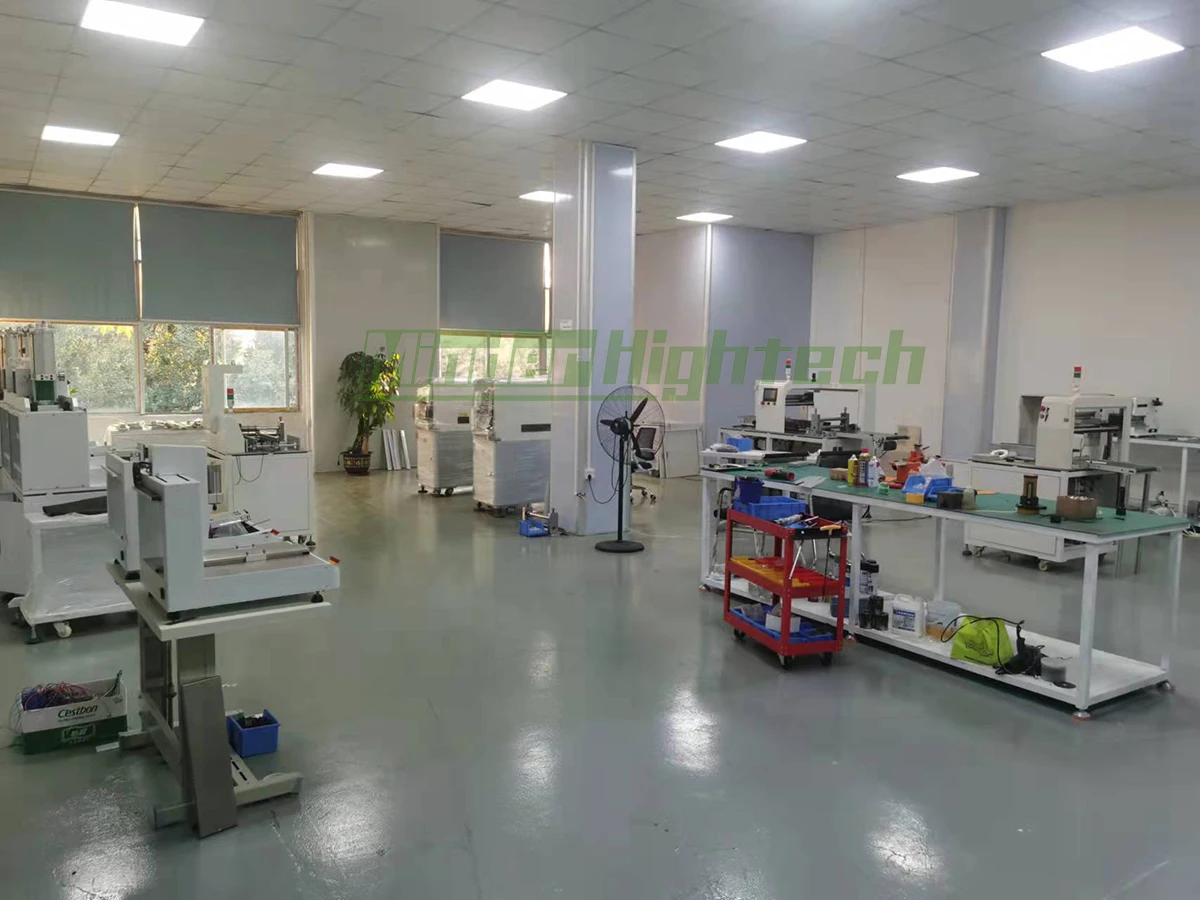

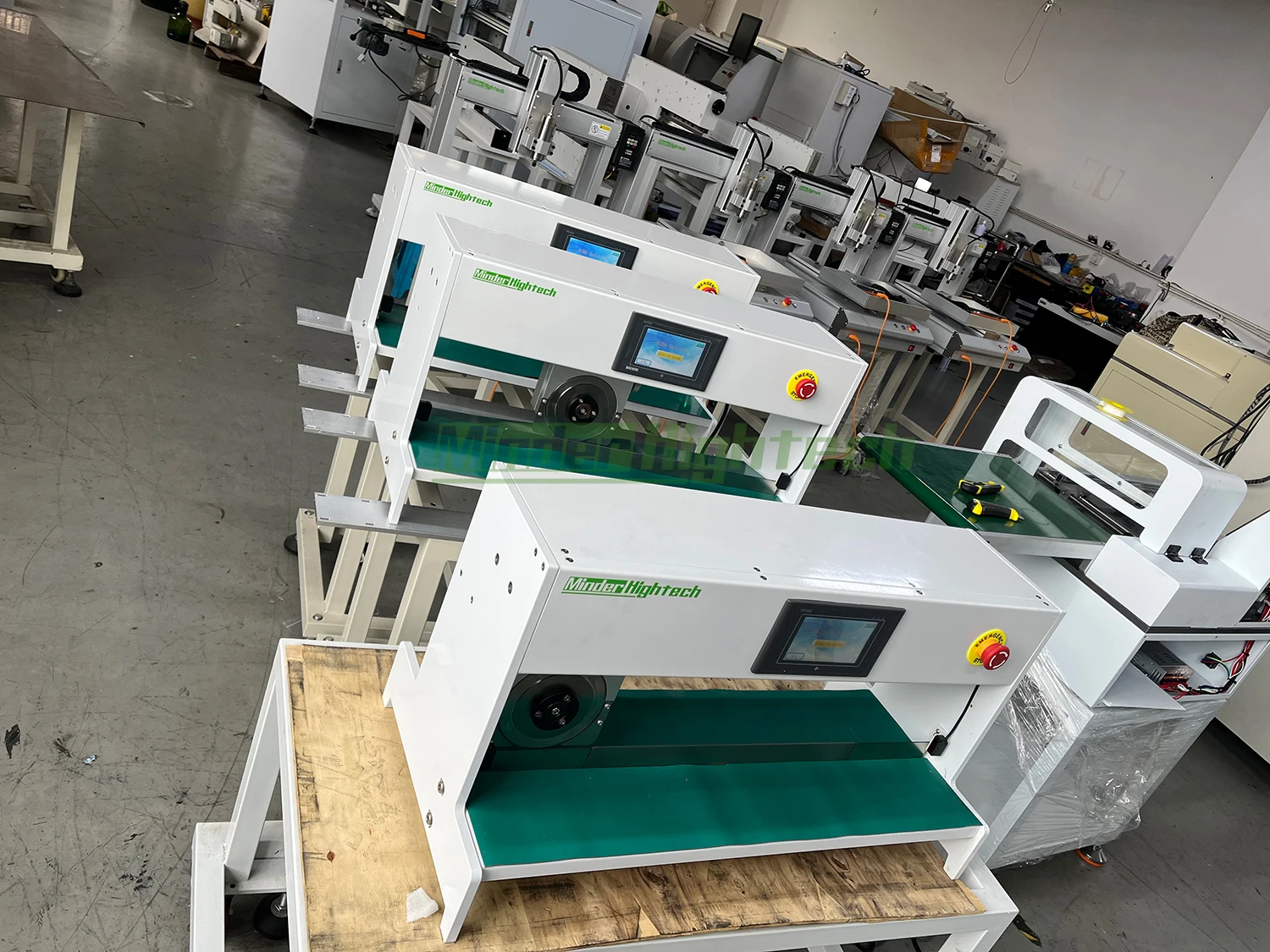

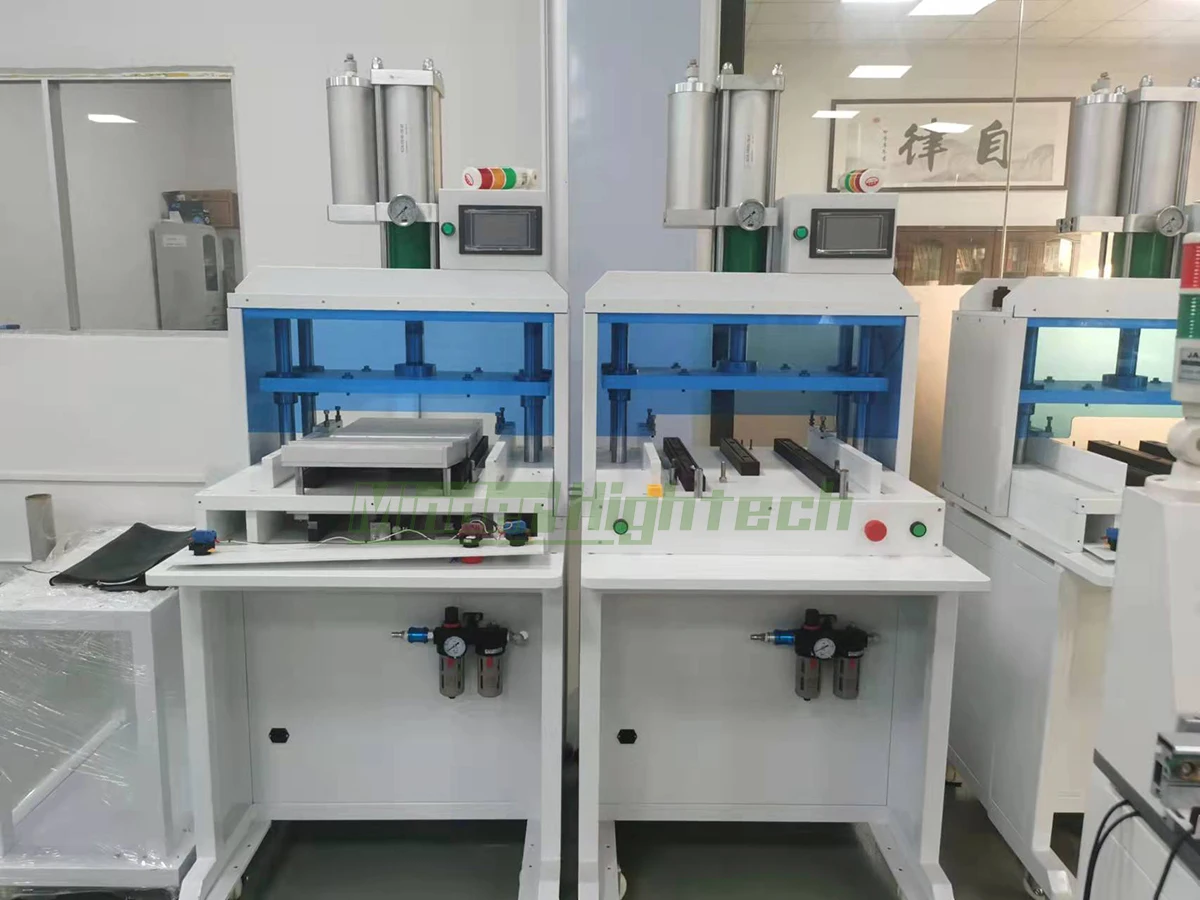

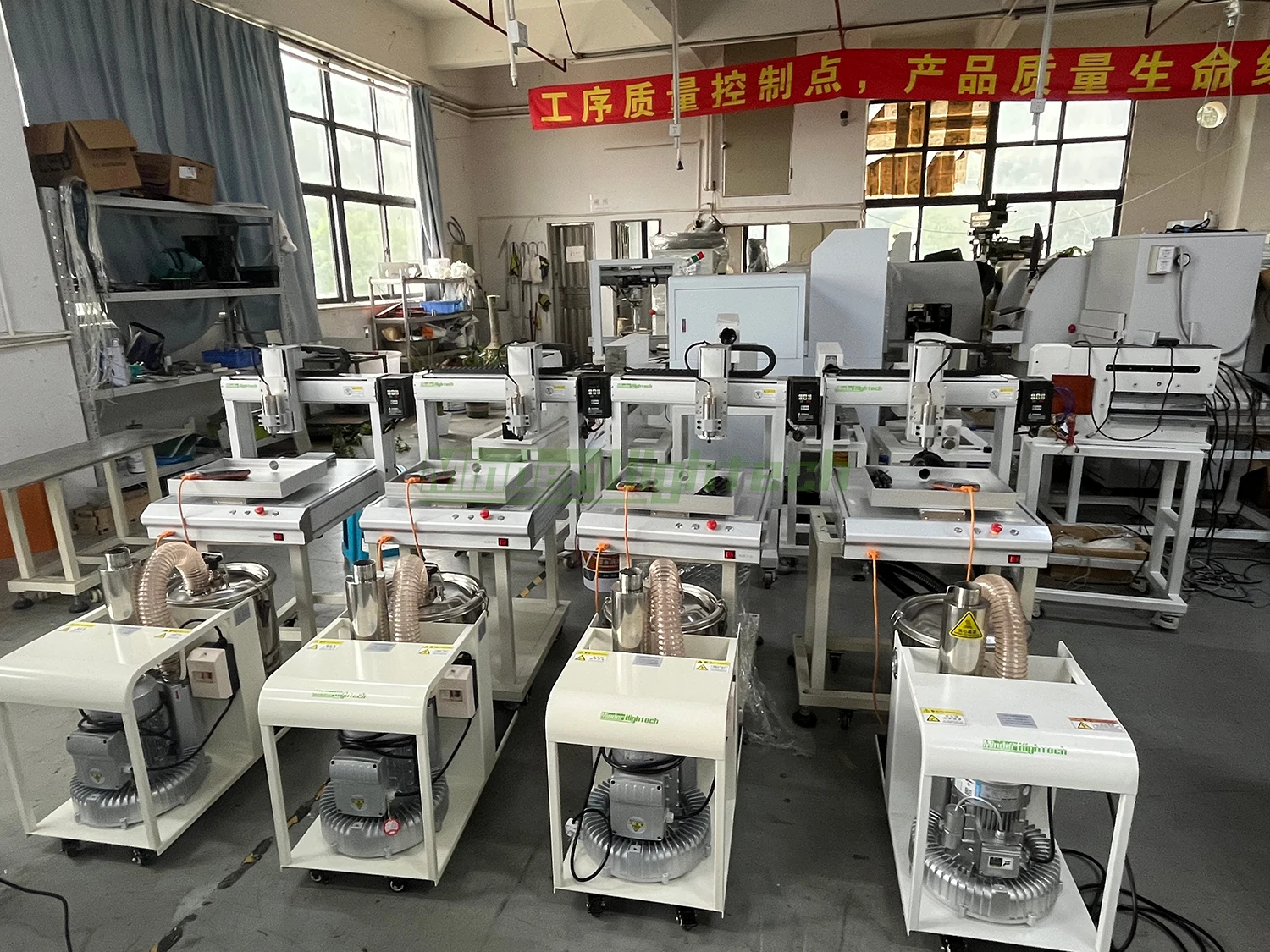

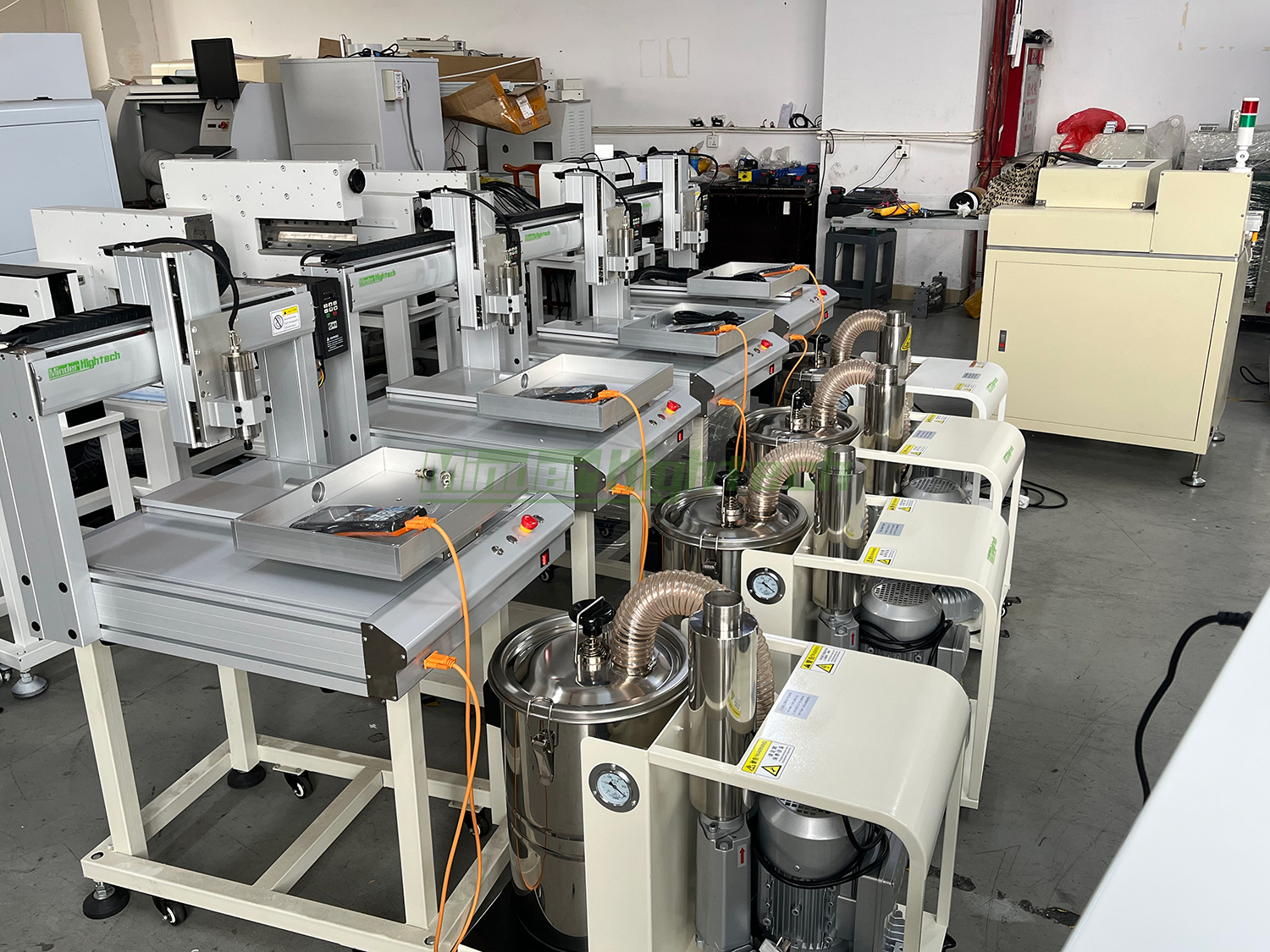

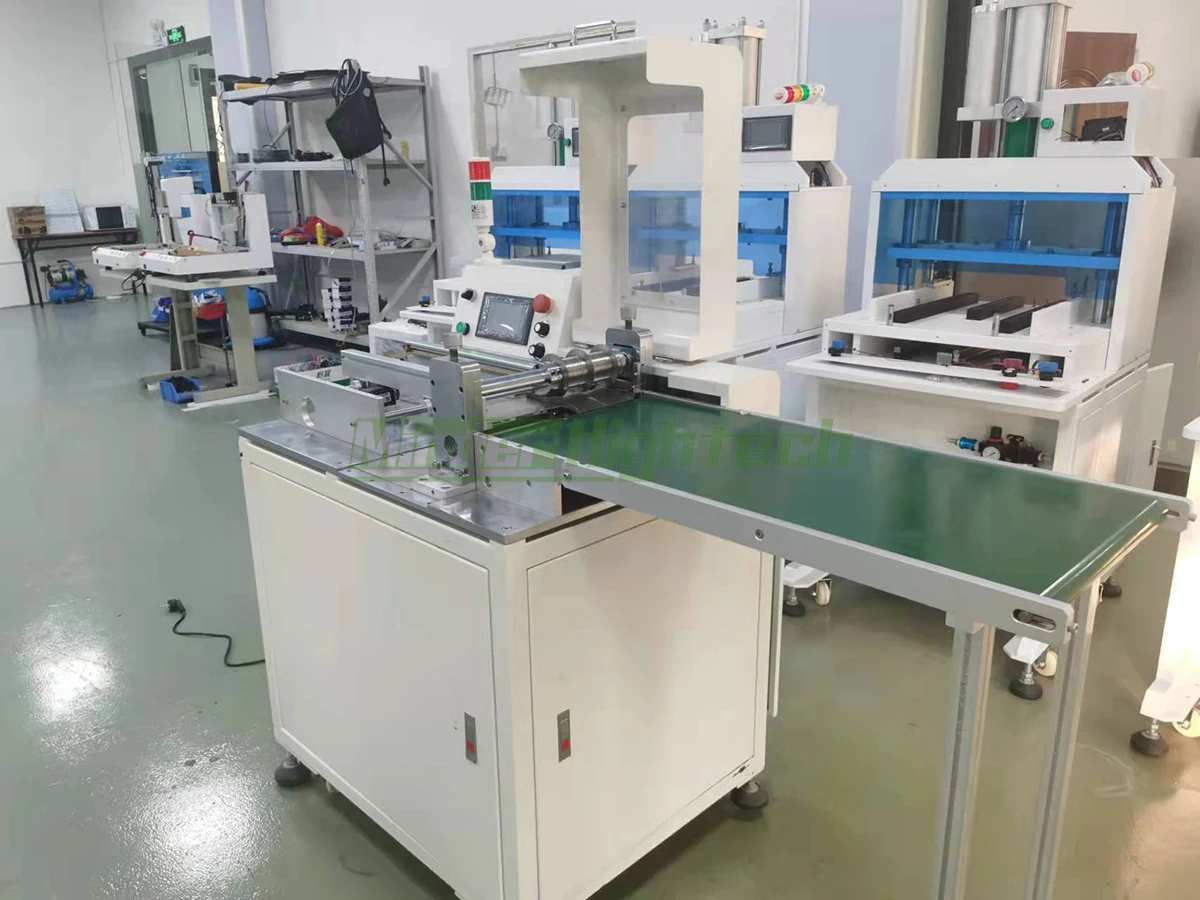

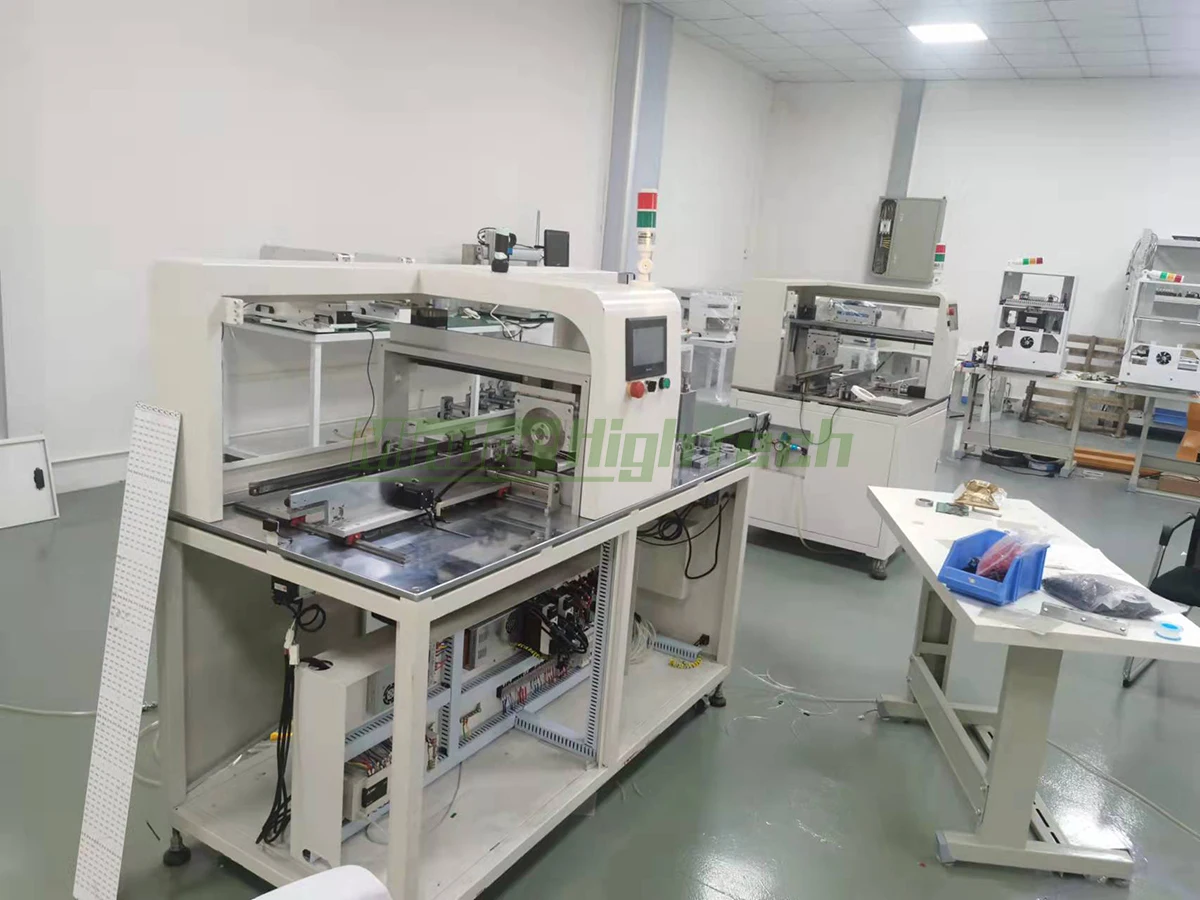

Factory Real Shot
Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
