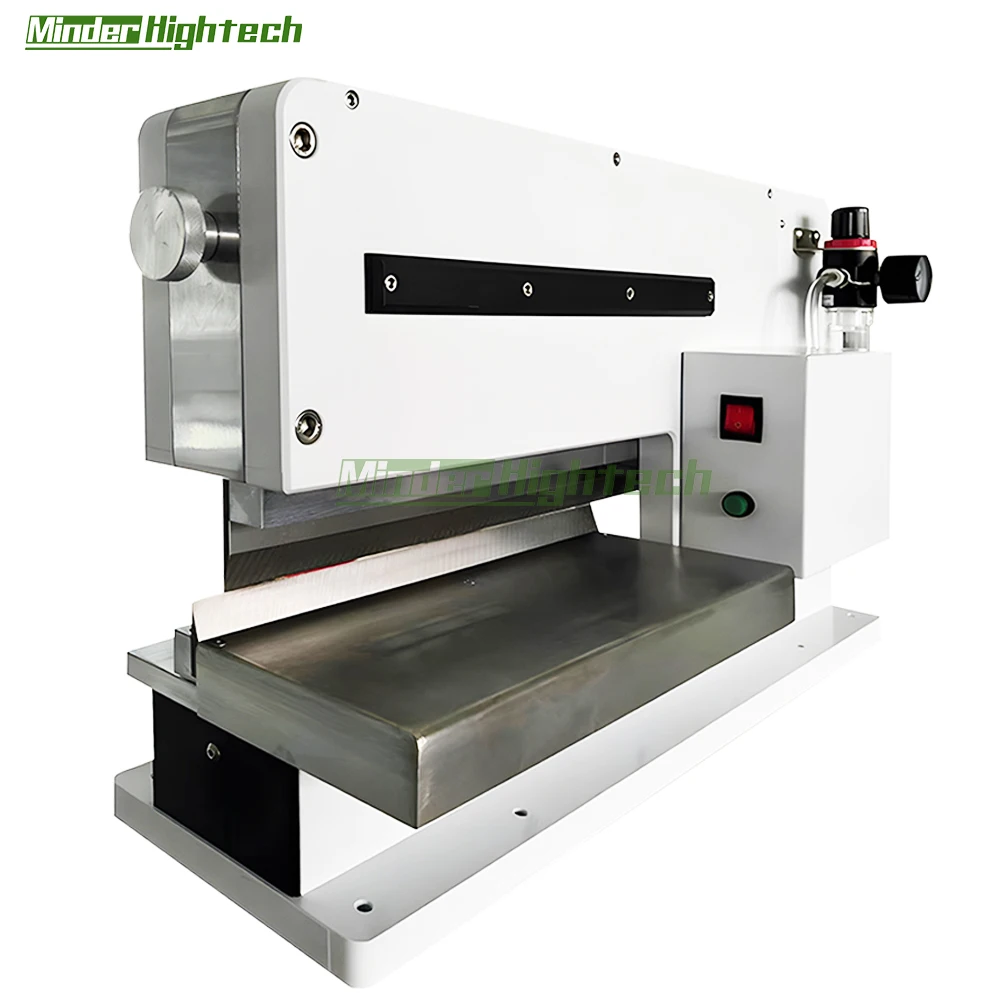

PCB Shearing Cutting Type Divider Separator / PCB V-Cut Cutting Machine

Get a Free Quote
Product Description

PCBA Shearing Cutting Type Divider / Separator

Superior performance, high efficiency, cutting capacity is better than traditional machines. Traditional machines are easy to cut components by mistake and separation is uneven.
Application Cases
SMT/EMS, military industry, automotive, semiconductor, medical, communication, 3C, white goods, LED, circuit board, etc.

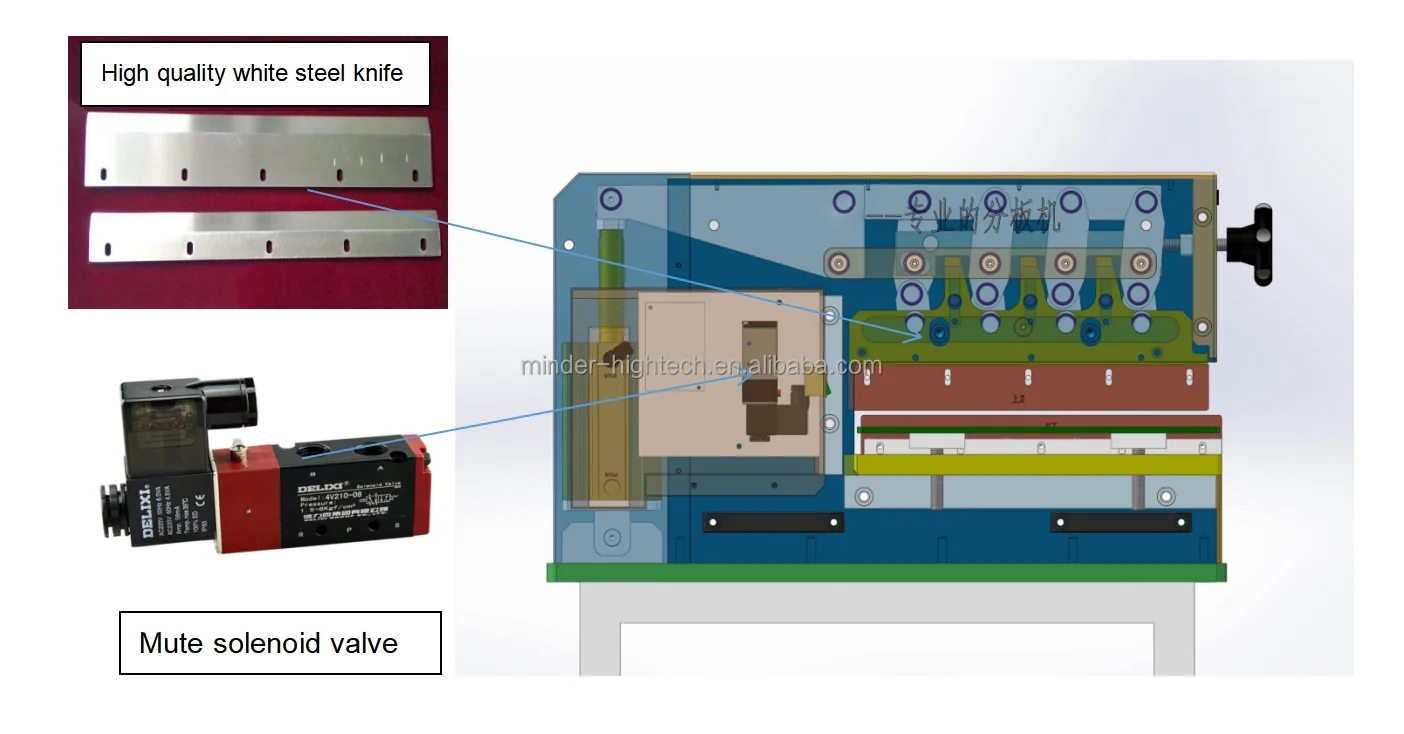

The new pneumatic electric lightweight design is adopted to complete the plate cutting stroke without shear stress at one time. It is especially suitable for cutting precision SMD or thin plate. For bow waves and micro cracks generated when there is no circular knife type plate splitting, the wedge-shaped tool is used for linear plate splitting, the shear stress is reduced to a low level, so that the sensitive SMD components and even capacitors can not be affected, and the potential quality risk of the product is reduced to a low level. The plate cutting stroke is less than 1-2mm, so there is no concern about operation safety. The tool is made of high-speed steel precision grinding, which can be grinded repeatedly. At the same time, it is suitable for thin plate splitting without V-CUT.
Advantage:
1. Full pneumatic control, no noise, solenoid valve control, fast speed;
2. Small stroke, not easy to damage the product and safe operation;
3. Tailoring work, suitable for PCB / aluminum substrates of various thicknesses;
4. Minimize the internal stress generated during plate cutting to avoid tin cracking;
5. The distance between upper and lower knives can be adjusted accurately to avoid tool loss due to different depth of V-groove;
6. The maximum part of the slitting V-groove edge is 70mm;
7. The distance between V-groove and parts is allowed to be as close as 0.5mm.
Specification
Equipment model
MD-200
MD-330
Blade material
High quality white steel
Blade life
500000 times
Working pressure
0.5-0.7 (МРА)
0.5-0.7 (MPA)
Maximum board length
200 MM
330 MM
Plate thickness
0.6-3.5 (MM)
0.6-3.5 (MM)
V maximum height of the device at the edge of the slot
70 MM
50 MM
Minimum distance between V slot and components Type of panel
0.5 MM
0.5 MM
Input voltage
110/220 V 50-60-HZ
Equipment power
45 W
Overall dimension LW/H
450x200x420(MМ)
680x240×400(MM)
Equipment weight
90 KG
150 KG

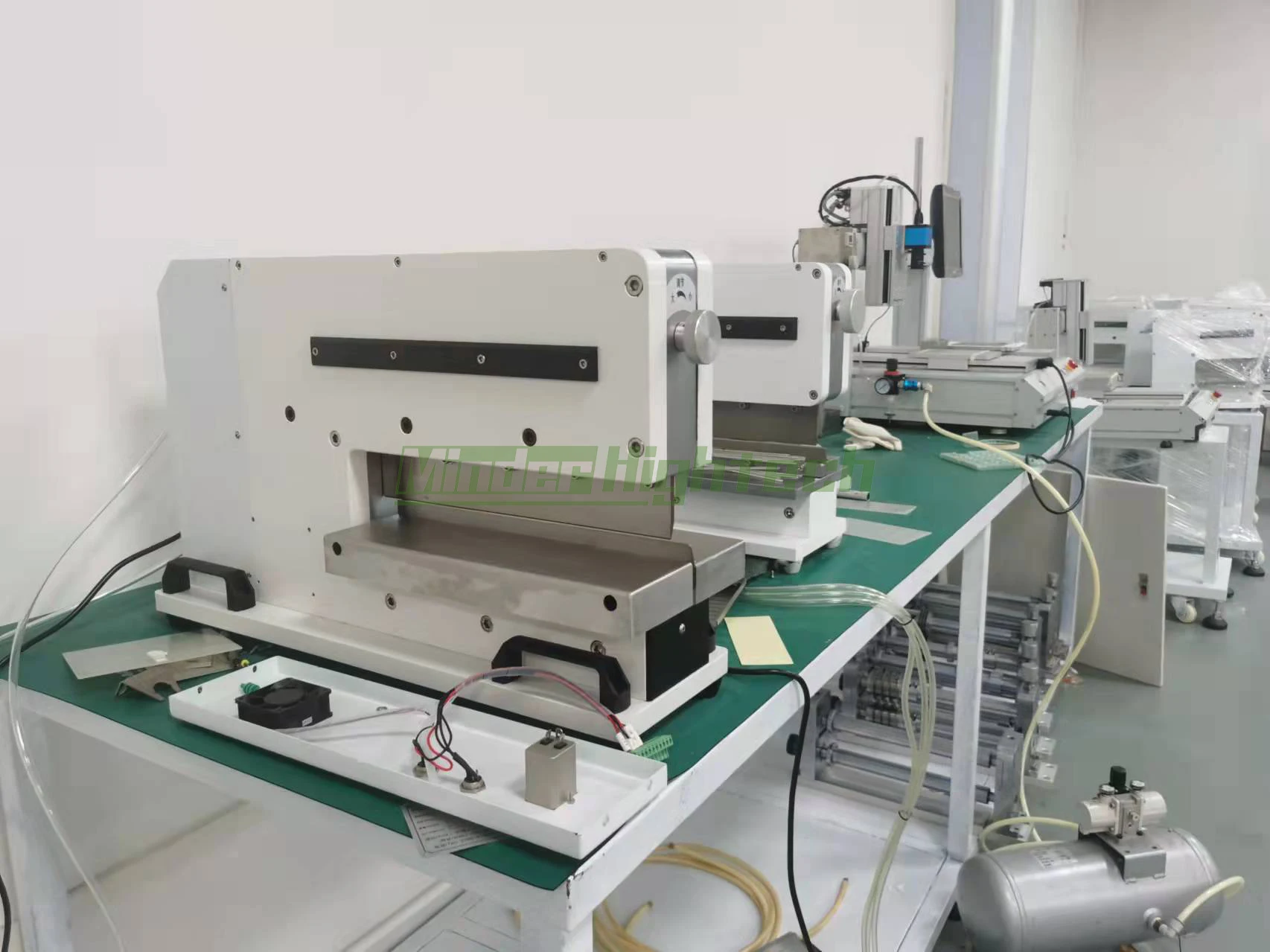

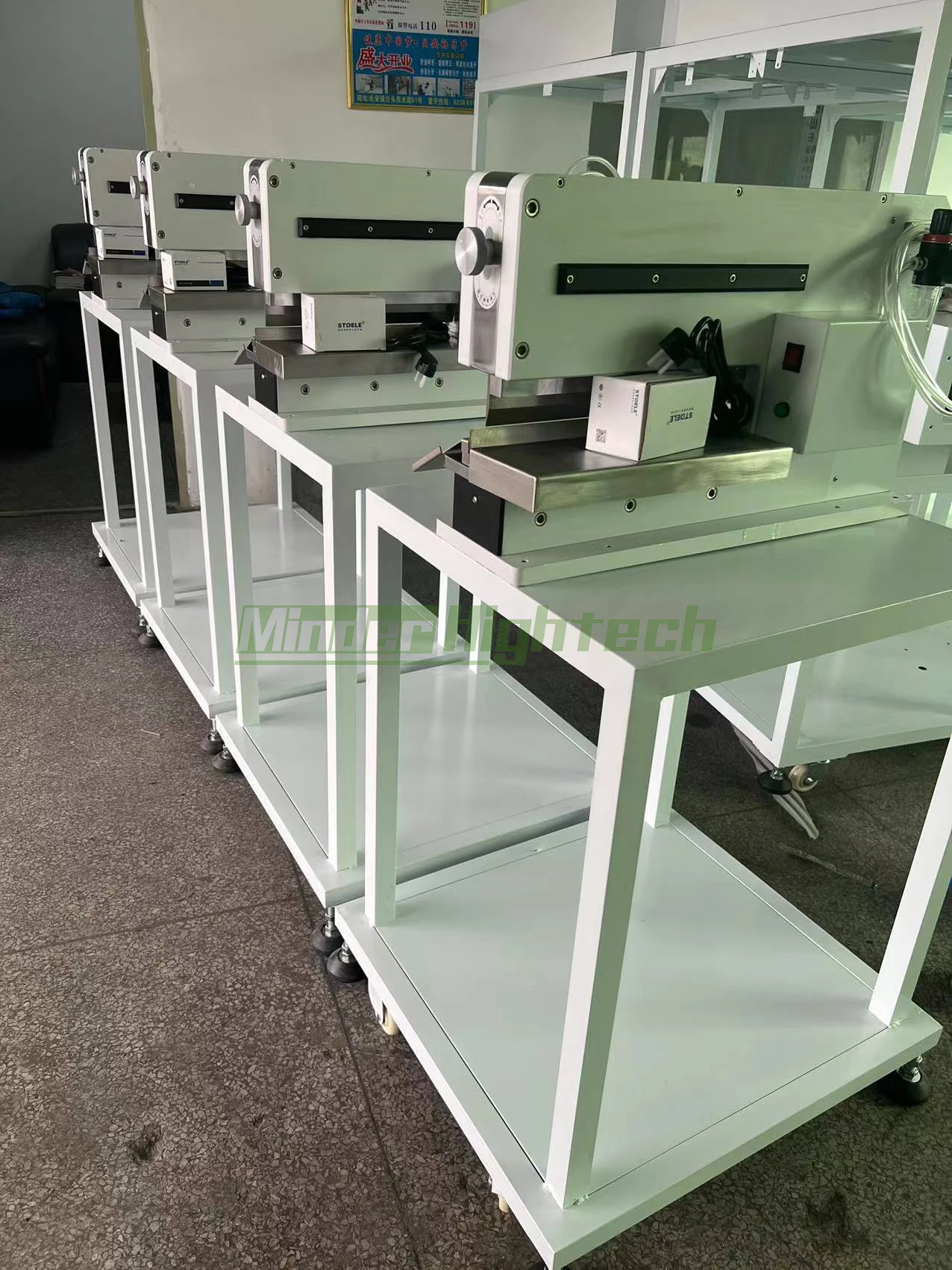

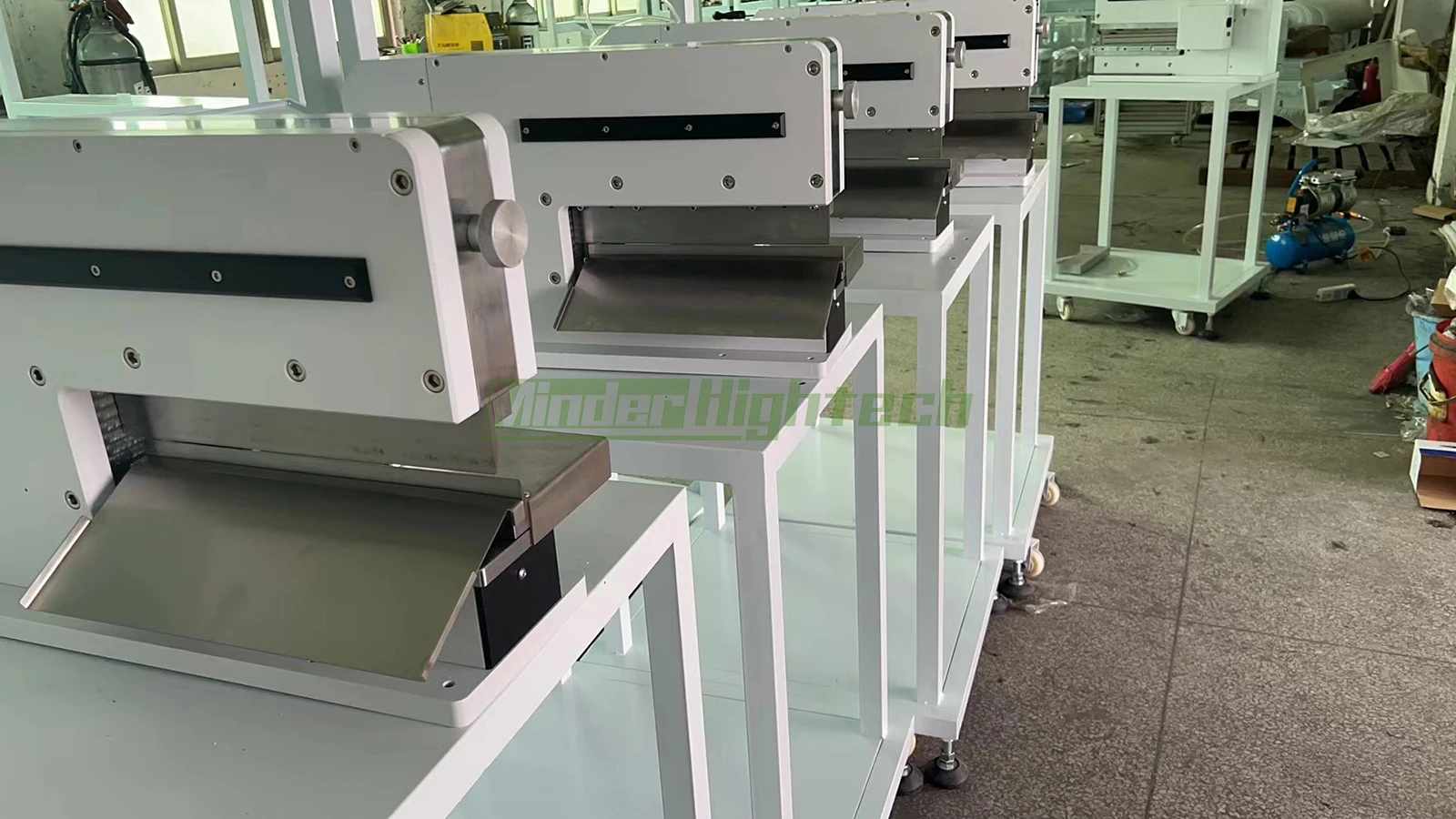

Factory Real Shot

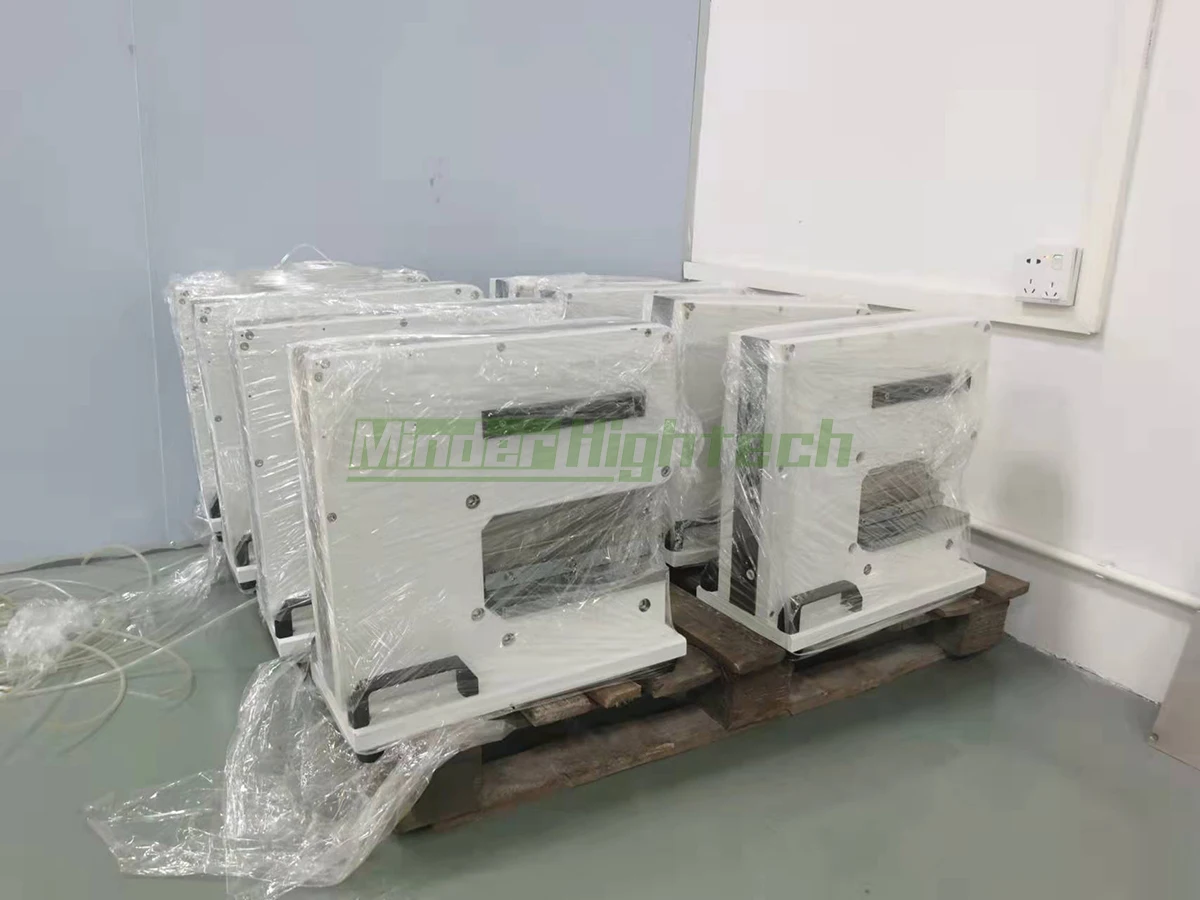

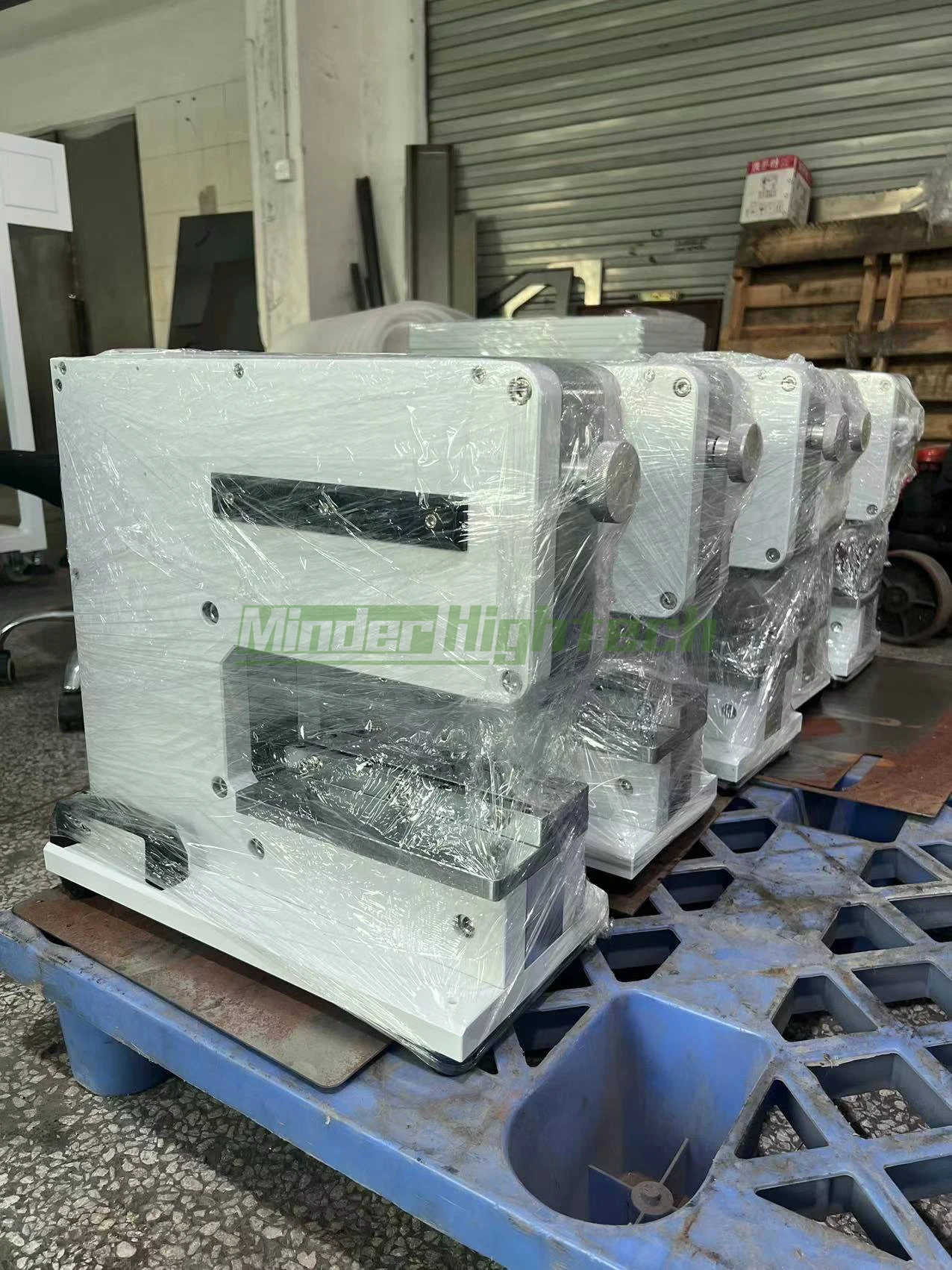

Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
