Online two-way v-cut divider PCB Separator

Get a Free Quote
Product Description

Online two-way v-cut Divider PCB Separator

This equipment is especially suitable for automatic cutting of PCBA circuit board after plug-in.It can realize v-cut x, Y two-way automatic cutting, which is different from the traditional v-cut manual cutting in one direction. It greatly improves the
efficiency of the board.
Application
SMT, new energy, white goods, communications, automotive electronics, instrumentation, medical equipment, LED, etc
Advantages
1.Bidirectional sub-board, one machine to solve two sub-board process, save equipment input cost, improve efficiency
2.Tool modular design, easy tool change, quick product switching
3. Can be separate transverse or longitudinal panel

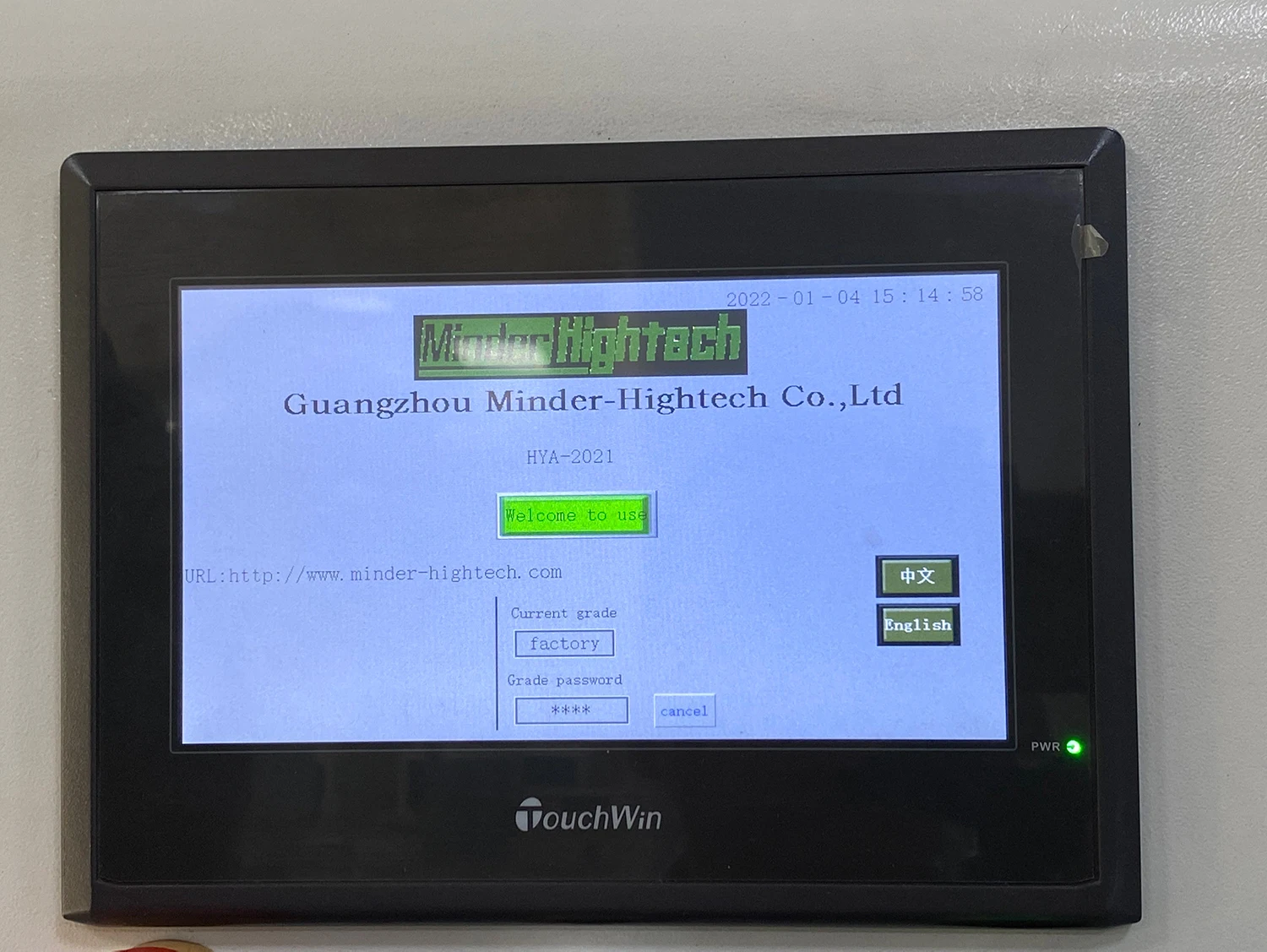

4.PLC touch screen control, real-time data monitoring system
5.The tool and sucker structure adopts modular design, which can realize quick product replacement
6.Track online design, can be connected to the upper and lower plate, to achieve fully automated production and save labor
7.Software operation is simple, training can master the use
8.Unique new tool design, durability is increased by 1.5 times
Specification
equipment model
FBJ-10
overall dimension L/W/H
1255x690x1300 (MM)
equipment weight
400KG
minimum distance of device from V slot
≥2 (MM)

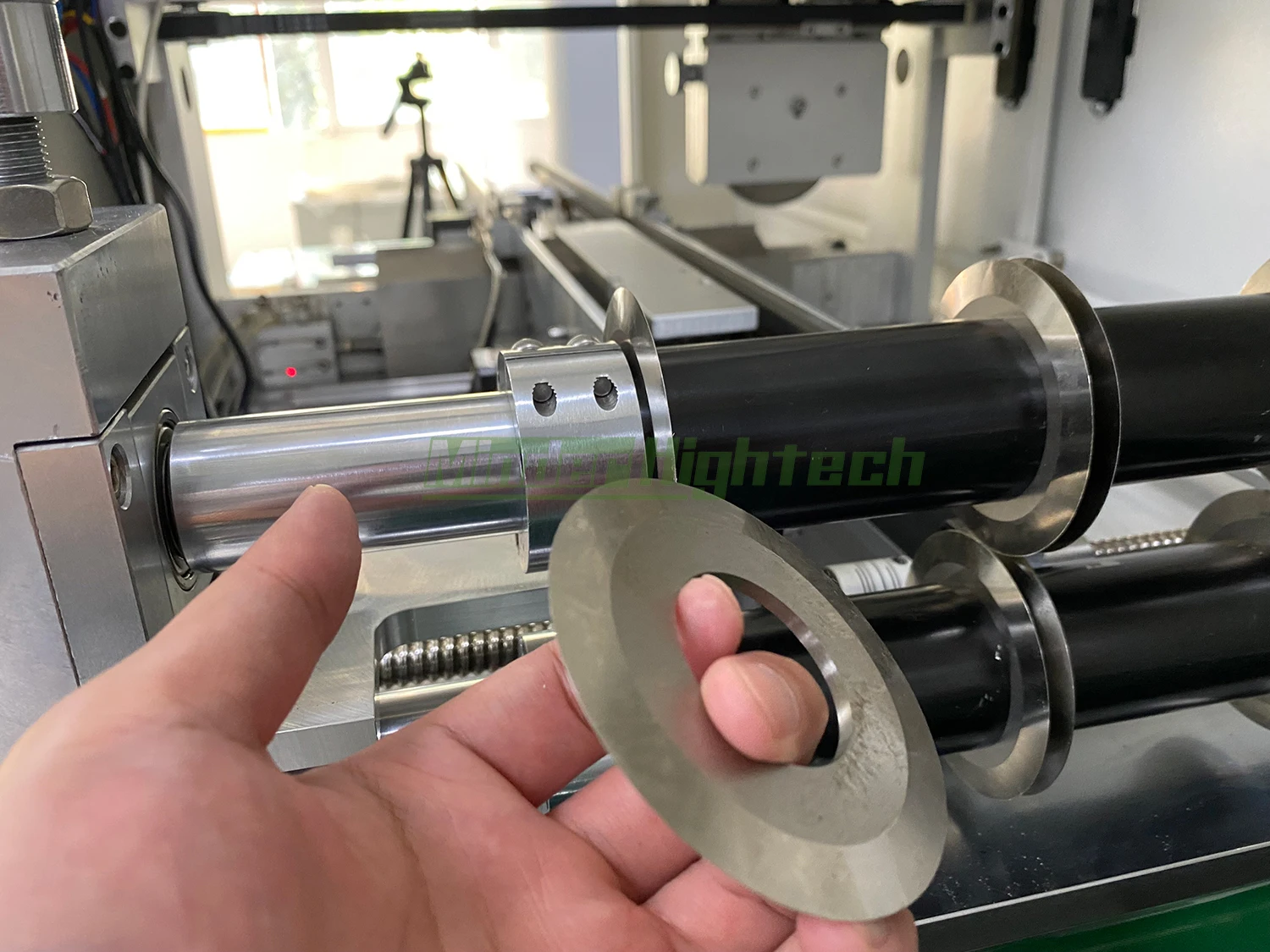

cutter size
circular knife φ80 (MM)
straight knife 356 x43.5x6(MM)
tool material
Japan imports high quality high speed steel
partition width
12x12(MM) 300x300(MM)
partition type
PCBA fiberglass board.aluminum substrate. copper substrate
drive way
servo + lead screw
control mode
PLC + touch screen
plate speed
0-800 MM/S
working voltage
220 V/50-60 HZ
working pressure
0.5-0.7 MPA
equipment power
100 W
expand functionality
Automatic dust collection
Automatic tray placement (material collection)

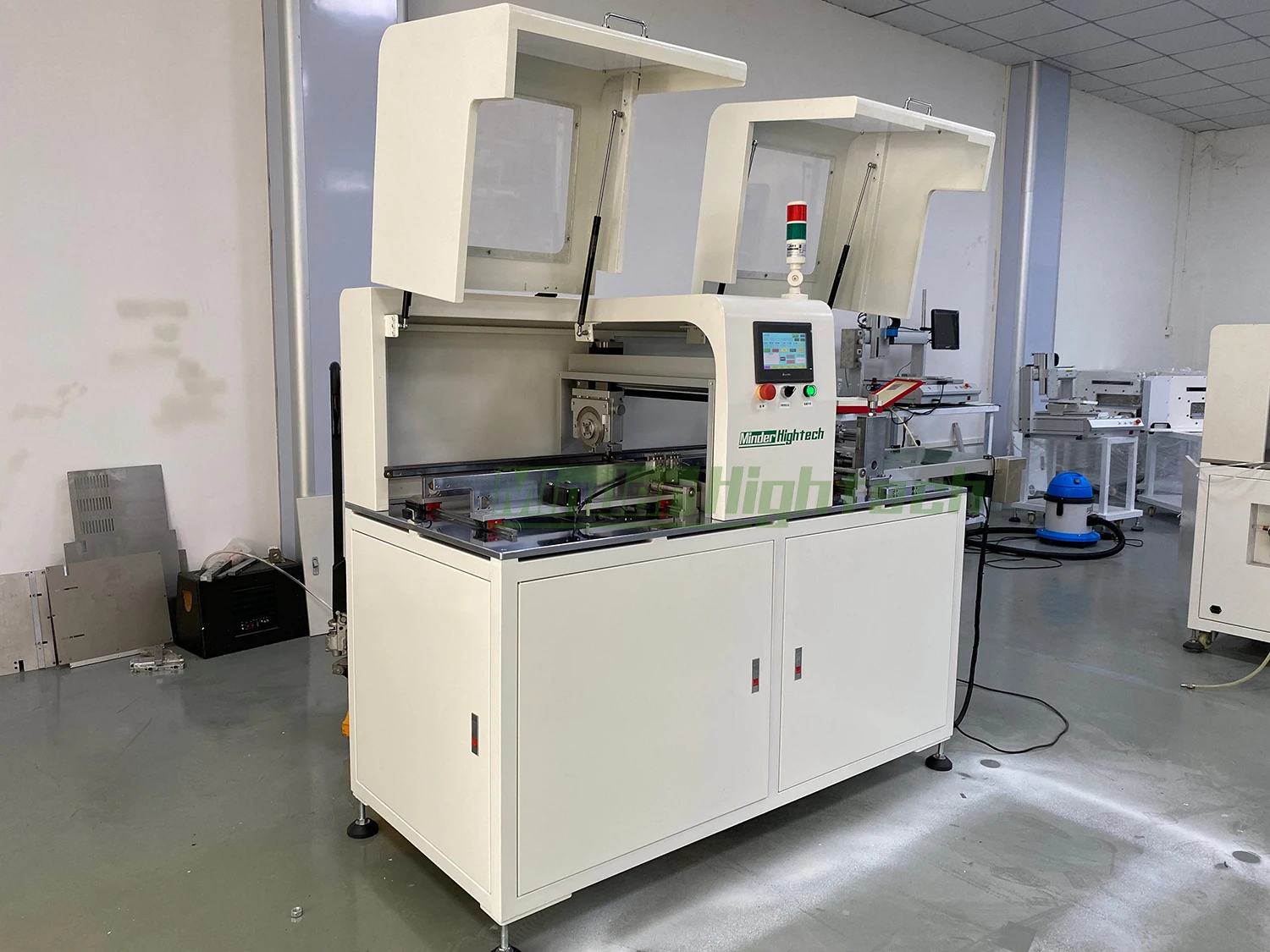

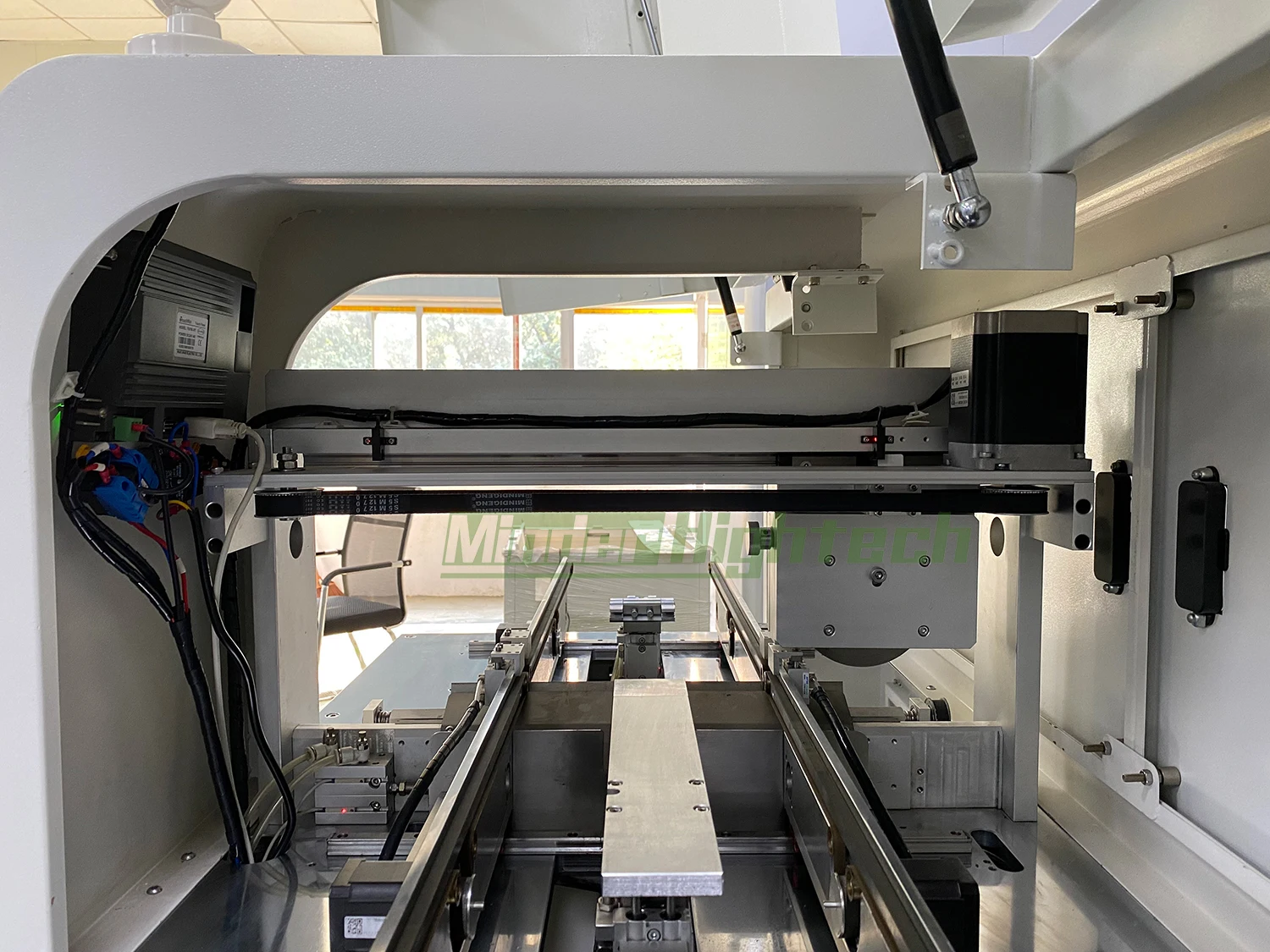

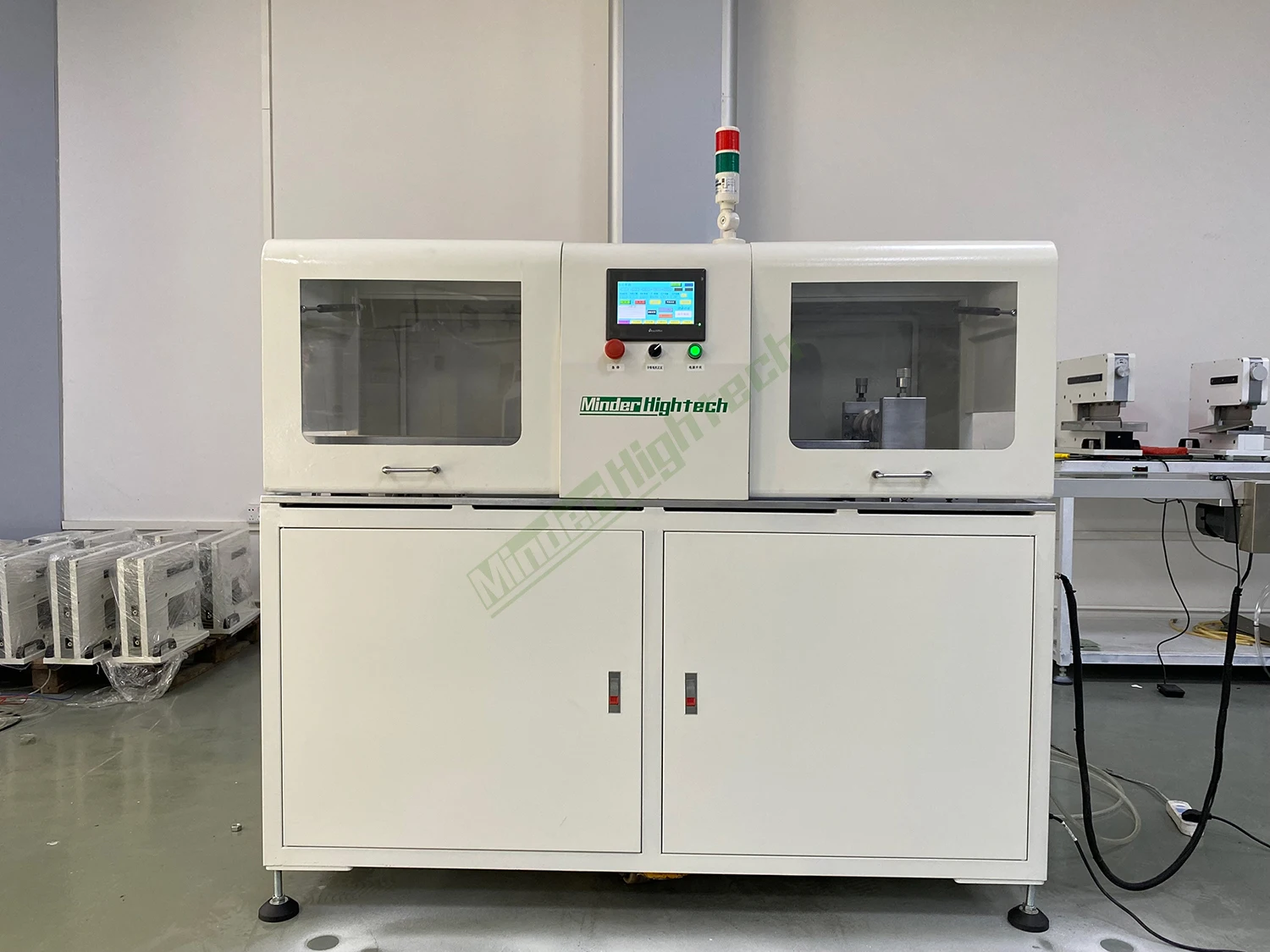

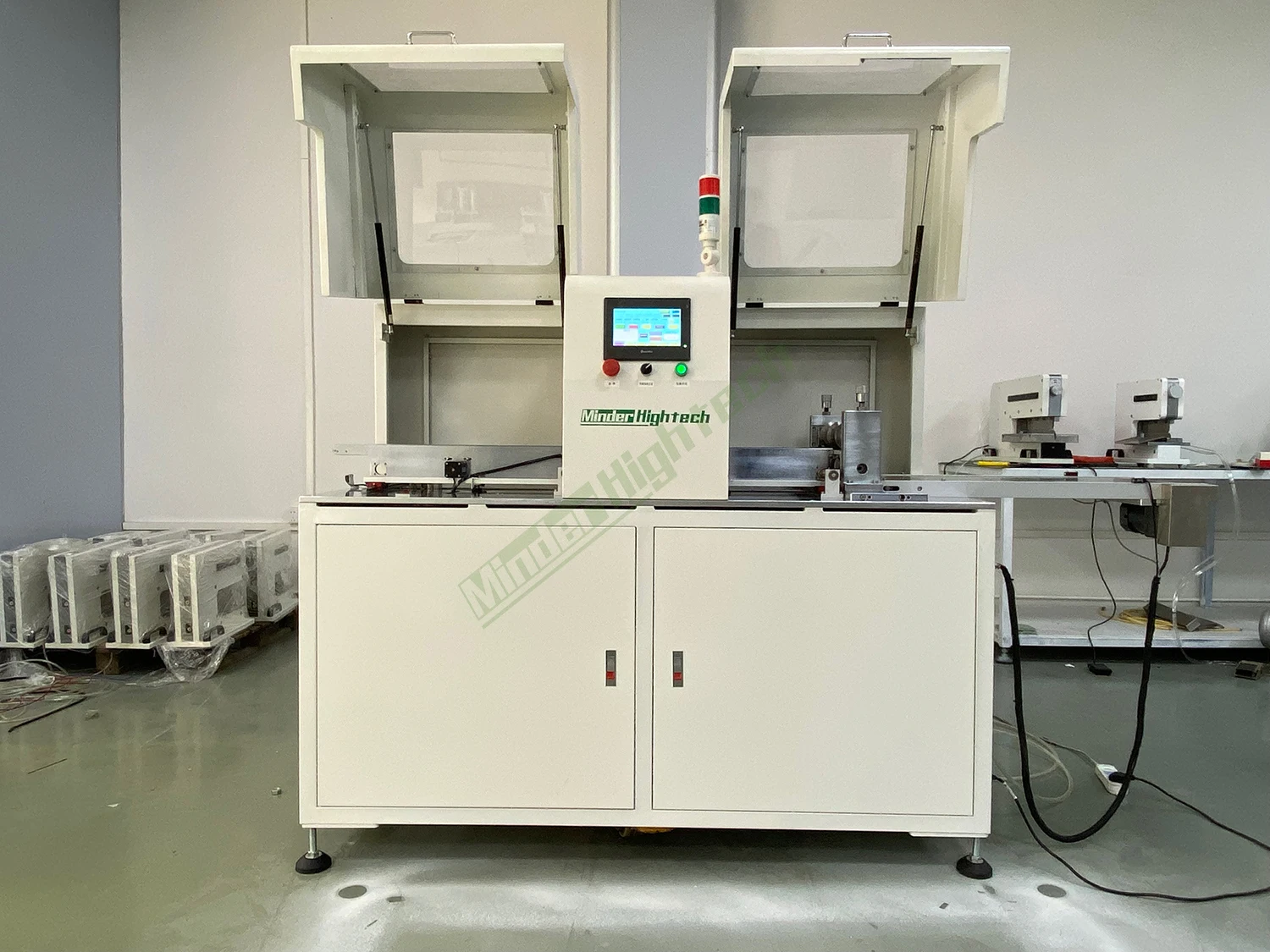

Factory Real Shot
Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
