On-line multi Cutter Plate Divider PCB Separator

Get a Free Quote
Product Description

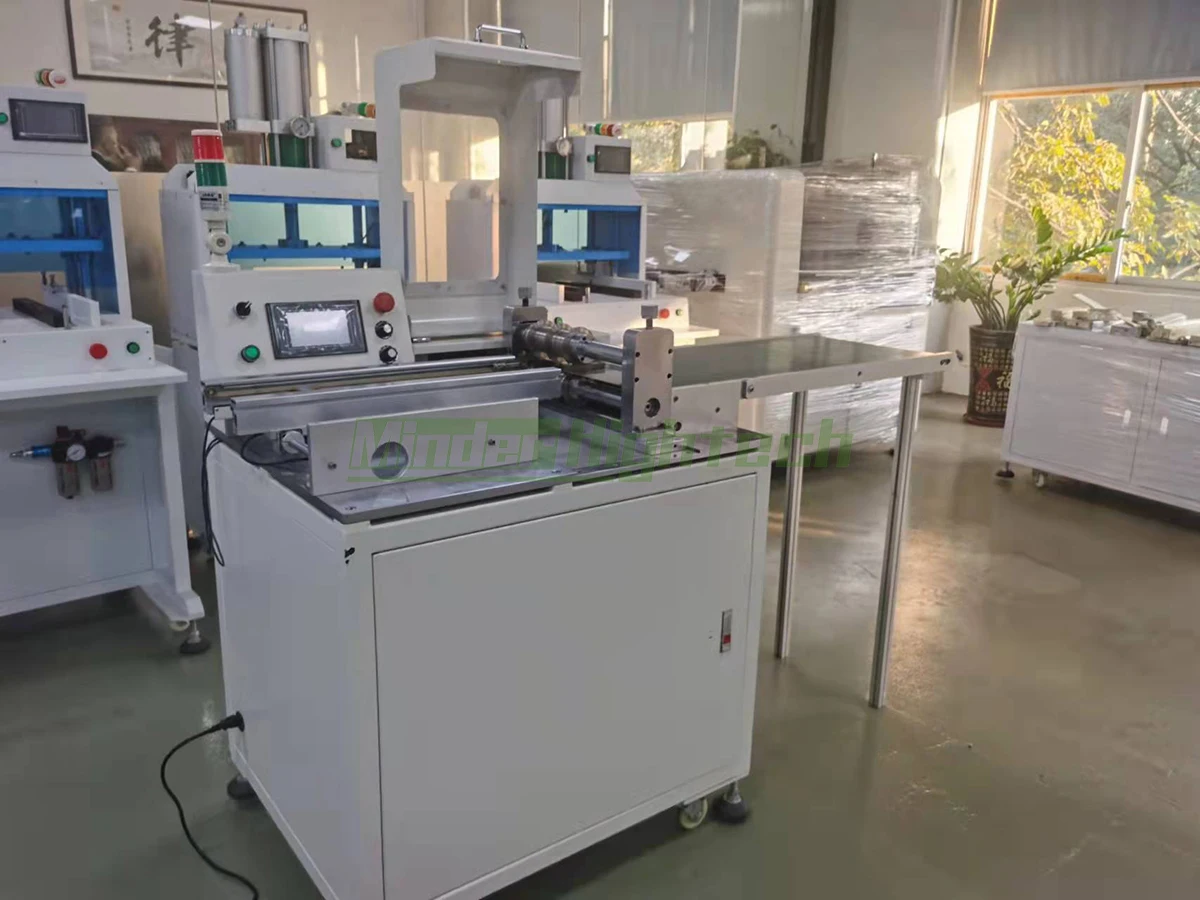

On-line multi - cutter plate divider PCB Separator

This machine can be connected to the assembly line to realize automatic board division, without manual board laying. The scuttled circuit board can be directly imported into the assembly line to enter the next station, which can meet the requirements of single PCS LED light strip panel with a width of more than 8MM, and realize the whole board one-off scuttling, which is 20 times the efficiency of traditional single-blade board division.
Application
SMT, Instrumentation, tablet, Automotive electronics, new energy, medical equipment, communications, White Goods, LED lighting, etc
Advantages

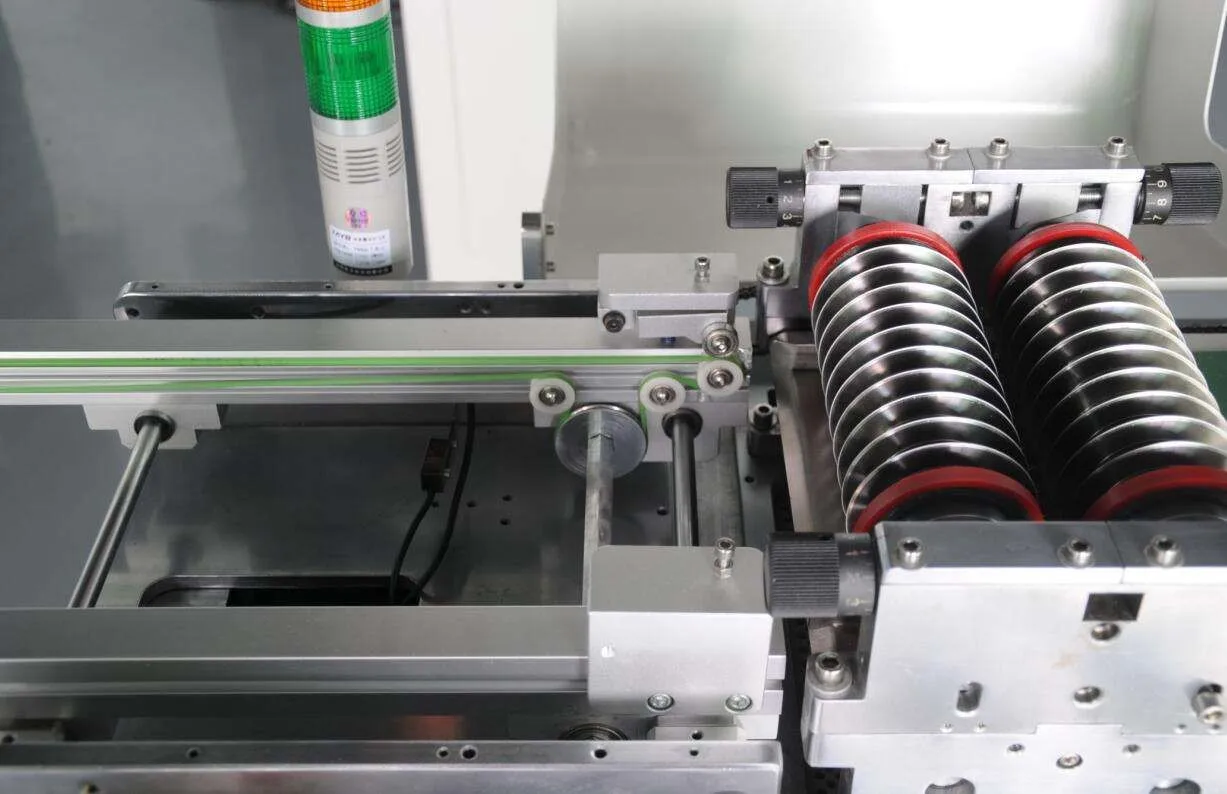

1.The front and back two groups of knife design, the first pre-cutting and then fine cutting, cutting without deformation, reduce the shearing stress.
2.Tool modular design, easy tool change, quick product switching.

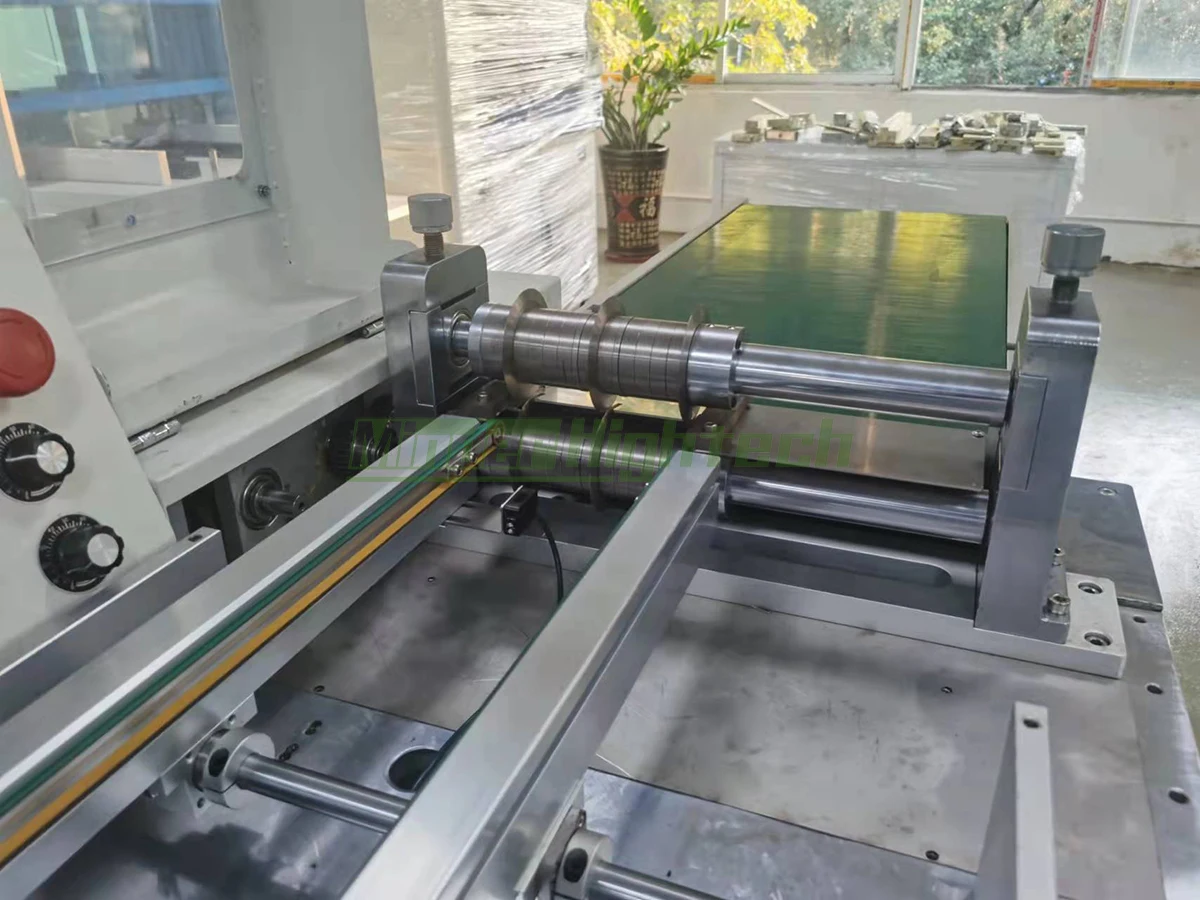

3.The front and rear are equipped with conveyor belt, the height and Angle can be adjusted freely, and the operation of putting and retracting plate is convenient.
4.Track online design, can be connected to the upper and lower plate, to achieve fully automated production and save labor.
5.V-cut strip PCBA plate one cutting, high efficiency.

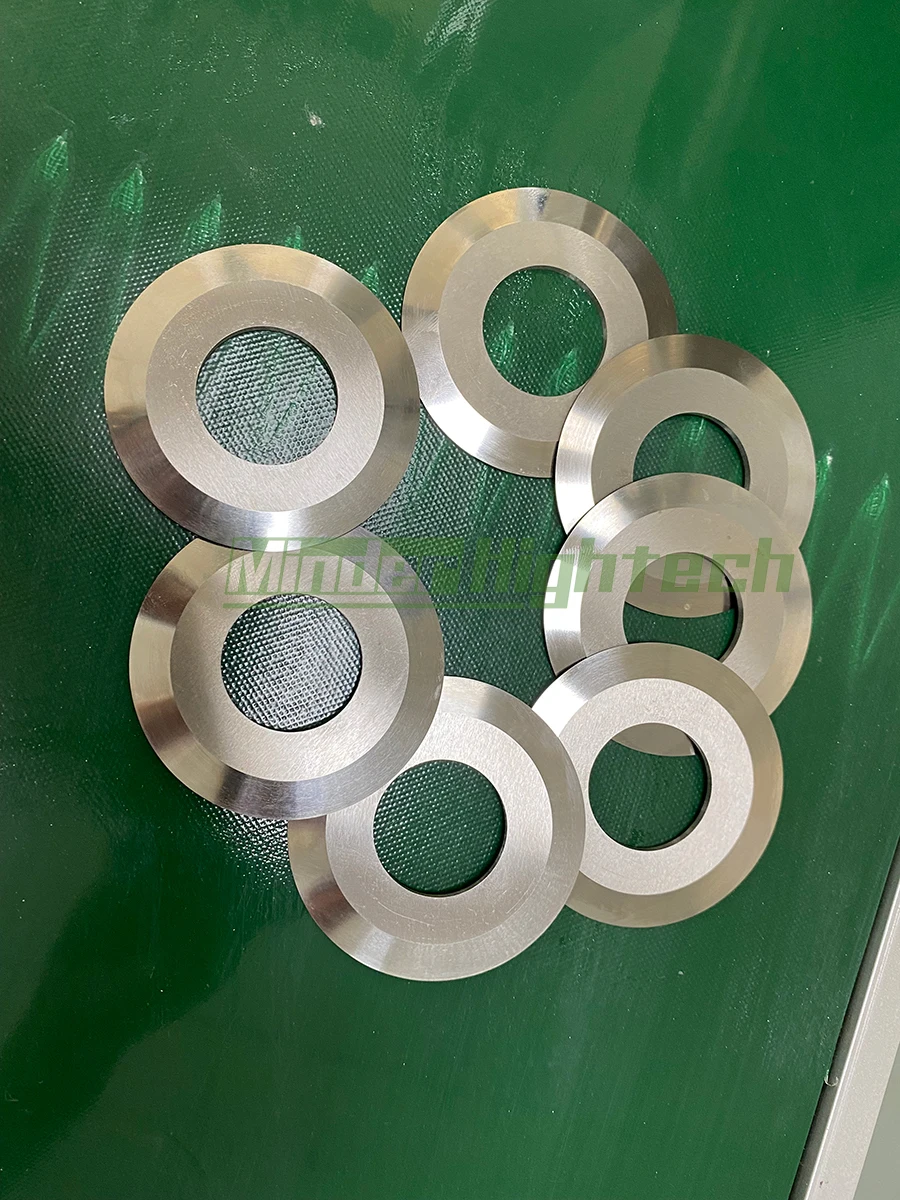

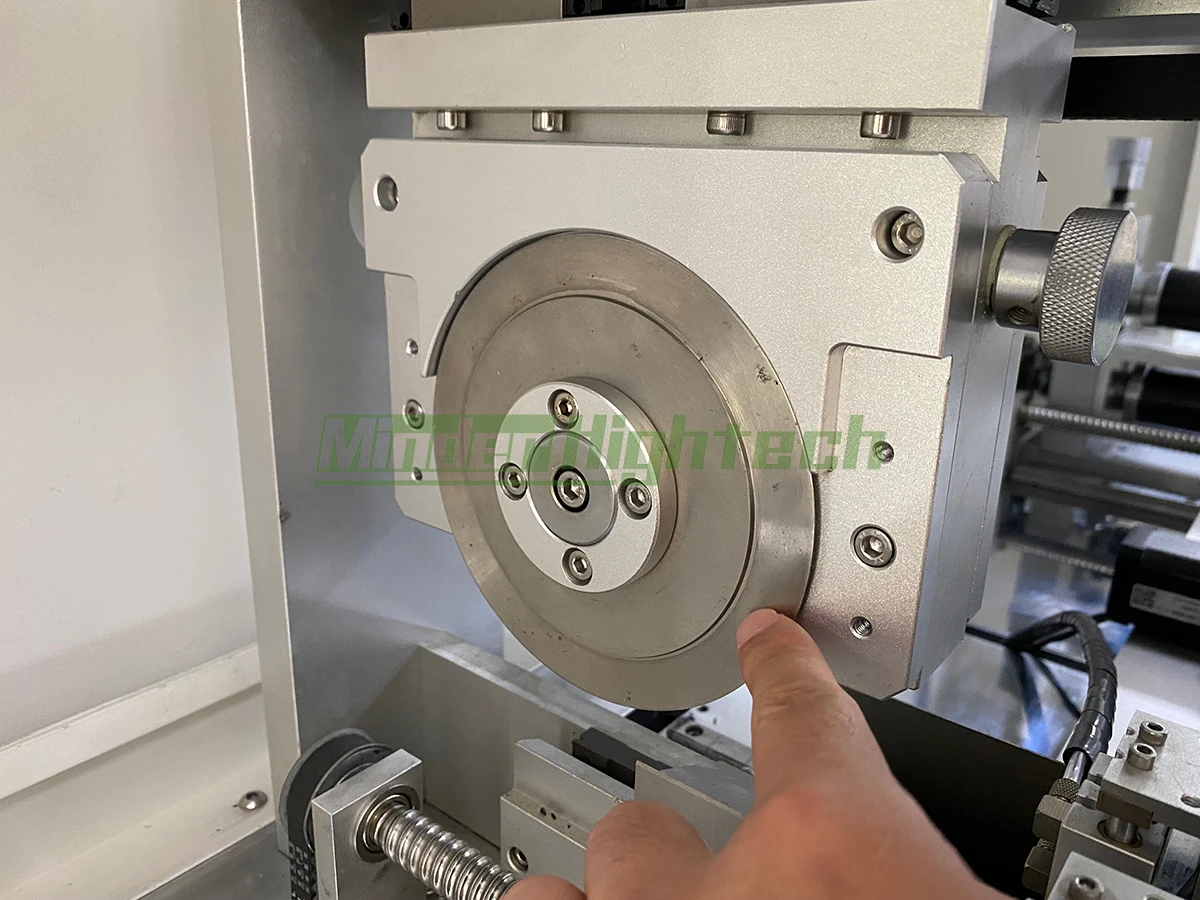

6.The upper and lower knives can be precisely adjusted, and the blade can be turned and grinded repeatedly to improve the service life of the blade.
7.PLC touch screen control, fault sound and light alarm, simple and safe operation.
Specification
equipment model
DF-5
overall dimension(L/W/H)
1030x640x1000 (MM)
equipment weight
280 KG
blade diameter size
80/125 MM(optional)
blade material
Imported high quality high speed steel
partition width
50-300 (MM)
track length
600MM(Can be customized)
conveyor length
460MM(Can be customized)
partition type
One -way multi -panel V-cut products
control mode
PLC touch screen
drive way
servo/stepper motor(optional)
working voltage
220V/ 50-60Hz
equipment power
300W

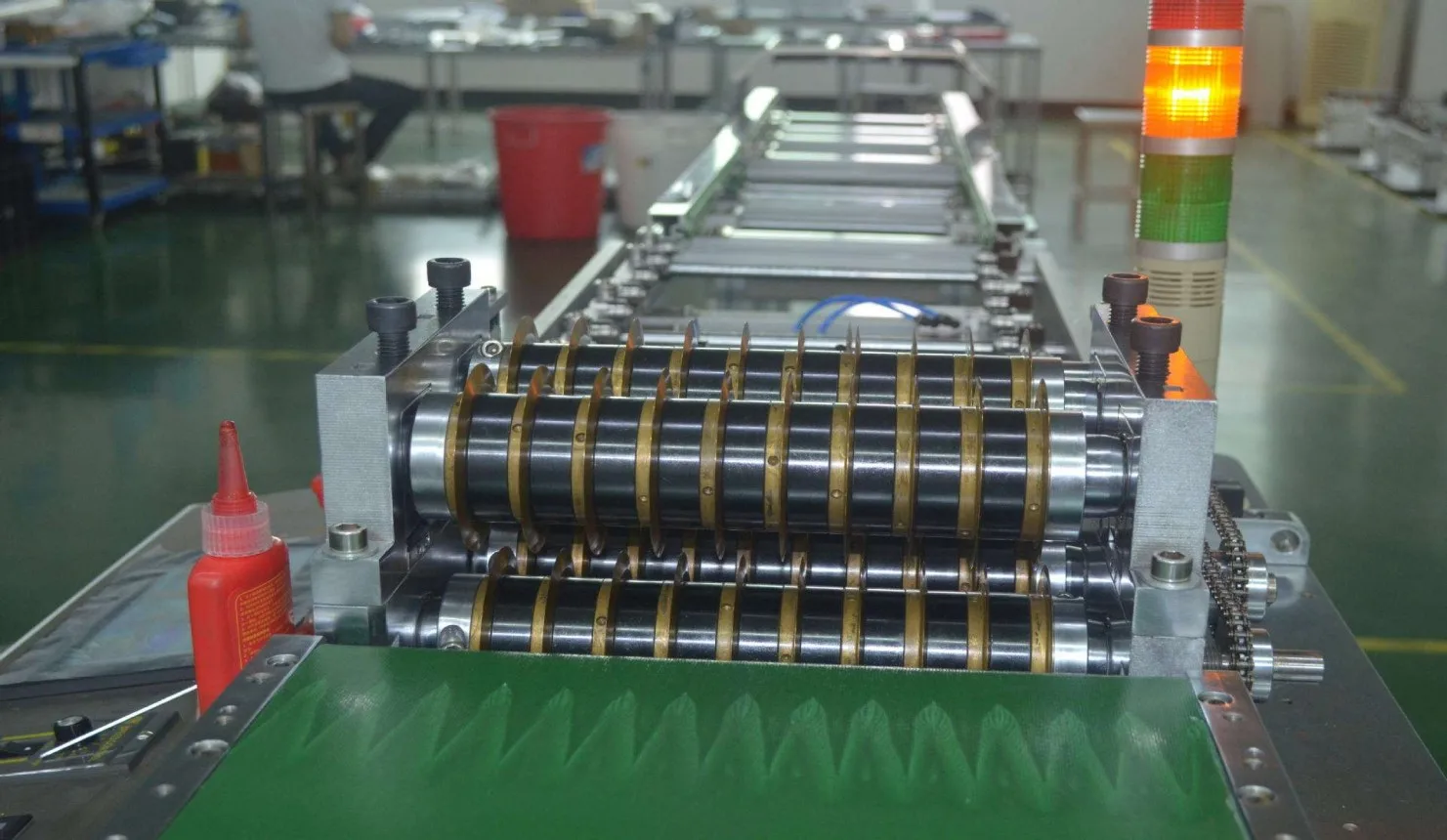

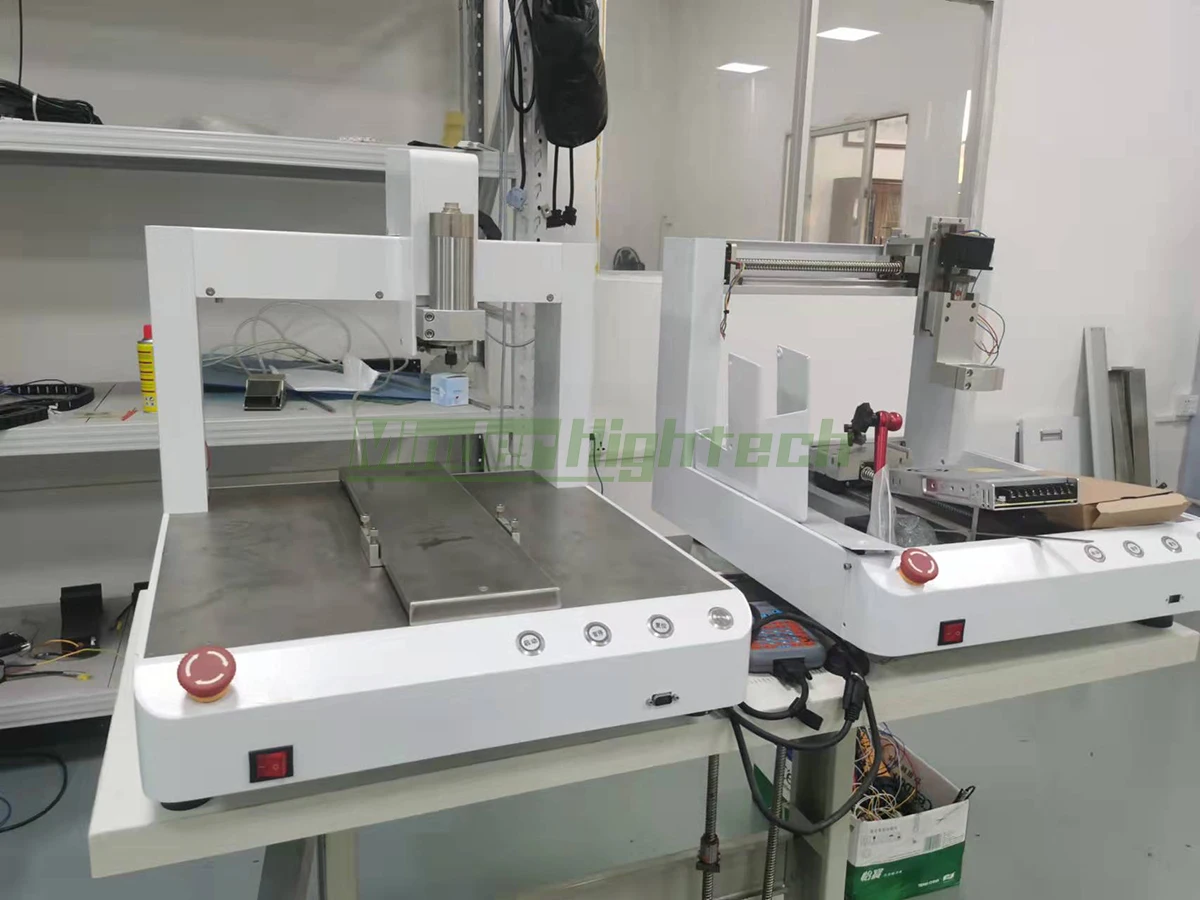

Factory Real Shot
Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
