MDND-ADB700 High-speed High precision Stacked Chips Advanced Die Bonder

High-speed stacking chip die bonder is mainly used for memory chip stacking and die bonding. It is compatible with single and double head production and fully automatic placement.
The high-speed motion axis and vibration suppression design achieve a maximum efficiency of 6000 CPH, and over 2400 CPH with a 1-second bonding process.
This system achieves high-precision die bonding with a global accuracy of ±7µm and can stack up to 32 layers of chips, meeting the demands of high-precision, high-speed thin-die bonding.

Accuracy: ±7um@3σ

Specification

Equipment Capability Comparison:

MDND-ADB700 Advanced Die Bonder	Other
CPH:2400(1s)	CPH：<2200(1s)
Accuracy:±7um@3σ	Accuracy: ±10µm or less
Supports automatic waffle tray changer	Not supported
Supports dual dispensing heads	Not supported/single-point glue
Chip thickness: >25µm	Chip thickness: >50µm
Flip Chip	not support flip chip

Parameters:

X/Y placement accuracy	±7µm @ 3σ (calibration film)
Rotation accuracy	±0.07° @ 3σ (calibration film)
Bond head rotation angle	0-360°
CPH	2400 (1s)
Supported chip size	0.25-25mm
Maximum supported substrate size	300*110mm
Bond force	50-5000gf
Flip-chip module	Optional
Single/Dual dispensing head	Optional
Automatic/manual tray loading	Optional
Supported Substrate Types	Lead-frame, Strips, Carrier
Supported Chip Types	Wafer Ring, Waffle Pack, Wafer Expansion Ring, Tray
Device Dimensions	261015002010mm (including loaders and unloaders)
Operating Air Pressure	0.4-0.6MPa
Device Weight	2300kg
Power Supply	220V 50/60Hz/2.5kVA
Operating Environment	20±3°C/40%-60% RH

Product Details

High Precision:

±7um @3σ Placement Accuracy
±0.07° @3σ Rotation Accuracy
Lamination Range: 300 x 100mm
UPH: 2400 (1s)

Supports flip-chip processing:

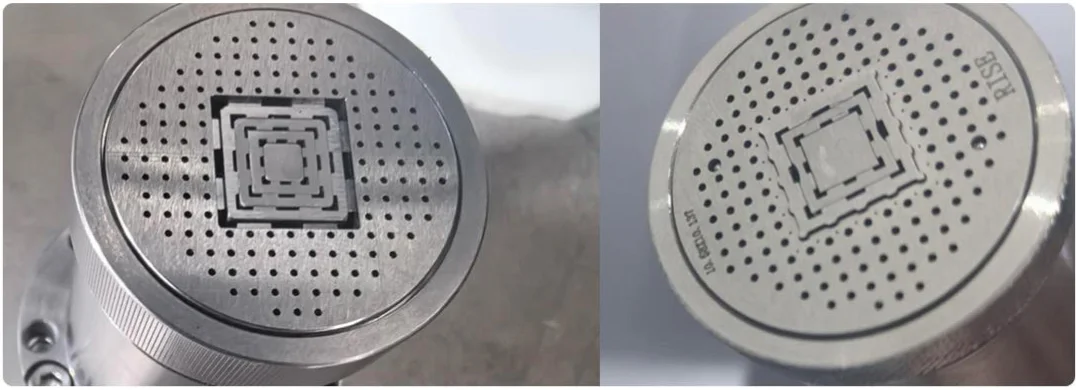

Ultra-thin chip pickup:

Mechanism compatible with both PVRMS and PVMS

Supports single-head and dual-head mode switching

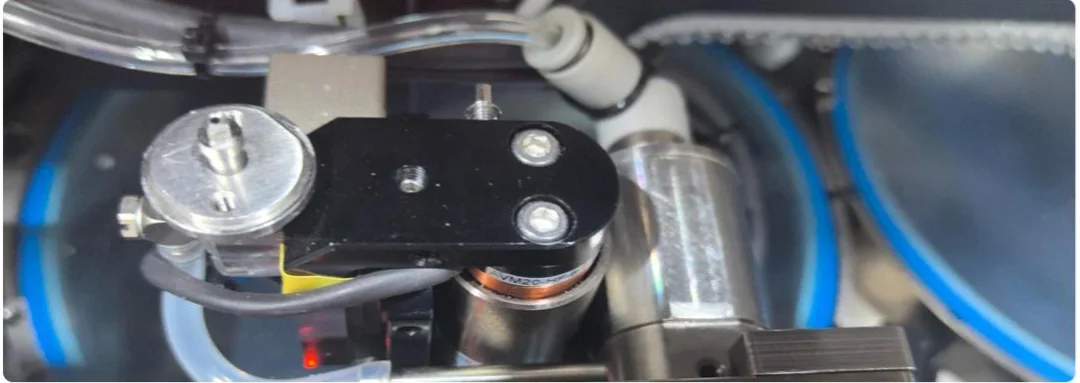

Supports dual dispensing heads:

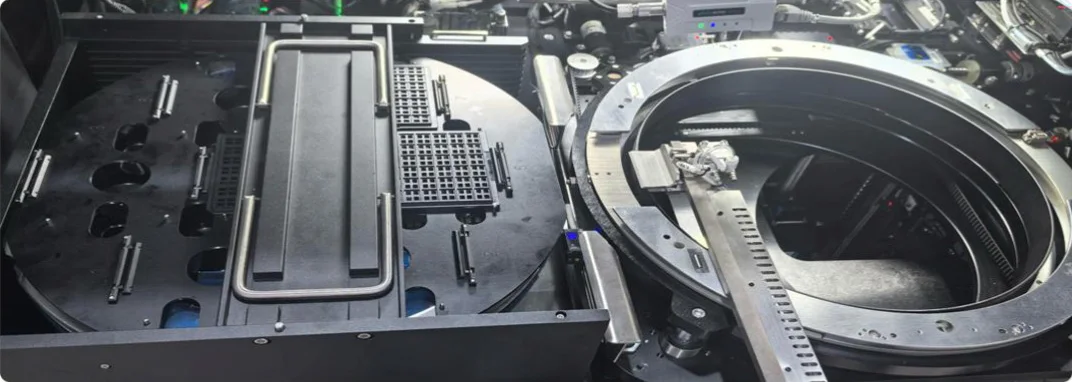

Fully automatic loading:

Supports automatic waffle tray replacement
Supports automatic wafer tray replacement

Equipment Real Shoots
