MDBB-1750 Manual Wire Ball Bonder

Get a Free Quote
Product Description

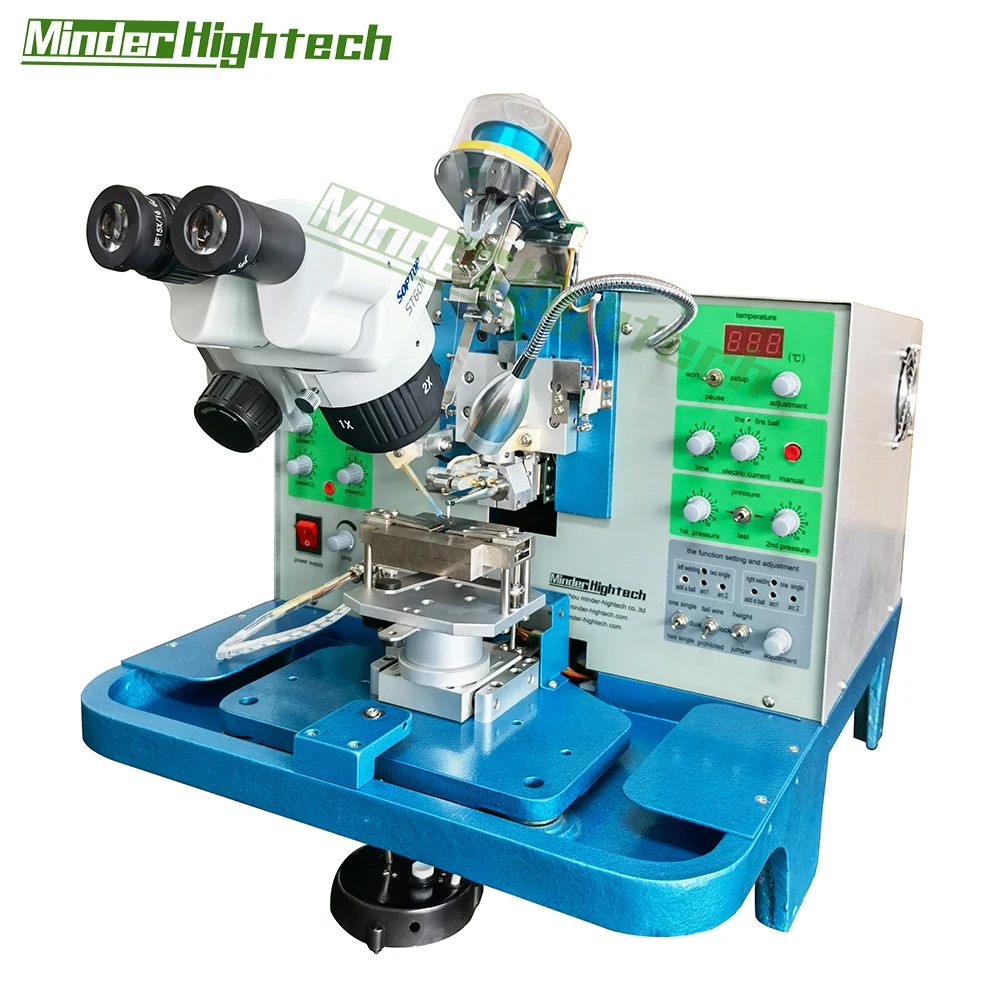

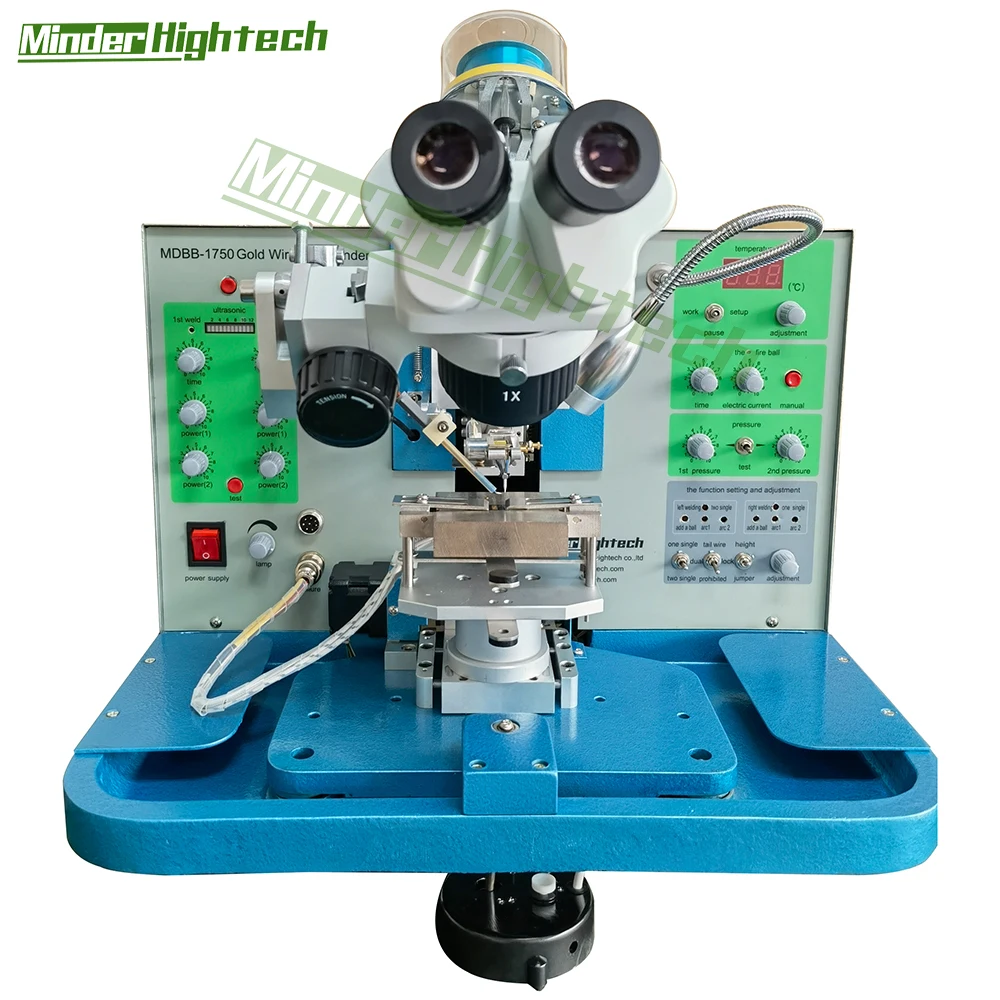

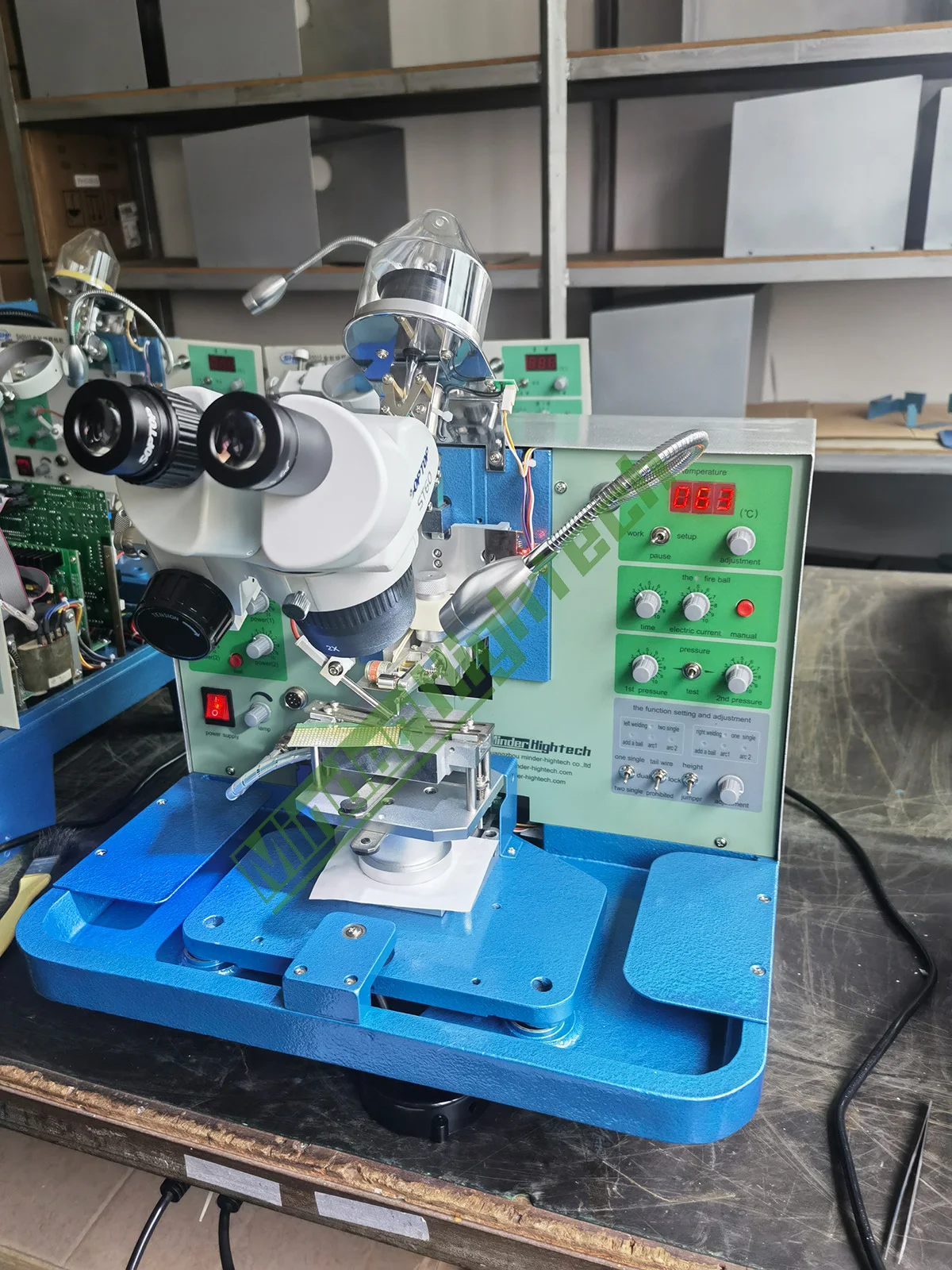

MDBB-1750 Manual Wire Ball Bonder

Application: LED, chips, diode, laser tube, the inner lead, semiconductor devices etc.
Specification
Electric Requirement
220VAC±10％、50HZ、be sure connected to ground
Wire Diameter
17～50μm
Ultrasonic Power
0－3W, two channel. can be set separately of the two point
Bond Time
0－200ms，two channel
Bond Force
35－180g，two channel
Digital Camera System
optional
Min Bonding Time
0.4s/wire
Span Between First Bond to Second Bond by Automatic Mode
more than 4mm.
Length Of Terminal Wire
0-2mm
Ball Dimension
2-4 times bigger
Bond Temperature
house temperature ~ 400℃
Microscope
15X,30X
Jig Moving Area
Φ25mm
Dimension
700*460*550mm
Weight
28kg

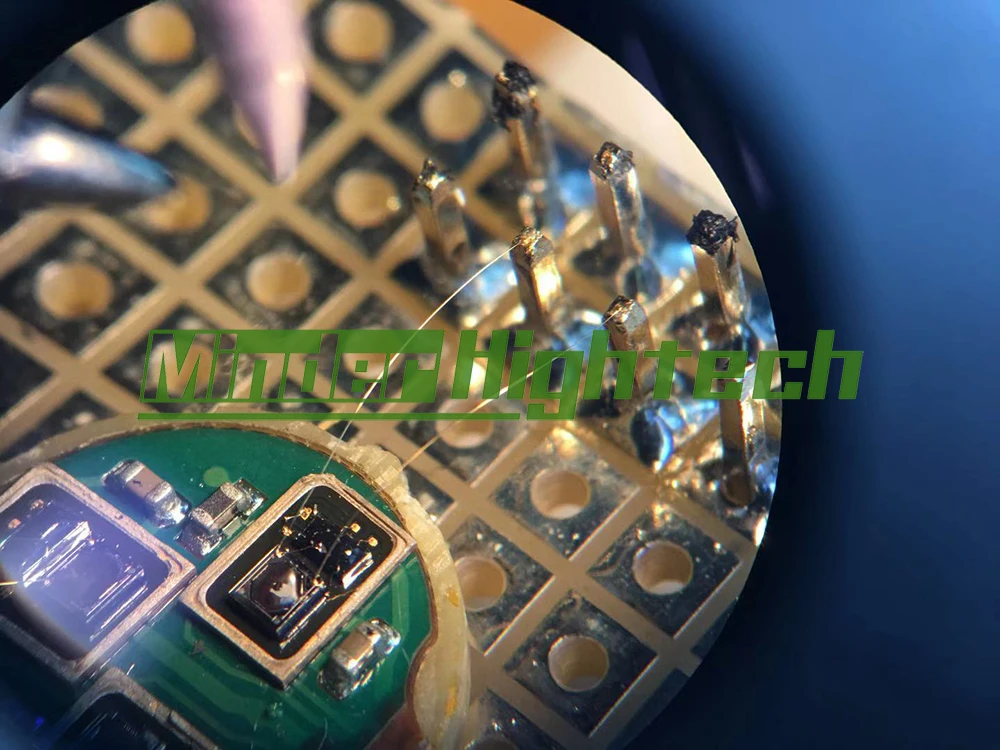

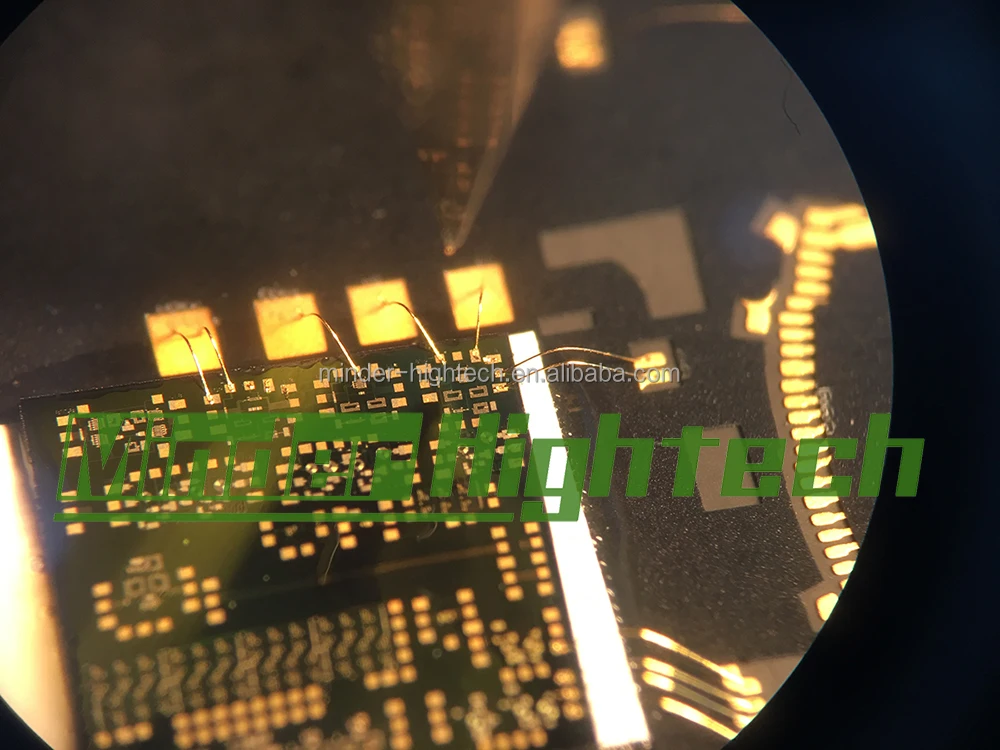

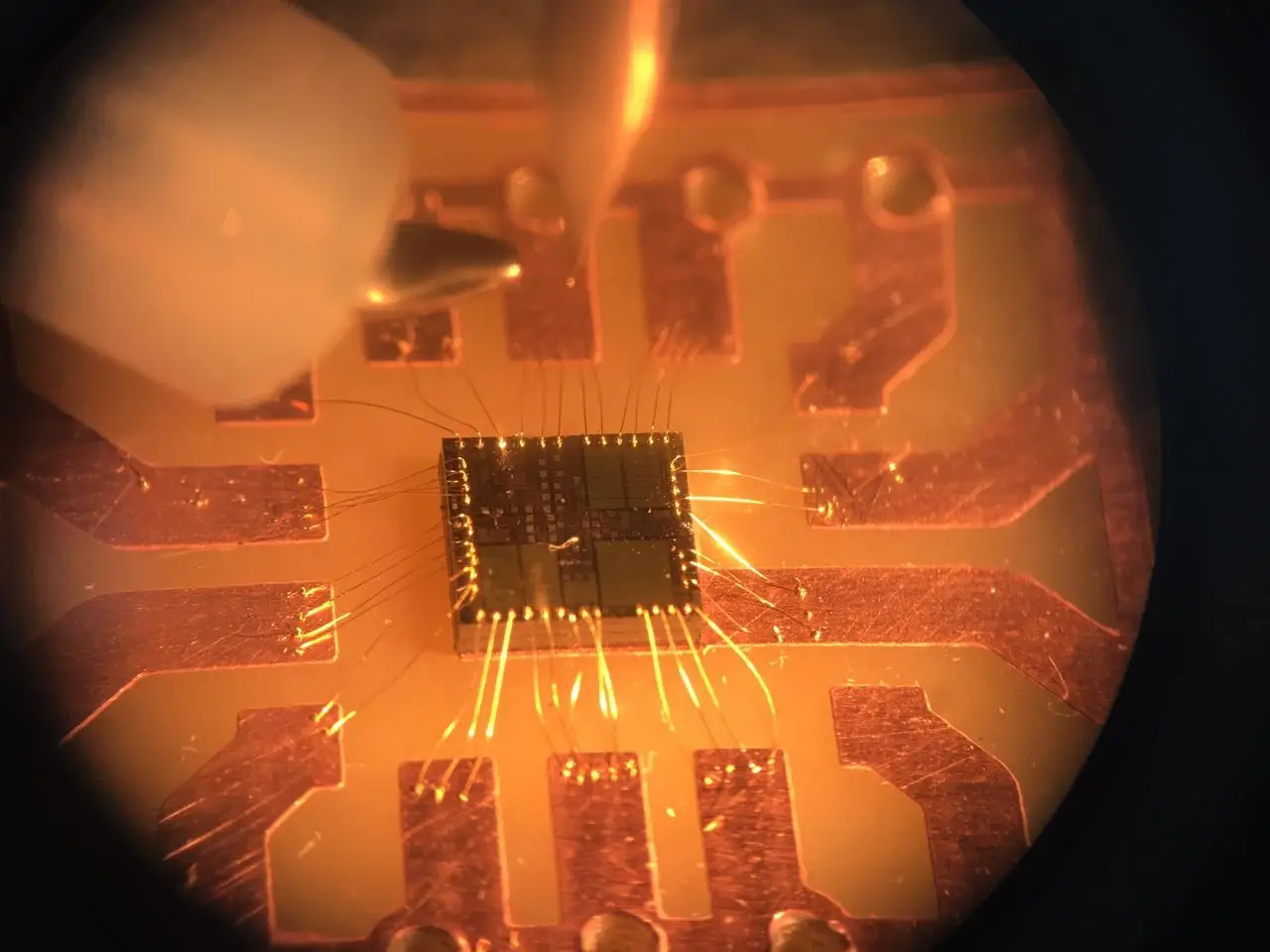

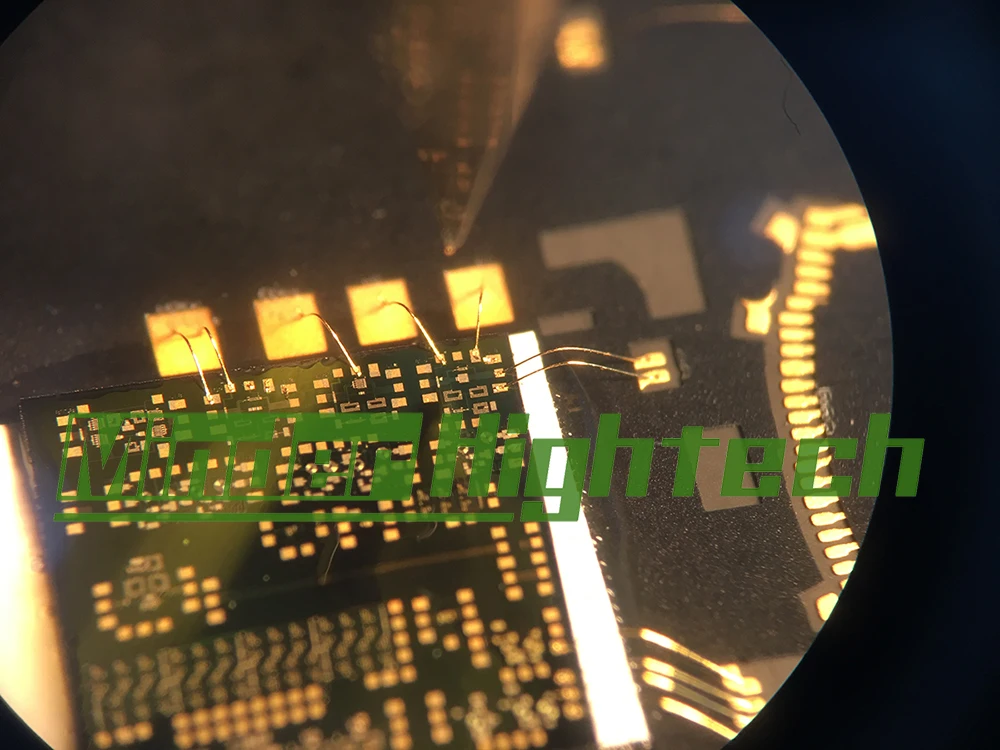

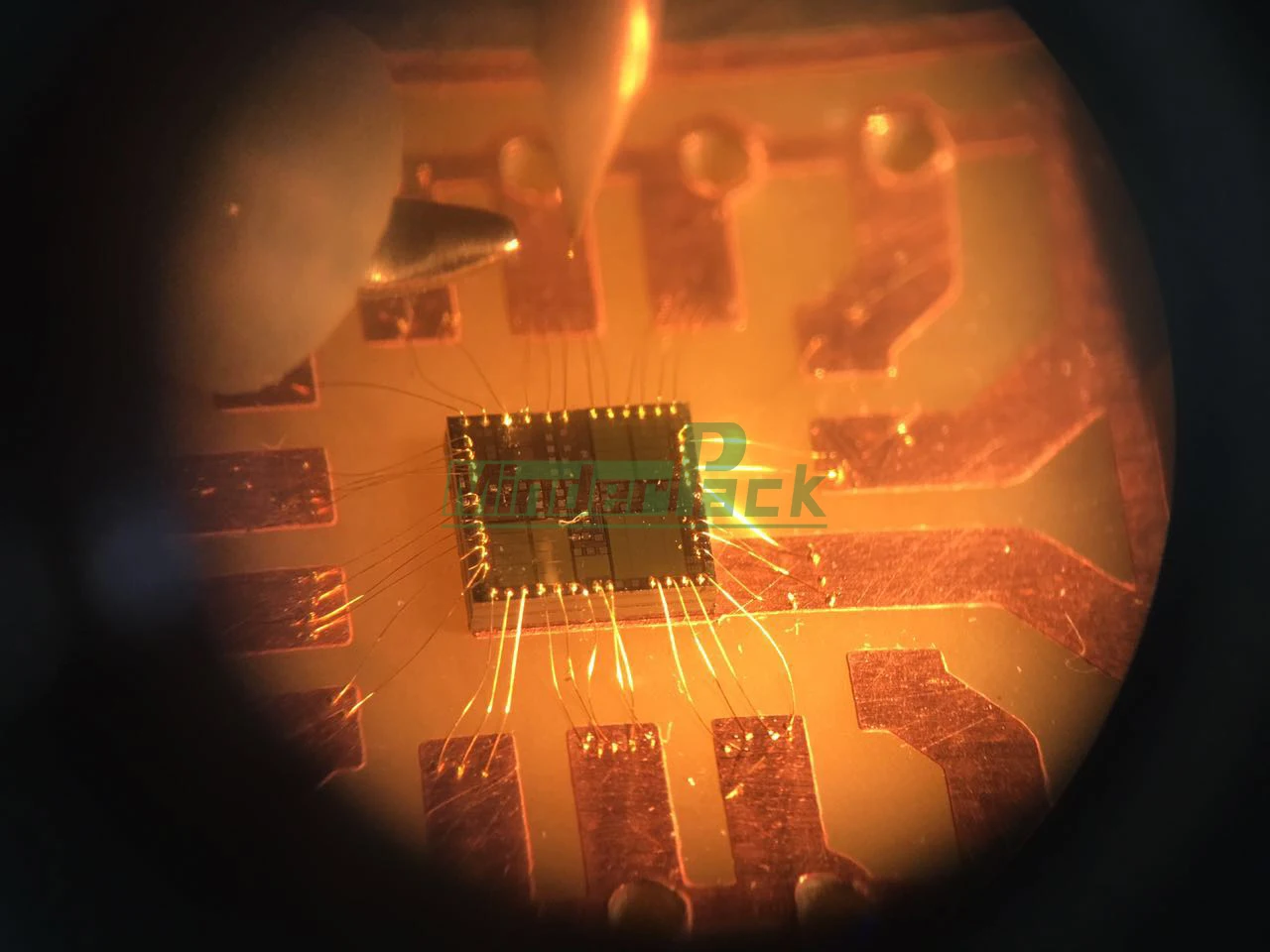

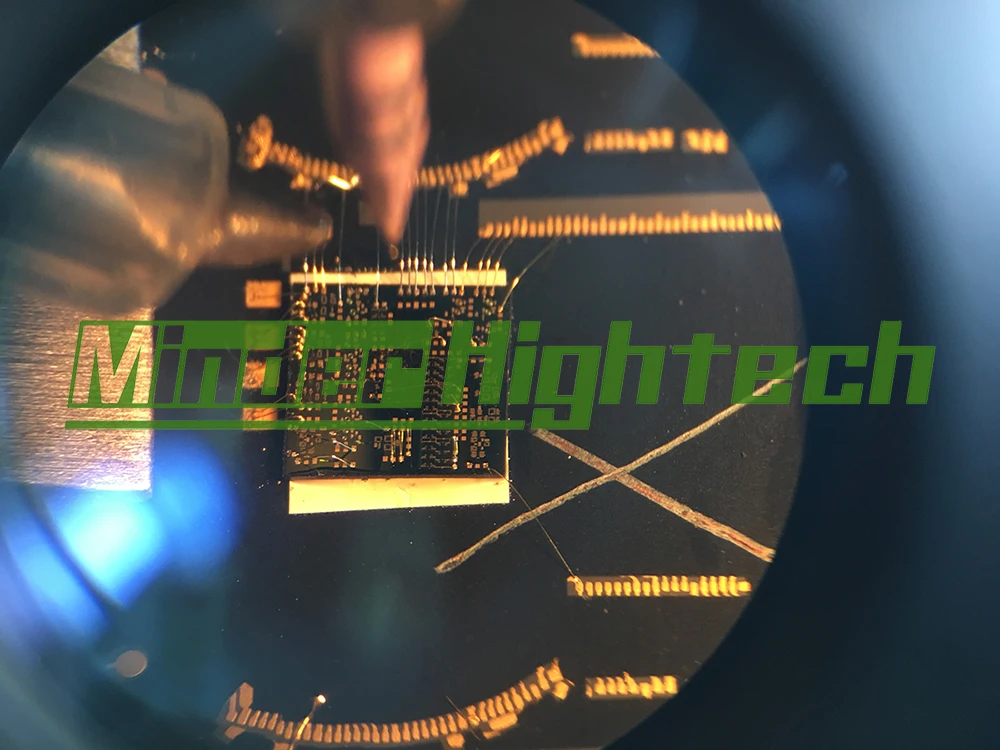

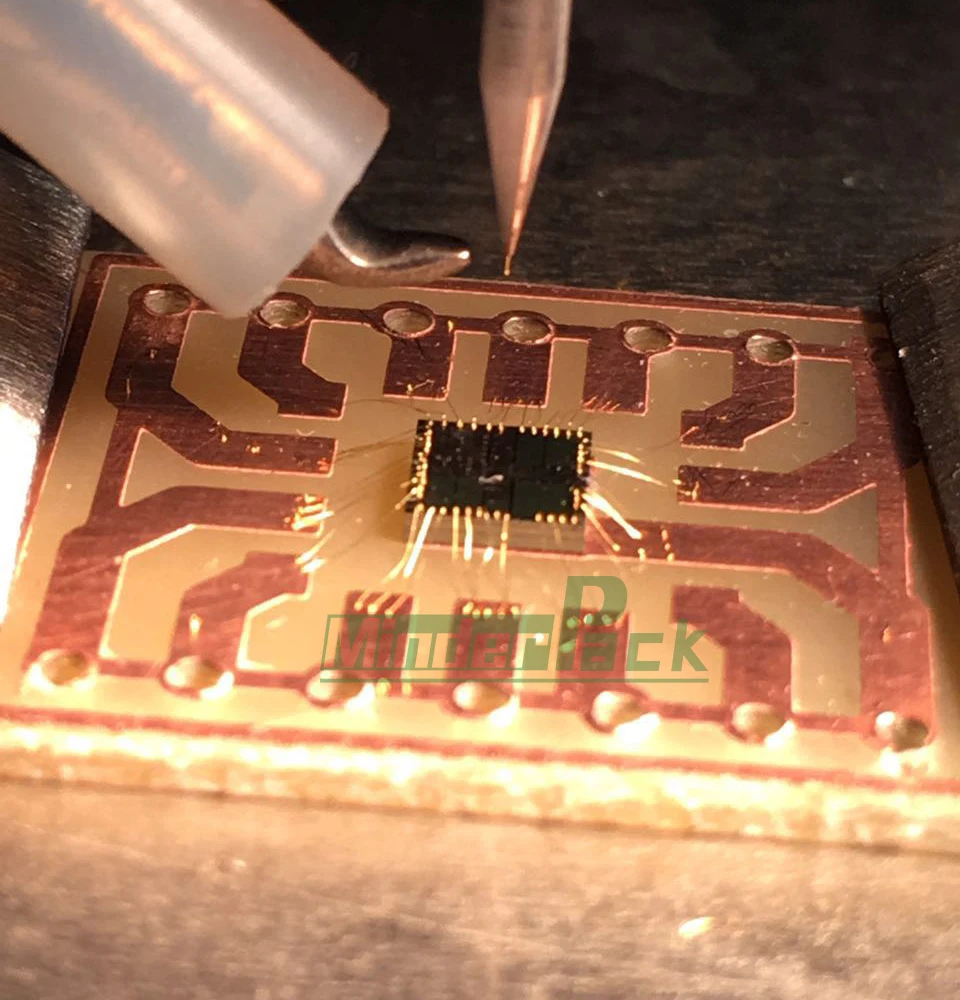

Part of Sample
Packing & Delivery
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment:
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.

7. After-sale Service:
All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
