MDB-7550 Heavy Wire Bonder

Get a Free Quote
Product Description

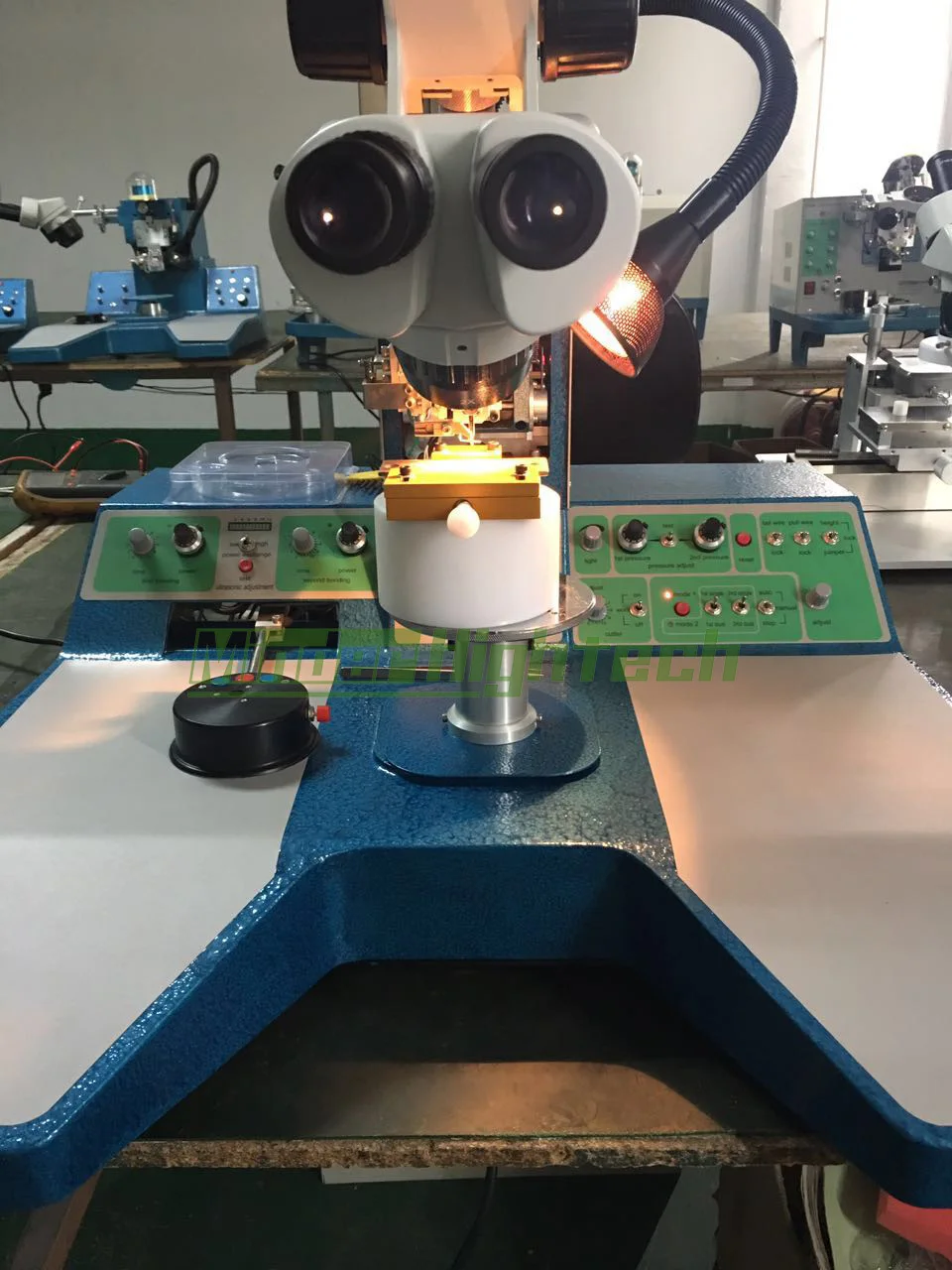

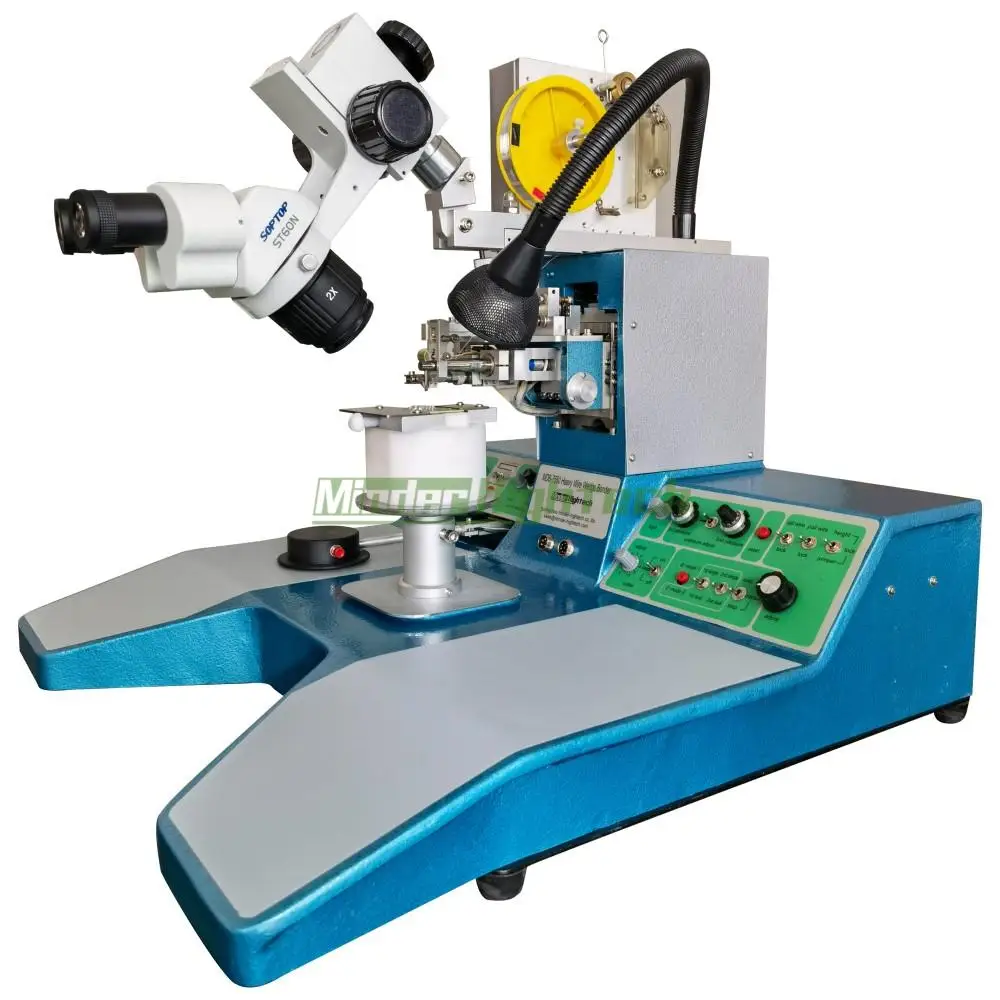

MDB-7550 Heavy Wire Bonder

Application: High power dynatron/FET/SCR, Power module, IGBT, High power Fast recovery diode, Schottky transistor, Lead attachment, wire bonding, TO-3、TO-3P、TO-3PF、TO-3PN、TO-3PL、TO-220F、TO-126、TO-12F、TO-66、TO-251、TO-202 etc.
Specification
Electric Requirement
220VAC±10％、50HZ、be sure connected to ground
Aluminium Wire Diameter
75～500μm (3～20mil)
Ultrasonic Power
0－30W, two channel can be set separately of the two point
Bond Time
10－500ms，two channel
Bond Force
30－1200g，two channel
Motorized Y
0－18mm
Microscope Rate
7.5 and 15
Working Area
Φ25mm
Light
adjustable brightness
Size
620×610×560mm
Weight
~40kg

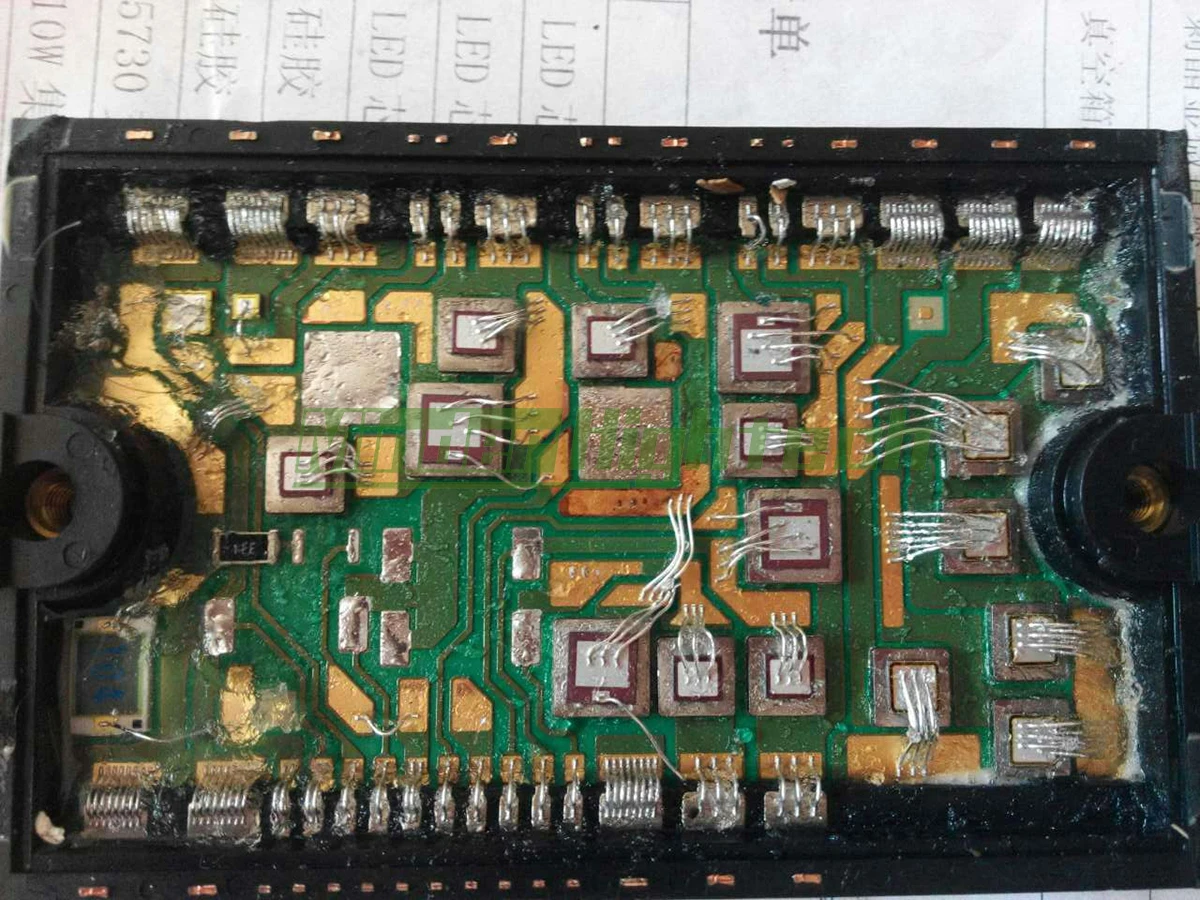

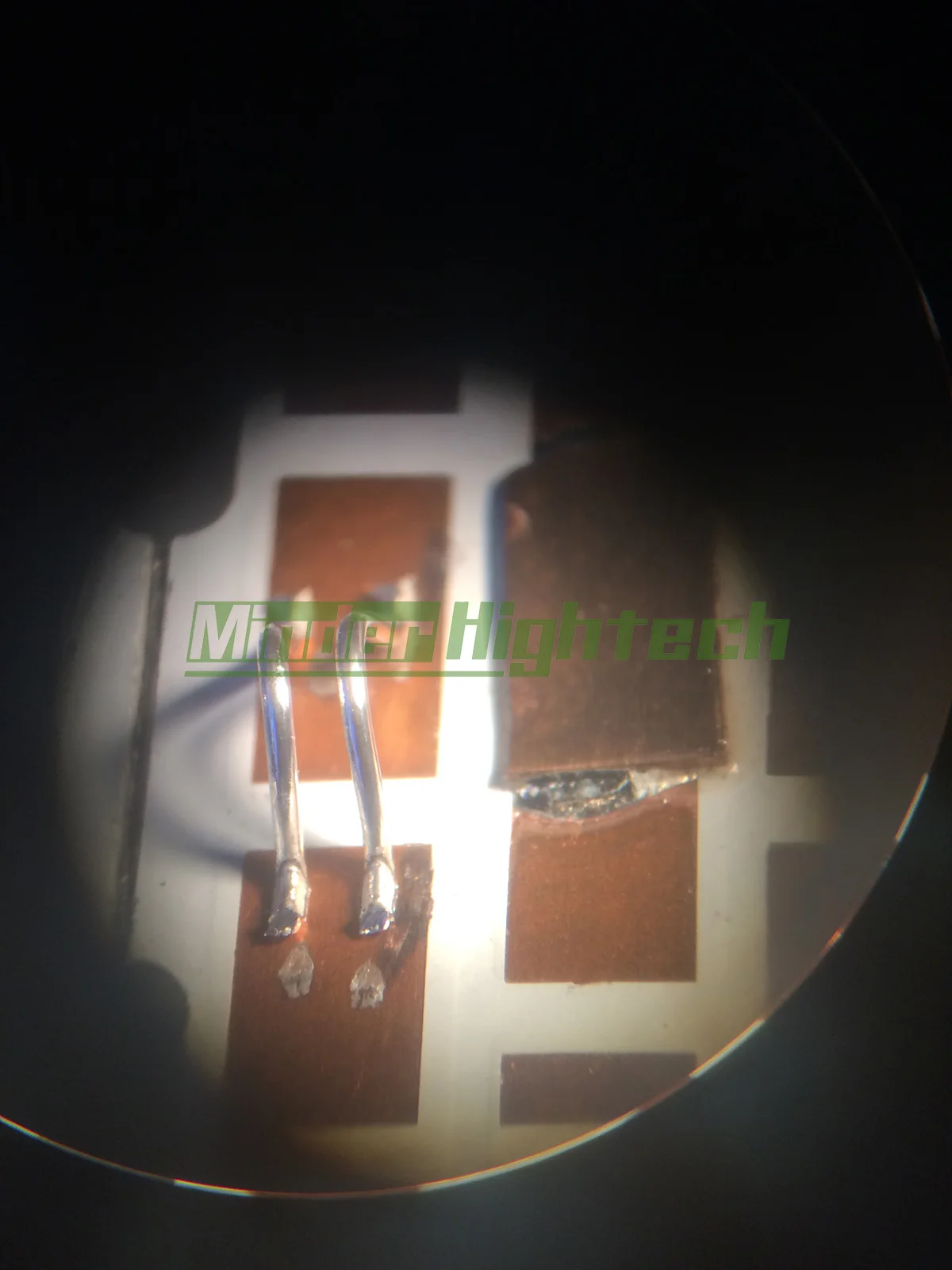

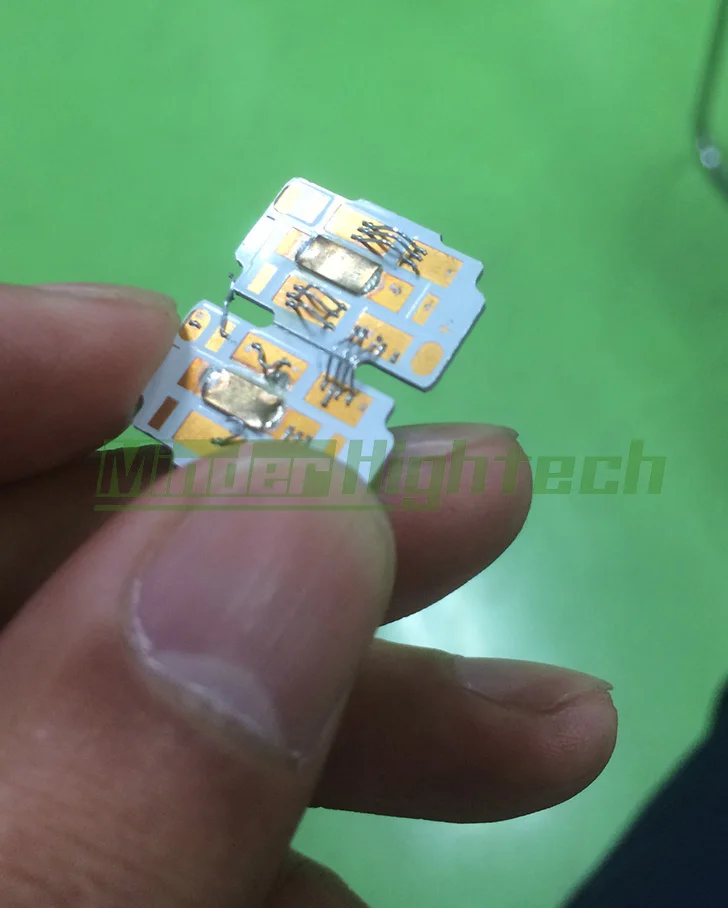

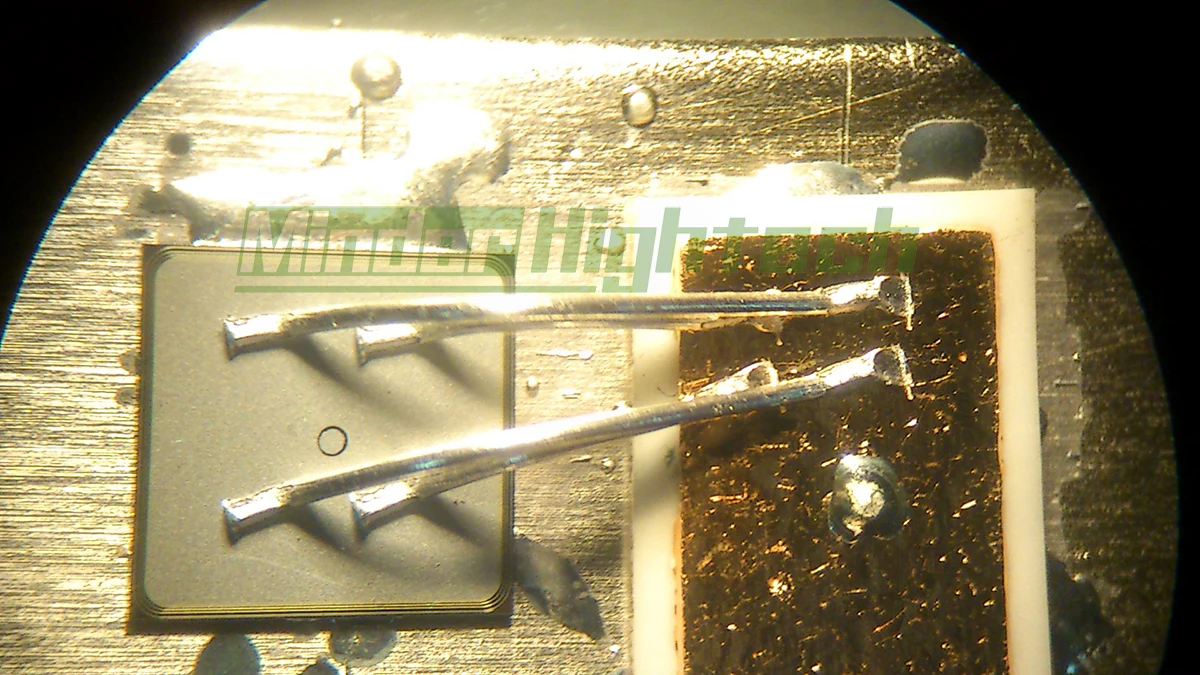

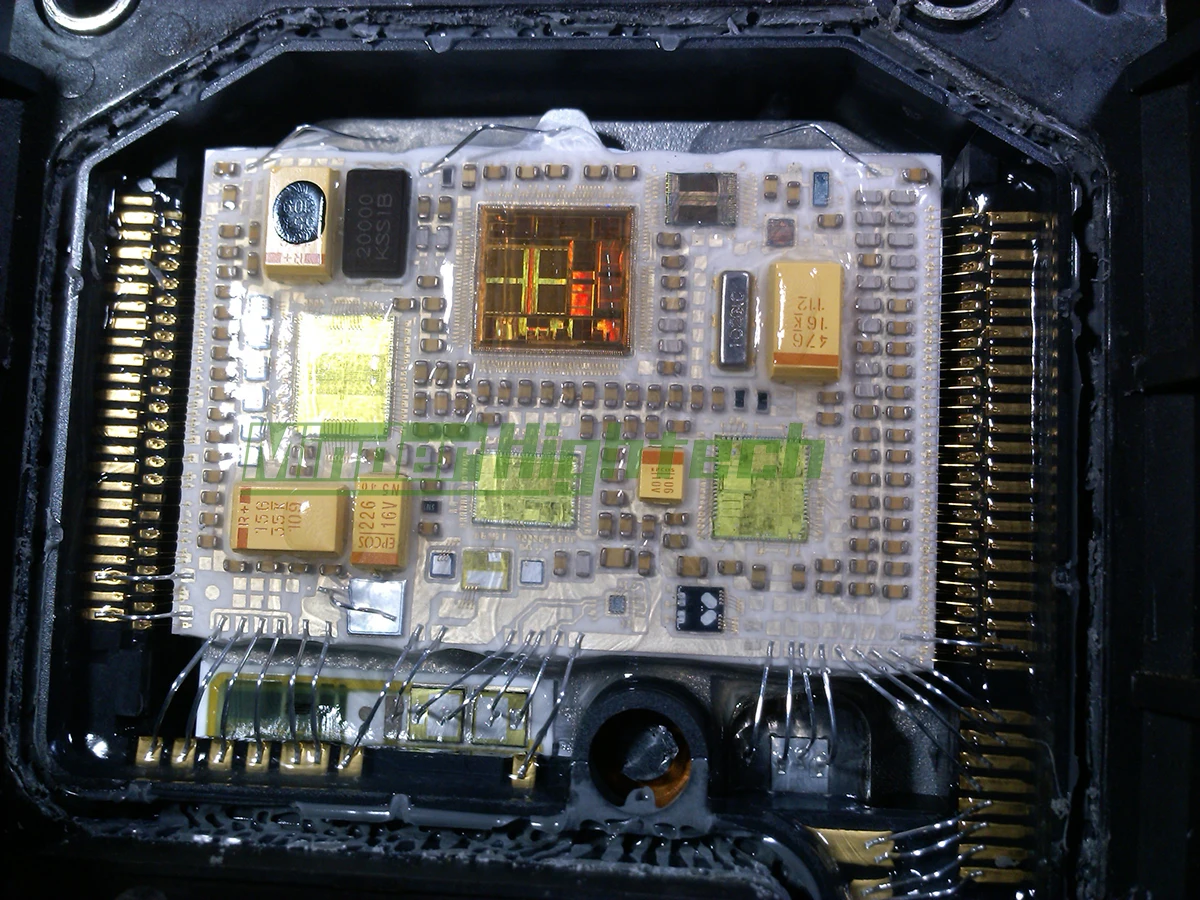

Part of Sample
Packing & Delivery
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment:
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.

7. After-sale Service:
All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
