Manual Heavy-duty Energy Storage Seal Welding Machine Seal welder MCMSW-1536

Get a Free Quote
Product Description

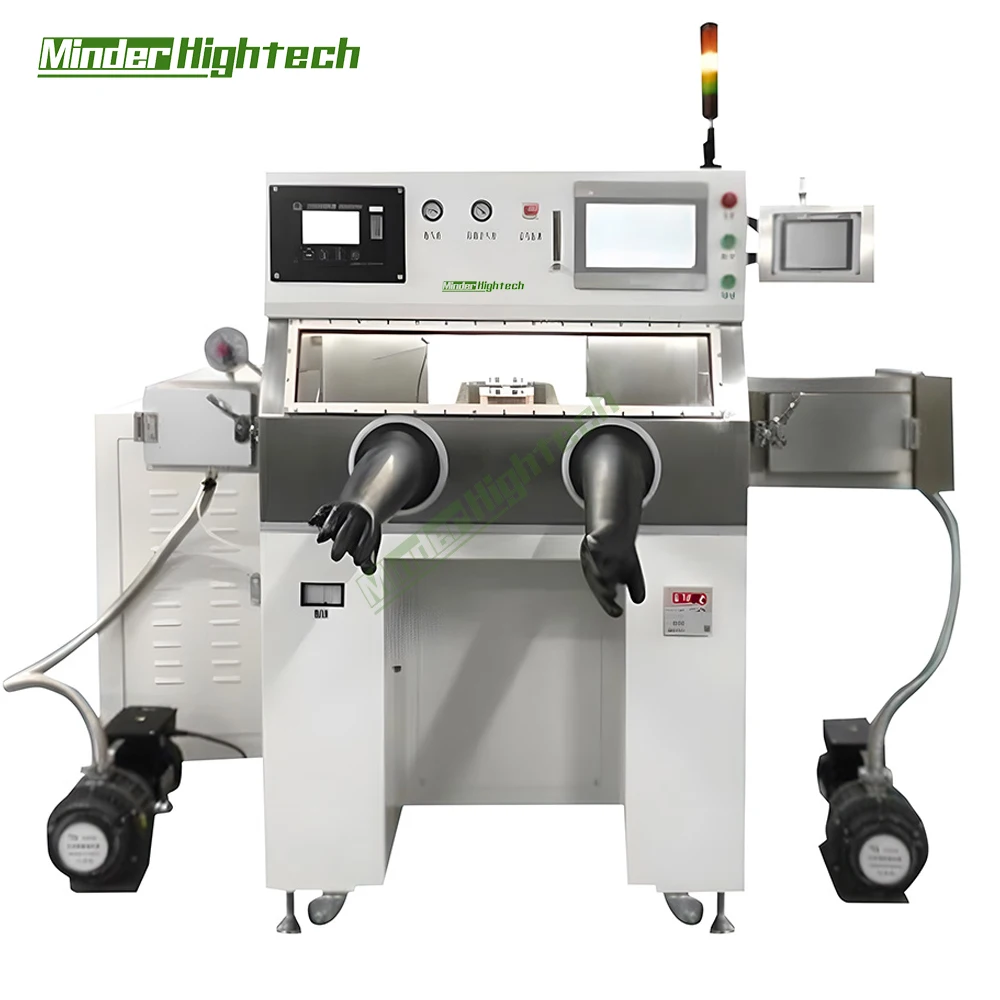

Manual Heavy-duty Energy Storage Seal Welding Machine
MCMSW-1536

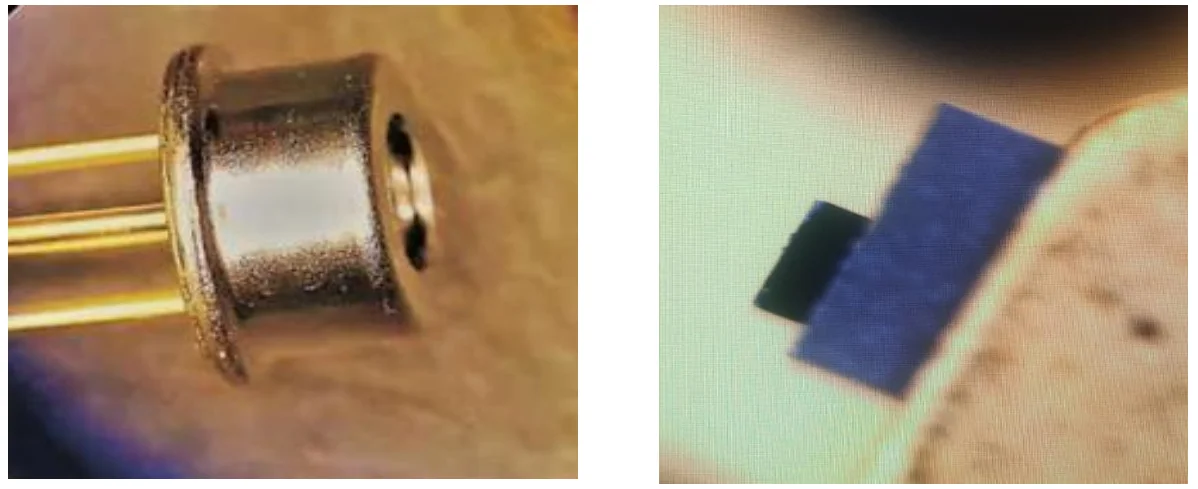

This equipment is specially used for welding TO-type tube sockets and tube caps of larger sizes in optoelectronic communications and sensor components. The welding process completes the product welding in a closed glove box nitrogen environment.
First, put the tray of tube sockets and tube caps to be welded into the oven for baking, then take out the tray in the glove box, put on gloves manually to put the tube sockets and tube caps on the electrodes, press the welding start button with both hands to complete the welding, and then take out the finished product manually. After the welding is completed, the whole tray is transported to the transfer warehouse for removal.
The equipment adopts self-developed capacitor energy storage power supply, precision, high quality and stable packaging process.
Specification
Technical indicators
1
Welding pressure
50~600kgf
2
Welding Z-axis travel
60mm
3
Power supply energy storage
6000J
4
Capacity
56700uf
5
Welding efficiency
5~8pcs/minute
6
Welding leakage rate
Comply with the national military standard (GJB548B-2005)
7
Vacuum oven
Space temperature 25-110℃ Vacuum ≤10pa
8
Glove box dew point
-40
9
Welding defect rate
≤0.05%
10
Welding product range and size
15~36mm
11
Welding discharge times adjustable
1 time, 2 times
Electrical and Control
1
PLC
Operation: Touch screen
Setting: Various types and parameters and save
Call: Automatically call the previously saved related parameters according to the processing type

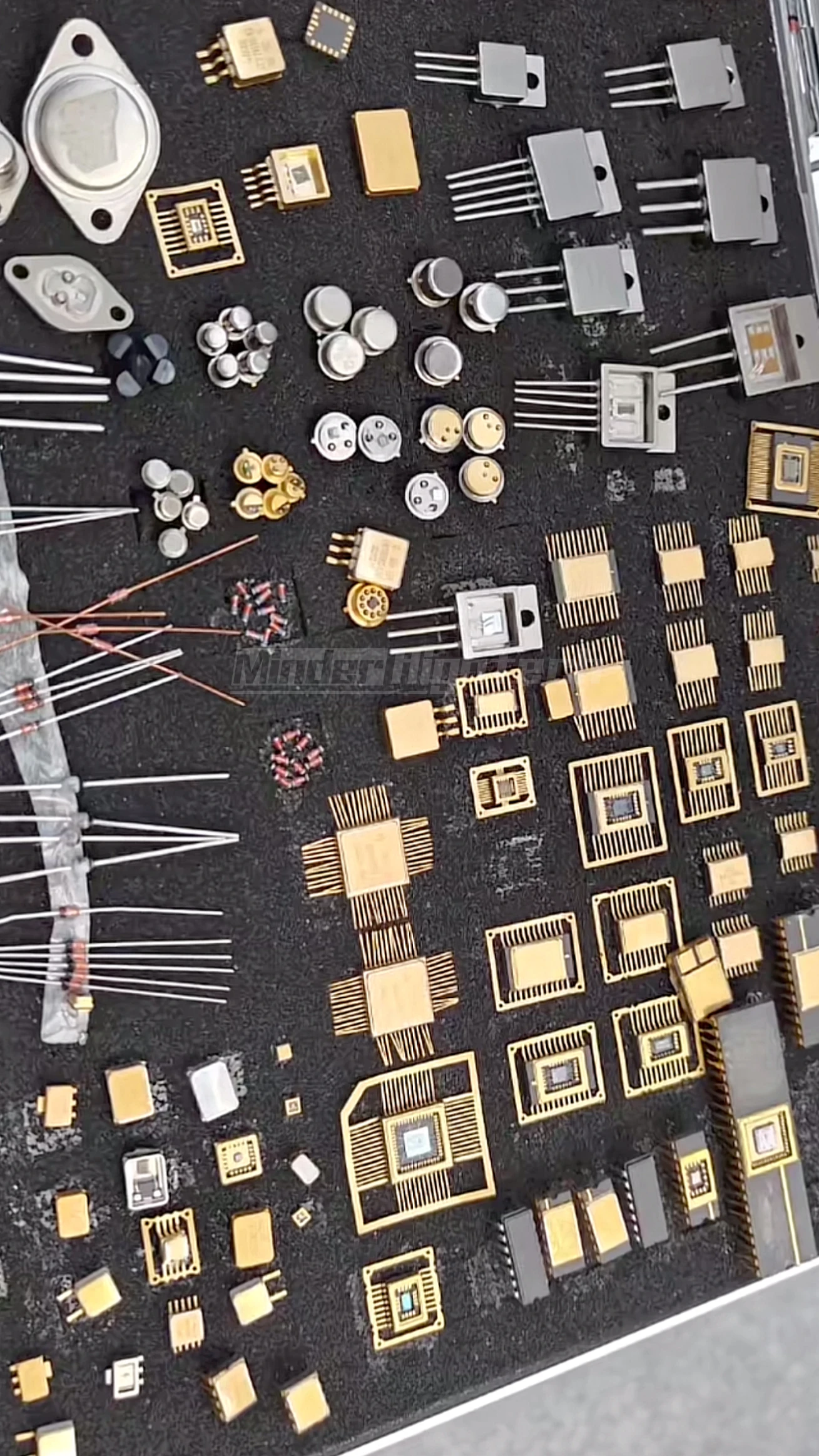

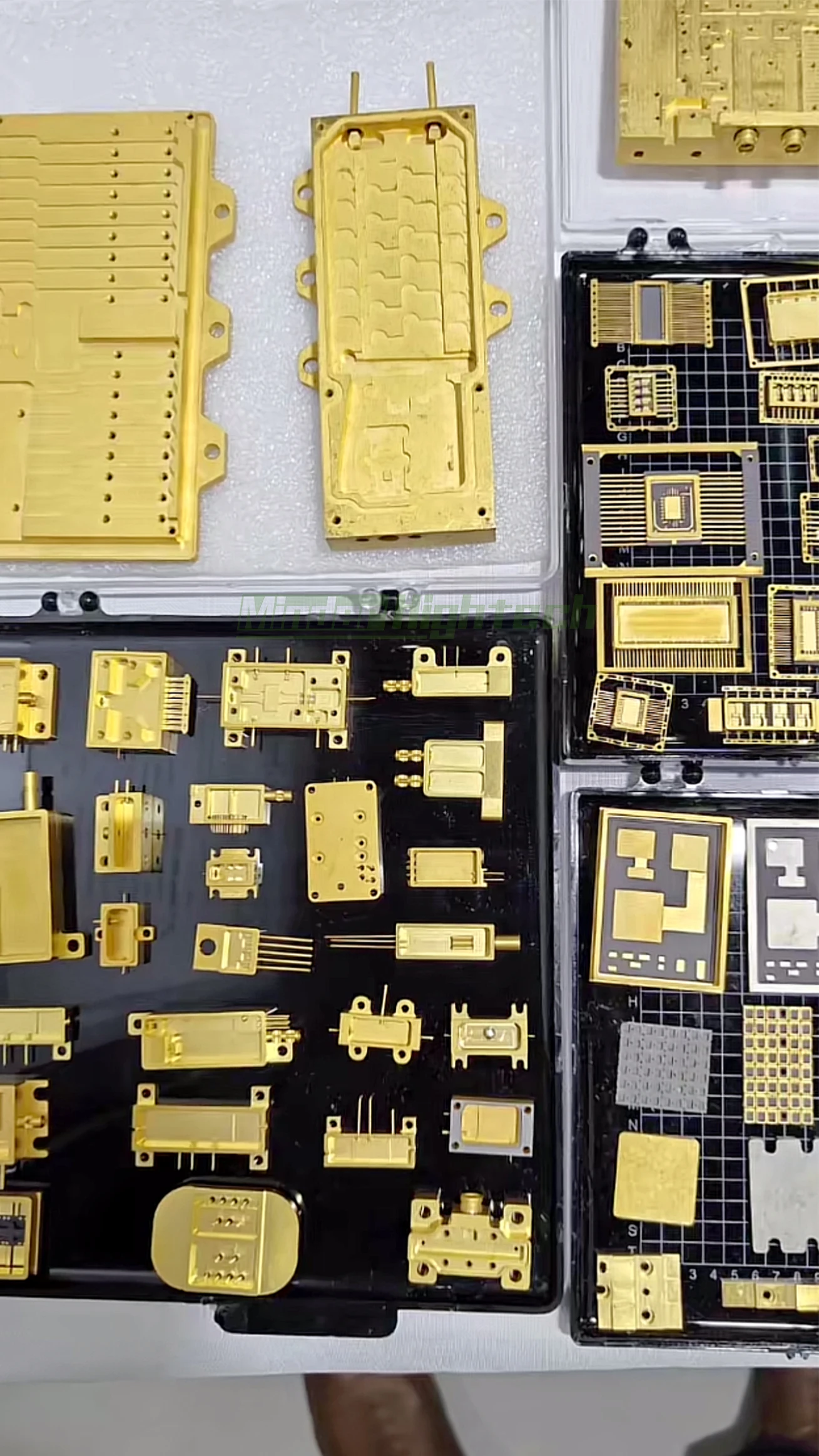

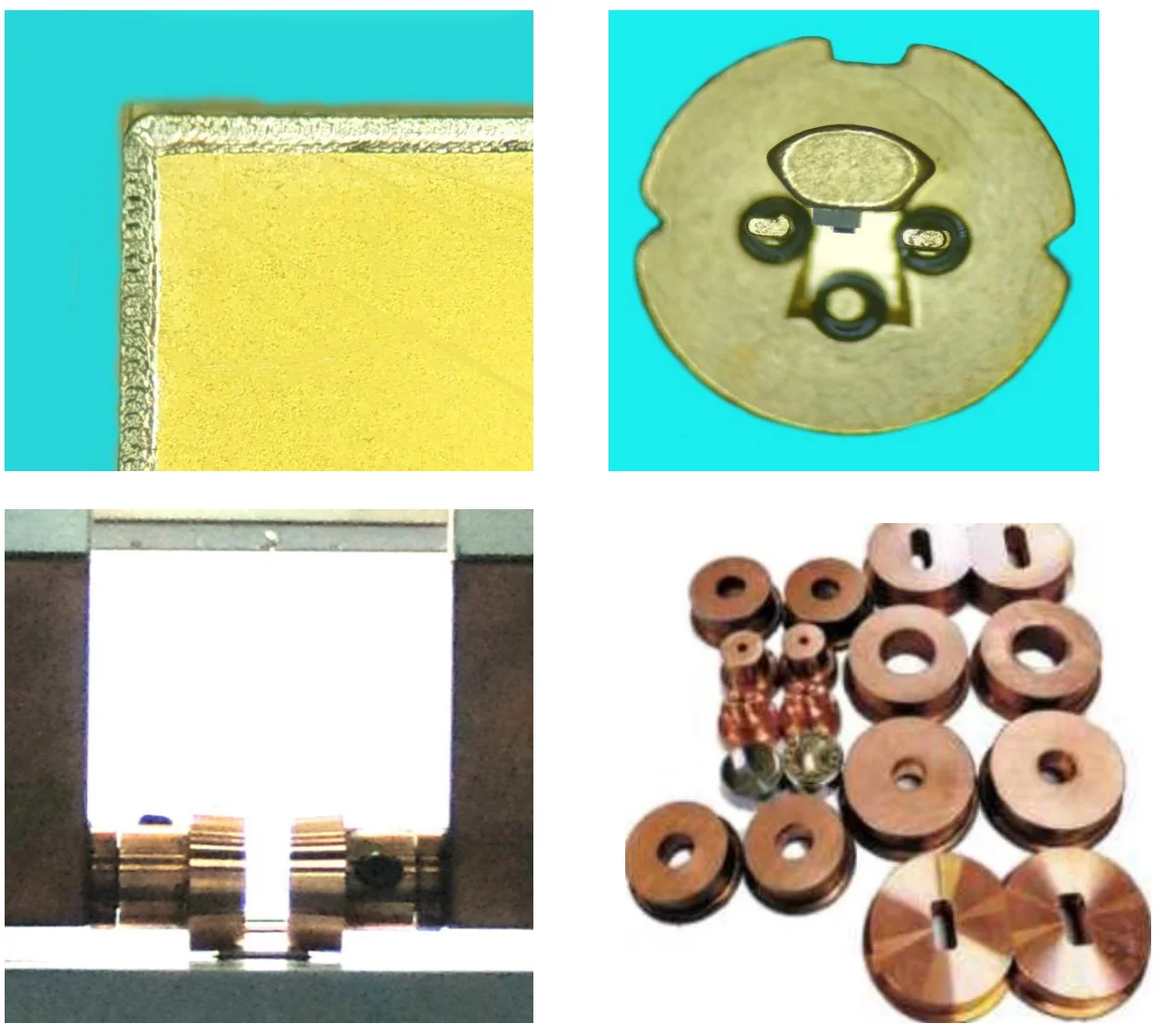

Sample

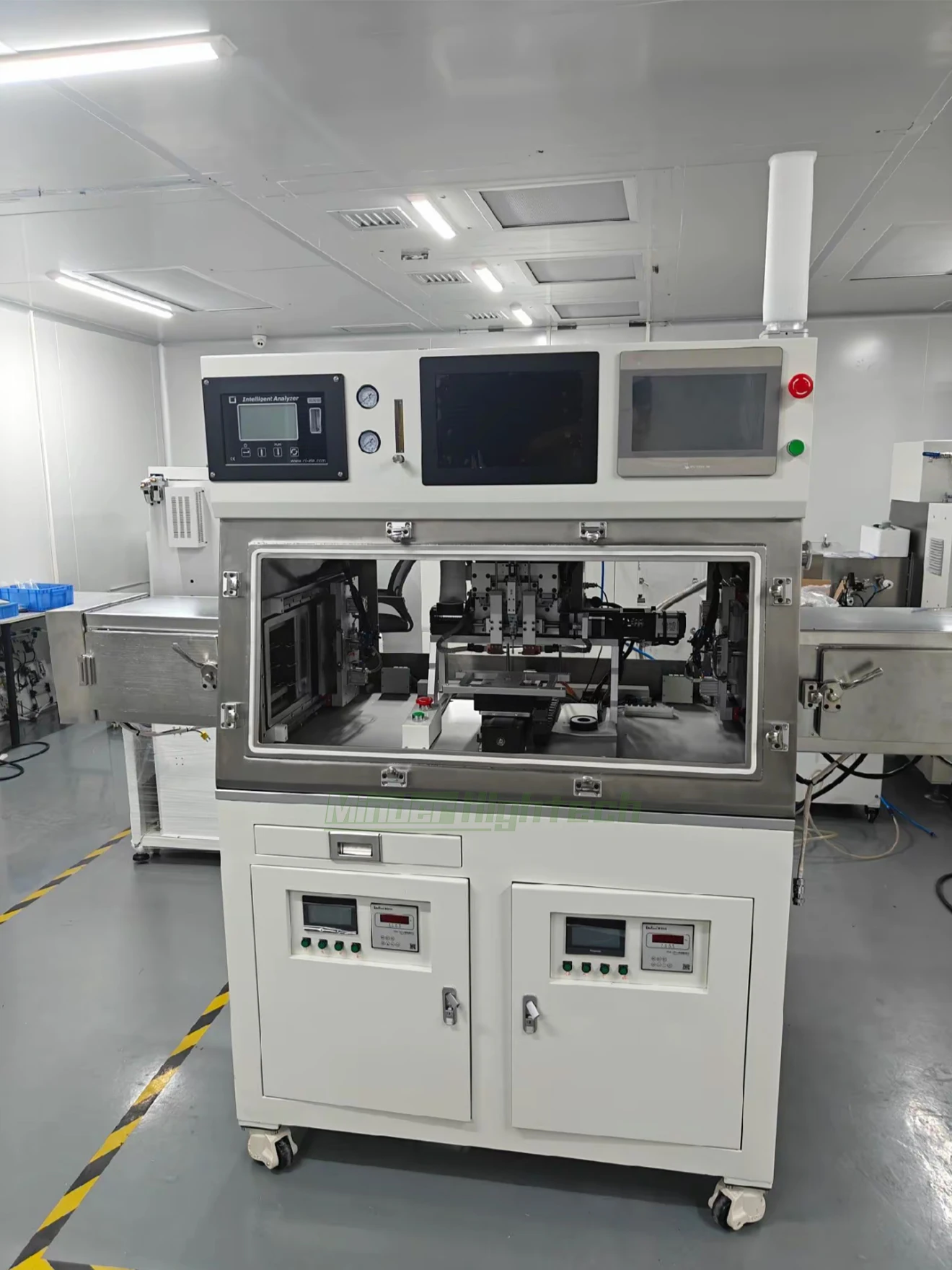

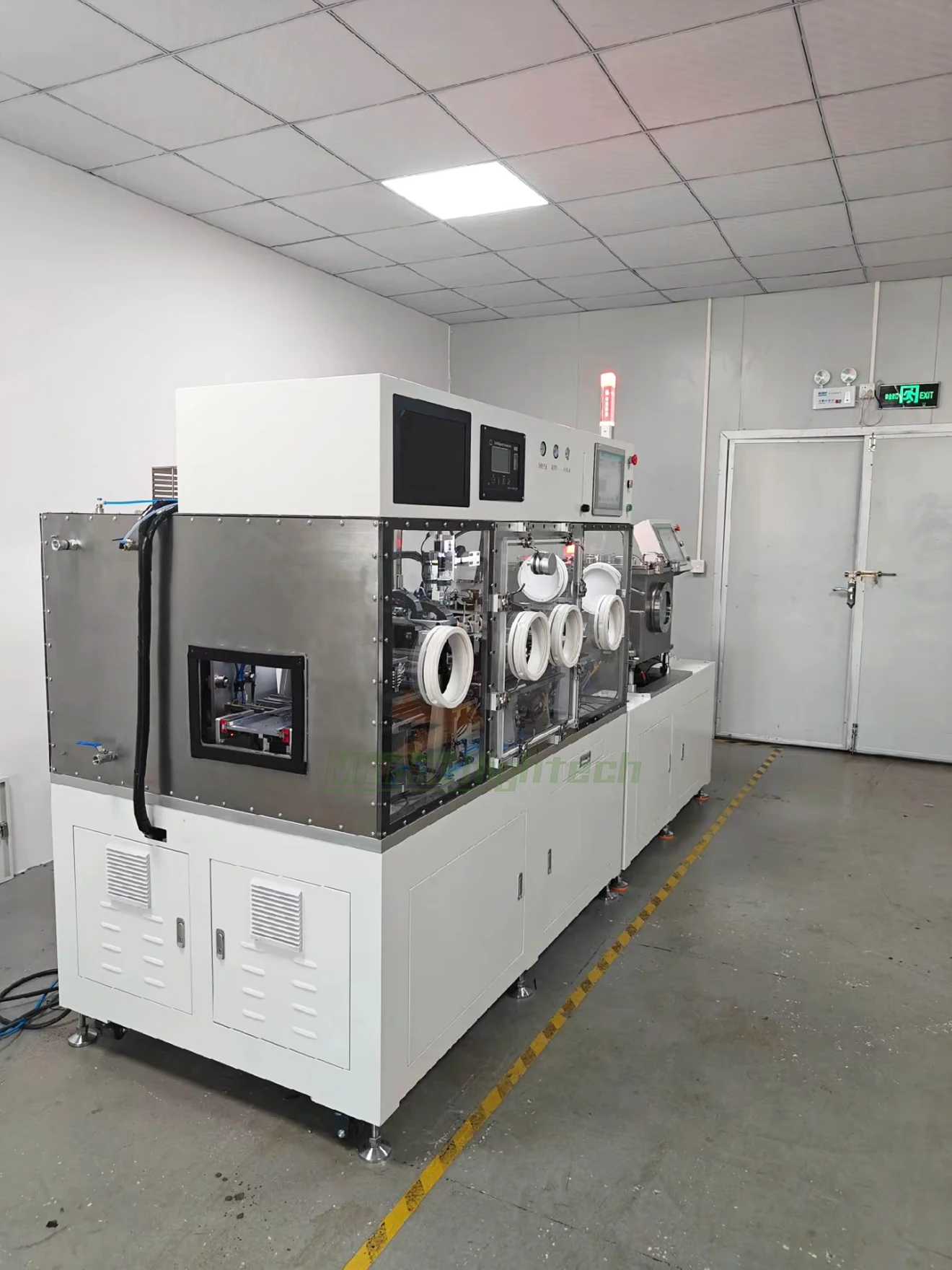

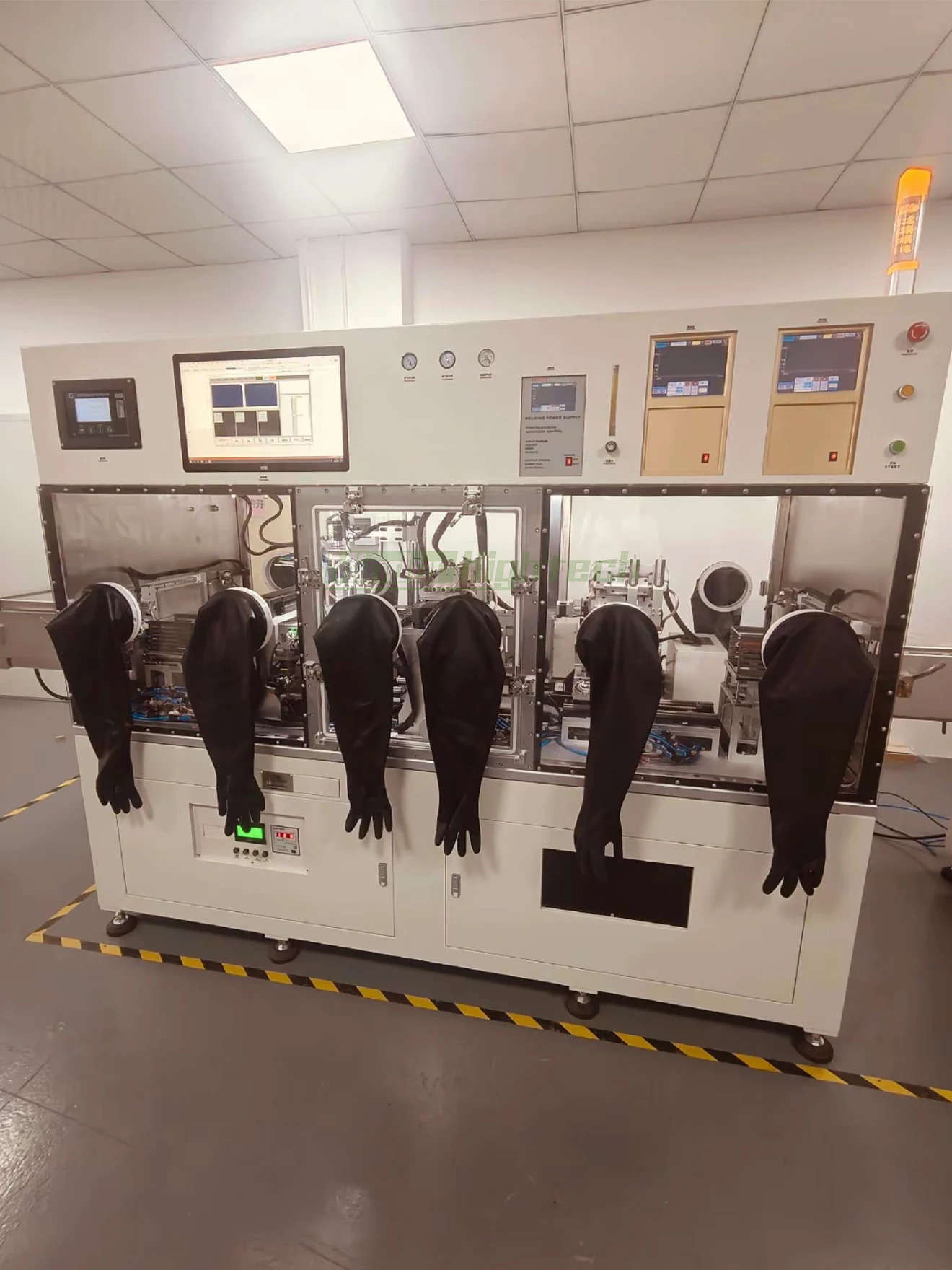

Equipment Real Shoots
Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment. We are comprised by a group of high educated specialists, experienced engineers and staffs, with excellent professional skills and experience. Our main products include: Die bonder, Wire bonder, Wafer grinder, Dicing saw, Plasma surface treatment, Photoresist removing machine, Rapid Thermal Processing, RIE, PVD, CVD, ICP, EBEAM, Parallel sealing welder, Terminal insertion machine, capacitor winding machine, Bonding tester, etc.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.

7. After-sale Service:
All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
