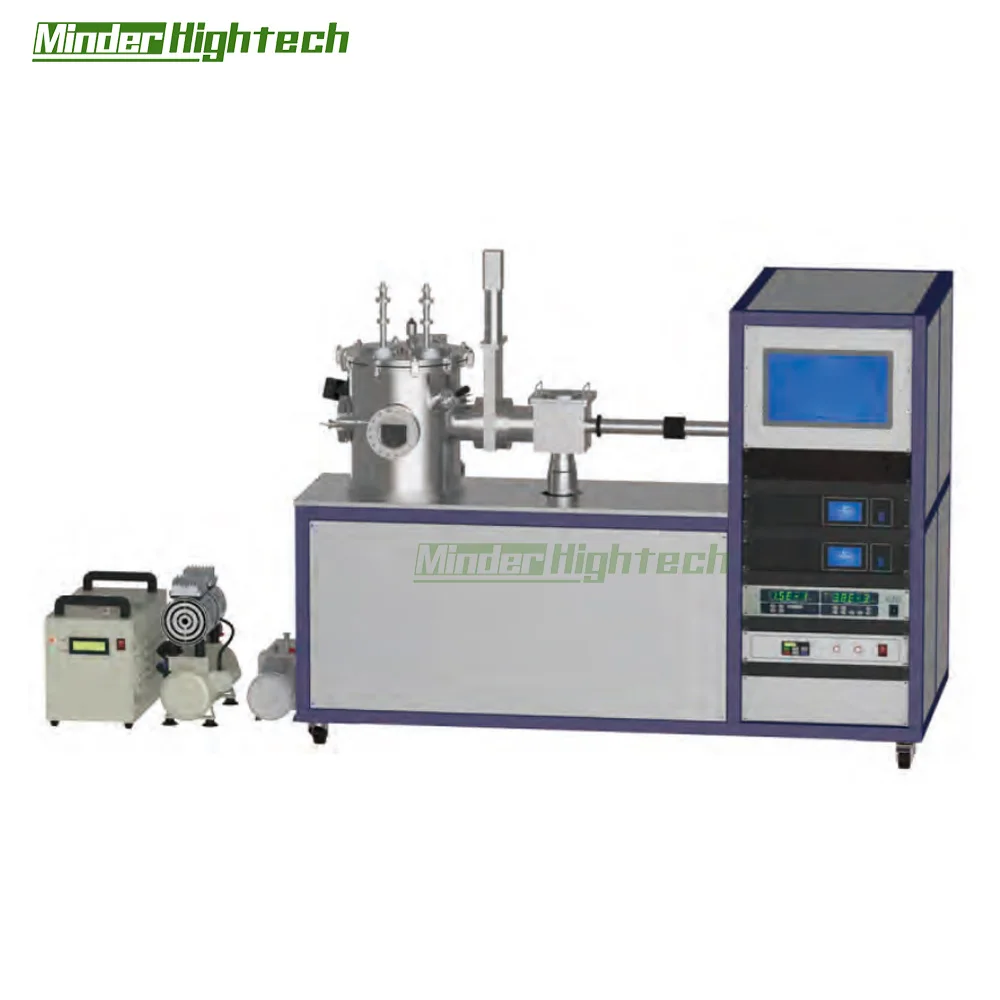

Introduction: This equipment is a dual-target magnetron coating instrument. It is equipped with two magnetron targets and two sets of DC power supplies. It can be used to coat multi-layer conductive metal films. At the same time, the equipment consists of two parts: the main chamber and the transition chamber. The transition chamber is equipped with a magnetic push rod, and a vacuum gate valve is installed between the two chambers. The user can load samples in the transition chamber and pre-vacuum while sputtering in the main chamber. After the sputtering of the main chamber is completed, the sample can be pushed into the sample stage of the main chamber through the magnetic push rod. This design can reduce the number of times the main chamber is evacuated and released, which can not only effectively save time, but also ensure better local vacuum and effectively improve the coating quality.
Application: It can be used to prepare single or multilayer ferroelectric thin films, conductive films, alloy films, semiconductor films, ceramic films, dielectric films, optical films, etc.
About Us
Since 2014, Minder-Hightech is sales and service representative in Semiconductor and Electronic product industry equipment. We are committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment. Until today, our brand's products have spread to major industrialized countries around the world, helping customers improve efficiency, reduce costs, and improve product quality.
FAQs
About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.
About Sample:
We can provide sample production services for you, but you may provide some fees.
About Payment:
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.
About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.
About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
After-sale Service:
All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
