Blade moving type PCB Separator

Get a Free Quote
Product Description

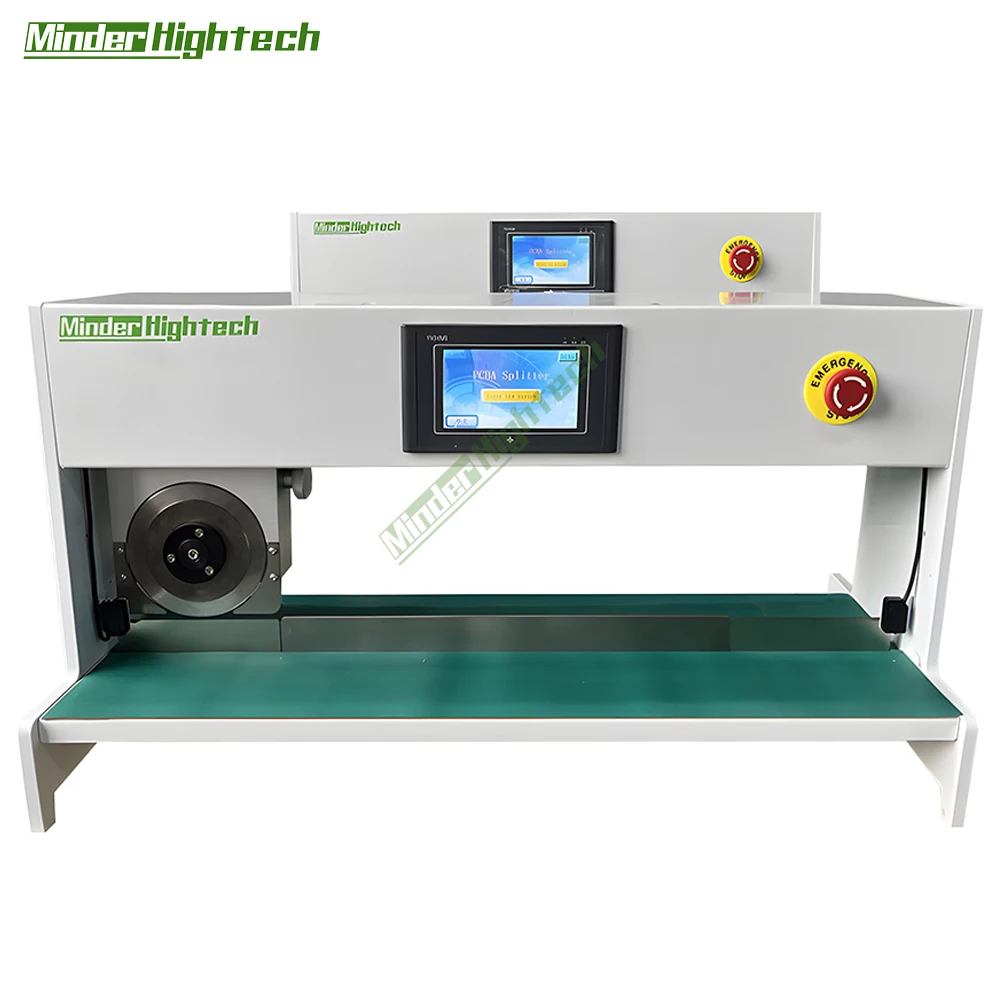

Blade Moving Type PCB Separator

1.PCBA does not move during the cutting process, and the circular knife slides.to ensure that the electronic components of the substrate are not damaged due to movement.
2.The sliding speed and cutting stroke of circular knife can be adjusted flexibly according to the actual use.
3.According to the depth of V groove and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted.

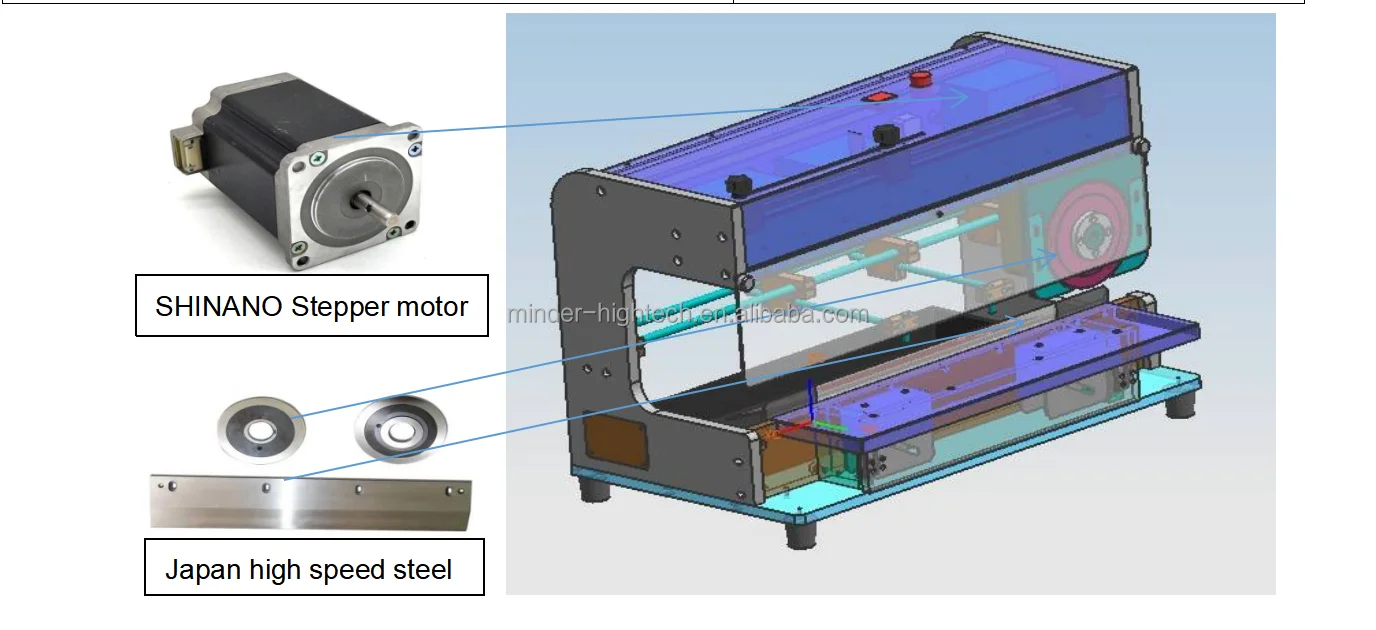

4.Stepper motor drive, power can be self-locking, to achieve fine cutting positioning.
5.Infrared light screen switch safety protection to ensure safe operation of the machine.
6.The upper and lower blades are made of high speed steel imported from Japan to improve the service life and cutting effect of the blades.
Specification
Equipment model
MD-450
Blade material
Japan high speed steel
Blade life
500000 times
Cutter wheel fine adjustment
0-2mm
The lower plate cutter can be adjusted
0-15mm
Maximum board length
450 MM
Plate thickness
0.6-3.5 (MM)
maximum height of V-slot edge device
50 MM
minimum distance between V slot and components Type of panel
0.5 MM
equipment power
60 W
input voltage
AC 220 V /5 0-60 HZ
overall dimension(L/W/H)
680× 530×450 (MM)
equipment weight
46 KG

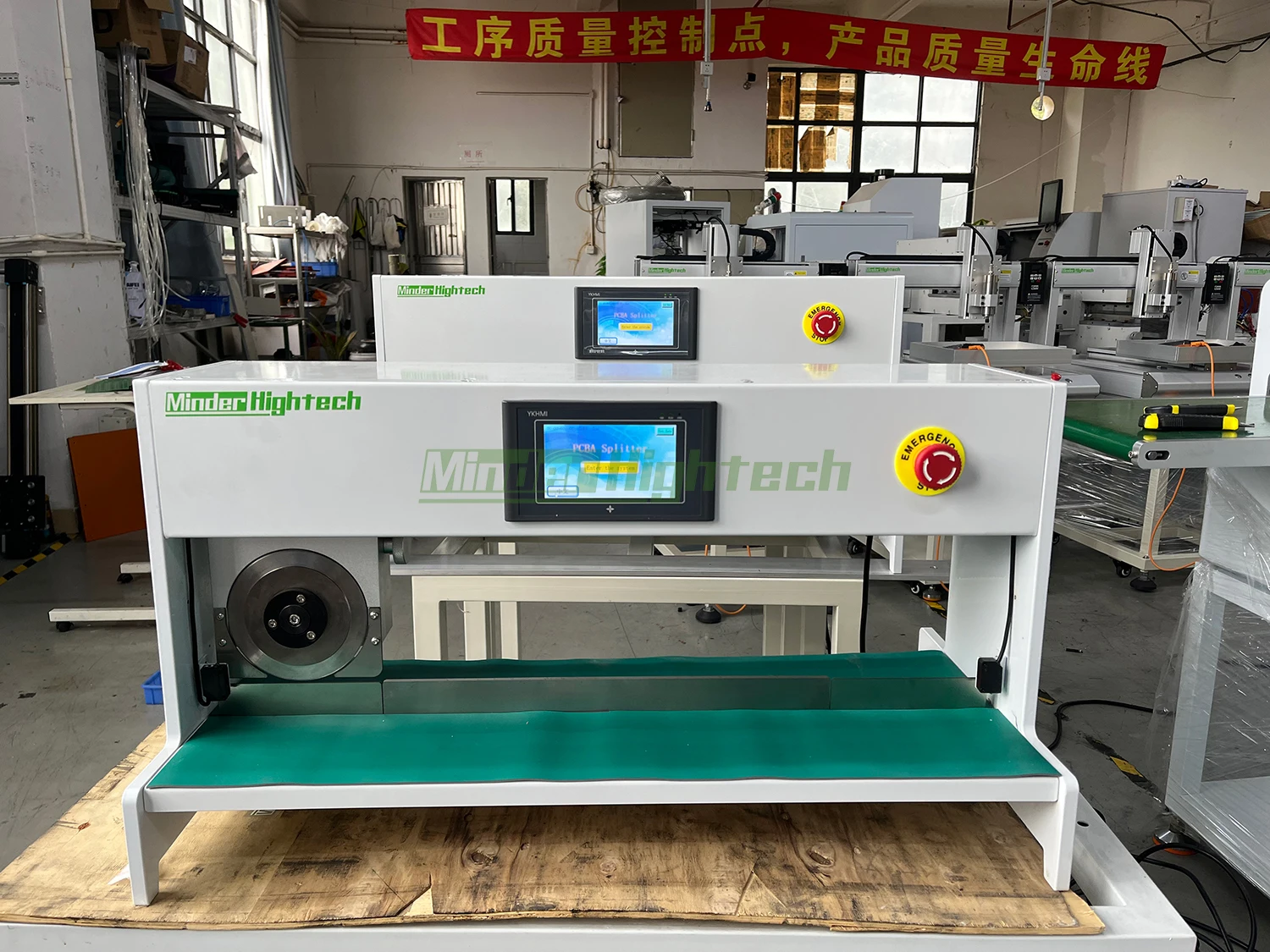

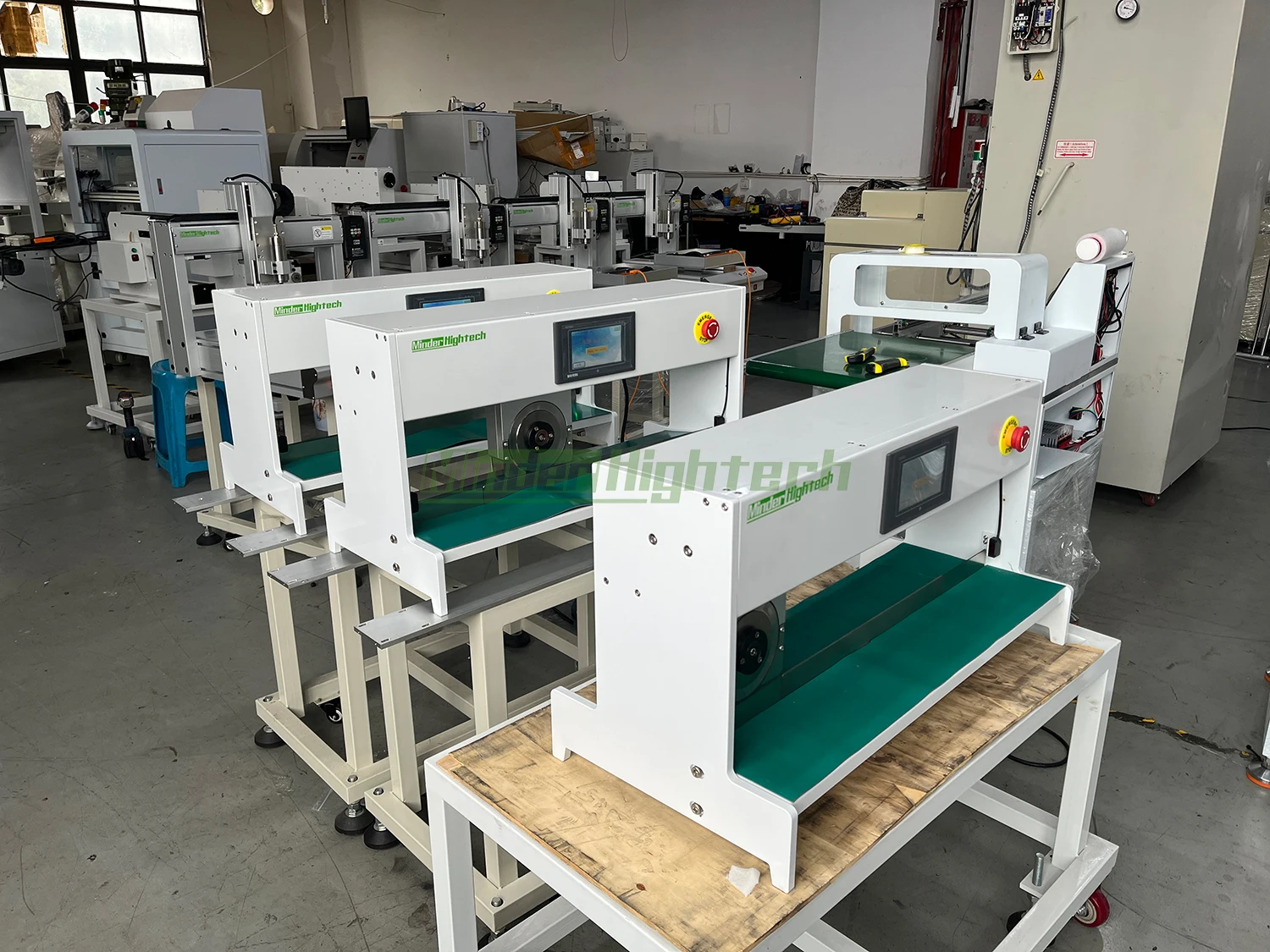

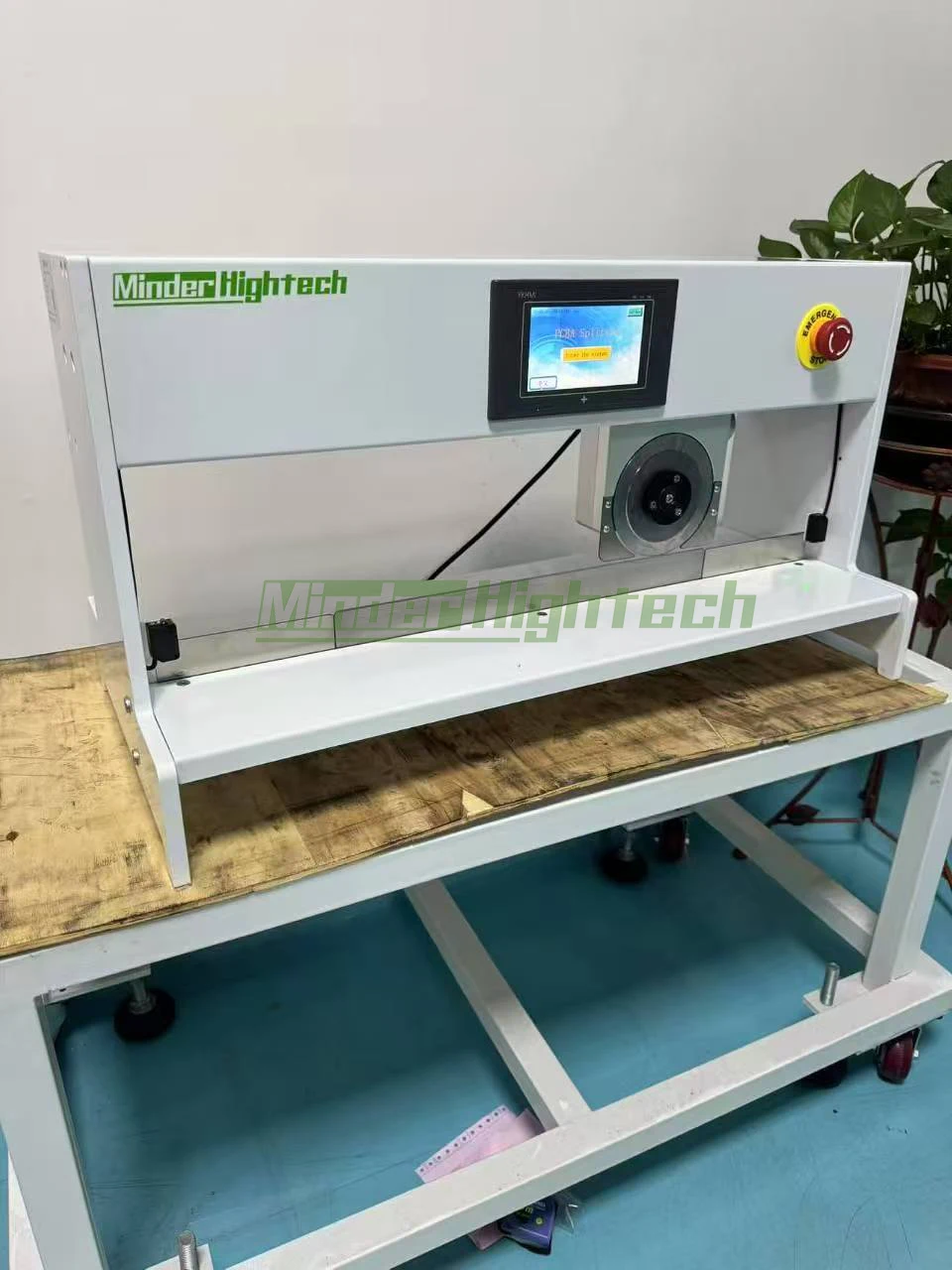

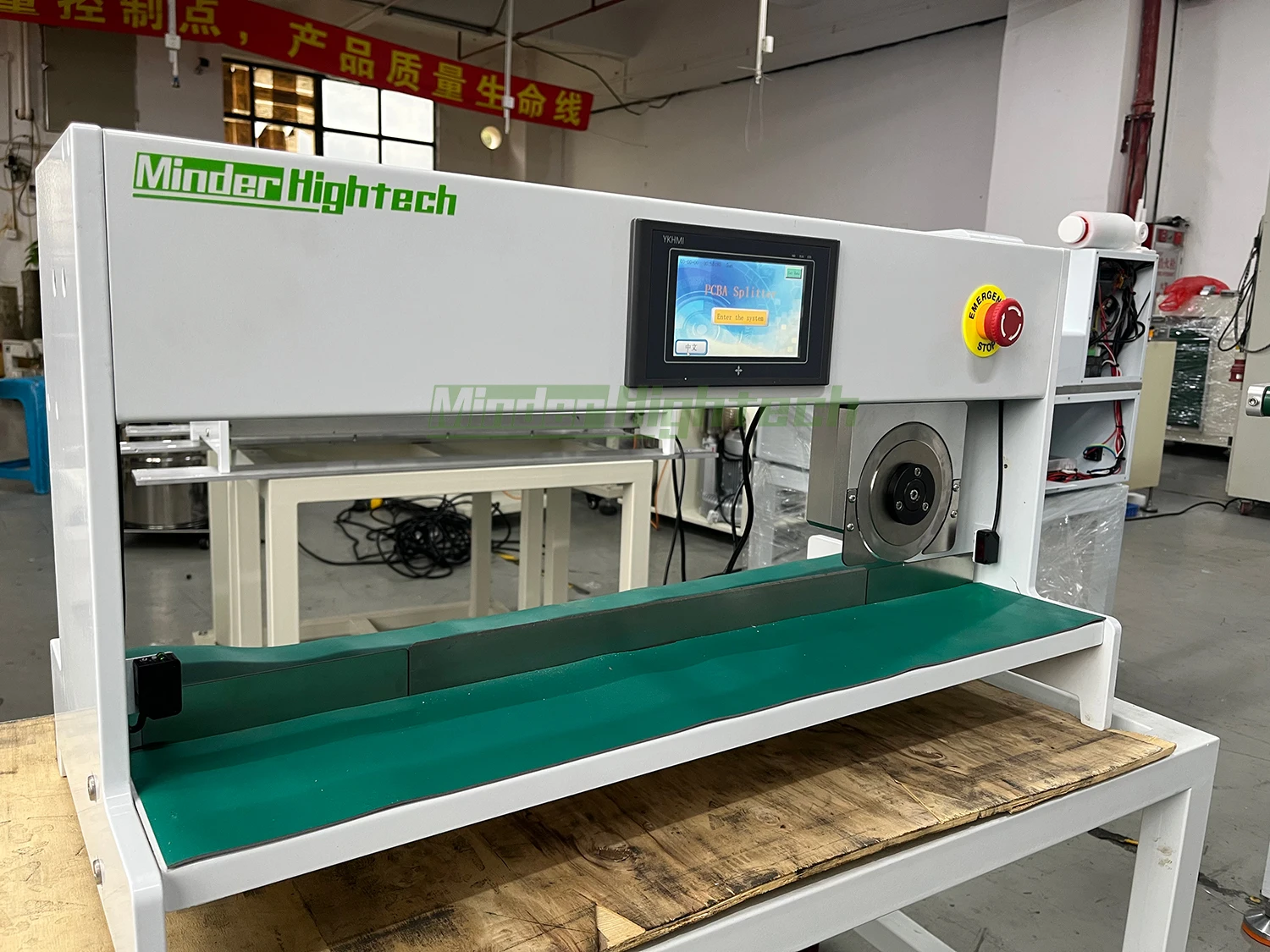

Factory Real Shot

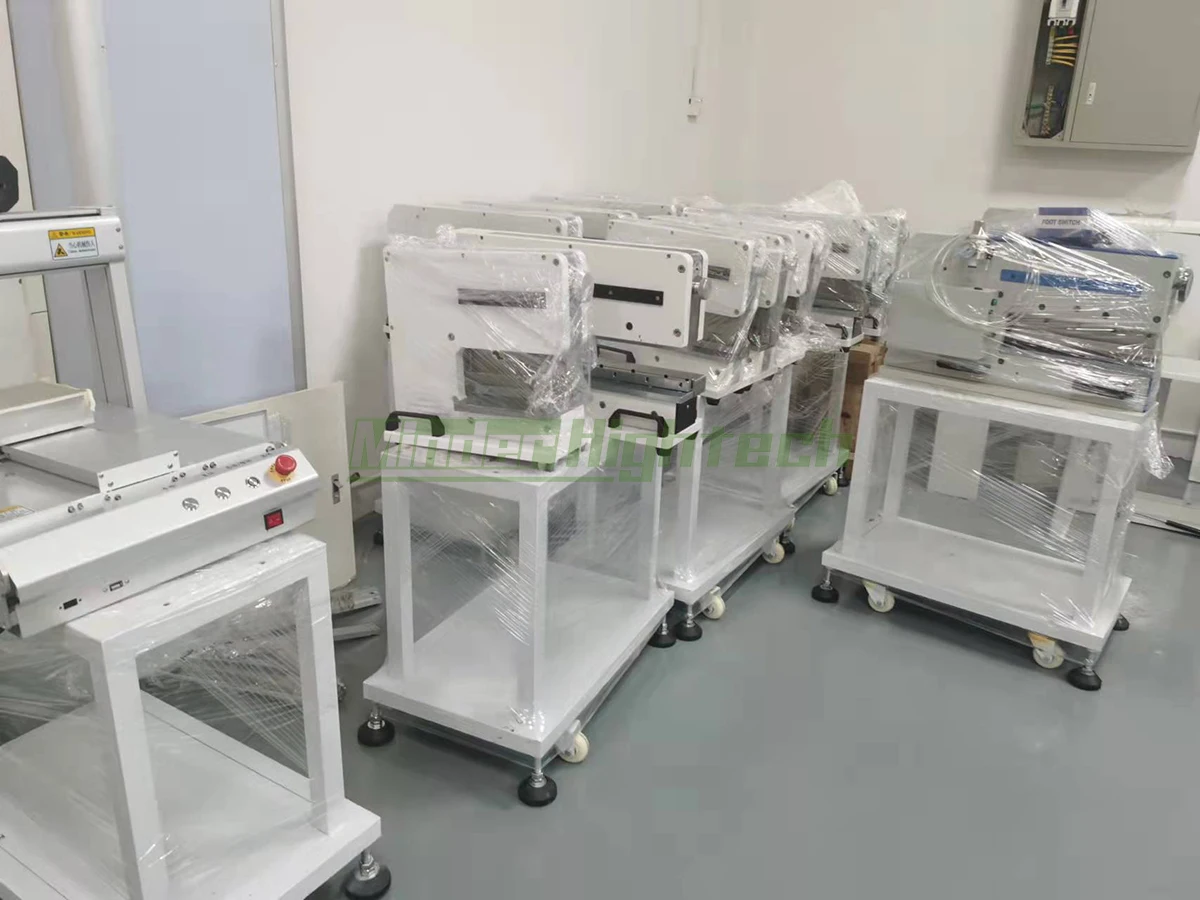

Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
