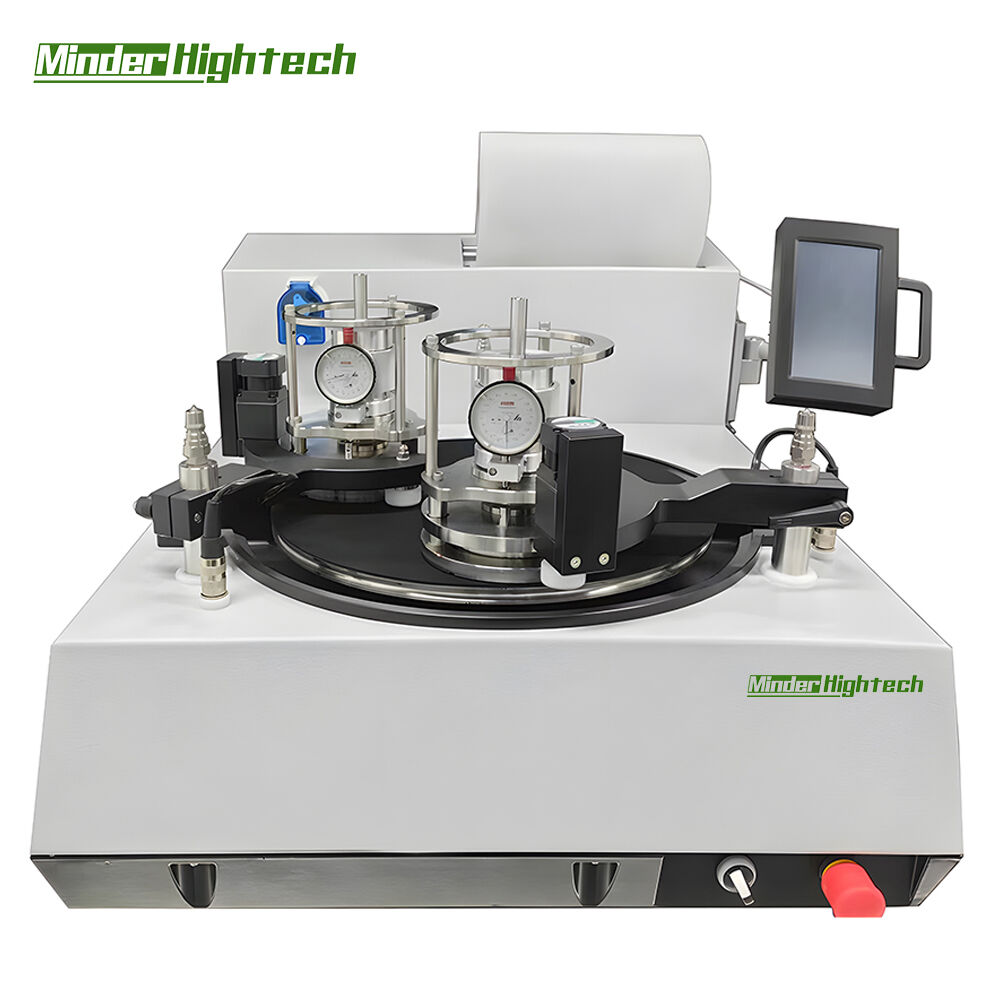

Precision CMP System

MDAM-CMP100  /MDAM-CMP150

Precision CMP System

Equipment Overview:

Precision CMP system is mainly used for lapping and thinning of main semiconductor chips such as silicon, silicon dioxide and indium antimonide focal plane chips, and chemical mechanical polishing of bottom, surface and end face.

The whole machine and all parts of the equipment are fully anticorrosive, and the process parameters be set through the touch screen interactive interface.

Processable sample size:

Sample size ≤152mm/6 inch

Machinable thickness is 50μm ~ 10 mm

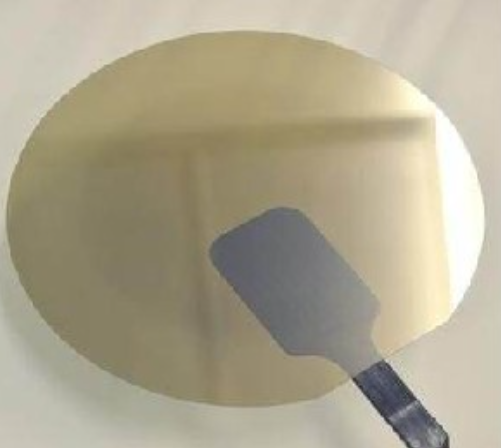

Achievable process indicators:

1.The total thickness deviation (TTV) of φ75mm wafer is within 2 μm;

2.The total thickness deviation (TTV) of φ100mm wafer is within 3 μm;

3.The total thickness deviation (TTV) of φ150mm wafer is within 4 μm.

Types of samples that can be processed:

Silicon, silicon carbide, diamond, ceramics, gallium nitride, quartz, gallium antimonide, indium phosphide, gallium arsenide, cadmium zinc telluride, mercury cadmium telluride, lithium niobate and other semiconductor materials.

Equipment Features:

1. Realize the end point detection function for controlling the sample thickness.

2. On-line real-time lapping and polishing plate temperature control and cooling function.

3. Multi-channel feeding system.

4. Automatic flushing function of lapping and polishing plate.

5. Automatic plate repair function.

6. The fixture be equipped with a digital thickness monitoring table with a monitoring accuracy of 0.1μm.

Technical parameters:

Device Configuration:
