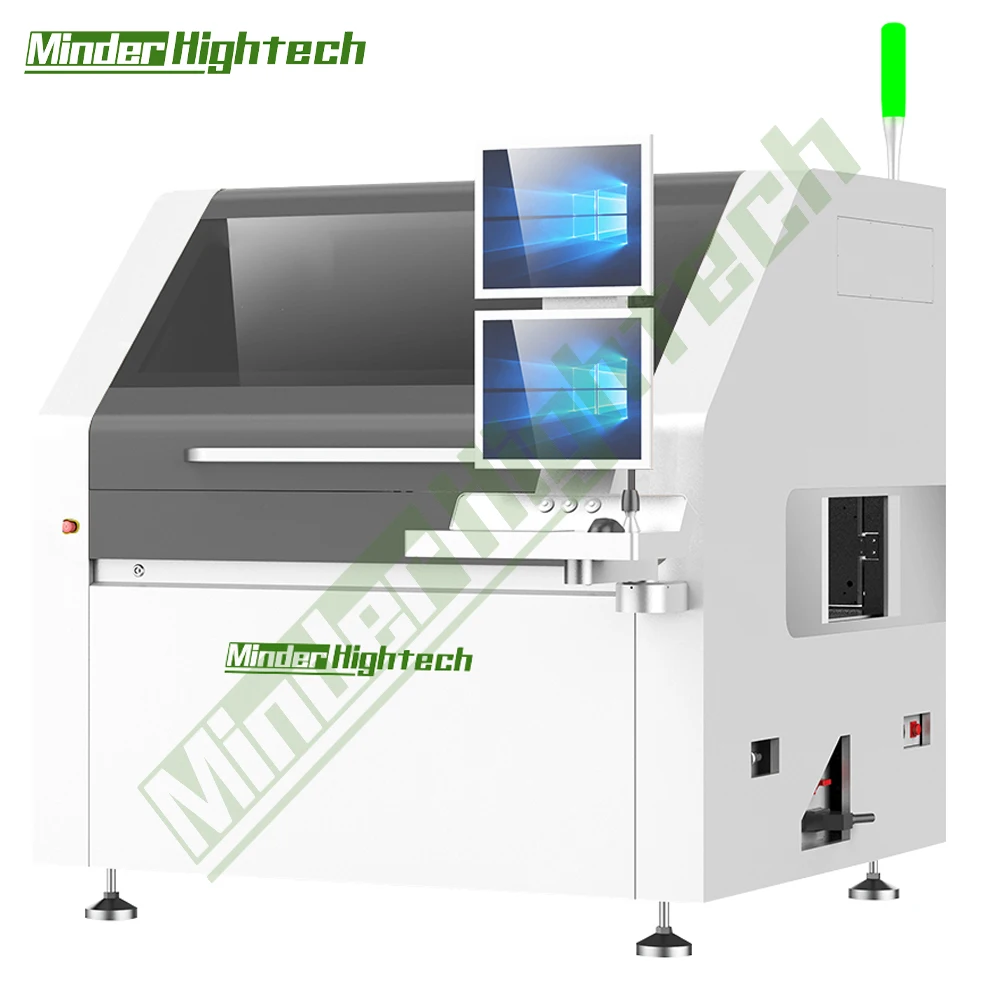

MDND-120UT Ultra Thin Die Sorter (Die Thickness Minimum 50um)

Get a Free Quote
Product Description

Ultra Thin Die Sorter MDND-120UT

Die Thickness Minimum :50um (Thinner Pending Discuss )
Project
Parameters
Equipment Name
MDND-120UT multi-function die bonder
Equipment Model
MDND-120UT
Bonding Accuracy/Angle
±20um, ±0.5 (calibration film)
Bond Force
50~2000gf
CPH
1000 (50ms process time, final efficiency depends on process and process time)
Chip Size
0.5~15mm
Dustproof Level
Class 1000
Compatible Substrate/Tray
MAX: 300*200mm

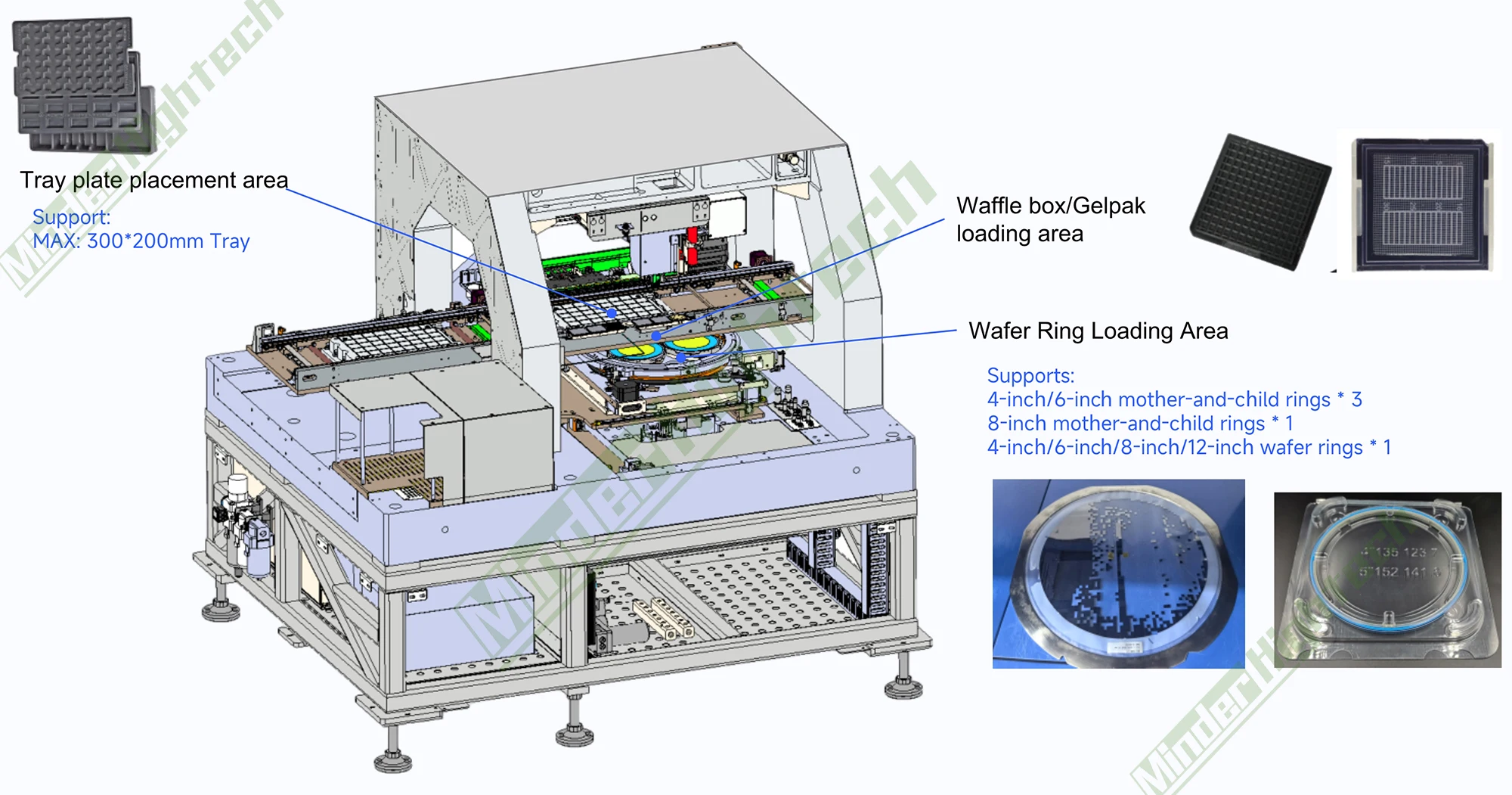

Compatible Auxiliary Material Fixture
Expander Rings: 4"/6" * 3pcs, 8"*1pcs
Equipment Size
Wafer Ring: 4"/6"/8"/12" * 1pcs
Weight
1610 x 1420 x 1700mm

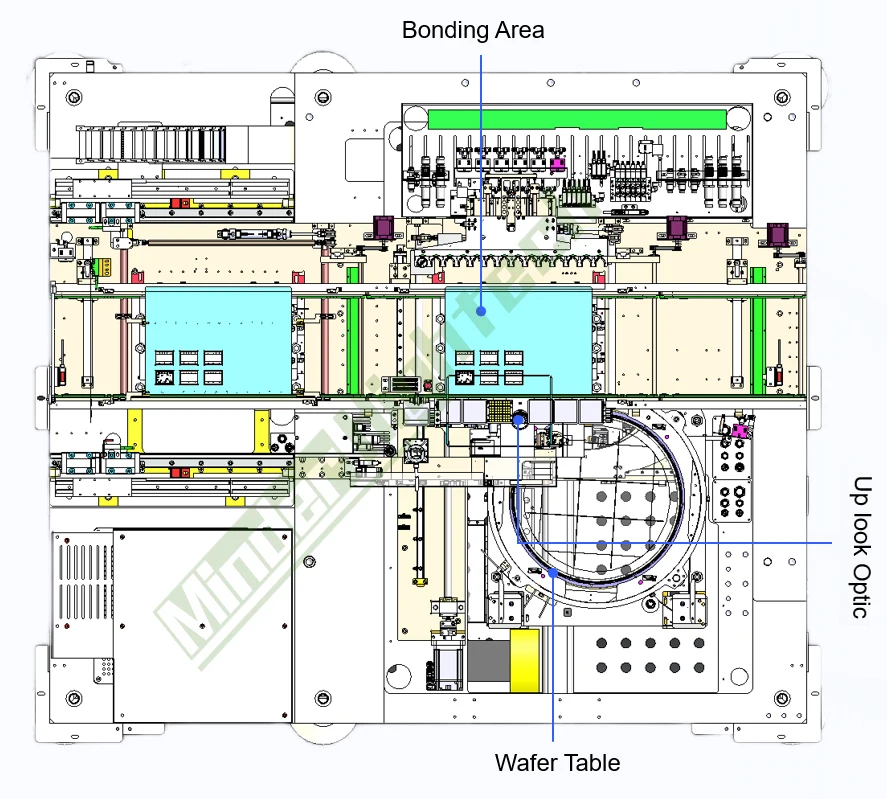

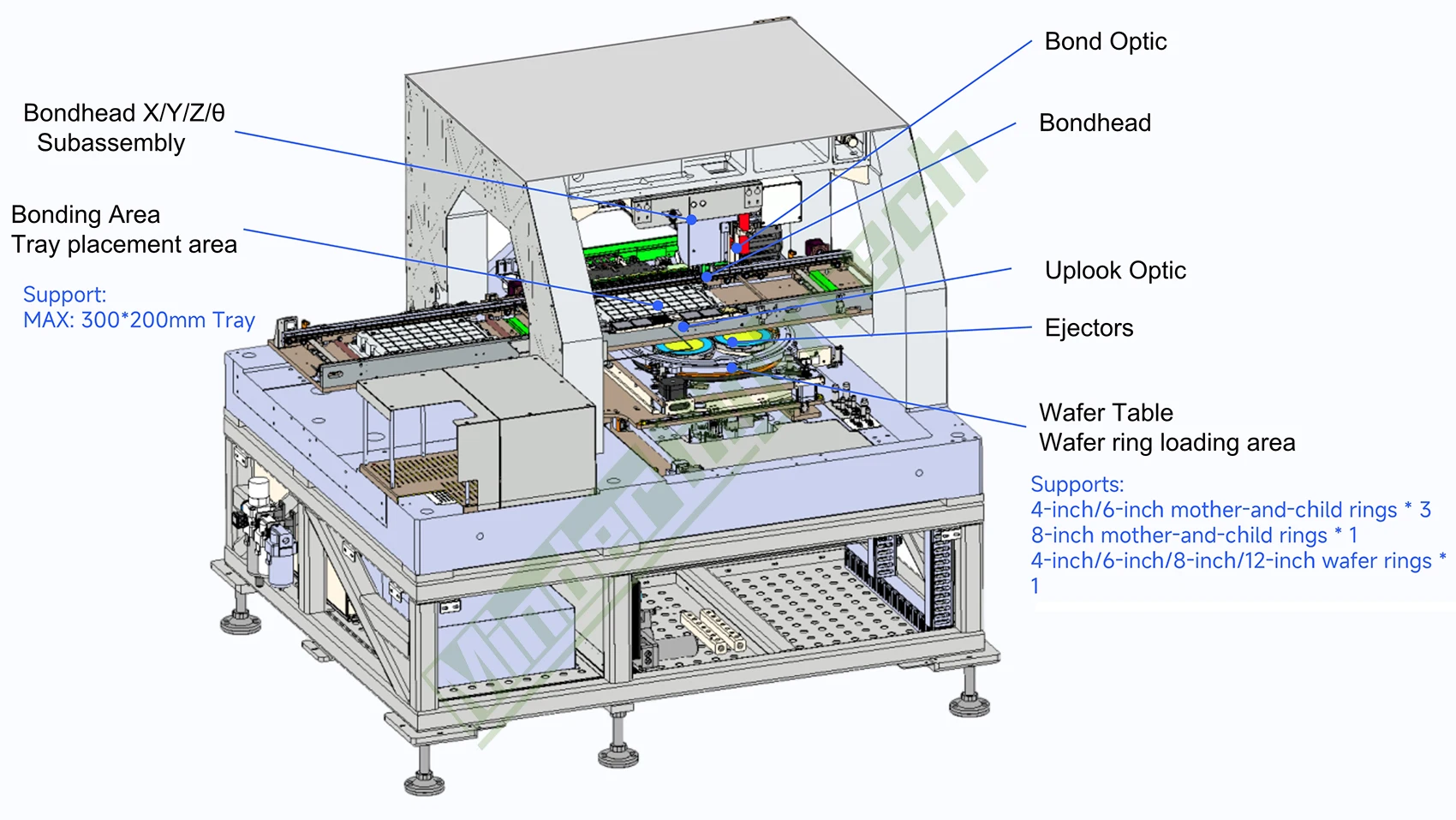

Product Exhibition

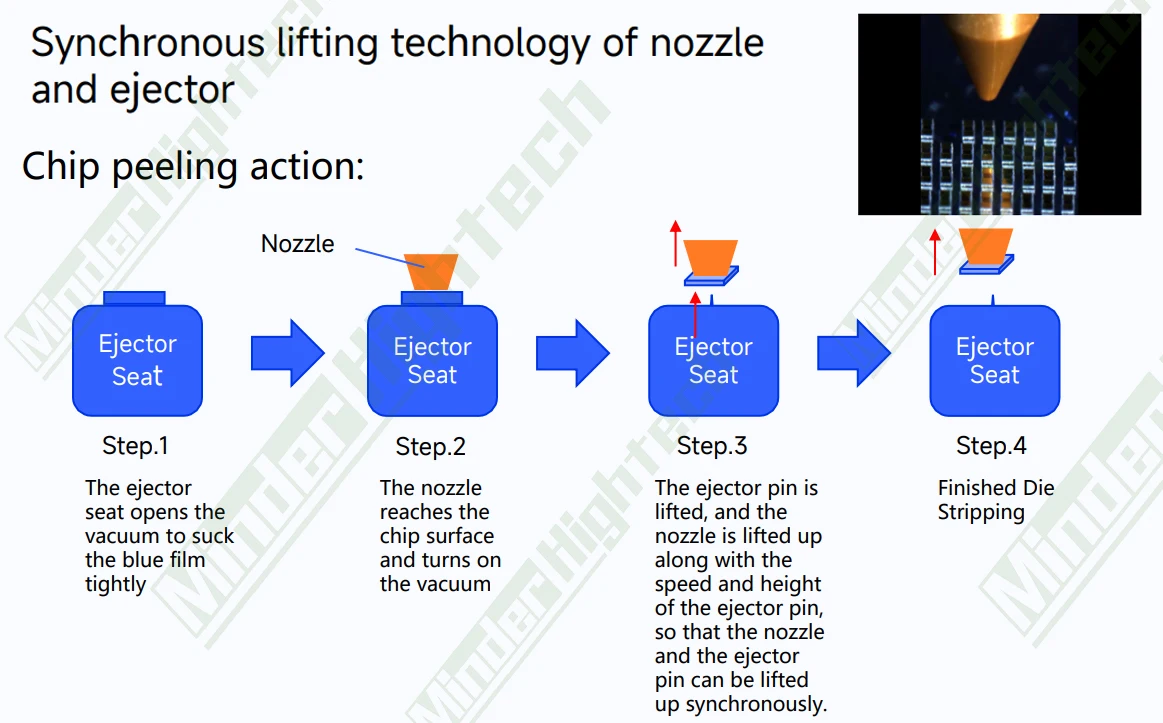

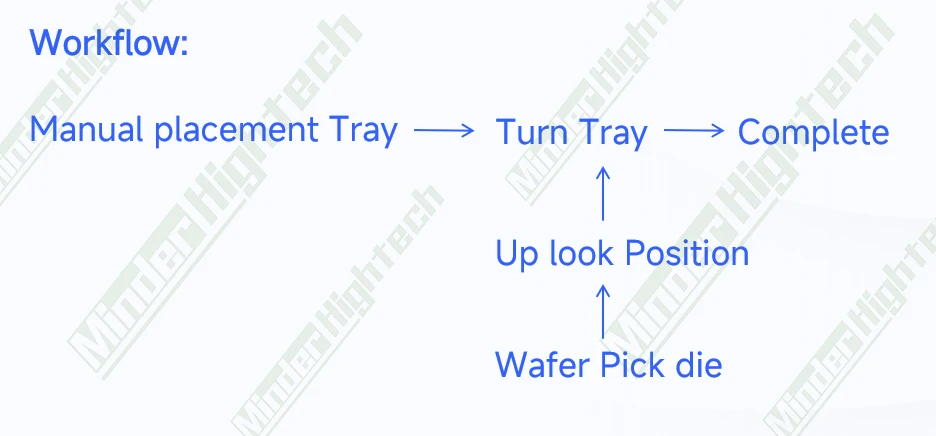

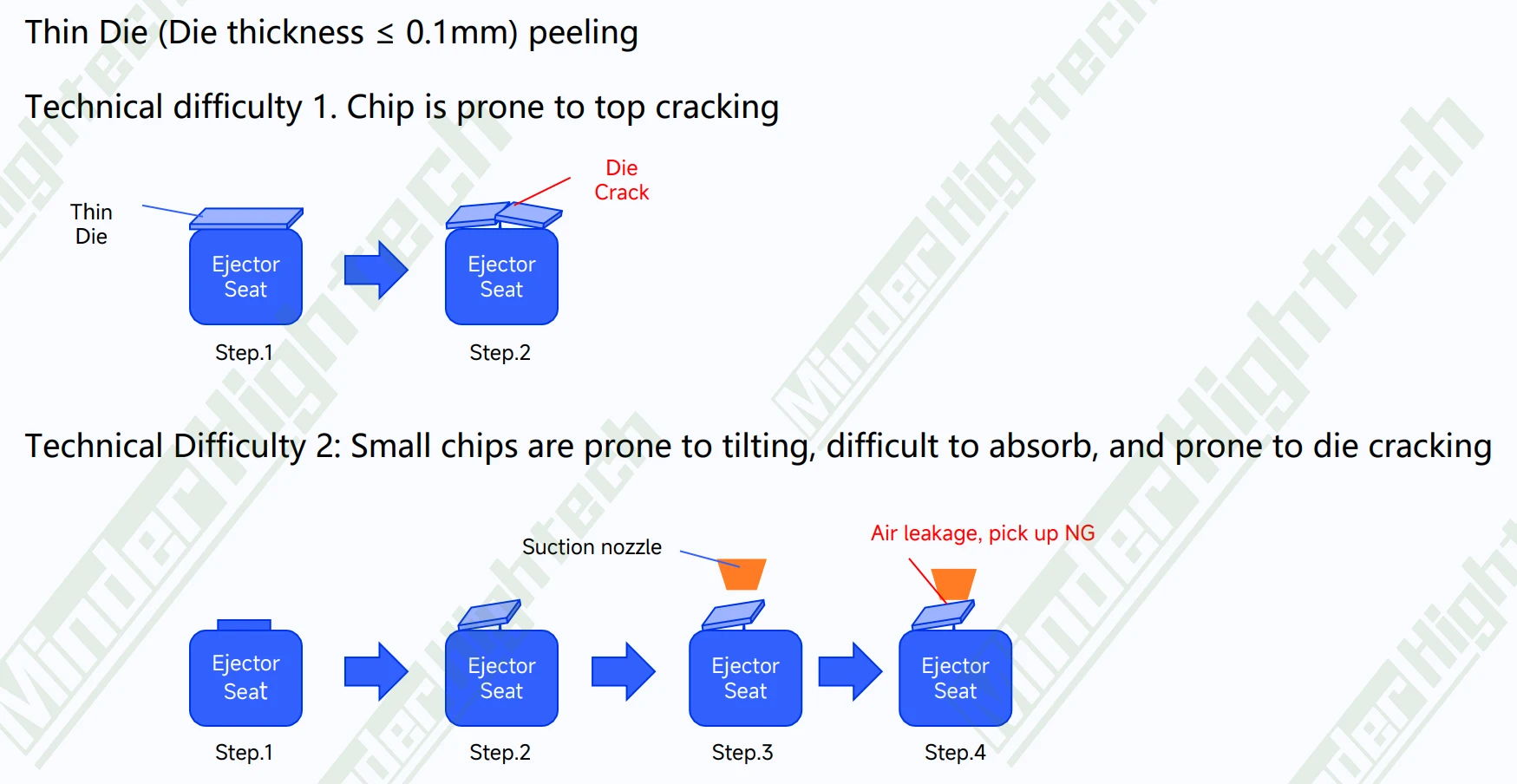

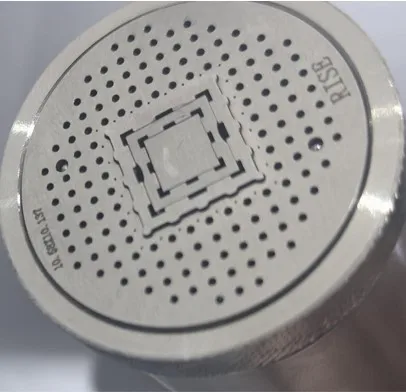

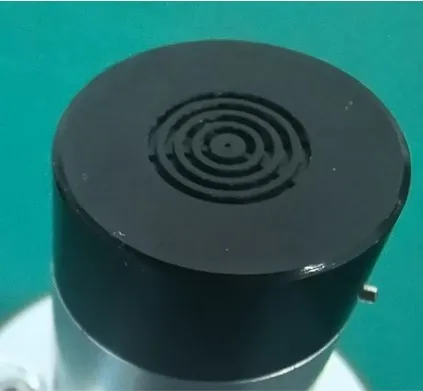

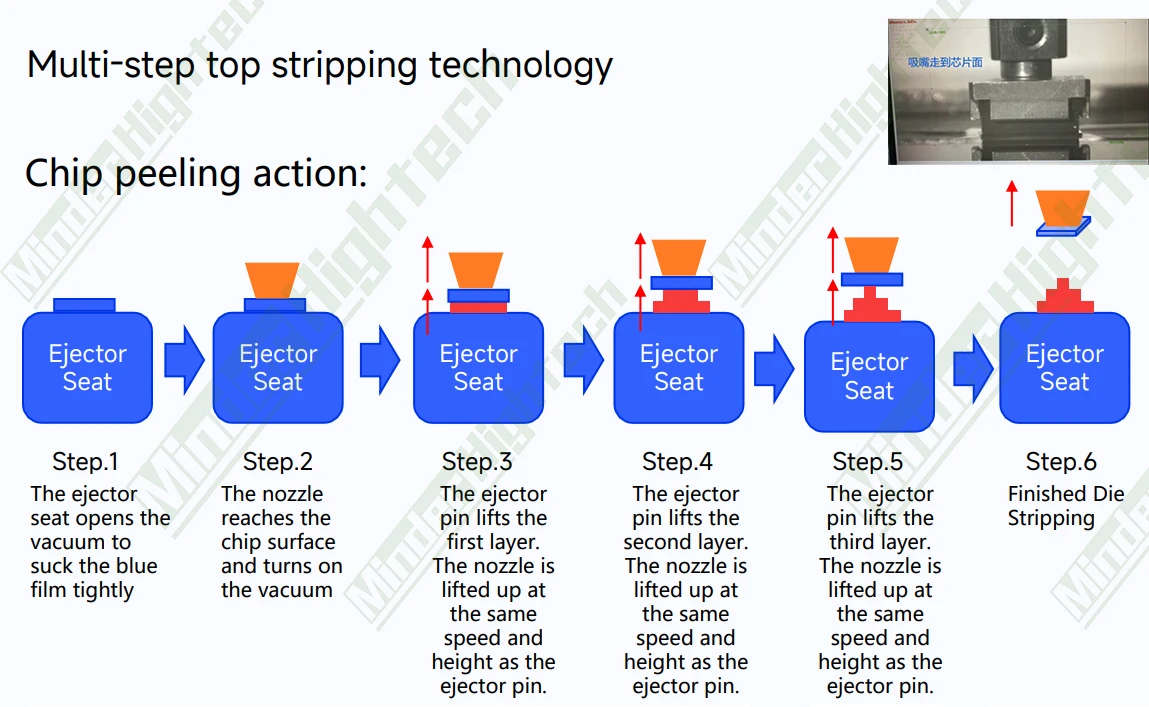

Technology Core：
This solution is applicable to chip sizes:
0,65х0,65
4,6х4,6
2,7х1,6
2,0х1,6
1,55х1,15
2,3х1,75
1,6х1,4

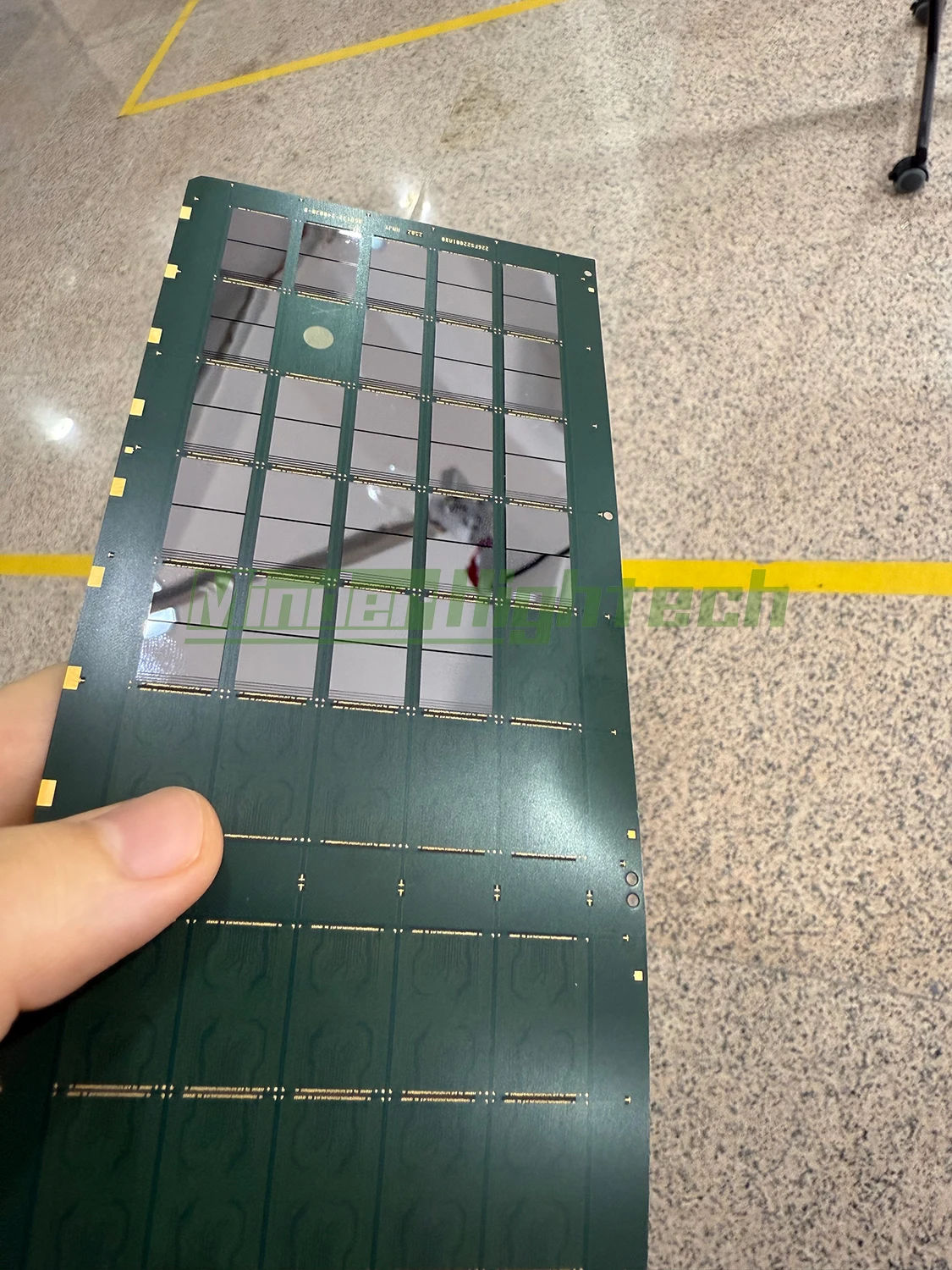

This solution is applicable to chips:
＞50um chips
Size: ≥6mm

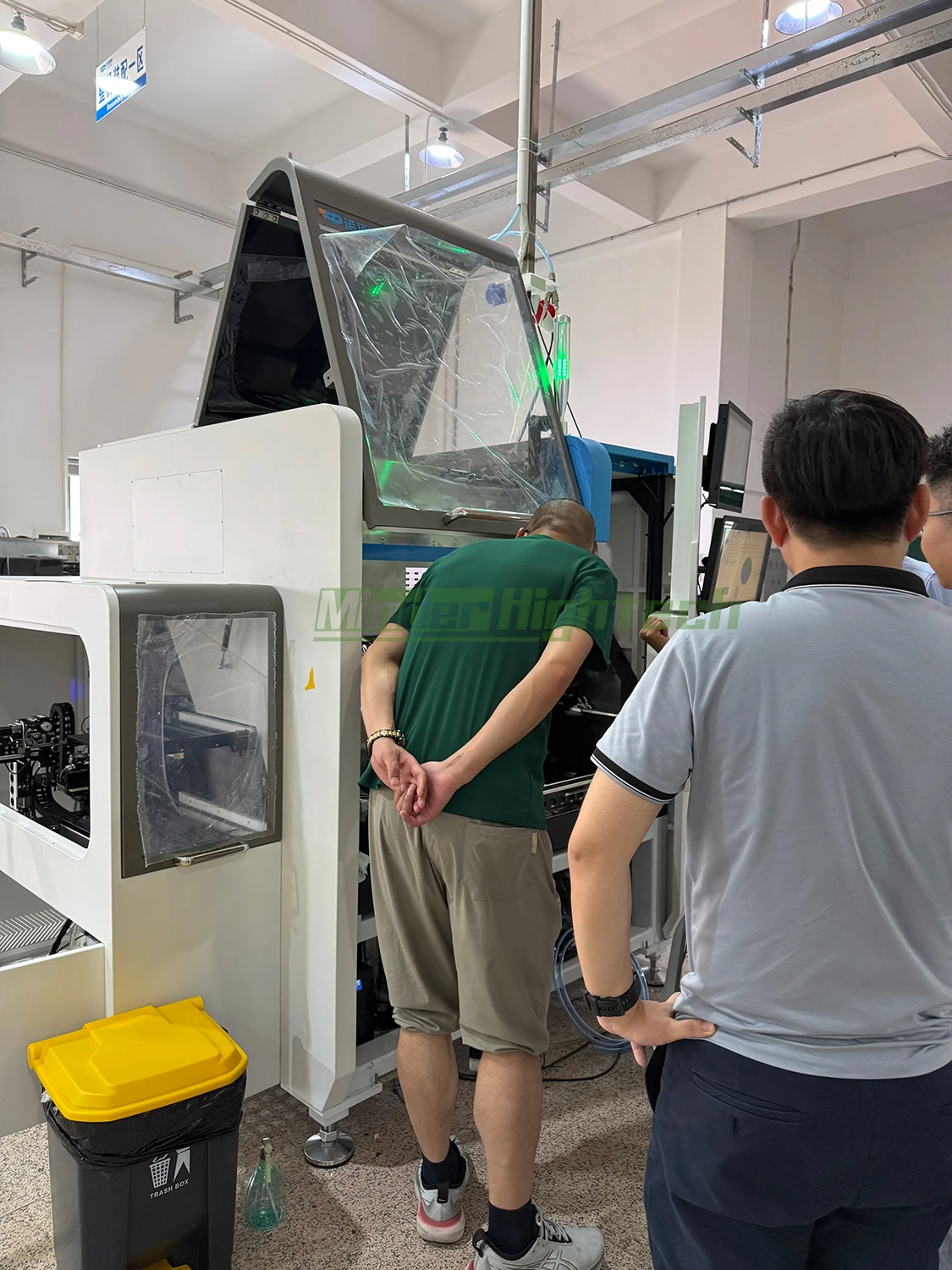

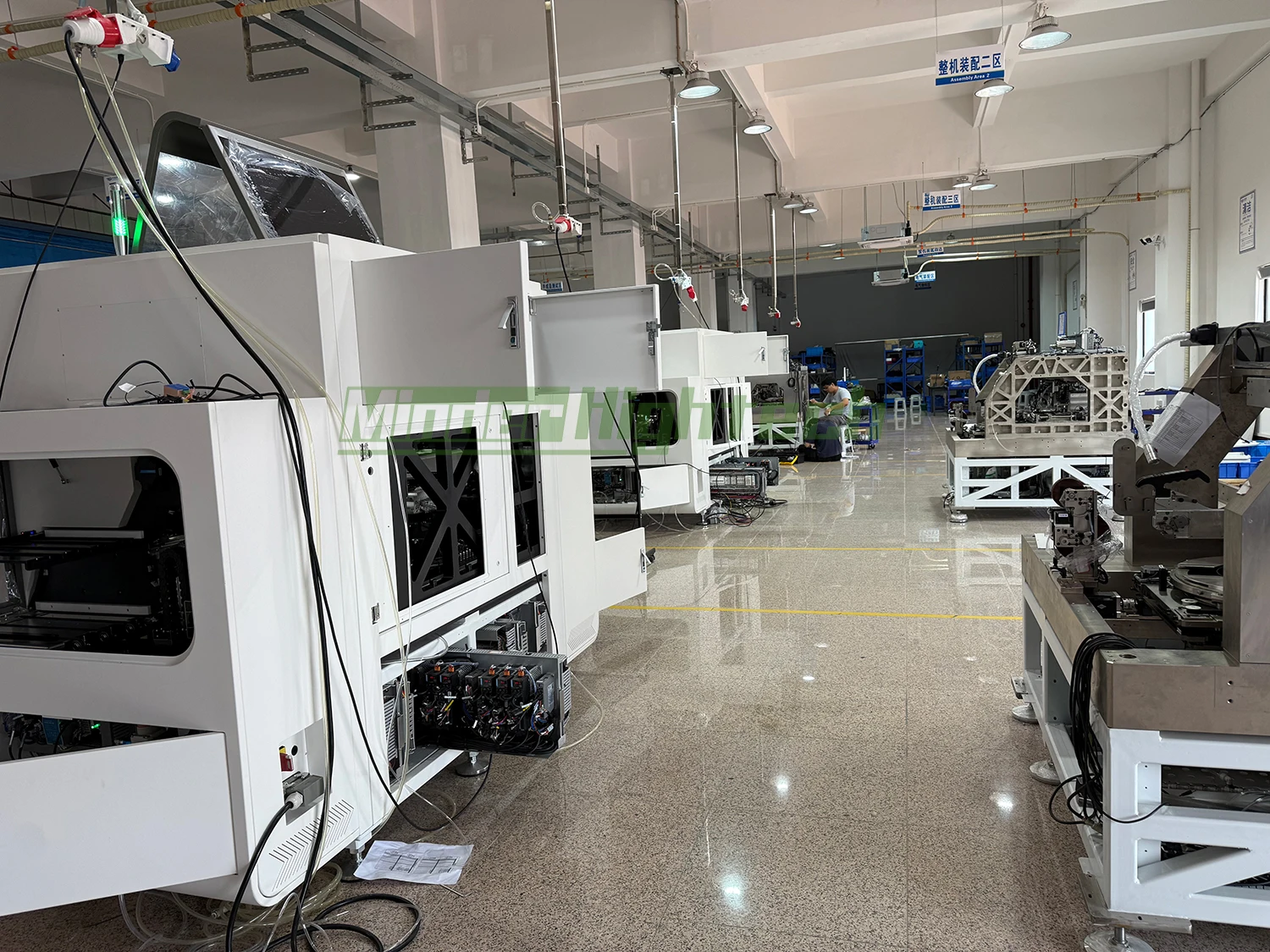

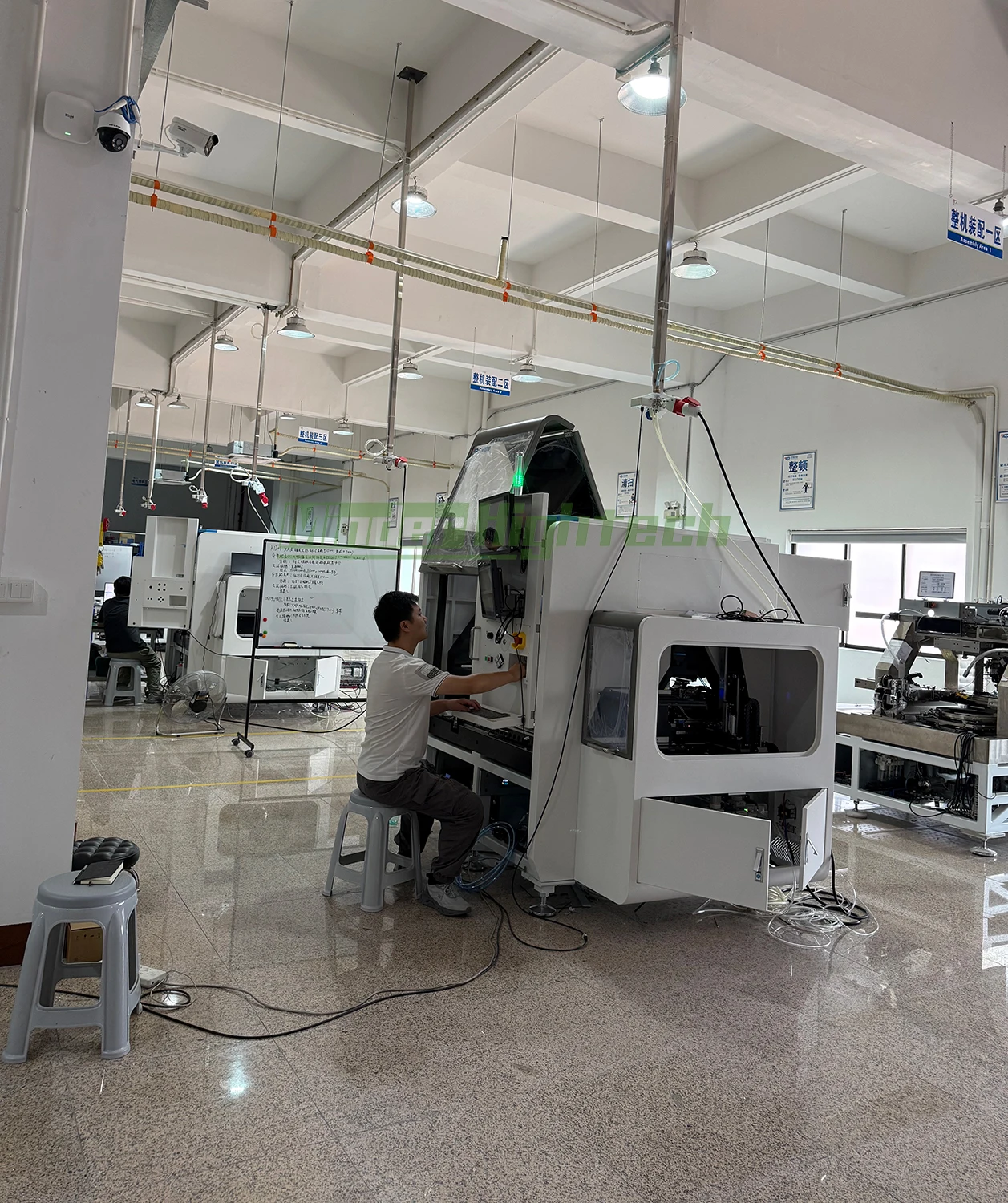

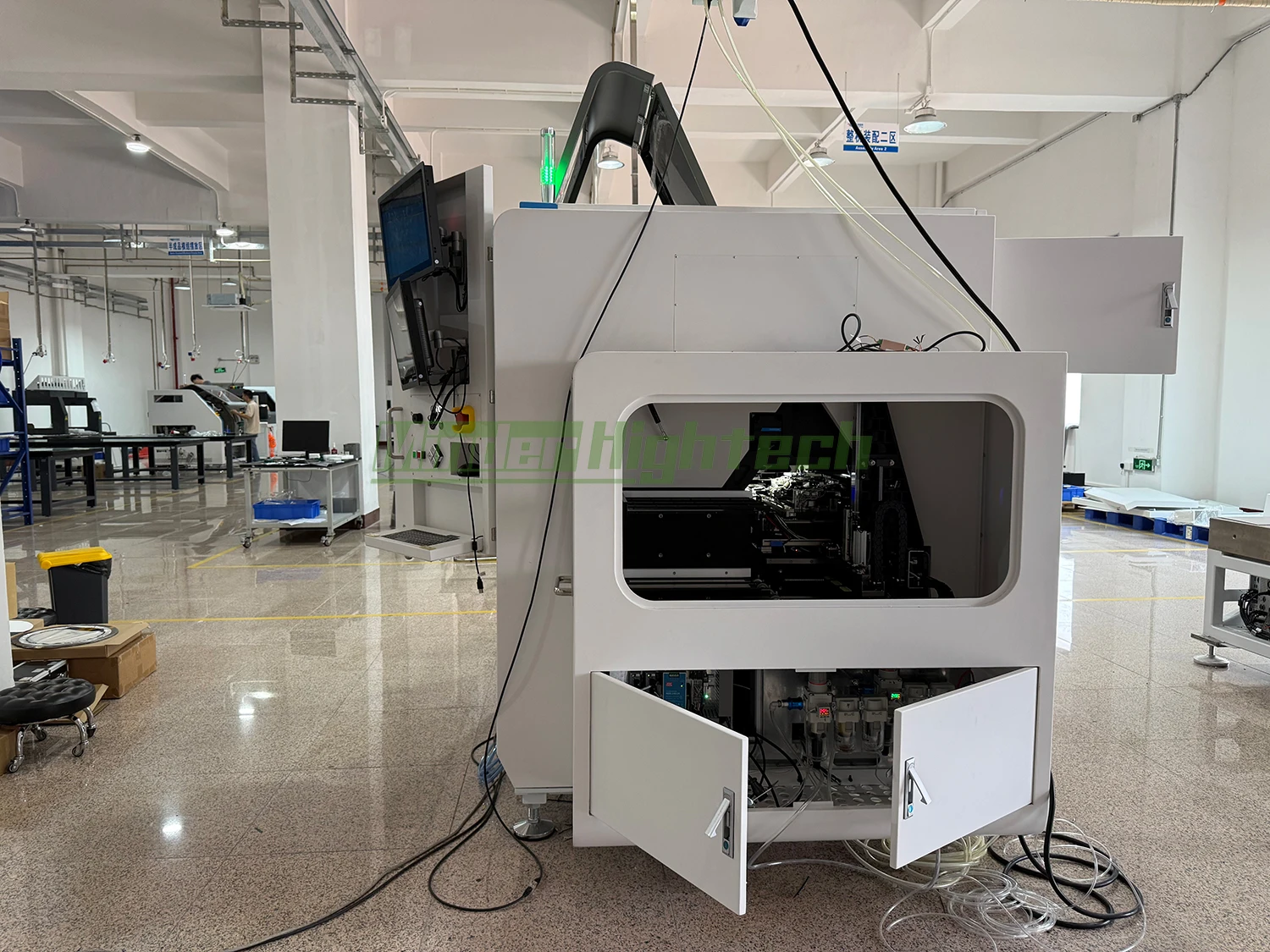

Factory Real Shot
Packing & Delivery
Company Profile
Minder-Hightech is sales and service representative in semiconductor and electronic product industry equipment. Since 2014，the company is committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to
inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.

7. After-sale Service：
All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
