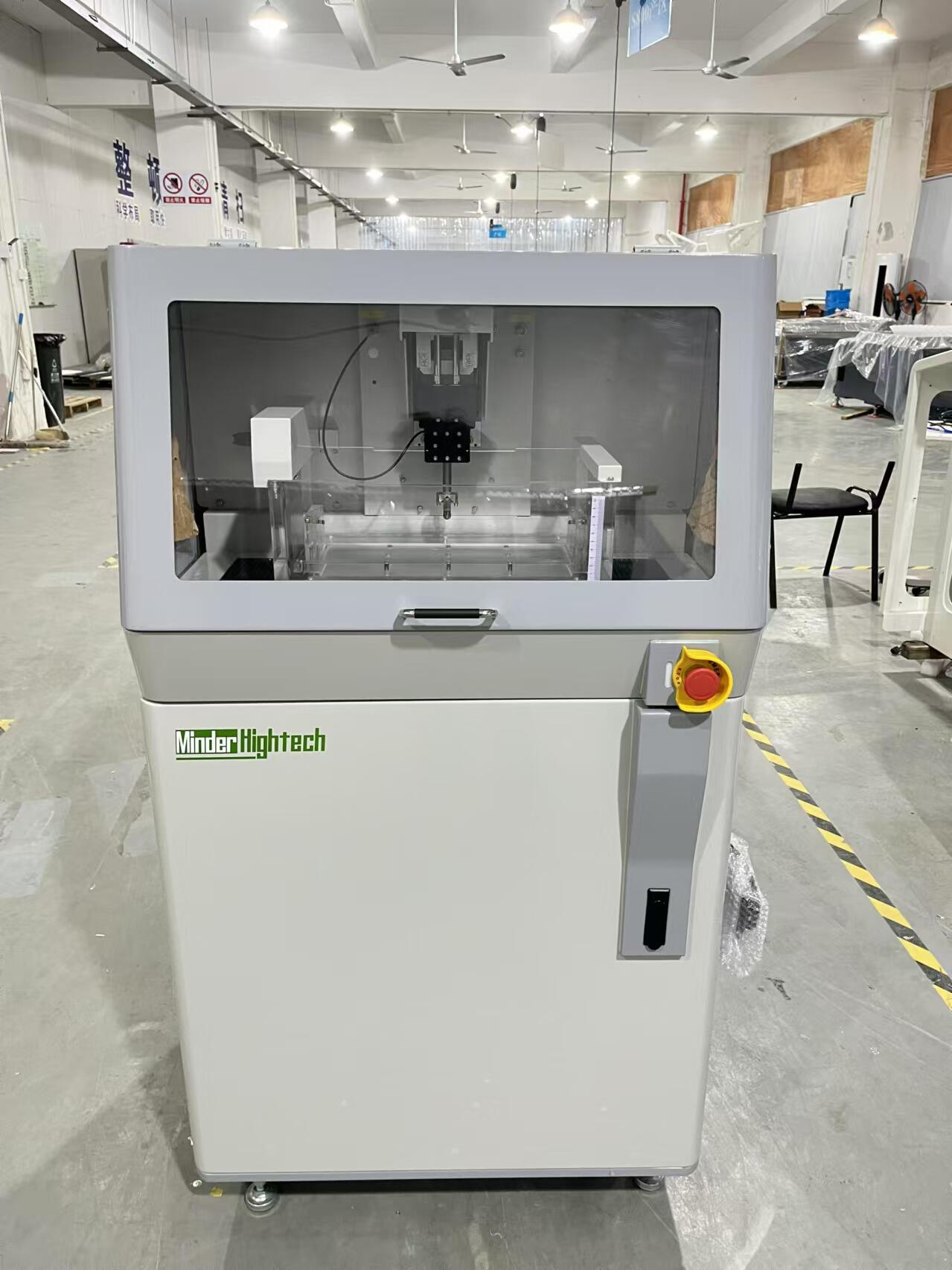

MDHWS114 Ultrasonic scanning microscope is a non-destructive testing imaging equipment using ultrasound as the media. It mainly uses high-frequency ultrasound to detect all kinds of semiconductor devices and materials, and can detect defects such as holes, cracks, inclusions and delamination inside the sample, and display them in a graphical way.
In the scanning process, it will not cause damage to the sample, will not affect the performance of the sample, and can effectively meet the needs of new energy, semiconductor, power electronics, thermal management materials, diamond composite materials, carbon fiber composite materials and other industries.
Feature
1. With A scan, B scan, C scan, multi-layer scanning, tray scanning, thickness measurement and other series of scanning modes. 2. With quantitative measurement and analysis function, visually display the position, shape and size of the internal defects of the tested parts in the form of images, and cay out the size and area statistics of the detects, and automatically calculate the percentage of defects in the measured area; With defect size identification: Thickness and ranging functions. 3. With image coloring function, can automatically color according to phase reversal; Manual coloring according to gray level: Automatic coloring according to thickness changes. 4. Suitable for the rapid scanning analysis of a single device, can also be placed in batches of samples synchronous defect identification quickly screen out unqualified products. 5. Compatible with 1-230MHz ultrasonic probe. 6. Testing software independent research and development, English and Chinese interface, can be continuously upgraded according to customer needs. 7. Can be adapted to double probes according to needs. improve detection efficiency 8. Can be upgraded to dual-channel configuration, efficiency doubled 9. According to the specific test samples and needs of customers, we can provide software and fixture custom development. 10. According to customer needs, develop Al intelligent interpretation algorithm to improve product defect identification ability.
1. About Price: All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.
2. About Sample: We can provide sample production services for you, but you may provide some fees.
3. About Payment： After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.
4. About Delivery: After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.
5. Installation and Debugging: After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.
6. About Warranty: Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
