MDHA-AP200 Automatic Vacuum Lid Tack Seam Sealer

Get a Free Quote
Product Description

MDHA-AP200 Automatic Lid Tack Seam Sealer

Automatic alignment parallel sealing welding machine is a semi-automatic equipment. The shell and cover plate are placed in the corresponding fixture manually, the corresponding process formula is selected, the program is started, the equipment is automatically absorbed and visually photographed for the cover plate according to the selected program and welding parameters, and after calculation, the cover plate is accurately placed on the shell to complete the alignment, and then spot welding and seam welding are performed. The device is capable of air-tight encapsulation between metal, metallized ceramic bases and metal cover plates.
The equipment is equipped with high reliability PLC, industrial computer and advanced high frequency inverter welding power supply, dynamic response speed, high control precision. Equipped with automatic cover plate picking mechanism and vision system, it can meet the needs of high precision automatic cover plate alignment. At the same time, the atmosphere control glove box provides a good working environment for the welding process.
Specification
Model
MDHA-AP200
Welding index
Dimensions of welded shell
(3~200)X(3~200)mm
Visual counterpoint range
(5~35)X(5~35)mm
Alignment accuracy of shell cover plate
≤0.05mm
Array welding range
≤(200X200)mm
Welding pressure
500g~2000g(Belt weight)
Z-axis travel
35mm
Welding speed
(0.1~50mm)/s
Welding airtightness
Meet the requirements of GJB548B-2005
"Microelectronic DeviceTest Methods and procedures"
Welding power supply specification
Welding power supply Maximum welding power
6kW
Maximum output current of the welding power supply
2kA
Welding power frequency
4kHz

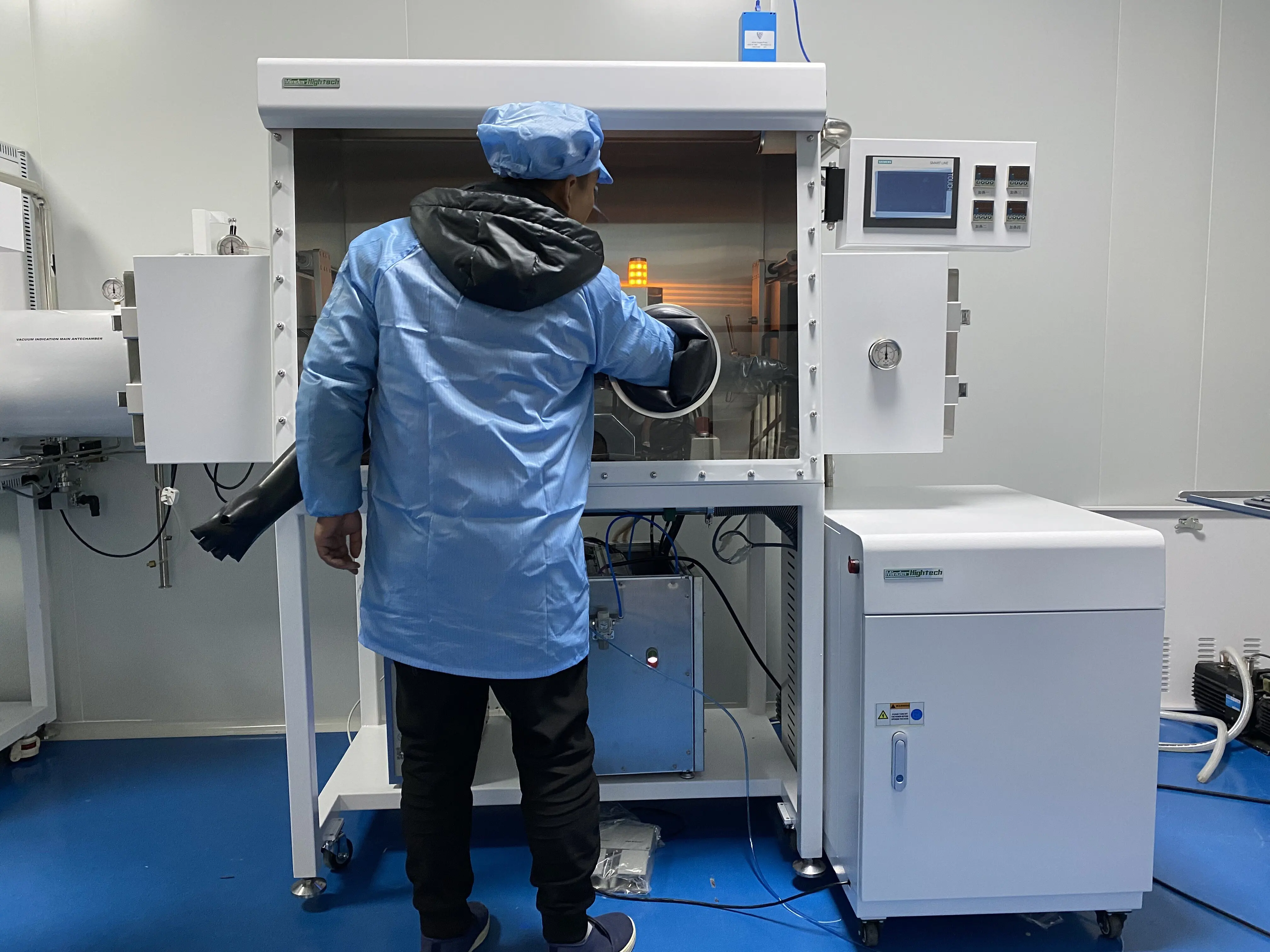

Glove box indicator
Glove box dew point
≦-40°C
Glove box leakage rate
<0.005vol%/h
Vacuum oven specification
Oven limit vacuum degree
≦5Pa
Maximum temperature
200°C
Heating method
Built-in plate heating
Dimensions of heating plate
(350X230X10)mm
Hot plate surface temperature uniformity
≦+5°C(Undervacuum)
Instrument temperature control accuracy
±1°C
Number of heating layers
4 layers (layer spacing is 75mm) effectively place 3 layers of material
Transition bin index
Internal dimension
470mmx376mmx320mm

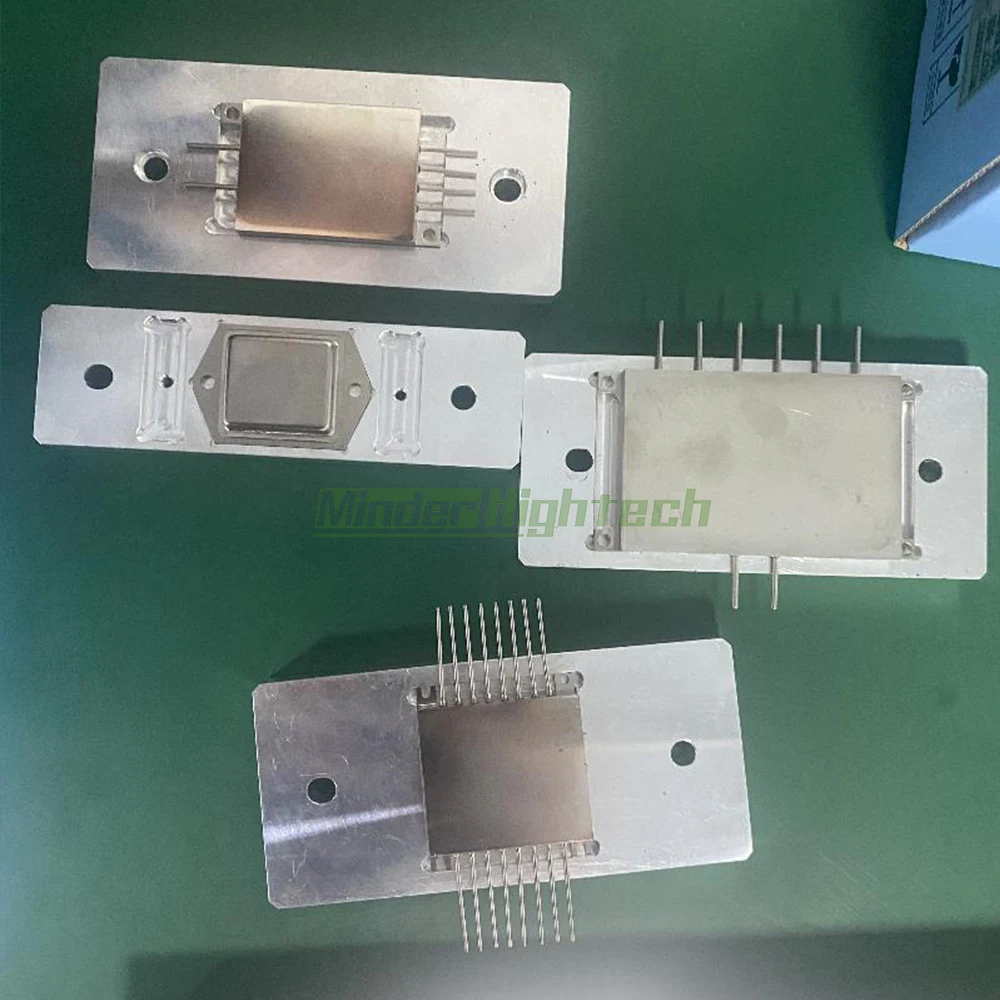

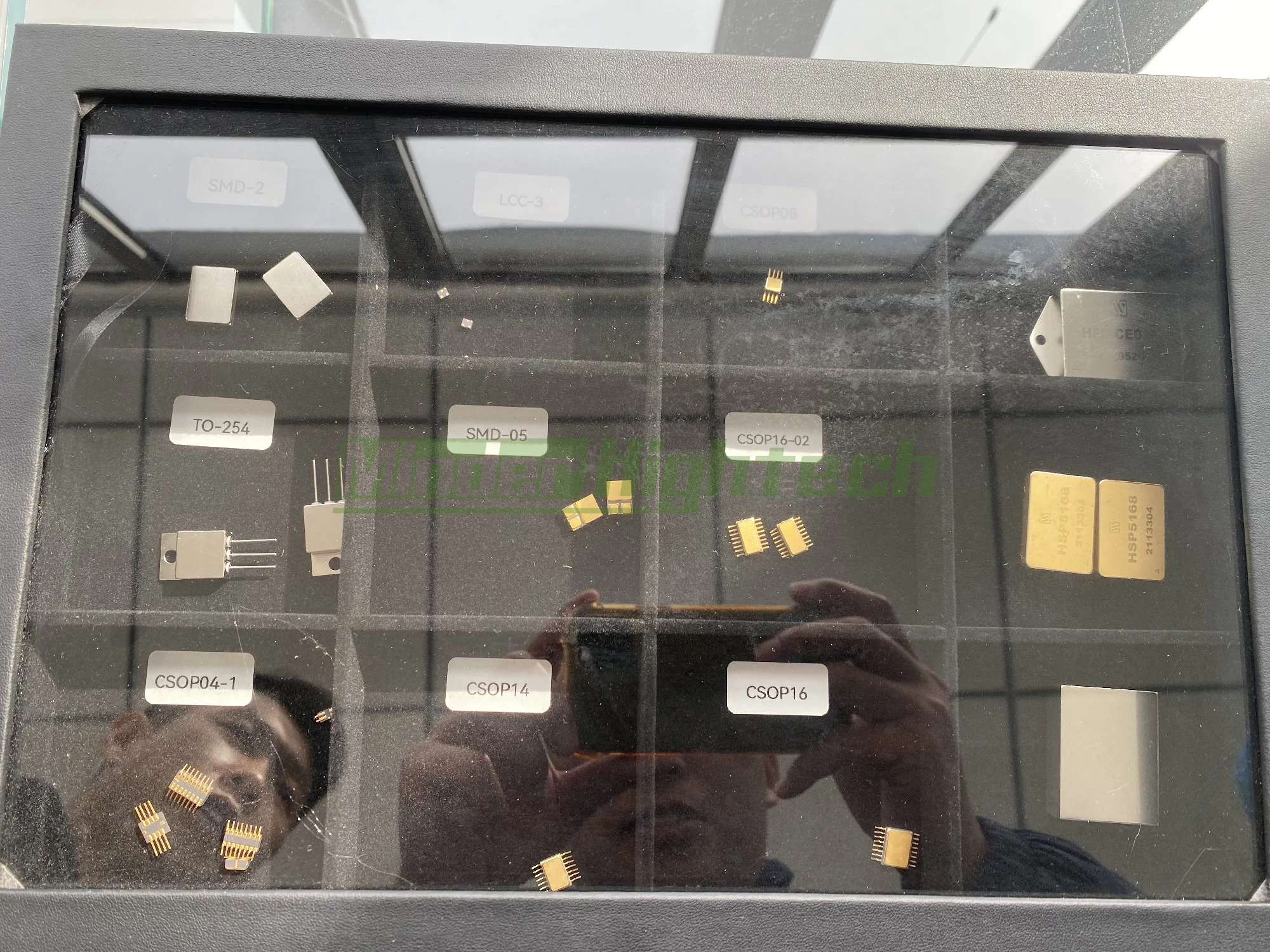

Sample

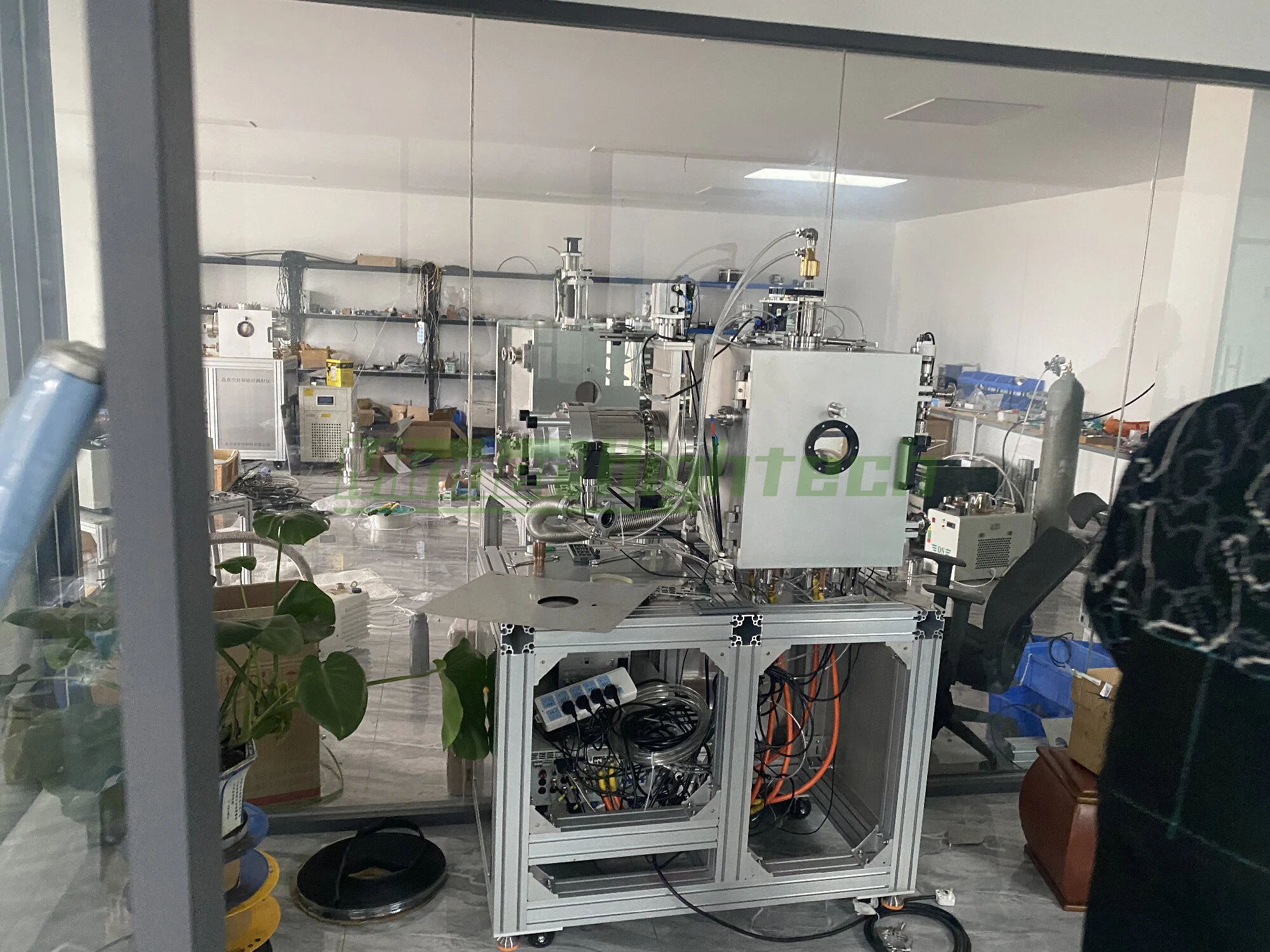

Factory
Packing & Delivery
Company Profile
Since 2014，One-stop Professional Solution for Semiconductor Front-end and IC TO Package Equipments Line
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment：
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the
equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.
