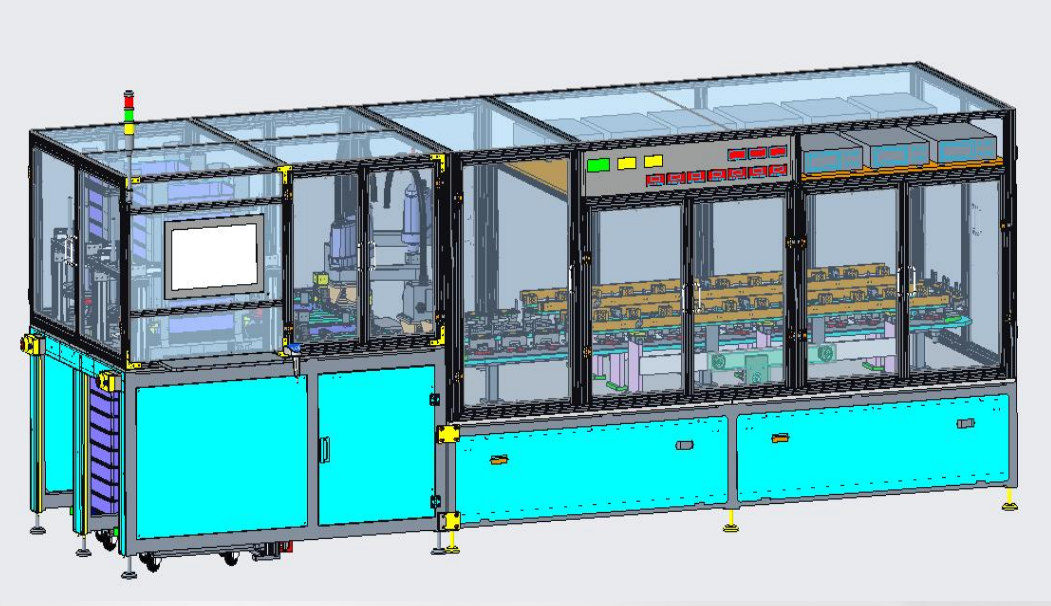

Function and workflow:
Function： Complete capacitor Enablement and performance check
Flow path： Core tray loading → Mechanical arm grabbing → Capacity testing → AC Enablement → DC positive phase Enablement → DC reverse phase Enablement → Capacity/loss testing → ID scanning →Mechanical lower material swinging → Pallet stacking → Data uploading to upper computer.
Technical Parameter | ||
NUM |
Project |
Content |
1 |
Product W |
25mm~90mm |
2 |
Product L |
25mm~90mm |
3 |
Product H |
15mm~60mm |
4 |
Production speed |
3.5S/PCS |
5 |
Work volume |
0.5Mpa |
6 |
Total driving force |
Approximately 4.5 kW / AC 380V / 50Hz / 3-phase |
7 |
Equipment external dimensions |
7000×1400×1800mm |
FEATURES | ||
NUM |
Content |
|
1 |
Pushing in the core material tray and automatic gripping by the robotic arm |
|
2 |
AC/DC four level empowerment; |
|
3 |
Customizable functions according to customer requirements; |
|
4 |
The product is transported through a circular guide rail. |
|
