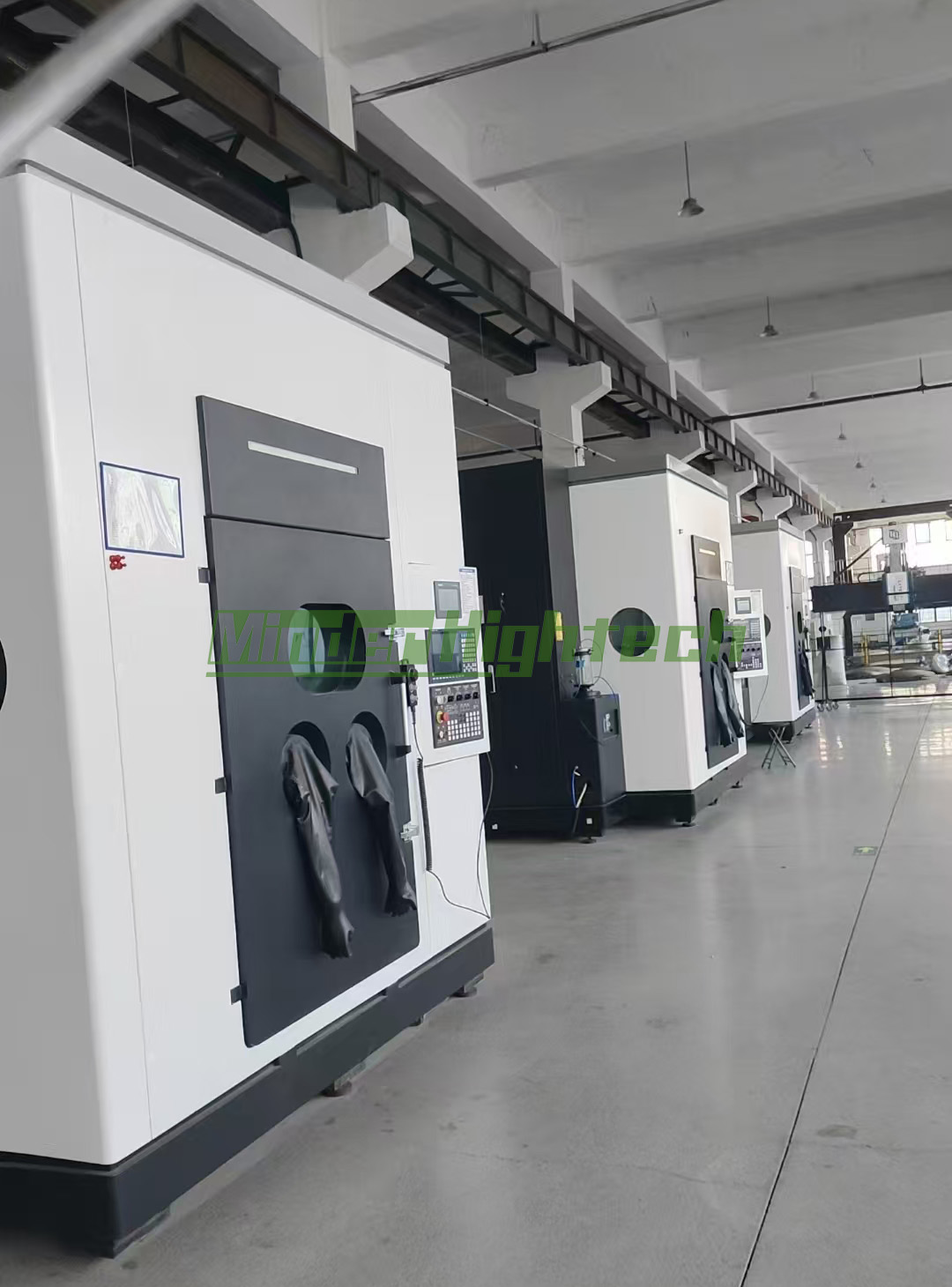

Hundred Level Filter Glove box

The glovebox is a laboratory equipment that fills the chamber with high-purity inert gas, circulates and filters O2, H2O, organic gases and other substances. It is also called vacuum glovebox, inert gas protection box, etc. The main function is to remove O2, H2O and organic gas. It is widely used in ultra-pure environments without O2, H2O and dust, such as lithium ion batteries and materials, semiconductors, super capacitors, special lamps, laser welding, brazing, material synthesis, OLED, MOCVD, etc., but also biological applications, such as anaerobic bacteria culture, cell hypoxia culture, etc.

Principle:

The working gas in the glovebox is between the chamber and the purification column (H2O and O2 adsorber), and it is closed circulated through pipes, circulation blowers, etc. under the control and monitoring of PLC. When the working gas circulates through the purification column, its moisture and oxygen are adsorbed and then returned to the chamber. As the cycle time passes, the H2O and O2 content of the working gas in the chamber will gradually decrease and eventually reach the index of less than 1 ppm. The purification column will saturate after a certain period of cycle, and can be regenerated and reused.

Application:

Lithium batteries, semiconductors, laboratories, physics, materials, chemistry, pharmaceuticals, metallurgy, lasers, photovoltaics, aerospace, and more.

Feature:

Ultra low leakage rate: leakage rate<0.001 vol%/h;

Ultra high cleanliness: high-efficiency HEPA filter, ISO3 level cleanliness;

Ultra low power consumption: Most of the time, the energy consumption is less than 60W;

Professional gas path design: professional fluid software design, noise free;

Professional leakage alarm: automatic monitoring of glove box leakage rate;

One click calibration of analyzer: One click calibration of analyzer on display screen;

Comprehensive data recording: capable of recording 02 H20, Pressure and time;

Mobile app control: remote control and real-time monitoring on mobile phones.

H2O, O2 parameters under control：Real-time monitoring of H20 & 02 data, if there is something abnormal, there is an alarm send a text message to the mobile phone in time, and the data record is saved up to ten years, which can be queried, downloaded and printed at any time.

Unattended operation：It can remotely operate the pressure setting of the glovebox, vacuum pump, lighting, cycle start and stop, and the site does not need to be on duty during regeneration.

The double groove vacuum isolation sealing method adopts an integral double ring "O" - shaped sealing ring embedded in the integral annular groove. The inner sealing ring is seamless, and the outer sealing ring is seamless. The vacuum between the double-layer seals effectively blocks the diffusion of H20, 02, N2 molecules in the air into the glove box and toxic molecules into the glove box, achieving a leak free effect. The leakage rate of the box body is less than 0.005vo1%/h, achieving a leak free effect.
