High precision Chemical Mechanical Planarization CMP Process

Application:
Silicon wafer planarization, II-V compound planarization, Oxide planarization, Flattening of infrared material substrate, Sapphire, gallium nitride, and silicon carbide substrate planarization, EPI substrate planarization, Thinning SOS and SOI wafers to below 20 microns, Hierarchical reverse engineering or FA applications.
Get a Free Quote
Product Description

High precision Chemical mechanical planarization (CMP) Equipment

Precision CMP equipment achieves efficient removal of excess materials on wafer surfaces and global nanoscale planarization through the synergistic effect of chemical corrosion and mechanical grinding.

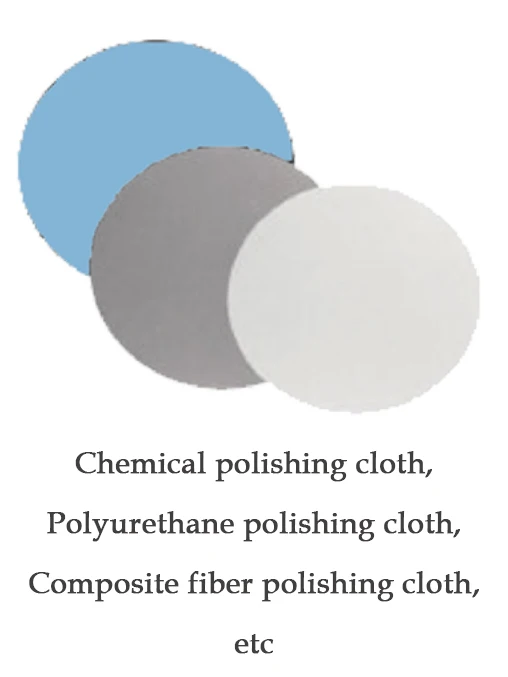

Multi purpose chemical polishing machine, specifically designed for CMP and coating polishing applications that require strict geometric accuracy and surface quality, can achieve sub nanometer level Ra.
This device can perform precise nanometer level polishing on individual molds, as well as polishing thin sheets with diameters up to 8 inches. In addition, it can also be used in non-traditional polishing applications such as hard substrate polishing, Epi surface preparation, and chip recycling improvement.
In order to adapt the CDP series machines to various materials and process requirements, technicians customize and design corresponding polishing templates according to user technical requirements to accurately meet CMP process requirements. The left image shows the range of a single wafer with a diameter of 8 inches.
In order to ensure precise measurement and control of wafers or devices polished on CDP machines, we have developed an EPD system, whose custom designed CDP scanning graphics program can run on laptops. This program monitors and graphically depicts the polishing process, and automatically stops once the endpoint is reached.
Prevent excessive polishing. CDP scanning can also serve as a security feature. If any monitored process parameter changes are detected, CDP Scan will trigger an audio alarm to help prevent excessive polishing. Examples in this regard include changing the carrier speed from its preset value. The EPD system will notice this situation as the friction level between the pad and the polished material will change due to any changes in the carrier speed, which could jeopardize the successful planarization of the wafer/C. At this point, the EPD system will trigger an audible alarm before removing the fixture from the pad surface, or it can be set to automatic shutdown.

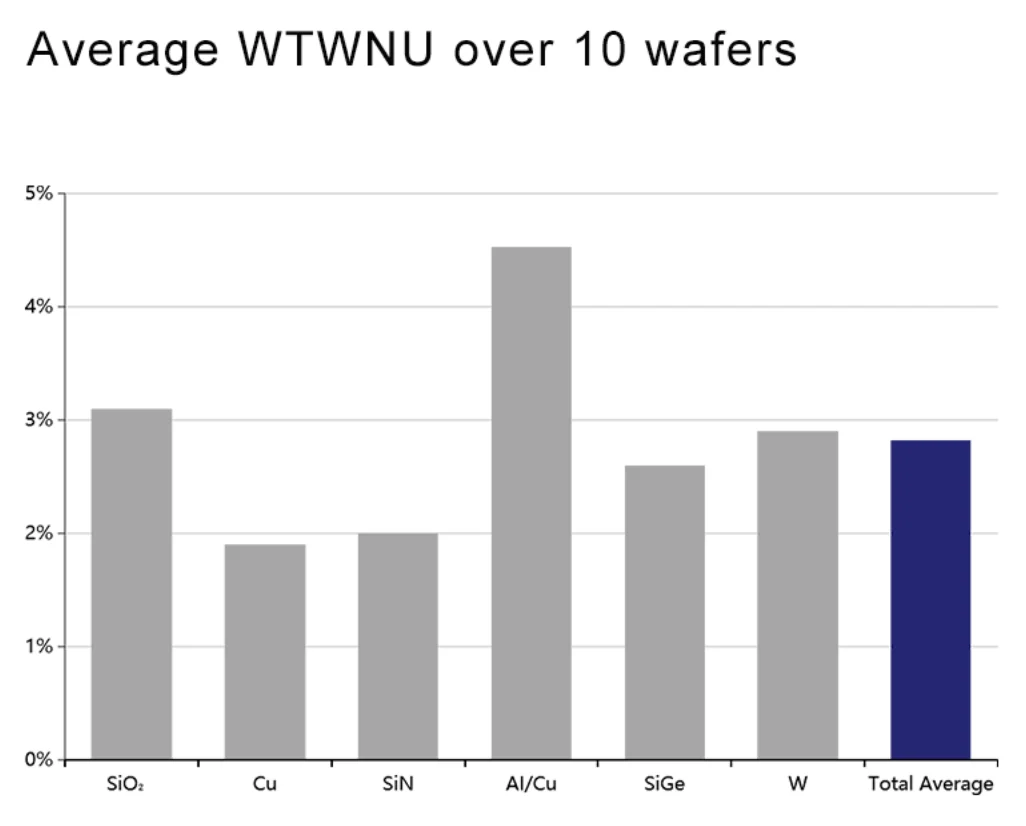

The ACP system can be better used in a wide range of applications, and the chart shows the CMP process test results for silicon oxide, copper, silicon nitride, aluminum copper, silicon germanium, and tungsten.
The chart shows that after CMP process, WTWNU can reach 2.82%.
Application
Silicon wafer planarization
II-V compound planarization
Oxide planarization
Flattening of infrared material substrate
Sapphire, gallium nitride, and silicon carbide substrate planarization, EPI substrate planarization
Thinning SOS and SOI wafers to below 20 microns
Hierarchical reverse engineering or FA applications
Specification
Power supply
220v 10A
Wafer size
4”/100mm
6”/150mm
8”/200mm
12”/300mm

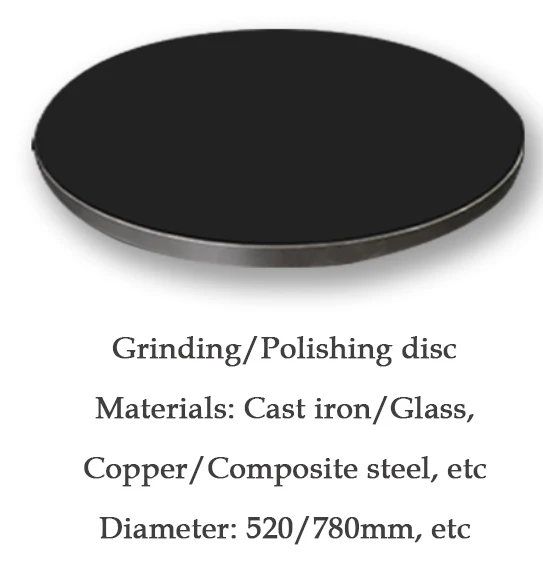

Working disk diameter
520mm、780mm
Working disk speed
0-120rpm
Fixture speed
0-120rpm
Fixture swing frequency
0-30spm
Wafer back pressure
0-150psi
Pressure at the center point of the wafer
0-50psi
Timed Time
0-10 h
Feed channel
≥2
Feed speed
0-150ml/min
