Helium Leak Detector

Get a Free Quote
Product Description

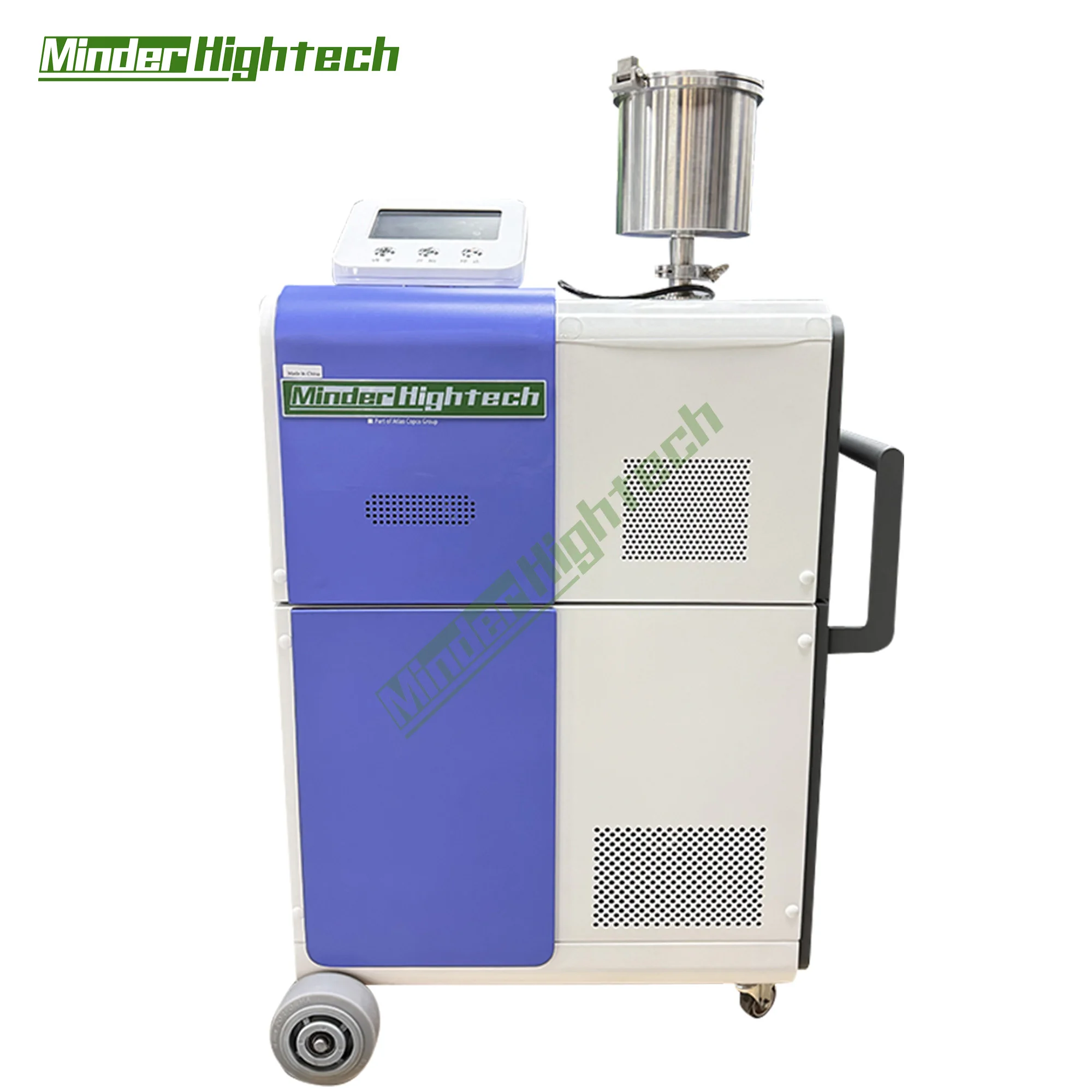

Helium Leak Detector

The series leak detector is a fully automatic mobile helium mass spectrometer leak detector with a silent wheel design, suitable for many industries with harsh conditions. It uses helium mass spectrometry and reverse diffusion principles, and adopts a 180 ° non-uniform magnetic field and fully automatic control technology It has achieved automatic helium peak scanning, automatic calibration, and automatic range switching, with the characteristics of short start-up time, fast calculation speed, high detection sensitivity, and strong anti-interference ability.
Function
The unique gas path design can prevent dust from entering the instrument's internal multi-mode input and output functions, easily connecting various automation equipment. The dual iridium ion source has strong antioxidant capacity and long service life. The mechanical and electrical circuits are effectively separated, avoiding interference from temperature, electromagnetic fields, etc., making the leak detector operate more stably and reliably.
Specification
Gas Inlet (Size):
DN KF25
Test Mode:
Vacuum and suction guns
Minimum Detectable Leak Rate:
Vacuum mode: 3×10-13Pa·m3/s;
Sniffing mode: 1×10-9Pa·m3/s
Test Gas:
He4/H2/He3
Leak Rate Display Range:
1×10-1Pa·m3/s～1×10-13Pa·m3/s
Startup Time:
≤100S
Response Time:
＜0.3S
Maximum Leak Detection Port Pressure:
2000Pa
Front Pump Speed:
10m3/H
Display Unit:
Pa·m3/s、mbar·l/s、atm·cc/s、ppm
Input/Output Interface:
RS-232/485, USB, external control input and output analog output interface
Display Interface:
Graph, histogram, numerical display
Dimensions:
620（W）*370(D)*1027(H)

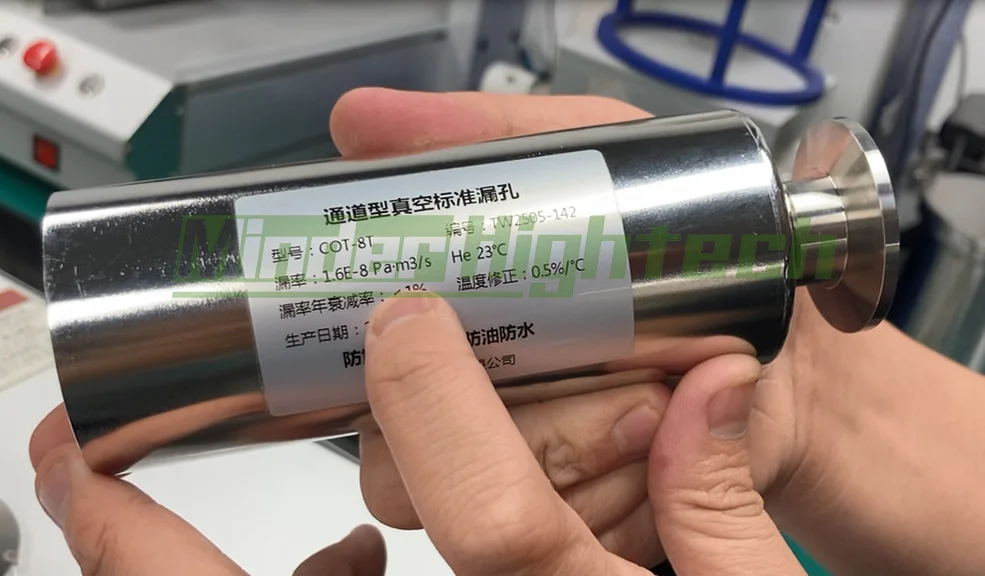

The equipment uses German Leybold high vacuum molecular pump, German BURKERT solenoid valve, imported AD chip, Edward 10i imported dry pump, Infcon vacuum gauge PSG500, new mass spectrometry technology with 180-degree ionization deflection, and is equipped with a standard leak and calibration certificate.
Standard accessories:
2 KF25 clamps, 1 1500mm×KF25 corrugated pipe, 1 power cord, 2 fuses, 1 air bag, 1 spray gun.

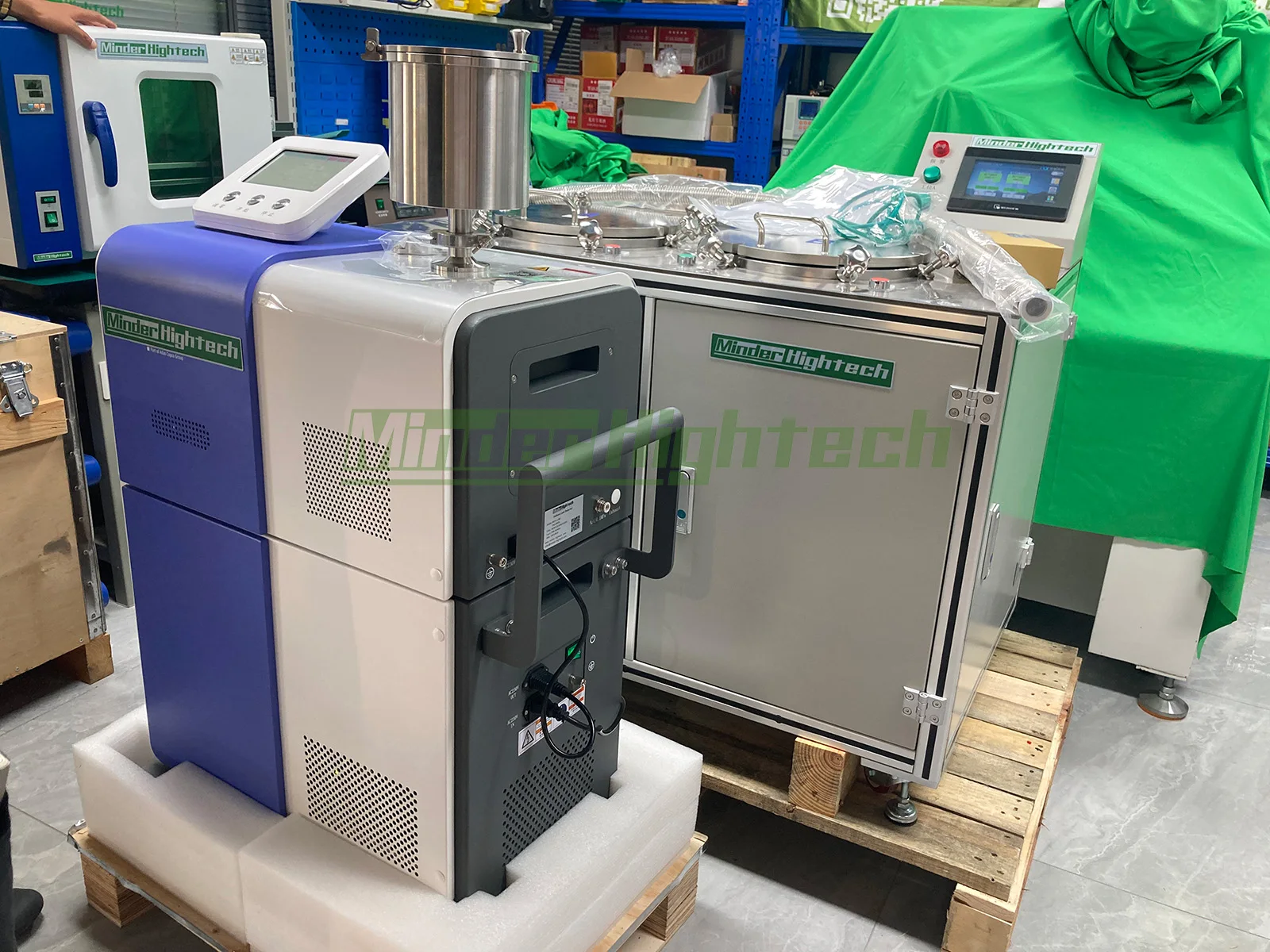

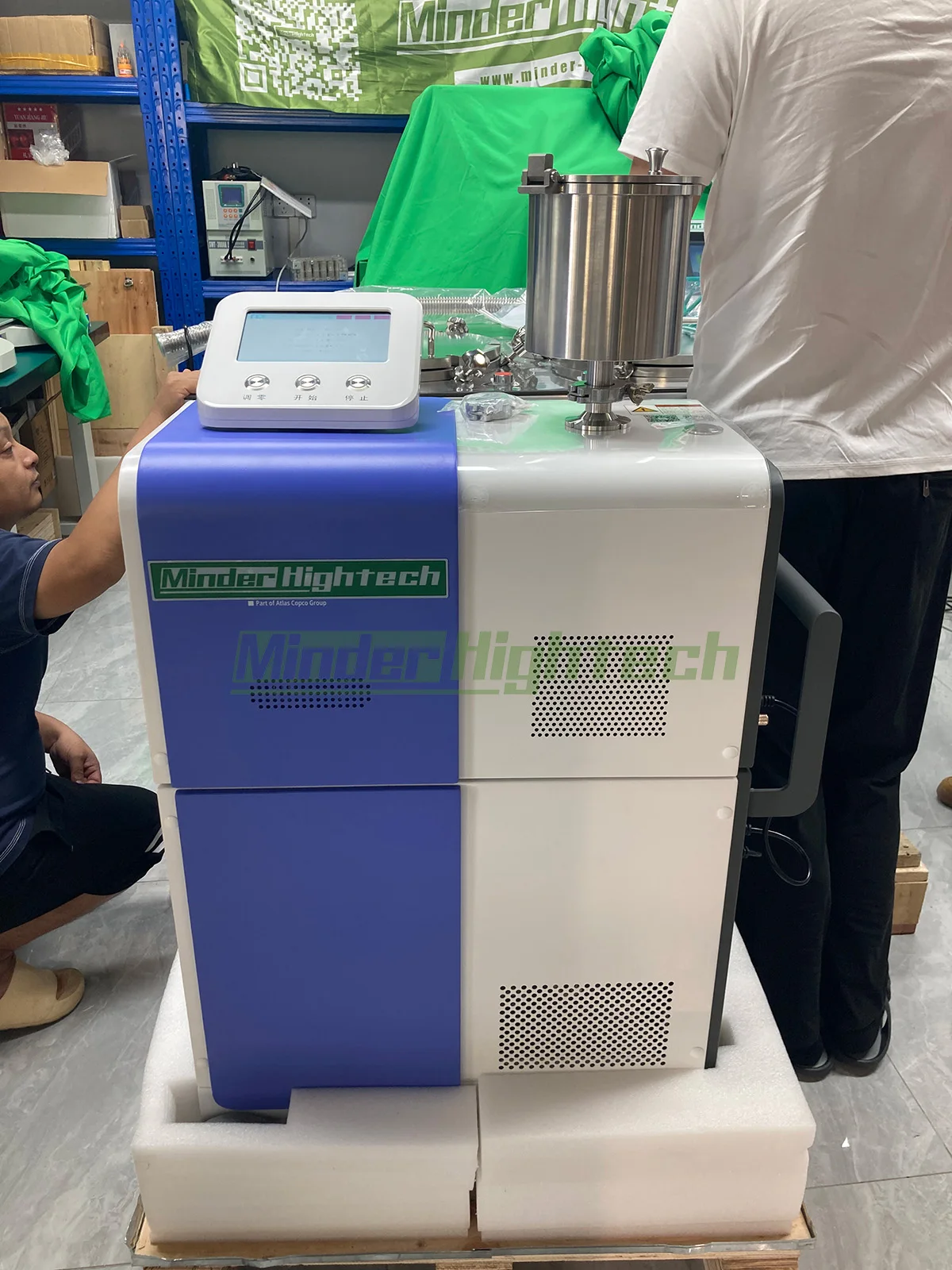

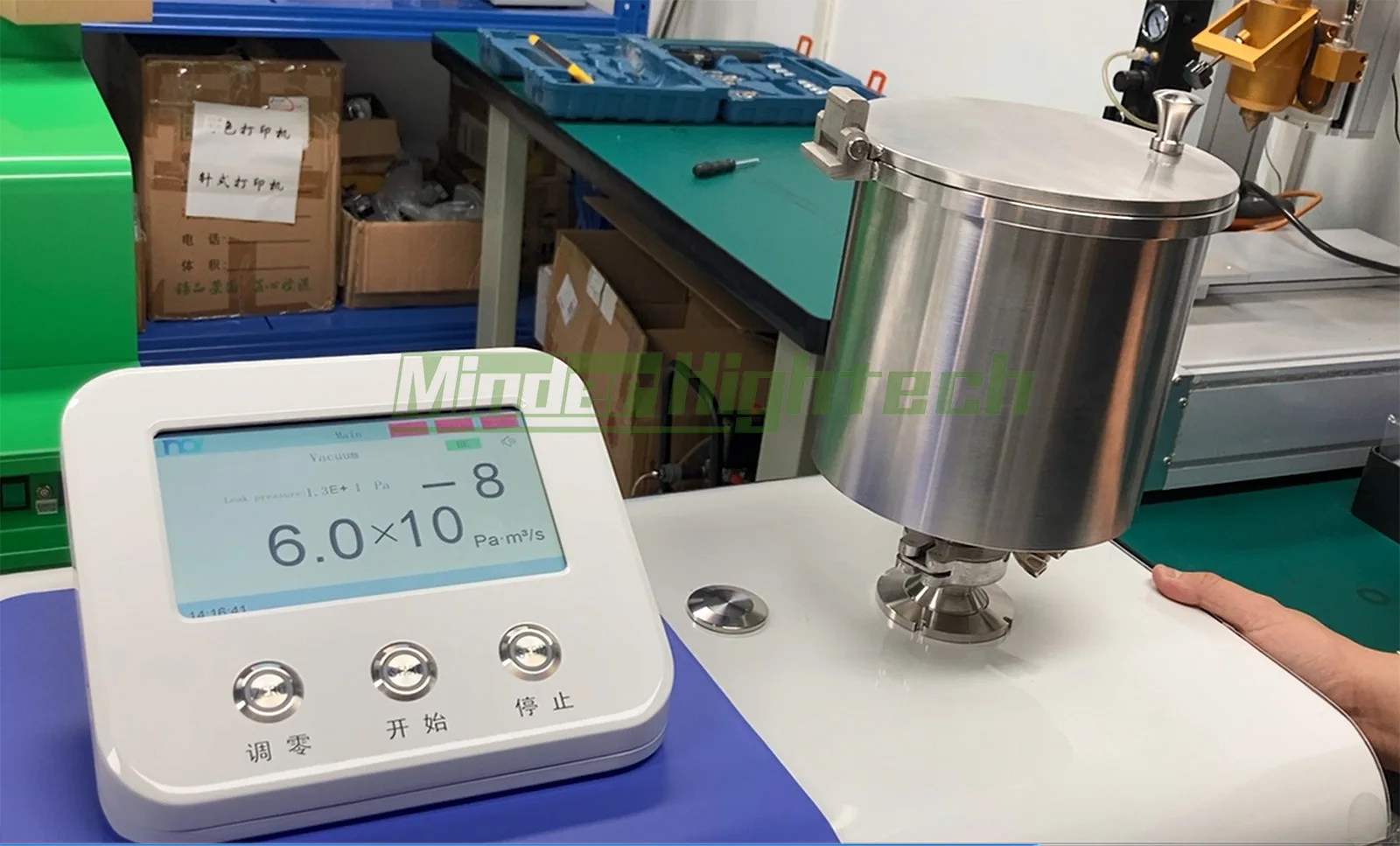

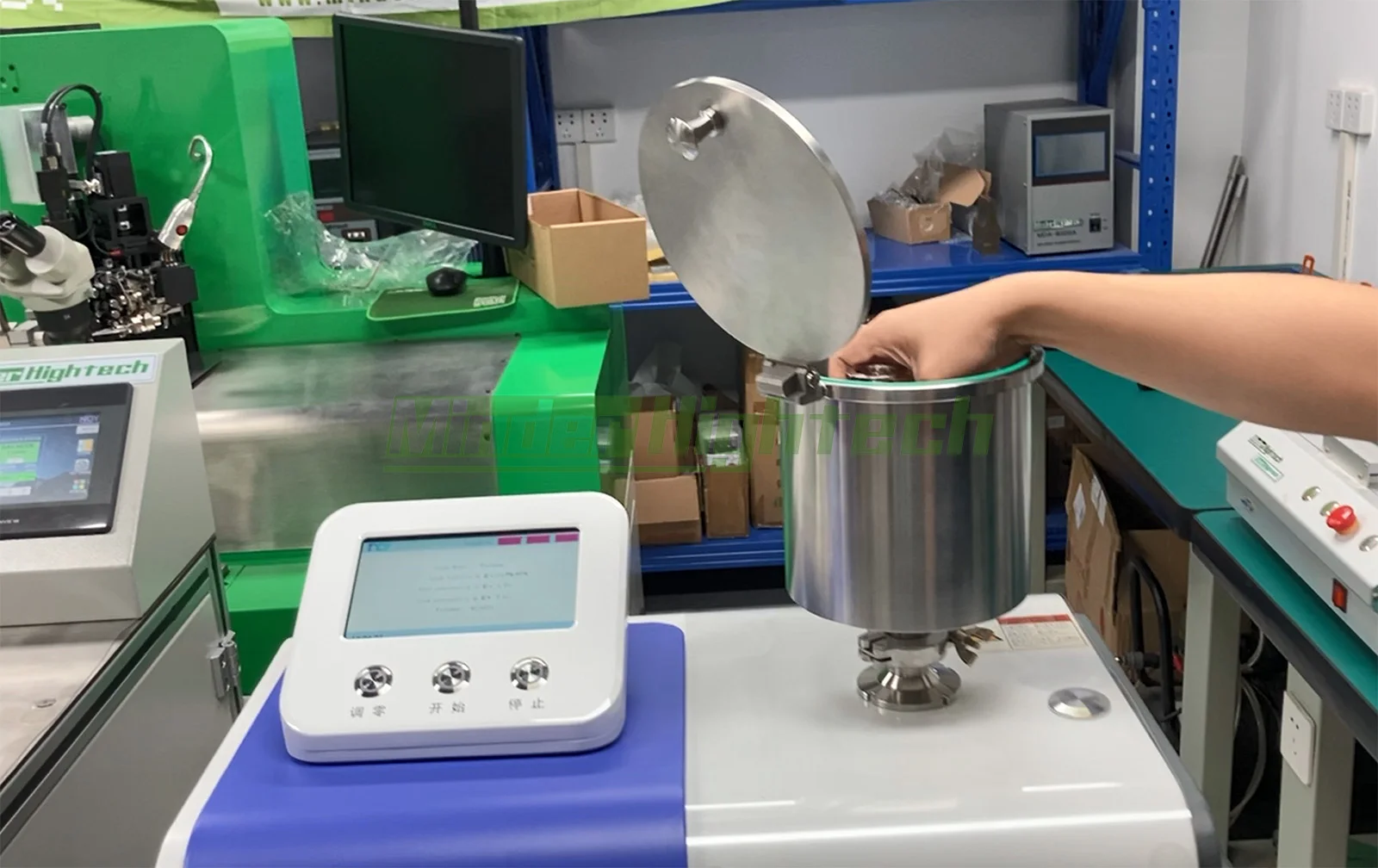

Real Shots
Packing & Delivery
Company Profile
Since 2014，Minder-Hightech is sales and service representative in Semiconductor and Electronic product industry equipment. We are committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment. Until today, our brand's products have spread to major industrialized countries around the world, helping customers improve efficiency, reduce costs, and improve product quality.
FAQ
1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment:
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.

7. After-sale Service:
All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
