Helium He& Fluorine Oil Pressurized System

Get a Free Quote
Product Description

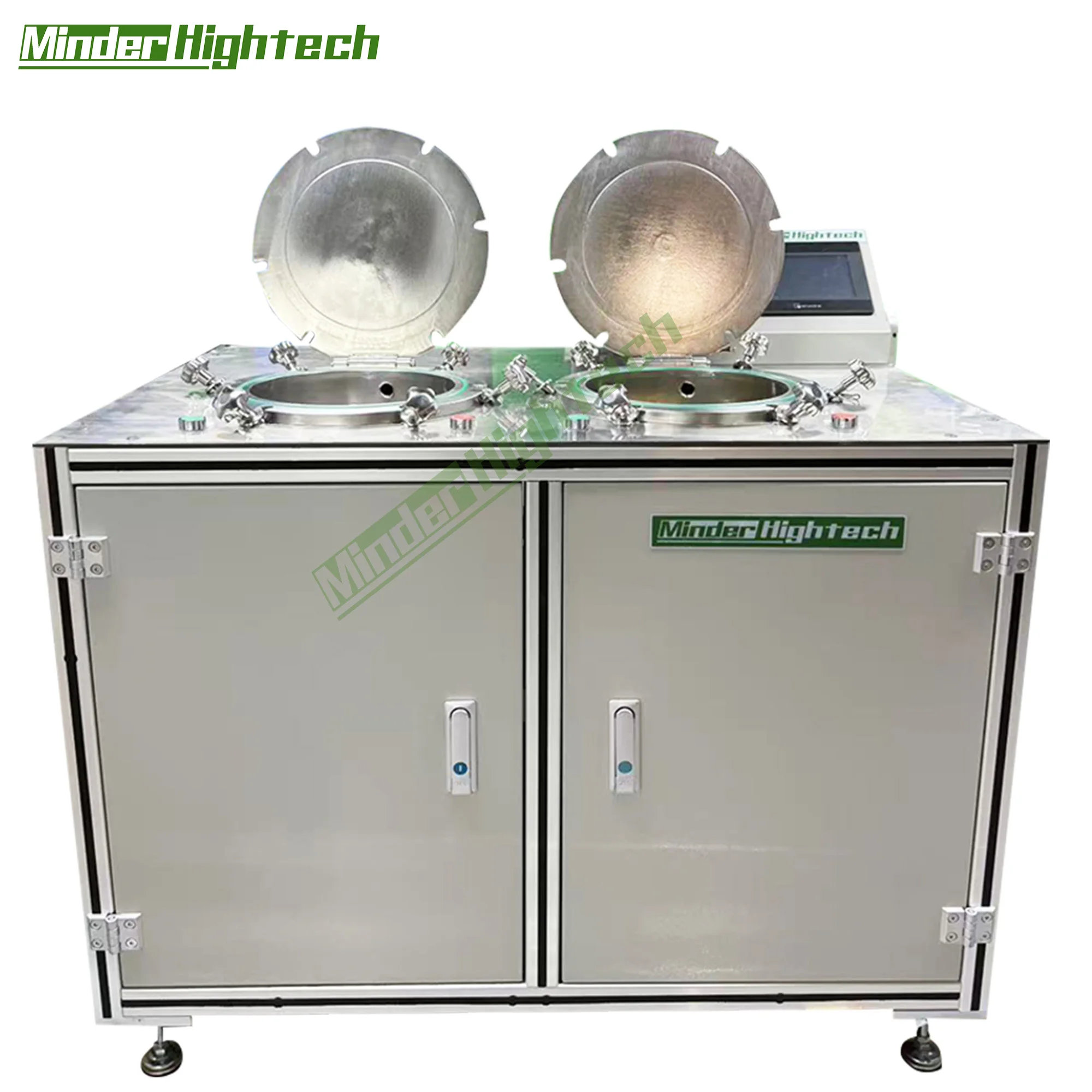

MDNY-YHYD160 Pressure Helium Fluorine Oil Equipment

MDNY-YHYD160 is an automated leak detection device specifically designed for fine and coarse inspection of electronic components such as semiconductor devices, integrated circuits, and electronic products.
The device is equipped with a PLC (Programmable Logic Controller), which can automatically control and operate the entire leak detection process, effectively preventing mis operation and improving leak detection efficiency.
And a photoelectric detection device is installed on the nitrogen tank of the equipment, which can monitor the oil level inside the nitrogen tank at any time.
This device has a high degree of automation and high reliability.
It can be used in conjunction with helium mass spectrometer leak detector and heavy fluorine oil heater to perform the entire fine and coarse inspection process of electronic components.
The MDNY-YHYD160 helium fluorine oil pressurization instrument, when combined with a heavy fluorine oil heating instrument and a helium mass spectrometer leak detector, can easily complete the leak detection requirements for electronic and semiconductor devices specified in GJB36A-96, GJB548-96A, and GJB128A-97 standards.
Principle Description
Feature
PLC control, touch screen operation; Automatic control of liquid level height and display of process status; Helium and fluorine oil are separated and operated independently, flexible and non interfering with each other; Valves, pipelines, flanges, pressure tanks, and oil storage tanks are made of stainless steel; The oil filter tank can filter out solid particles of 1 μ m, ensuring the cleanliness of fluorine oil.
The container has a certain depth to ensure that the distance between the inspected item and the liquid surface after immersion is greater than 50mm;
The inner surface has a non reflective black background; Equipped with a 3x magnifying glass and adjustable angle;
The light source installed on the instrument is sufficient and emits parallel light;
The illuminance inside the instrument is greater than 1.61 × 105lX, and the light source has no strong incident or reflected light on the observer;
The heating temperature is controllable and adjustable, and the time for placing leak detection reminders can be set.
Specification
Main technical functions:
Function
Describe
Notes
Display mode
Touch screen
Control mode
PLC
Mechanical pump pumping speed
4L/s
Bipolar rotary vane vacuum pump
Dimensions of pressurized helium/pressurized fluorine oil tanks
F150×200（mm）
Customizable size
vacuum degree
≤45Pa
Helium filling pressure
0.2-0.6Mpa, adjustable
Pressure holding time
1-10 hours, adjustable
Indicator function:
Working temperature range
125℃±5℃
heating rate
Heat from room temperature to 125 ℃ ≤30 minutes
Container size
240*165*180mm（W*D*H）
Observation window size
200*135mm
Observation window function
Equipped with an adjustable angle magnifying glass
Leak detection time setting
Can set timed alarms
Drain the oil
The container is equipped with an oil discharge port
Filtering function (optional)
It has a circulating filtration function that can filter out 1μm impurities in heavy fluorine oil
Configuration：
Name
Describe
Quantity
Oil heating system
/
1 set
Electrical control part
/
1 set
Heavy fluorine oil container
/
1
magnifier
Adjustable angle, 3x
1
Light bulb:
/
2
Retrieval device
1 size each
2
Heavy fluorine oil (optional)
import
5Kg

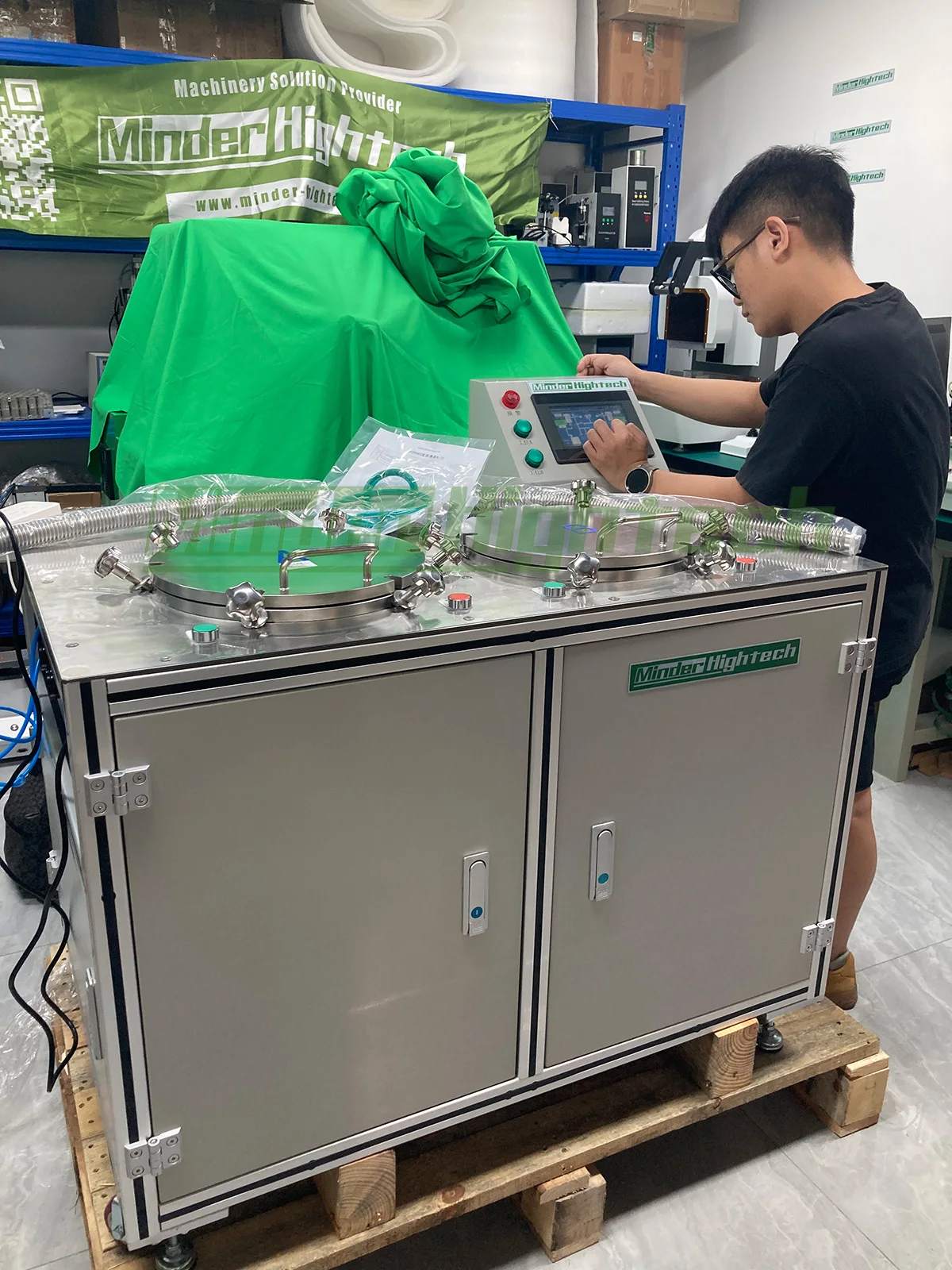

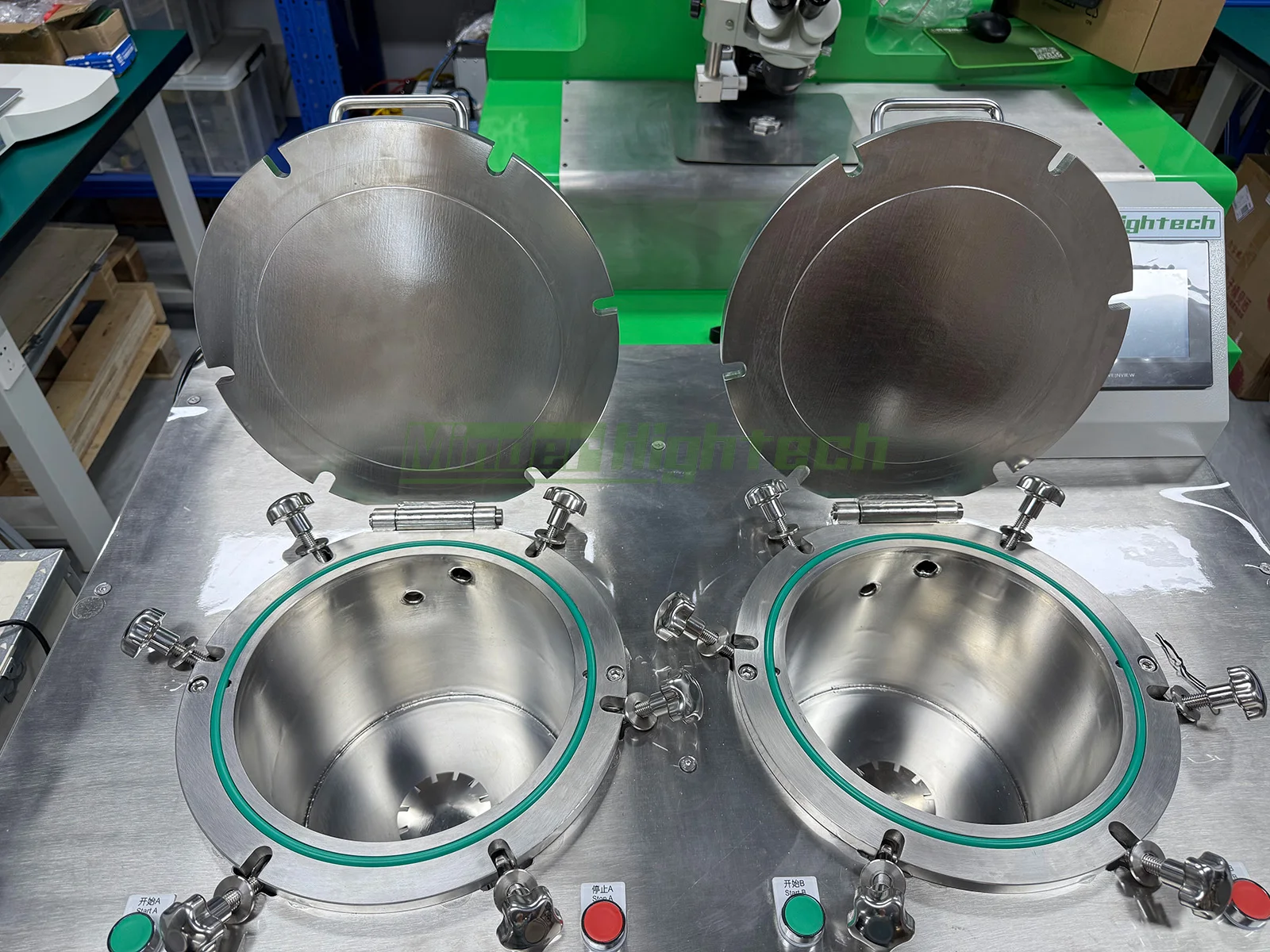

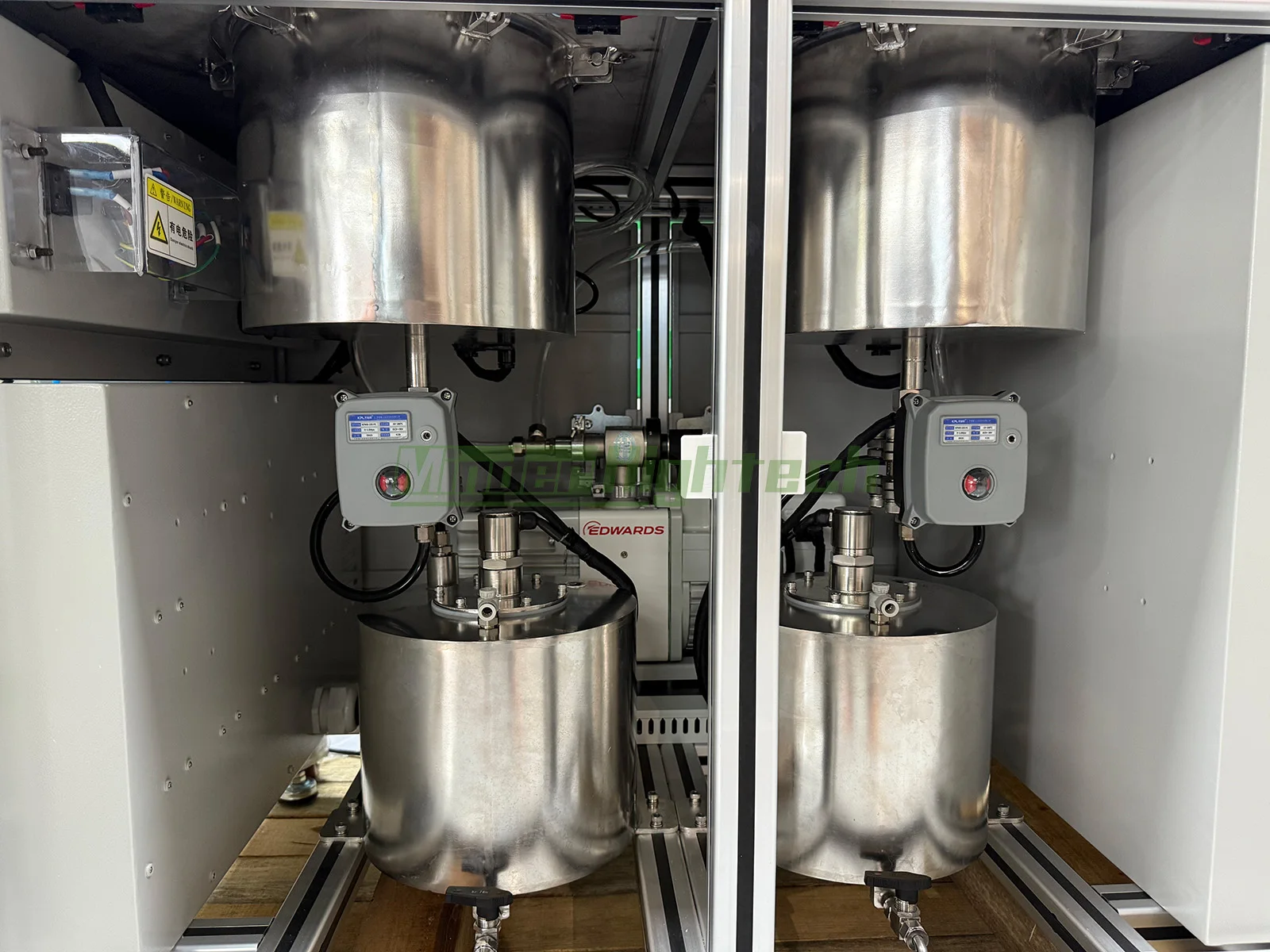

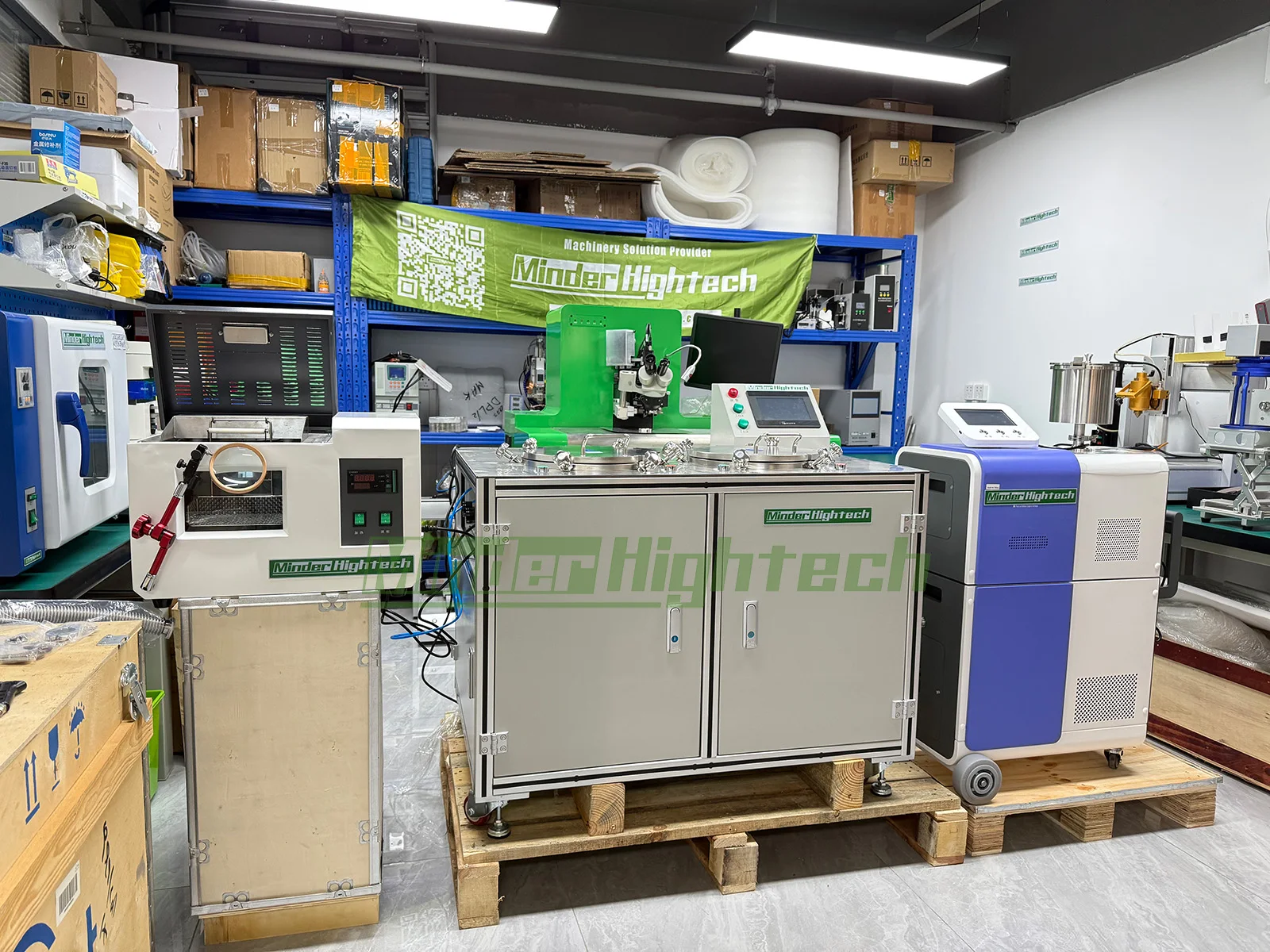

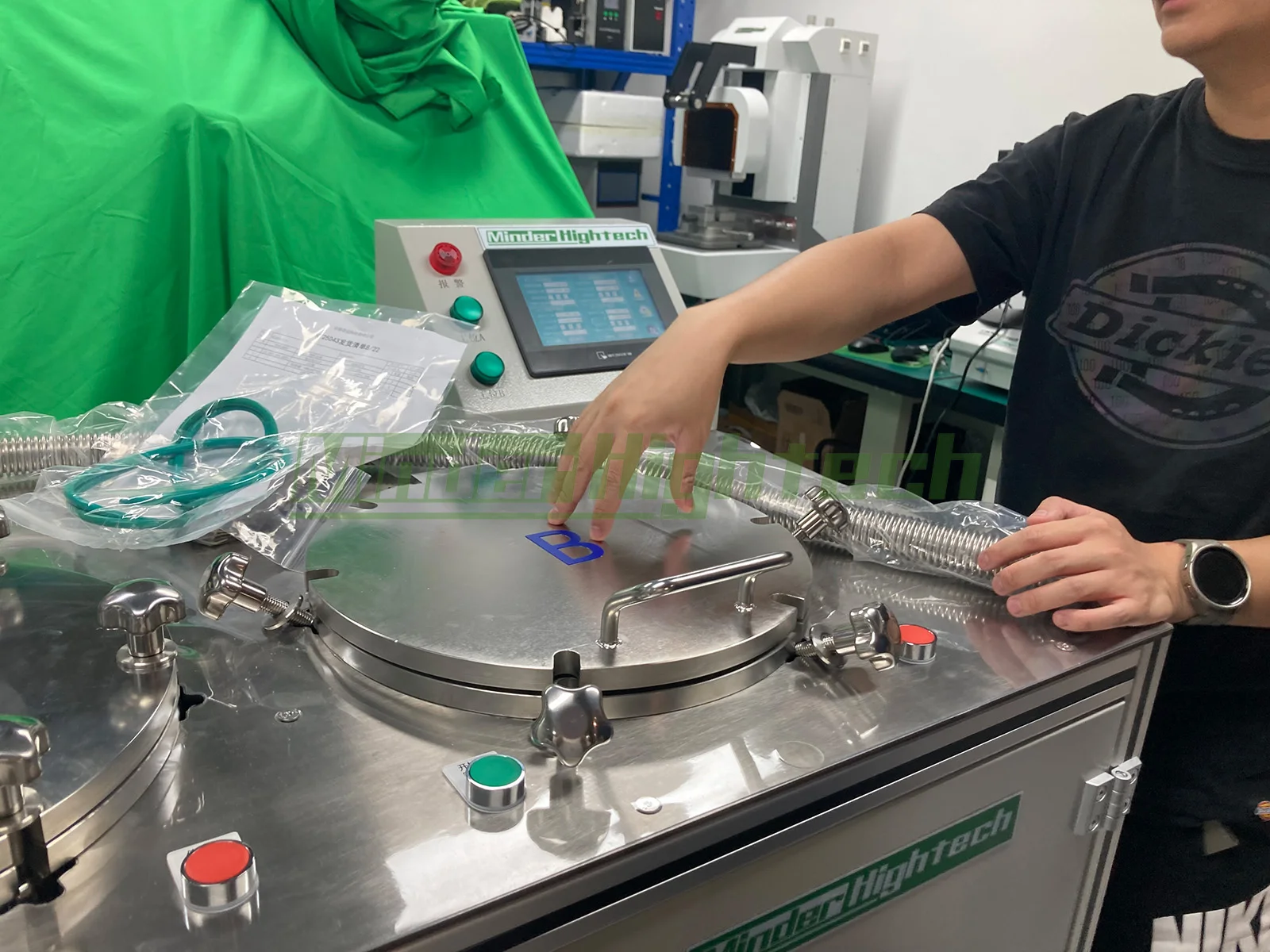

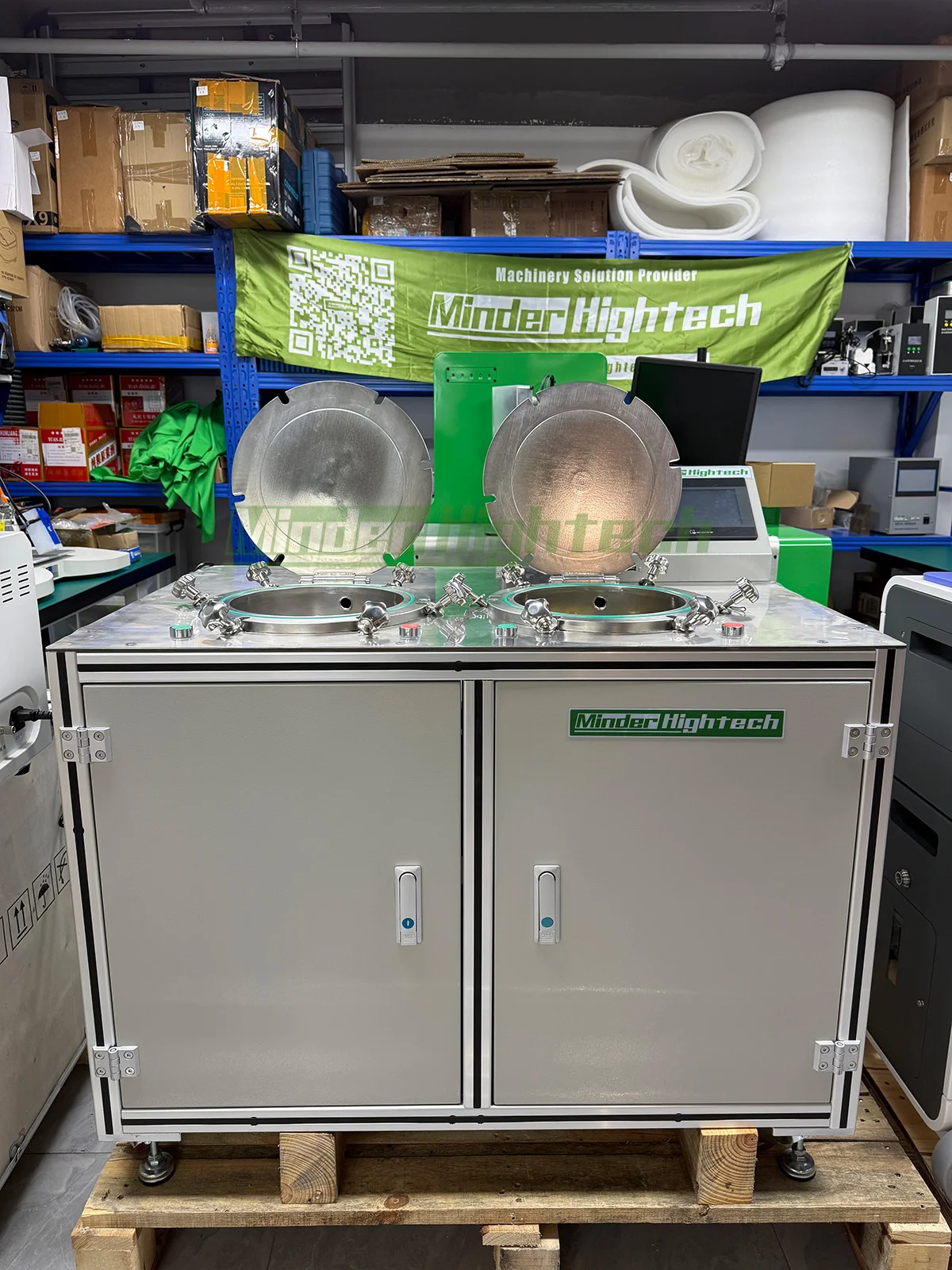

Real Shots
