Factory Price Direct Sales.
Customize Equipment According to Your Product.
The company's automatic screw machine can be customized non-standard. For more detailed parameters, please contact customer service.

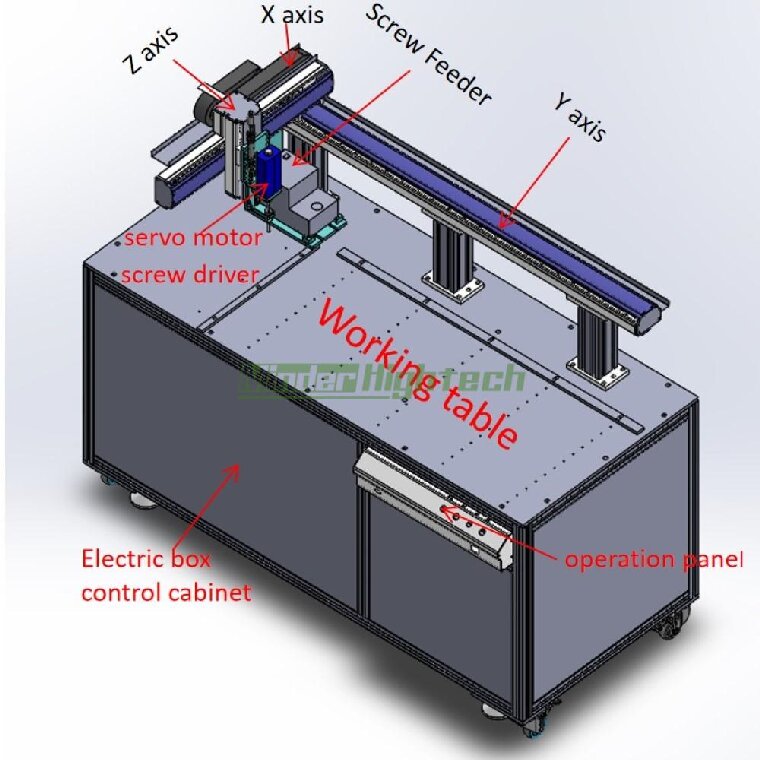

The automatic screw machine is an automated equipment that can replace manual screw locking.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
Strong versatility, cost saving
It is suitable for the production of a variety of products. After the customized program is edited and saved, it can be used after the later recall.
Suitable for multiple jigs, the same screw machine can be used for screws of different products by replacing different jigs.
Can lock screws at the same time without getting stuck
Ensuring accurate and stable locking without damaging the product.
Eliminating unnecessary actions such as manually holding screws and aligning.
The production requirements of the integrated assembly line can be customized according to non-standard products.
Suitable for various screw shapes
Applicable to different industries
Model |
MD-4120 |
Stroke X |
400mm |
Stroke Y |
1200mm |
Stroke Z |
100mm |
Material size |
1000*300 |
Maxiumun portable load |
X axis:10kg Y axis:10kg Z axis:7kg Working table: 80kg |
maximun speed(PTP Drive)1=settable speed ragen |
600mm/s (X-Y-Z) ,Max:1000mm/s(X-Y-Z) |
maximun speed(CP Drive)1=settable speed ragen |
x,y,z combined: 800mm/sec(0.1-800mm/sec) |
Screwer No. |
Default 1 PC |
Drive |
Precision stepping motor+synchronous belt |
Drive method |
5 phase pulse motor (optional encoder attachment) |
Motion mode |
Point to point; line; circle |
Positioning accuracy |
±0.02(mm) |
External input |
I/O-SYS:24 input |
I/O-14:16 input | |
External output |
I/O-SYS:24 outputs |
I/O-14；16 outputs(including 4 relay outputs) | |
Program |
Control Teaching Box |
Screw feed mode |
suction type |
Screw feed speed |
65PC/Min |
Screw driver |
SDL series Servo motor screw driver |
External |
RS232 |
Bit drive |
H5 and 5HEX (both can be used) |
Screw size |
M3.0-M8.0 |
Screw length |
4-16mm |
Torque range |
5-50kgf/cm |
Torque switcthing |
stepless adjustment |
unloaded rotation speed(r.p.m)+-10% 11steps |
low rotation 05-15:115-320 |
HI rotation 20-30:660-940 | |
Programstorage |
100groups/1000pointsper group |
Power |
110V50Hz |
Air |
0.5Mpa |
|
Main Configuration |
Italy Lartey belt |
HIWIN lead rail | |
OMRON relay | |
Dimension |
1700*750*1450mm |
Weight |
250kg |
