Functions and Workflow:

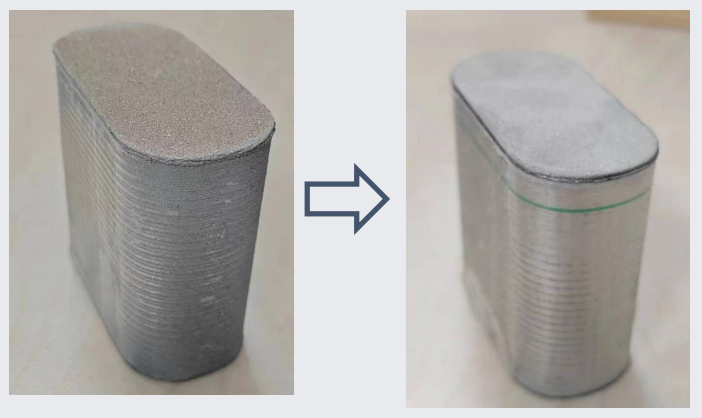

Function: To remove surface residue from metallized film capacitors using a sandblasting process.
Workflow: Automatic bin loading → Automatic conveying → Sandblasting → Automatic output → Manual unloading and stacking
Technical Parameter | ||
NUM |
Project |
Content |
1 |
Product W |
20mm~90mm |
2 |
Product L |
20mm~90mm |
3 |
Product H |
15mm~60mm |
4 |
Production speed |
1200mm/min |
5 |
Sandblasting material |
glass ball GB#60~#80 |
6 |
Work volume |
0.4~0.6Mpa |
7 |
Total driving force |
4.5KW/AC380/50HZ/3-phase |
8 |
Number of spray guns |
6PC |
9 |
Equipment external dimensions |
6500×1400×3000mm |
10 |
Equipment noise |
Below 90 decibels |
11 |
Sand blasting quantity control |
±10% |
12 |
Anti static effect |
<0.5kv |
FEATURES | ||
NUM |
Content |
|
1 |
Core tray push in, mechanical arm automatically grabs in |
|
2 |
Including electrostatic dust removal station |
|
3 |
Customizable functions according to customer requirements; |
|
4 |
The length, width, and height of the product conveying track are automatically adjusted, and only the product size needs to be set on the touch screen |
|
5 |
Sandblasting pressure0.12-0.15Mpa ± 0.05Mpa |
|
