Product Description

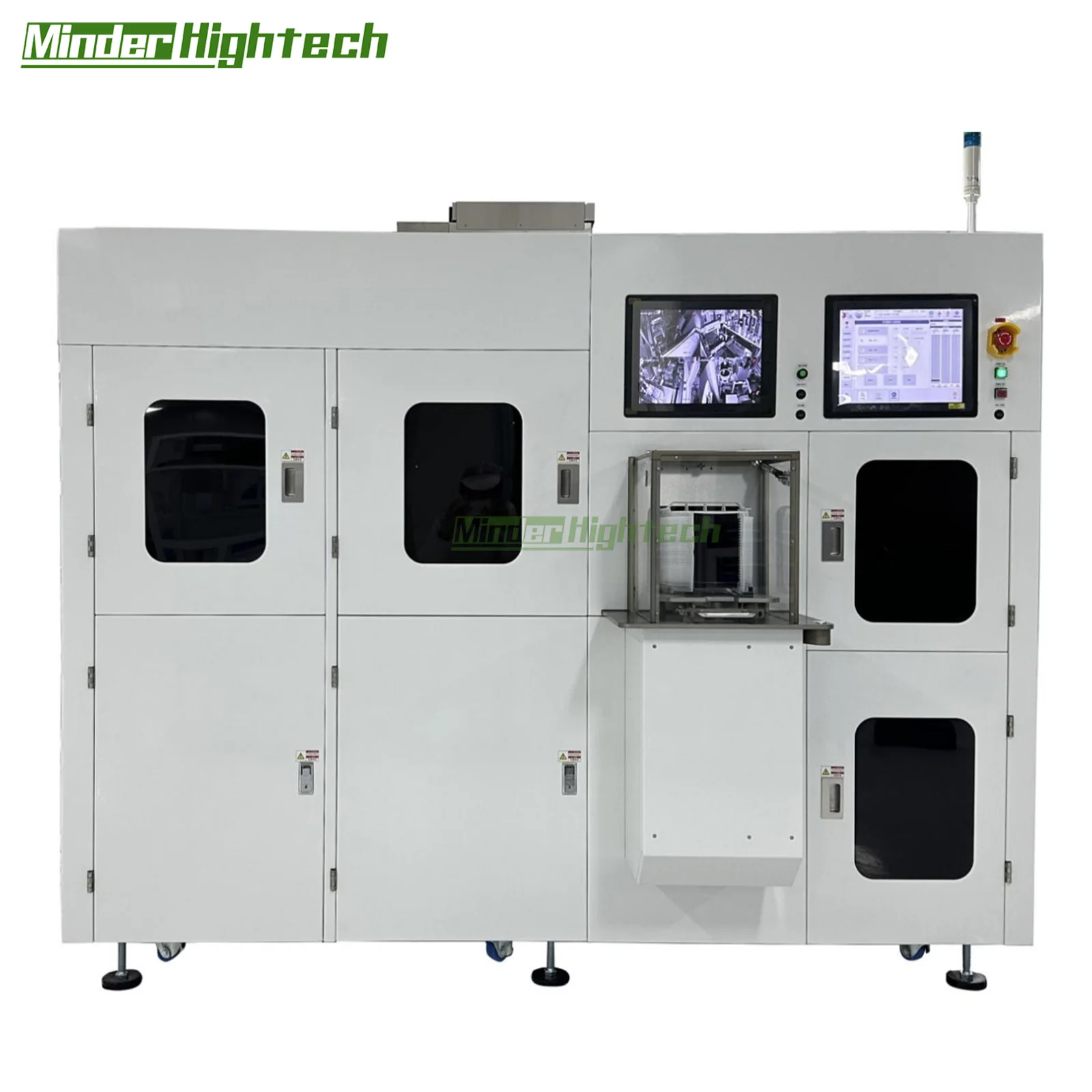

MDVWM-TK08 Full Automatic Taiko Vacuum Wafer Mounter

1. Fully automated 8-inch Taiko Wafer back cover developed for the semiconductor industry
2. Dedicated Equipment for Dicing Tape
3. Supports Taiko wafers with a thickness of 50 µm or greater

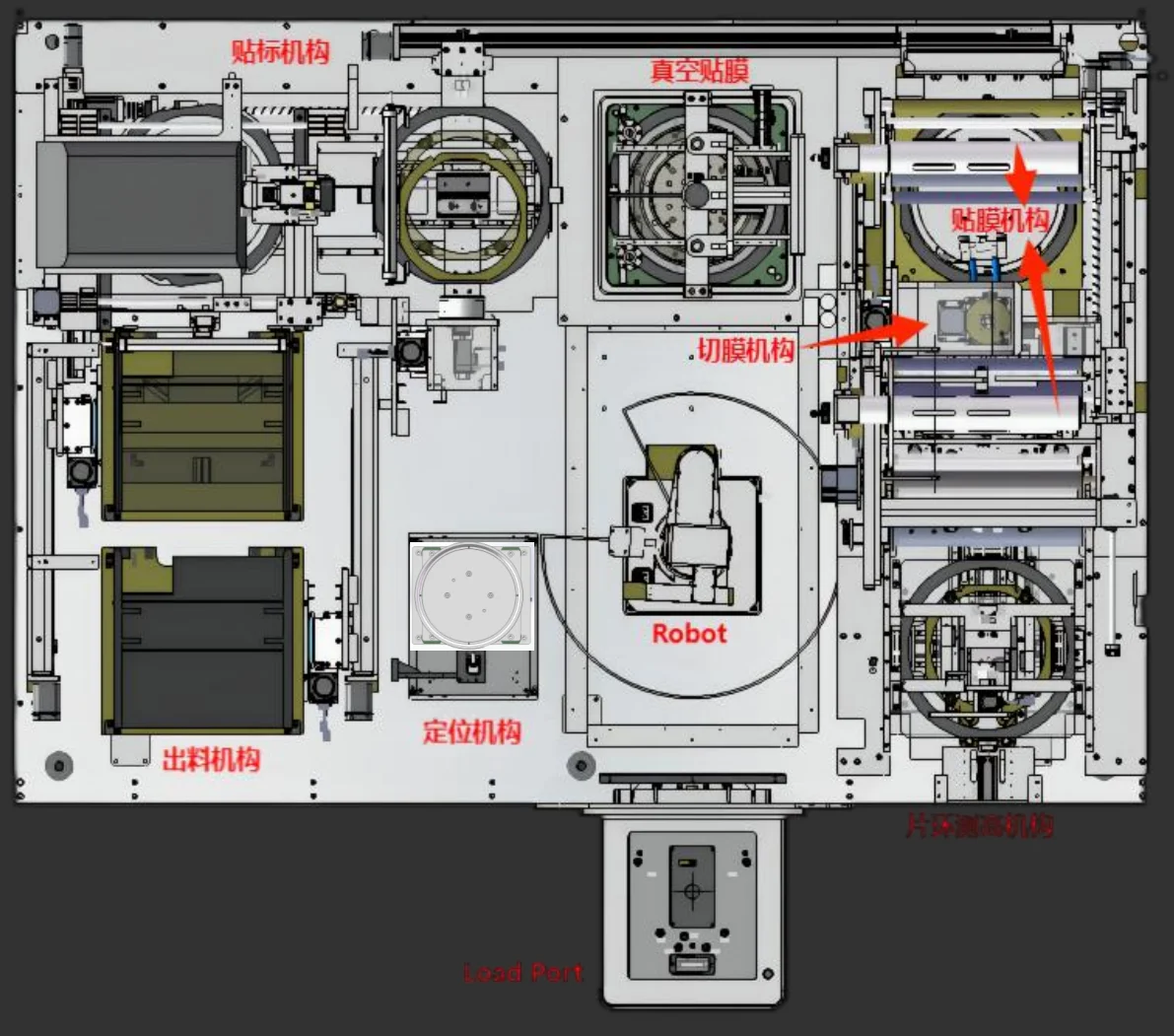

Floor Plan and Operational Flow:

Equipment Configuration and Key Technical Parameters:

Number	Item	Content	Remarks
1	Product Dimensions	8 inch	Taiko Wafer
2	Loading Method	8 inch Open Cassette	Customizable per customer requirements
3	Unloading Method	8 inch frame cassette	Dual-Cassette Mechanism
4	Applicable Frame	8 inch
5	Product Thickness	8”>50um
6	Product Transport	Robot	Bernoulli
7	Positioning Mechanism	CCD + Mechanical
8	Film Lamination Mechanism	Vacuum mounted
9	Vacuum Sealing Integrity	20.2hpa	Dry Pump
10	Applicable Film Types	Blue tape & UV tape
11	Supported Warpage	<2mm	Customizable per customer requirements
12	OCR Reader	Cognex 1741
13	WPH (Units per Hour)	>25pcs	Tailored to actual product process requirements
14	ESD Protection	Balance voltage < 30V; (±1000V to 5V) < 5s.
15	Controller	PC	Windows base
16	Display	15inch color touch screen
17	Operating System	Windows 10
18	Networking System	SECS GEM
19	Monitoring System	CCTV
20	Purification System	FFU	H13/H14

Load Port Unit：

1. Compatible with 8-inch Open Cassettes
2. Cassette Misplacement Detection Function
3. Mapping Scan Function

ESD Control Unit：

1. Static Eliminator Bars
Pre-lamination Area: 2 units
Positioning Area: 1 unit
Loading Area: 1 unit
Unloading Area: 1 unit
Other Areas: (Optional)
2. ESD Control: 1000V → 30V (Achievable within 5 seconds)

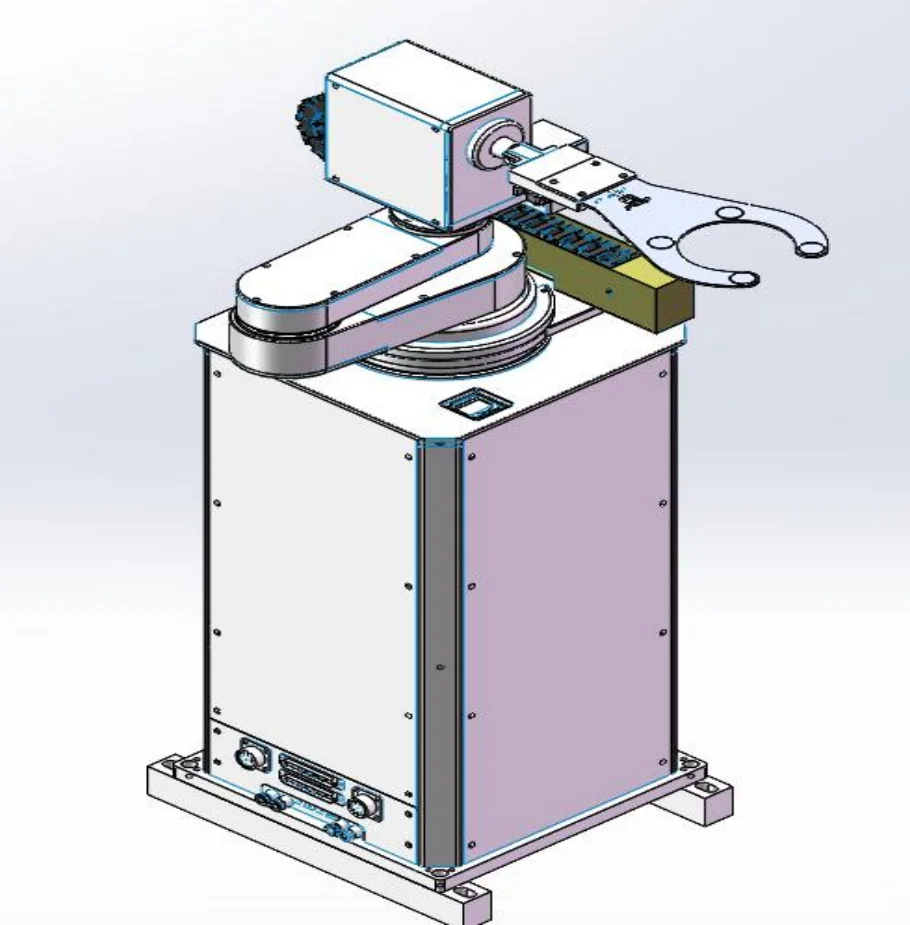

Wafer Transfer Robot:

Non-Contact Gripper or Bernoulli Arm

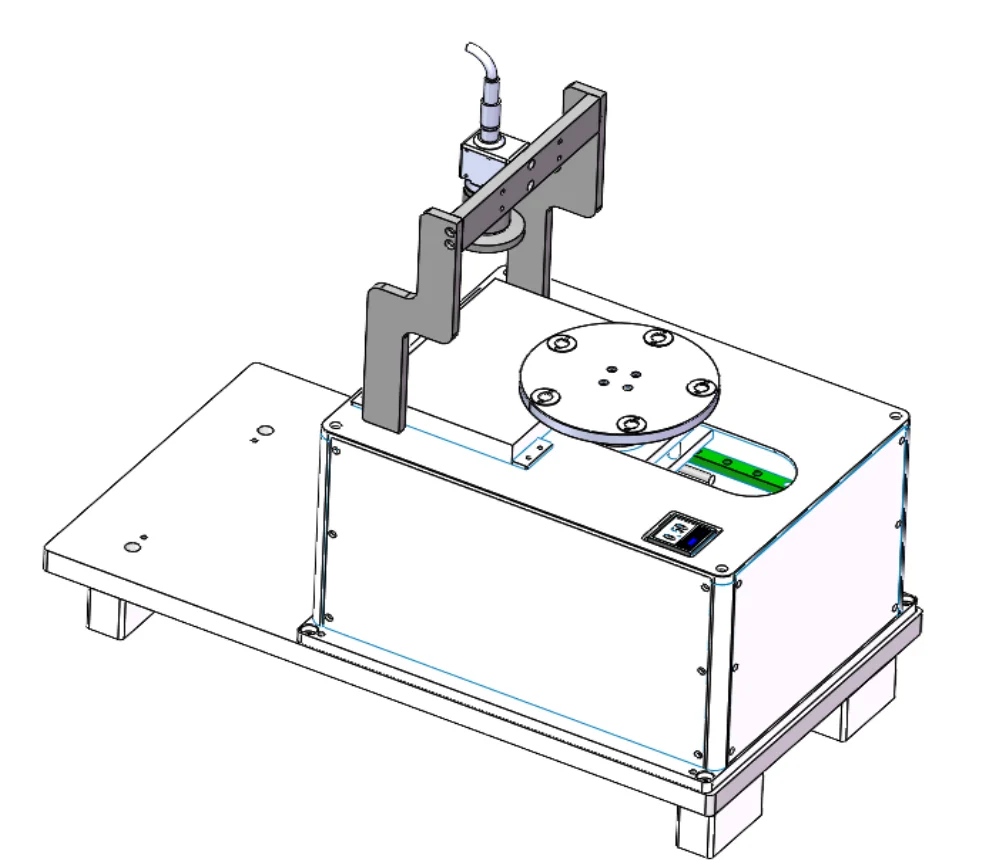

Wafer Alignment Unit:

Automatic Positioning (Bernoulli Chuck Alignment or Taiko Edge Clamping) CCD Notch Alignment

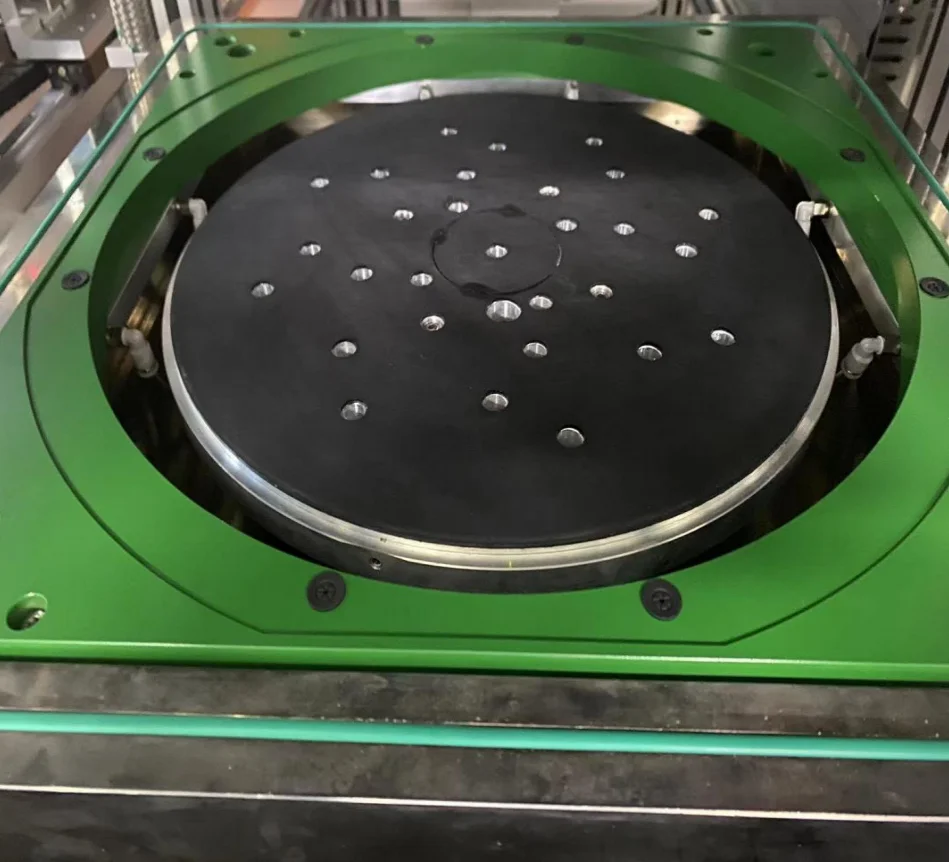

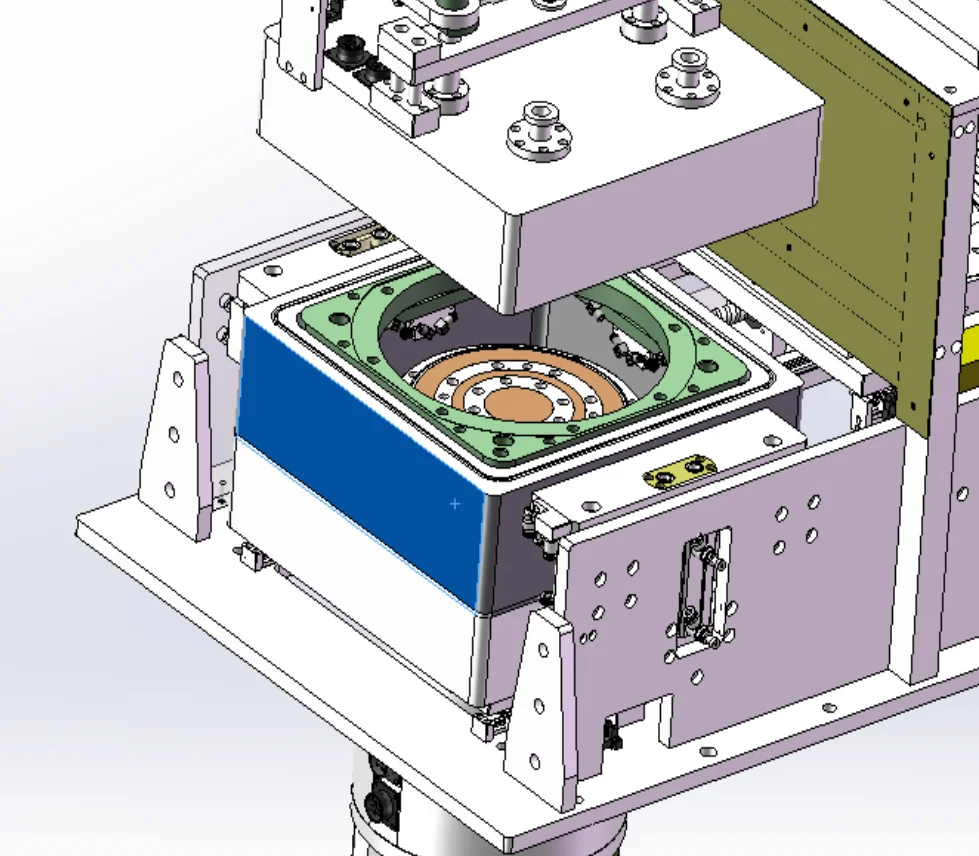

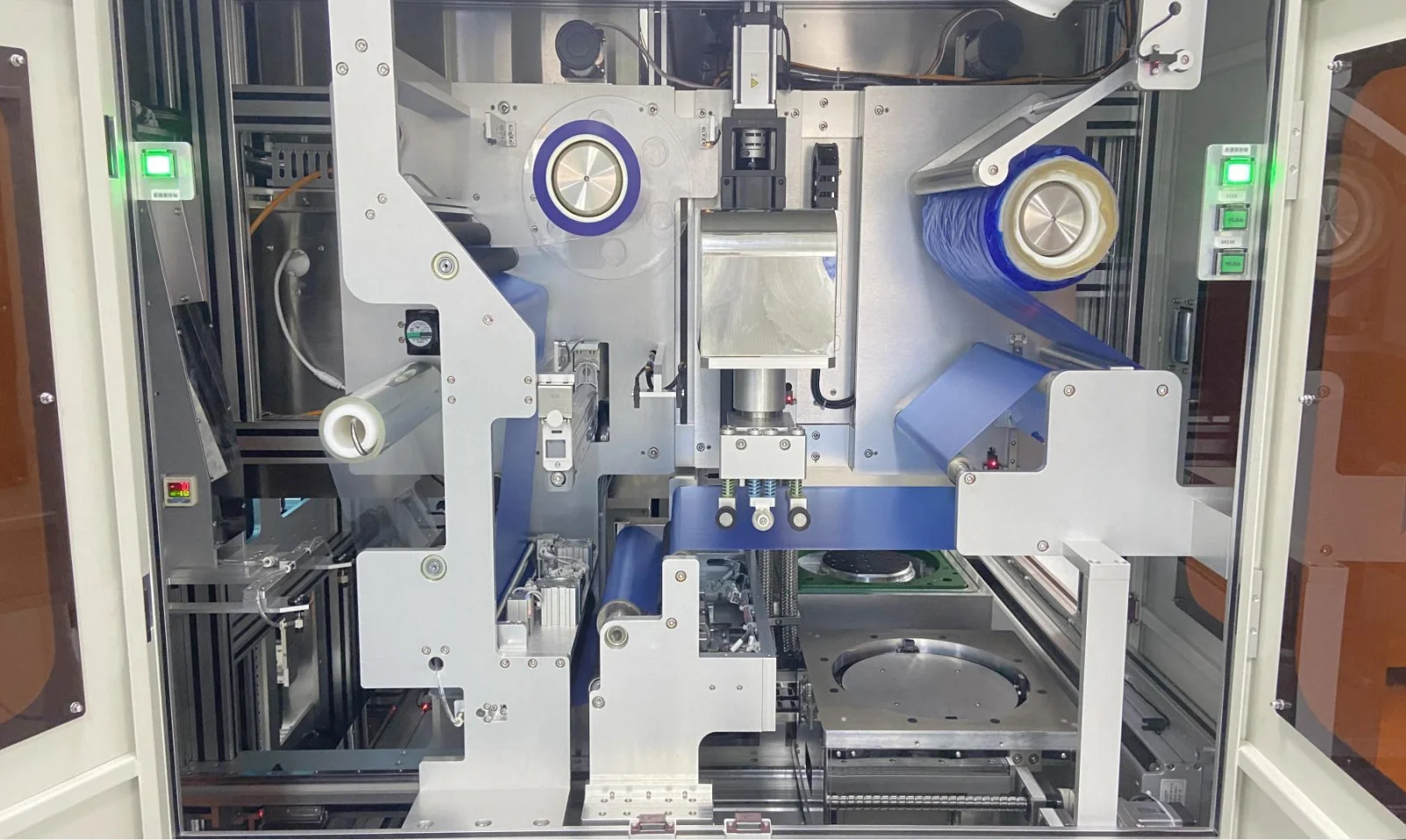

Vacuum Lamination Unit:

1. Contact-type vacuum stage with silicone soft pad (customizable according to customer requirements)
2. Height-adjustable lamination stage
3. Supports 8-inch frames
4. Vacuum pump: Dry pump (oil-free)

Frame Placement Area:

1. Supports 8-inch frames
2. Automatic height measurement and positioning
3. Double-ring detection

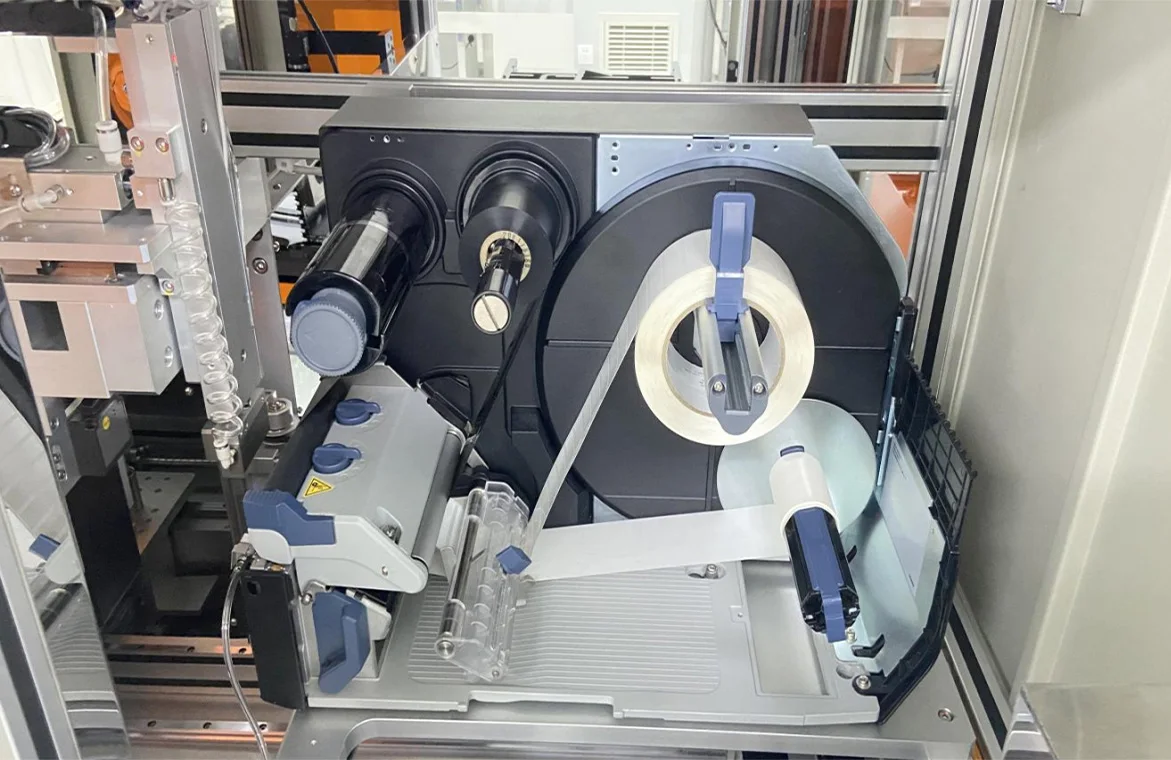

Labeling Unit:

1. Labeling turntable rotatable 360 degrees
2. Labeling position is programmable
3. High-speed SATA printer; label length and width are adjustable
4. Vacuum label suction head (for secondary verification of printed barcodes)

Operation Results:

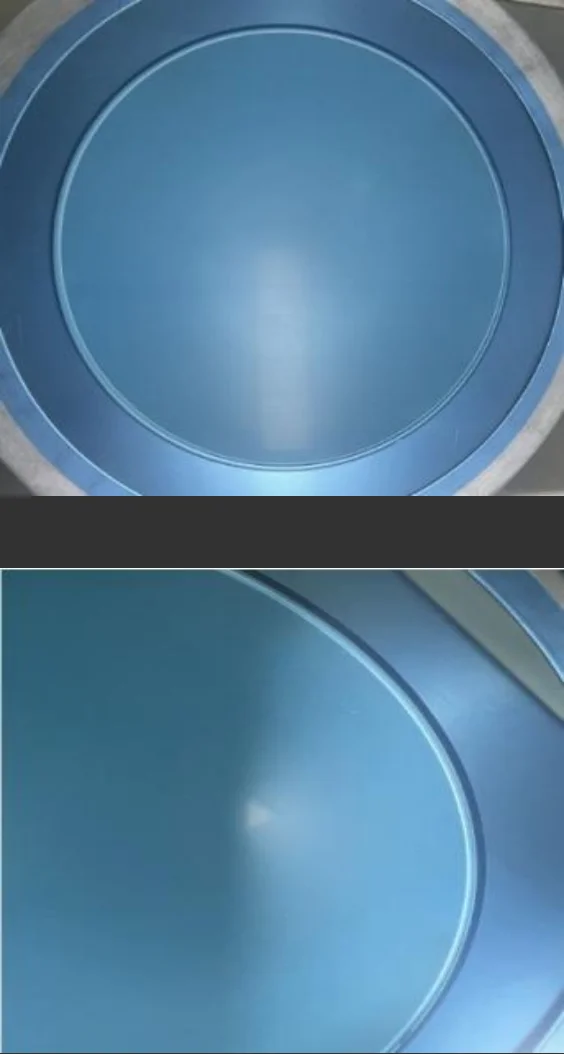

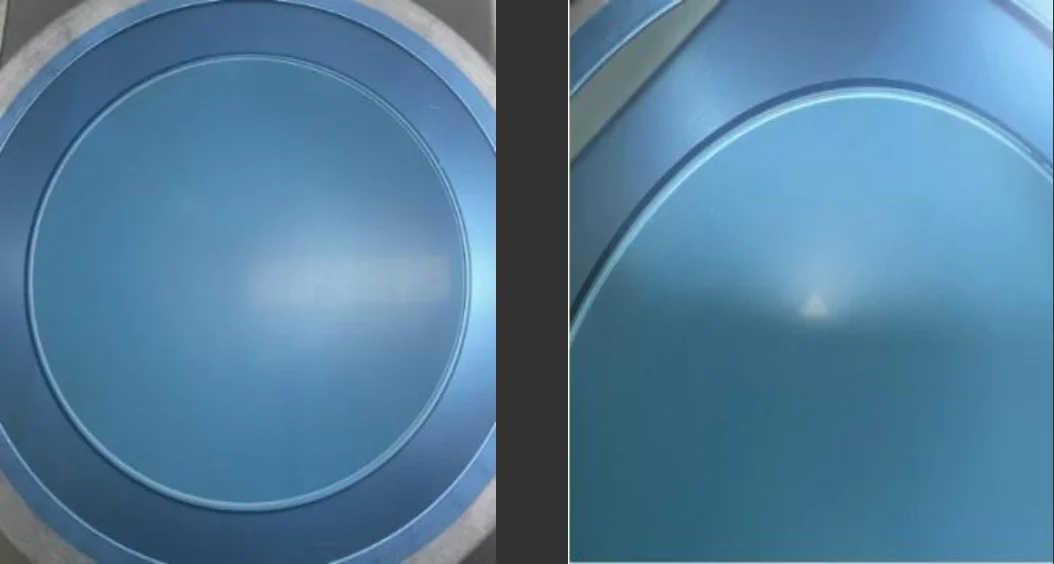

Experimental Findings: When a vacuum level of 0.8 hPa was achieved, the results appeared as shown in the figure below; the unadhered gap at the step feature measured less than 1 mm.
When a vacuum level of 0.2 hPa was achieved, the unadhered gap at the step feature measured approximately 0.6 mm.

Symbol	ltem	Request
A	Wafer size (mm)	200
B	Wafer original thickness (um)	550
C	Narrower ring width (mm)	2.4
D	Wider ring width (mm)	2.9
E	Wider ring height (um)	130
I	Wafer finish thickness (um)	80

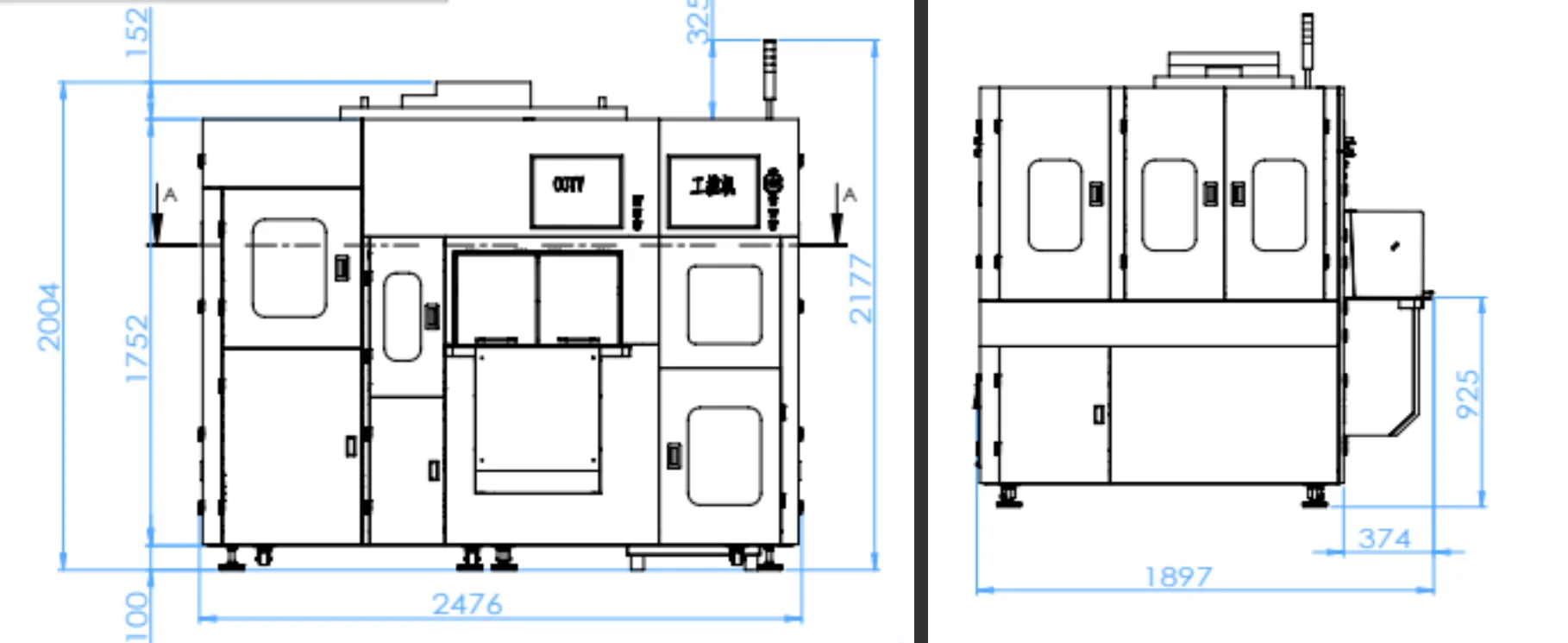

Equipment Dimensions:
