Double Station Single Side Glovebox , China Double Station Single Side Glovebox Manufacturers, Suppliers, Factory

Product Description

The glovebox is a laboratory equipment that fills the chamber with high-purity inert gas, circulates and filters O2, H2O, organic gases and other substances. It is also called vacuum glovebox, inert gas protection box, etc. The main function is to remove O2, H2O and organic gas. It is widely used in ultra-pure environments without O2, H2O and dust, such as lithium ion batteries and materials, semiconductors, super capacitors, special lamps, laser welding, brazing, material synthesis, OLED, MOCVD, etc., but also biological applications, such as anaerobic bacteria culture, cell hypoxia culture, etc.

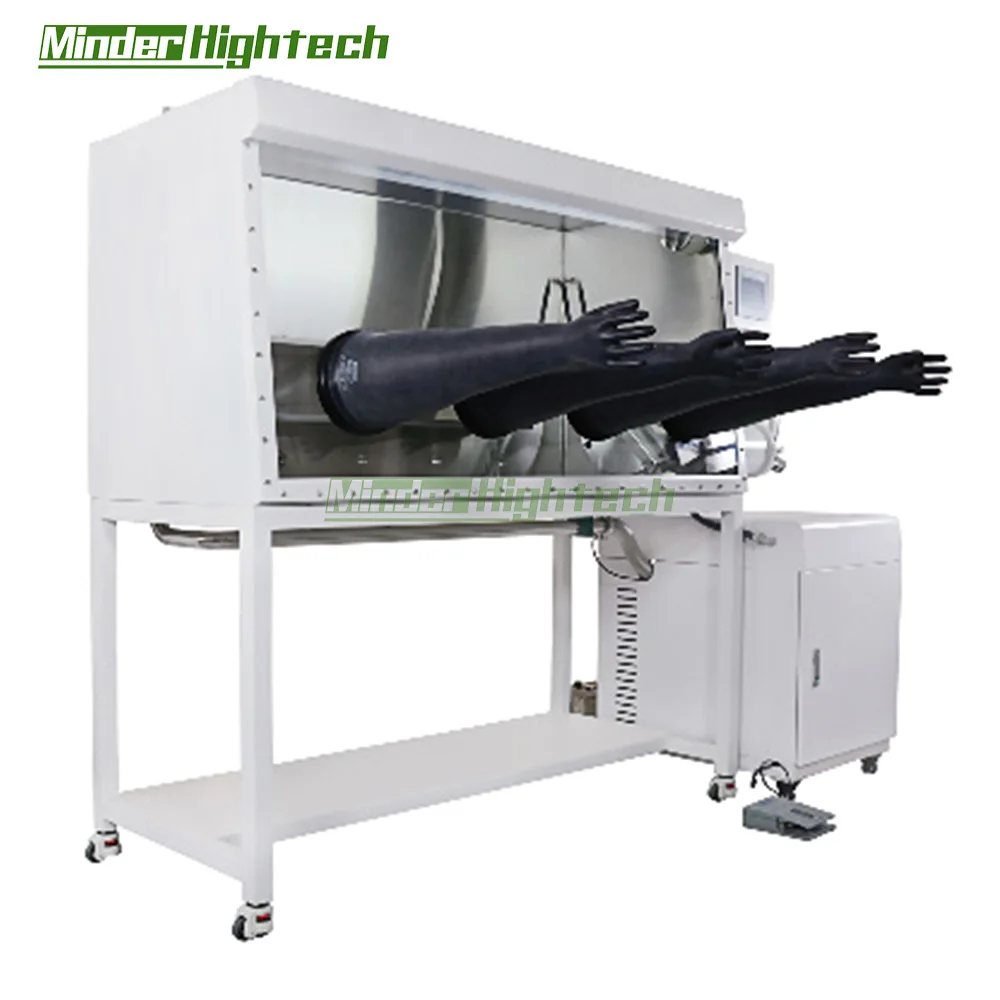

Dual station glove box

Dimensions: 3150mm × 750mm × 1900mm Working dimensions: 2400mm × 750mm × 900mm Water content:<0.1ppm, can reach 0.01ppm Oxygen content:<0.1ppm, can reach 0.01ppm Box leakage rate: ≤ 0.001vol%/h, can reach 0.0008vol%/h

Application:

Lithium batteries, semiconductors, laboratories, physics, materials, chemistry, pharmaceuticals, metallurgy, lasers,
photovoltaics, aerospace, and more.

Feature:

Ultra low leakage rate: leakage rate<0.001 vol%/h;
Ultra high cleanliness: high-efficiency HEPA filter, ISO3 level cleanliness;
Ultra low power consumption: Most of the time, the energy consumption is less than 60W;
Professional gas path design: professional fluid software design, noise free;
Professional leakage alarm: automatic monitoring of glove box leakage rate;
One click calibration of analyzer: One click calibration of analyzer on display screen;
Comprehensive data recording: capable of recording 02 H20、 Pressure and time;
Mobile app control: remote control and real-time monitoring on mobile phones.

Principle:

The working gas in the glovebox is between the chamber and the purification column (H2O and O2 adsorber), and it is closed circulated through pipes, circulation blowers, etc. under the control and monitoring of PLC. When the working gas circulates through the purification column, its moisture and oxygen are adsorbed and then returned to the chamber. As the cycle time passes, the H2O and O2 content of the working gas in the chamber will gradually decrease and eventually reach the index of less than 1 ppm. The purification column will saturate after a certain period of cycle, and can be regenerated and reused.

Double O-ring Sealed Flange Viewing Window:

The viewing window flange is made from a single piece of thick stainless steel plate, laser-cut into a rectangular ring shape for high overall strength and resistance to impact and deformation. The entire flange viewing window and annular sealing groove are machined in one piece using a large gantry machining center, creating a double dovetail sealing groove. The flatness of the sealing support surface and the bottom surface of the sealing groove is <0.05 mm/m.
The flange viewing window and the box body are joined using a continuous cooling welding method. The welds are strictly inspected for defects using non-destructive testing, ensuring no leaks at the welding points.
A double-groove vacuum isolation sealing method is employed, using two integral annular "O" rings embedded in the integral annular groove. Both the inner and outer sealing rings are seamless. The vacuum between the double layers of seals effectively prevents the diffusion of H2O, O2, and N2 molecules from the air into the glove box and the diffusion of toxic molecules out of the glove box, achieving a leak-free effect. The box body leakage rate is <0.0005 vol%/h, achieving a leak-free result.

Chamber	size	Mini Antechamber	Main Antechamber
	size			diameter 150mm, length 330mm	diameter 360mm, length 600 mm (optional diameter 390mm)
		material	304 stainless steel
		surface	wire drawing inner surface, painted exterior surface
Accessories	tray	stainless steel mirror processing, sliding tray
		chamber door	double doors	double doors, anodised aluminum, with booster structur
		pressure gage	Wika vacuum oil gauge or digital display
Control	operation	PLC control or manual operation

Type specification

Single side Single station

Single side three gloves

Single side double stations

Double sides double stations

Double sides four stations

length*height*width(mm)

1200x900X750

1500x900X750

1800x900X750

2400x900X750

1200x900X1000

1800x900X1000

2400x900X 1000

Chamber material

304 stainless Steel

Material thickness

3mm

Rack height

950mm

Main Antechamber

Φ360XΦ600 or Φ390X600 mm

Mini Antechamber

Φ150 X 330 mm

Gloves

2 PCS

3 PCS

4 PCS

8 PCS

Glove part material

Alumina Oxide/POM

Volume

0.8 ㎡

1.0 ㎡

1.2 ㎡

1.6 ㎡

1.1 ㎡

1.6 ㎡

2.2 ㎡

Leak rate

0.001vol%/h

H2O inder

＜0.1ppm

02 inder

＜0.1ppm

Equipment Real Shoots

Packing & Delivery

Company Profile

Since 2014，Minder-Hightech is sales and service representative in Semiconductor and Electronic product industry equipment. We are committed to providing customers with Superior, Reliable, and One-Stop Solutions for machinary equipment. Until today, our brand's products have spread to major industrialized countries around the world, helping customers improve efficiency, reduce costs, and improve product quality.

FAQ

1. About Price:
All of our prices are competitive and negotiable. The price varies depending on the configuration and customization complexity of your device.

2. About Sample:
We can provide sample production services for you, but you may provide some fees.

3. About Payment:
After the plan is confirmed, you need to pay us a deposit first, and the factory will start preparing the goods. After the equipment is ready and you pay the balance, we will ship it.

4. About Delivery:
After the equipment manufacturing is completed, we will send you the acceptance video, and you can also come to the site to inspect the equipment.

5. Installation and Debugging:
After the equipment arrives at your factory, we can dispatch engineers to install and debug the equipment. We will provide you with a separate quotation for this service fee.

6. About Warranty:
Our equipment has a 12-month warranty period. After the warranty period, if any parts are damaged and need to be replaced, we will only charge the cost price.

7. After-sale Service:
All machines have a warranty period of over one year. Our technical engineers are always online to provide you with equipment installation, debugging, and maintenance services. We can provide on-site installation and debugging services for special and large equipment.
