Customized Fully Automatic Drilling and Tapping Lock Wooden Stick Machine

Customized Fully Automatic Drilling And Tapping Lock Wooden Stick Machine

Equipment Features:

1. The machine combines three workflow requirements, streamlining operations and increasing overall efficiency.

2. Operable by a single operator, it saves on labor and costs.

3. Robotic arm grips the Spülbürste in the air, ensuring the bristles remain undamaged.

4. Angling the drilling and tapping operations at the bottom allows for easier wood chip collection.

5. With a capacity of 300PCS, the Griff hopper feeds the material to be automatically grasped by the robotic arm.

6. Robotic arm loads the griff into the spülbürste, ensuring the proper alignment of the griff hooks.

7. After completion, the robotic arm picks up the finished product and transfers it to the external material bin.

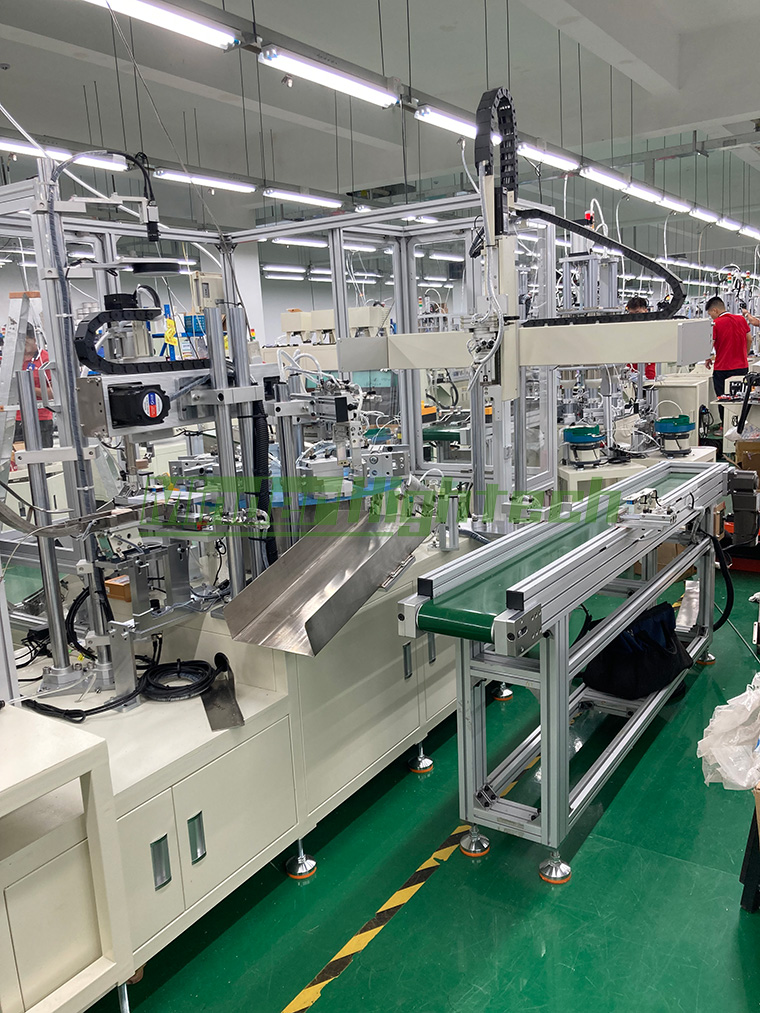

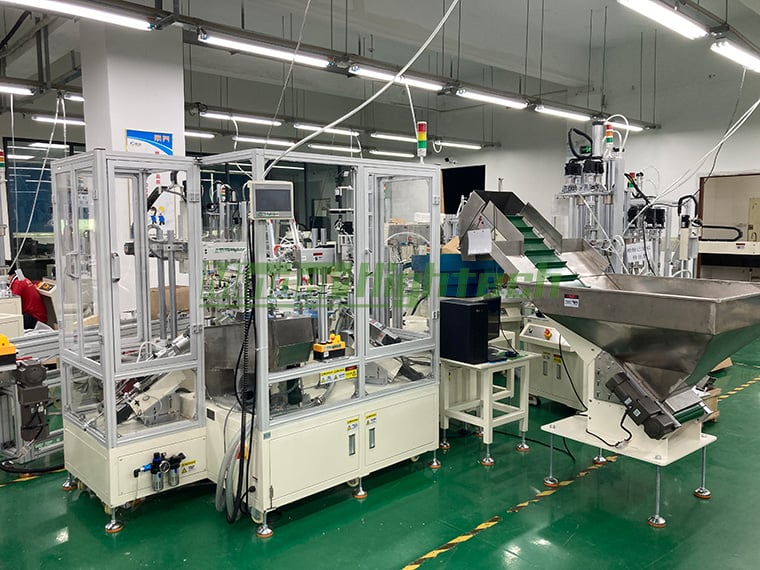

Product photos:

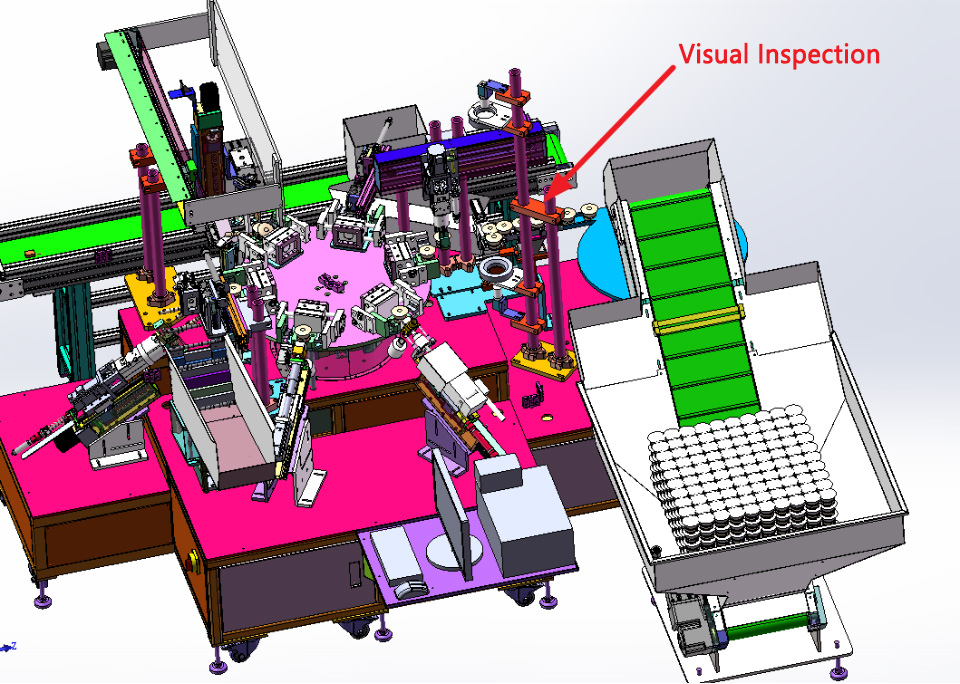

Equipment Reference Drawing:

Equipment technical parameters:

1.  Machine characteristics:

This equipment is a 6-axis Automatic machine for drilling, tapping, and tightening threaded handles. with 1-axis Clamping Wash brush, 1-axis drilling , 1-axis tapping, 1-axis Place Grip, 1-axis tightening threaded handles, 1-axis robotic arm takes out. The Wash brush flows out of the vibration feeder and automatically in the Clamping, and the second station drills, Third stop drilling thread. Grip Simultaneously clamped onto the mechanical claw. Grip and Wash brush Automatically enter the tightening station. Complete tightening and automatically leave the workstation. Two systems are running simultaneously, producing 500PCS in 1h.

2.  Action steps:

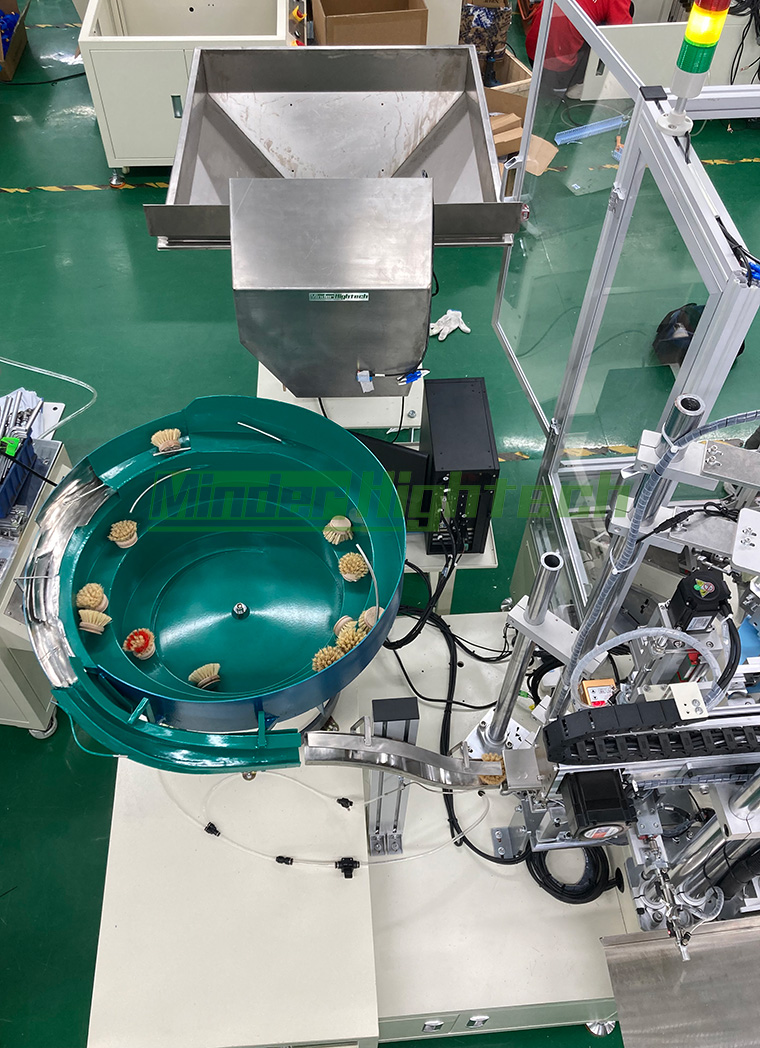

Starting the machine > Vibratory bowl feeder automatic feeding > 1 PCS Wash brush automatically enter the fixture >  1-axis automatic drilling > 1-axis automatic thread machining > Grip automatically flows out of the hopper > The product automatically disengages > Tightening completed the Grip and Wash brush > After reaching the set count, the conveyor starts automatically > Automatic cycle
