Functions and Workflow:

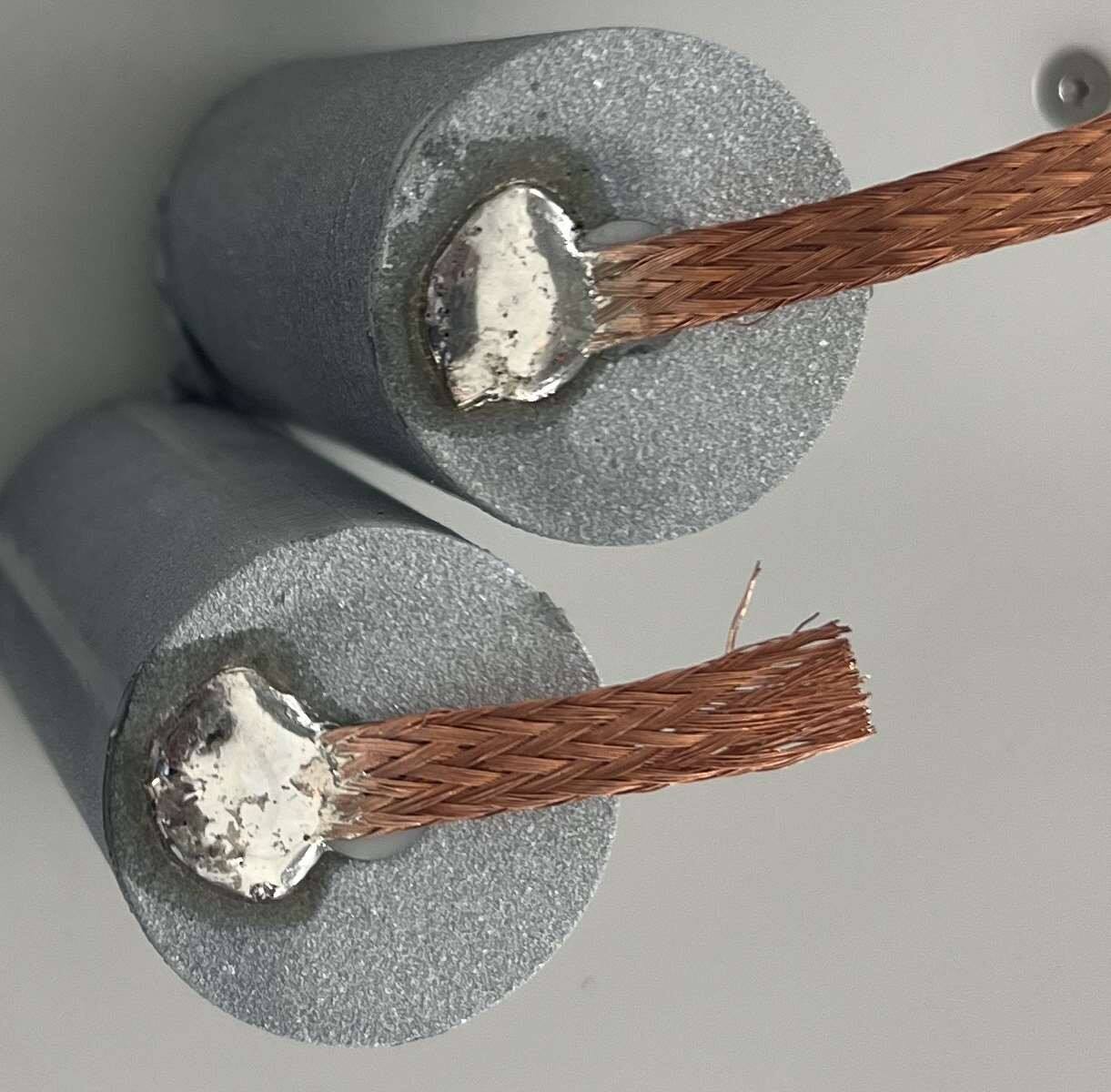

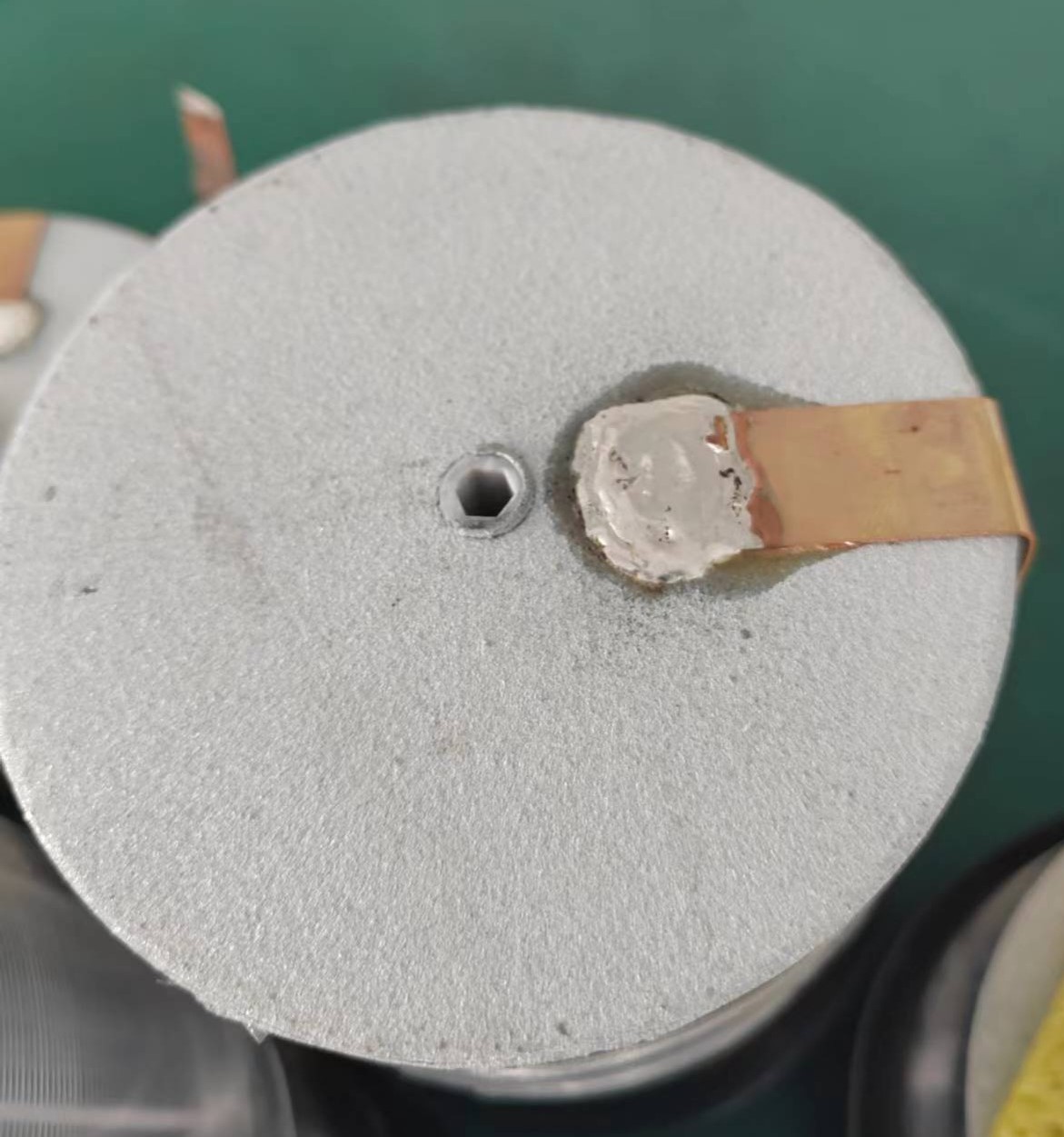

Function: To complete the welding of capacitors to conductive plates (copper plates, wires, mesh belts)
Workflow: Manual loading → Automatic positioning and flipping → Automatic solder feeding → Automatic welding → CCD automatic inspection → Manual removal of the finished product
Technical Parameter | ||
NUM |
Project |
Content |
1 |
Product W |
400mm |
2 |
Product L |
250mm |
3 |
Product H |
150mm |
4 |
Production speed |
3s/Solder joint+3s |
5 |
Work volume |
0.5Mpa |
6 |
Total driving force |
Approximately 1.5 kW / 220V / 50Hz / 2-phase |
7 |
Equipment external dimensions |
4500×1200×1800mm |
FEATURES | ||
NUM |
Content |
|
1 |
Two workstation robot welding, one workstation inspection; |
|
2 |
Customizable functions according to customer requirements; |
|
3 |
Complete product transportation and fixture reflux through linear translation. |
|
4 |
The fixture automatically flips and completes double-sided welding. |
|
