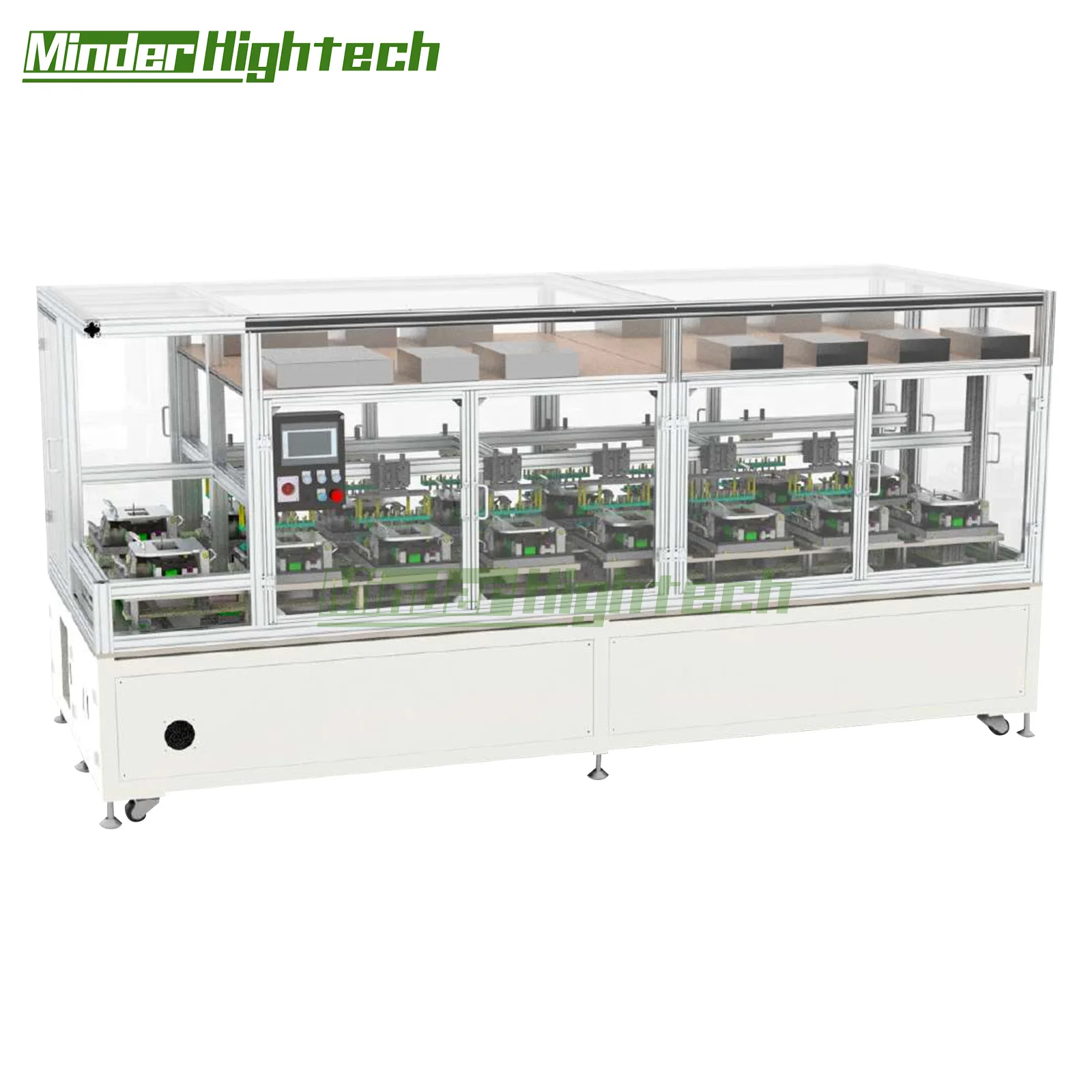

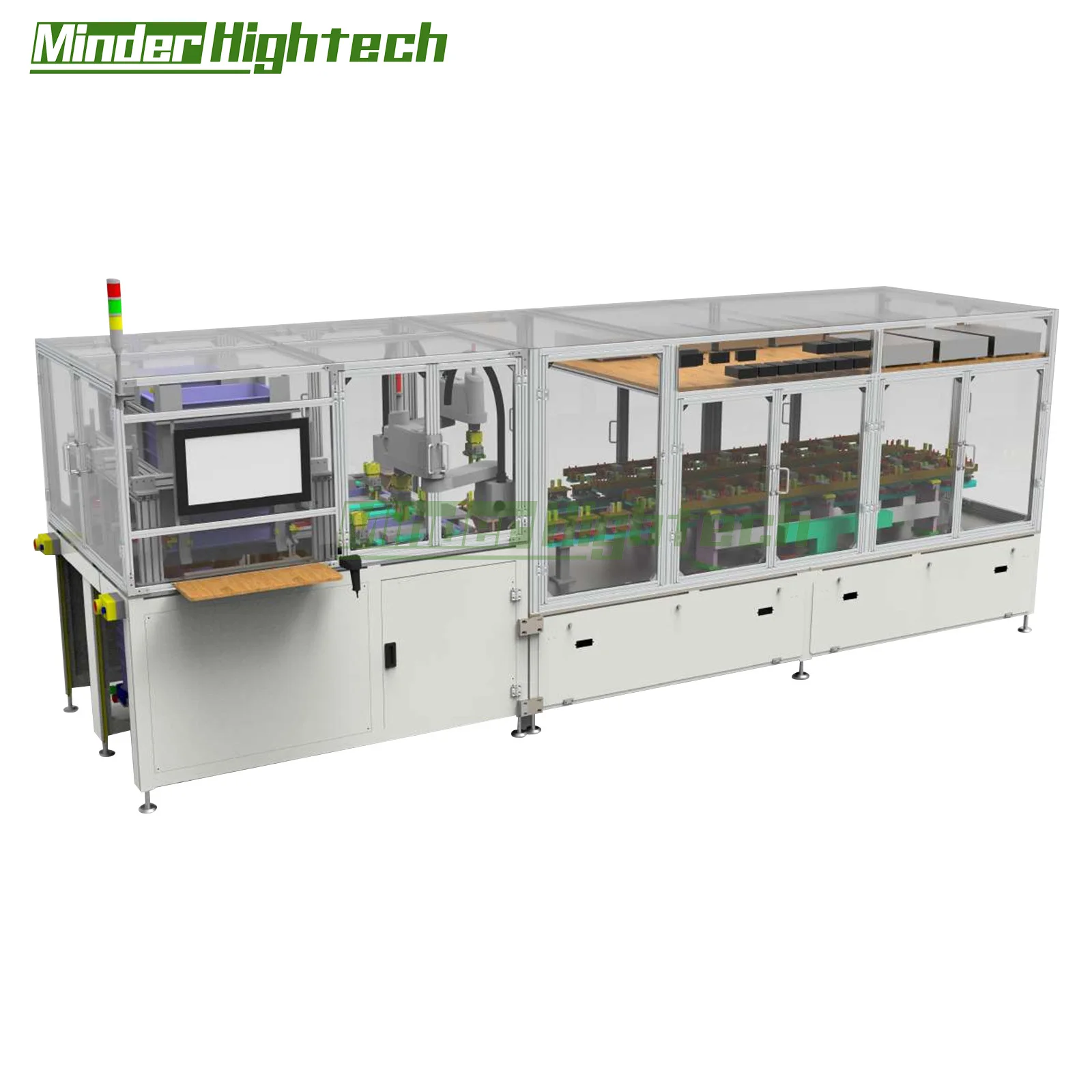

Automotive Film Capacitor Manufacturing Equipment

Function and workflow:
Function: Complete automated production of automotive thin film capacitors

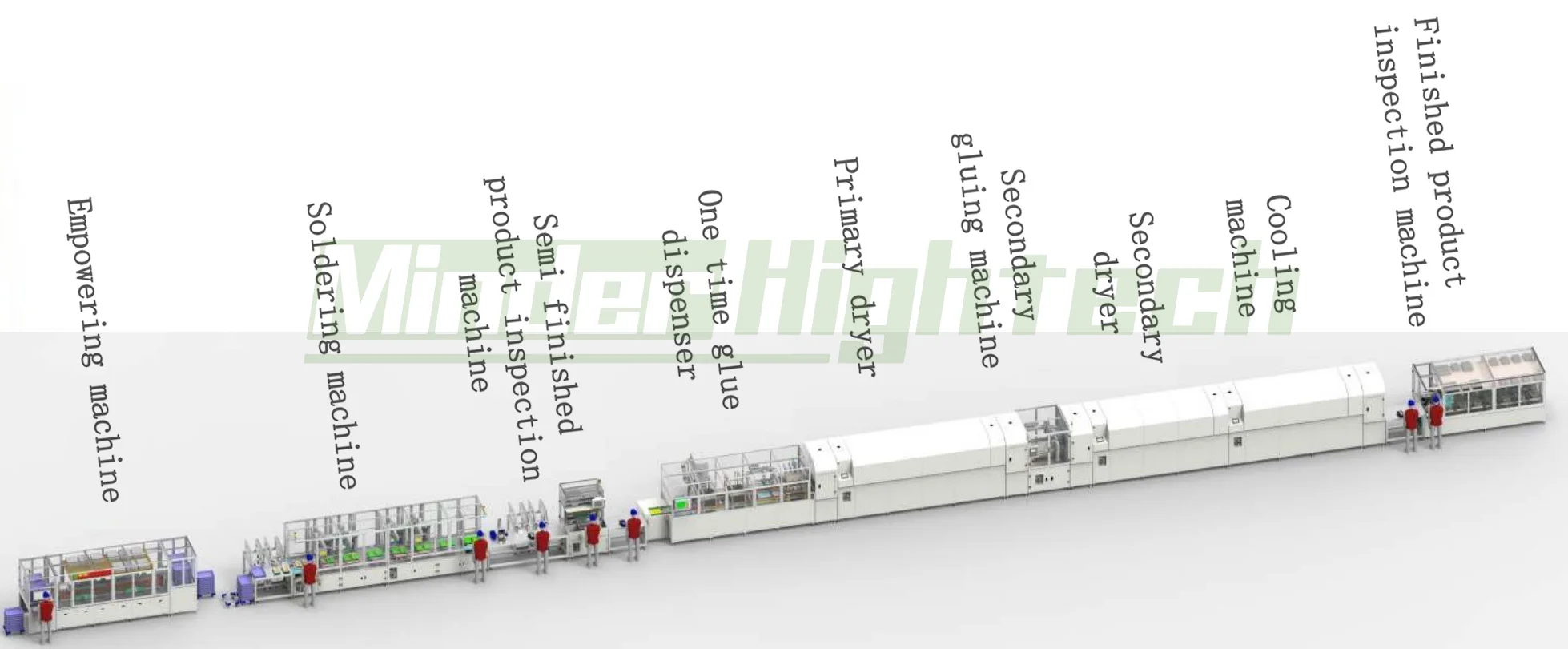

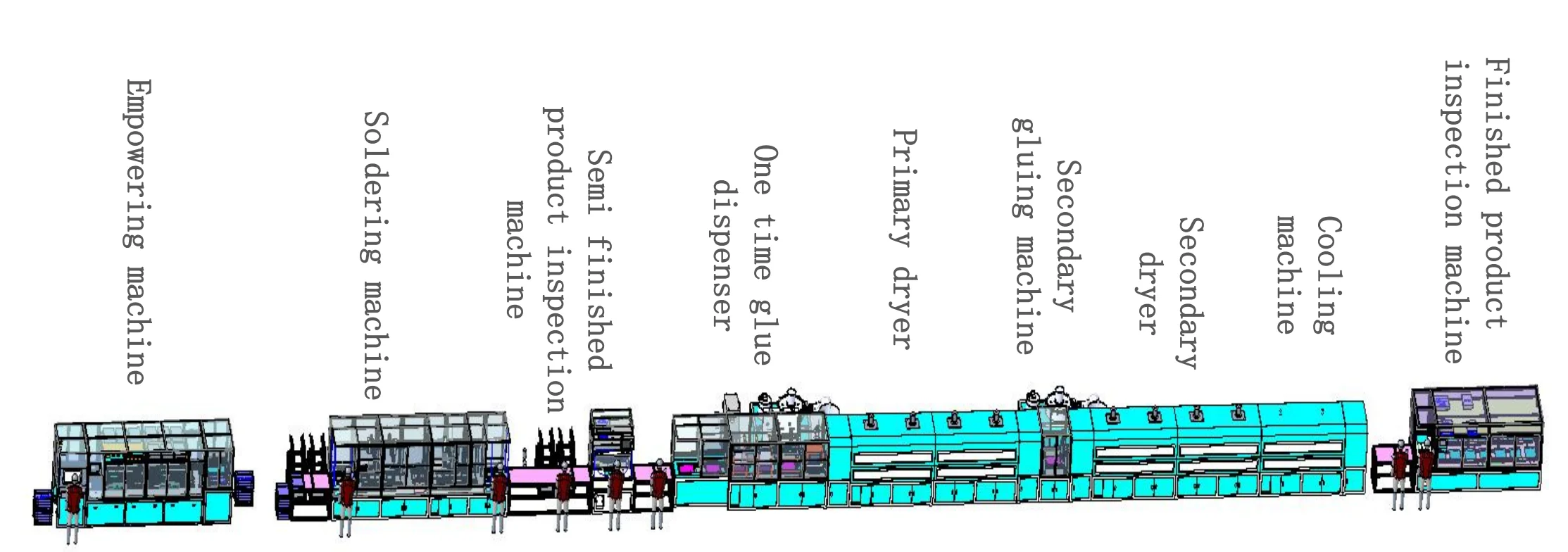

Flow path: Core Enablement→ Welding of core and copper plate → Inspection of semi-finished products → One-time gluing → Dry once → Secondary gluing → Secondary drying →burial→ Finished product inspection

Technical Parameter
NUM	Project	Content
1	Production speed	900PCS/D
2	Work volume	0.5~0.7Mpa
3	Total driving force	Approximately 35KW/AC380/50HZ/3 phase
4	Equipment external dimensions	49000×3000×2000mm

Product Description

Semi-Automatic Capacitor Sandblasting Machine

Functions and Workflow:

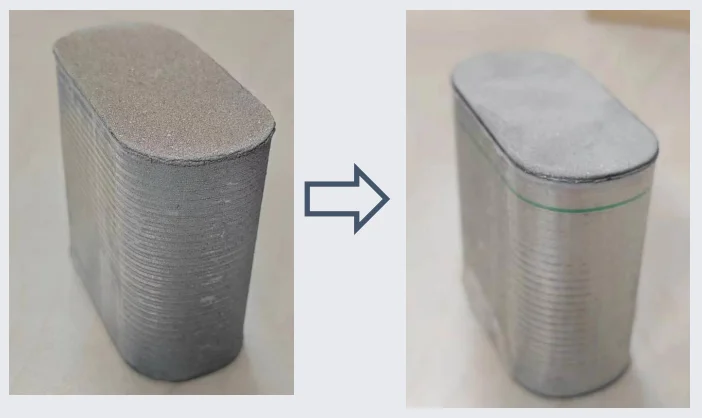

Function: To remove surface residue from metallized film capacitors using a sandblasting process.
Workflow: Manual loading → Automatic conveying → Sandblasting → Automatic output → Manual stacking and tray placement

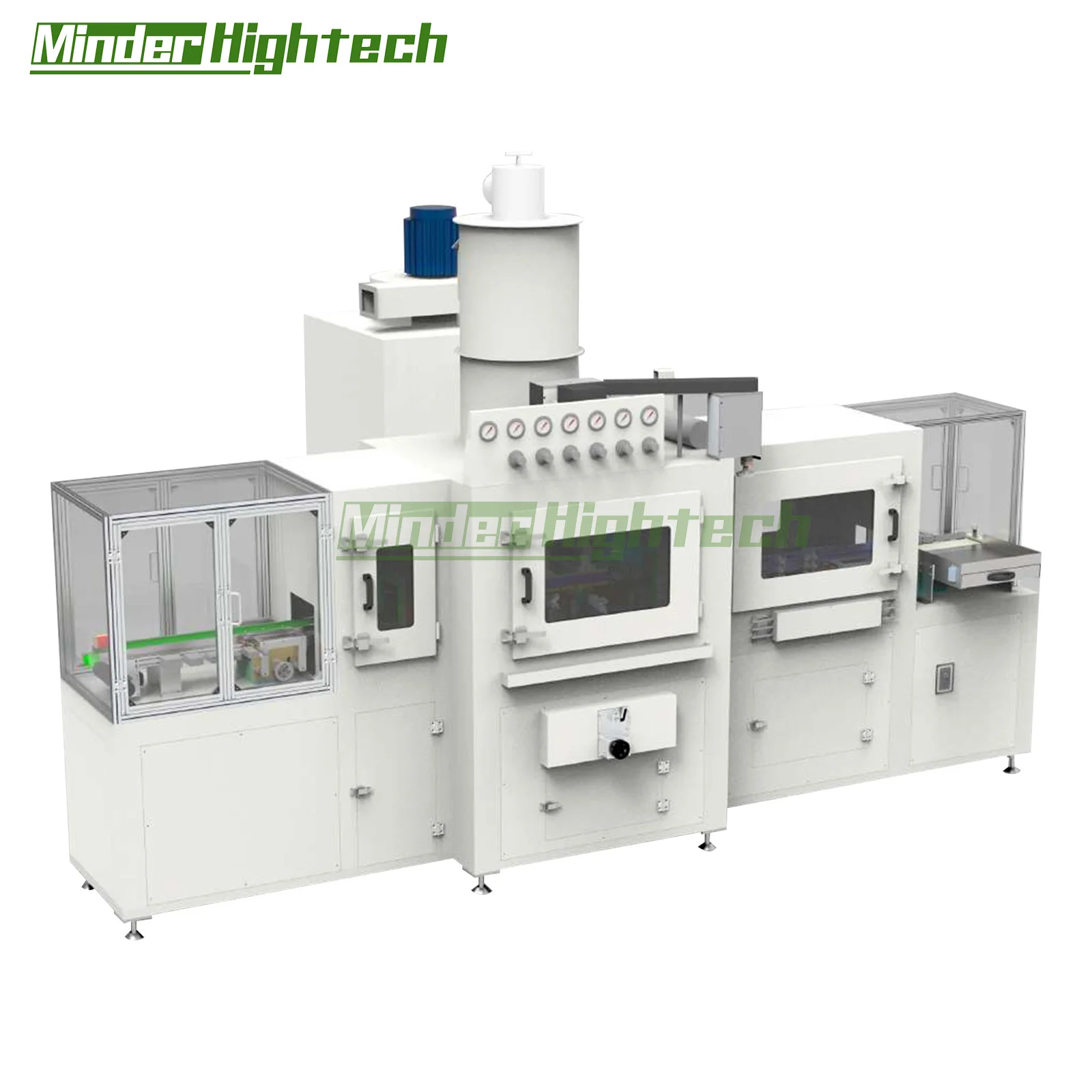

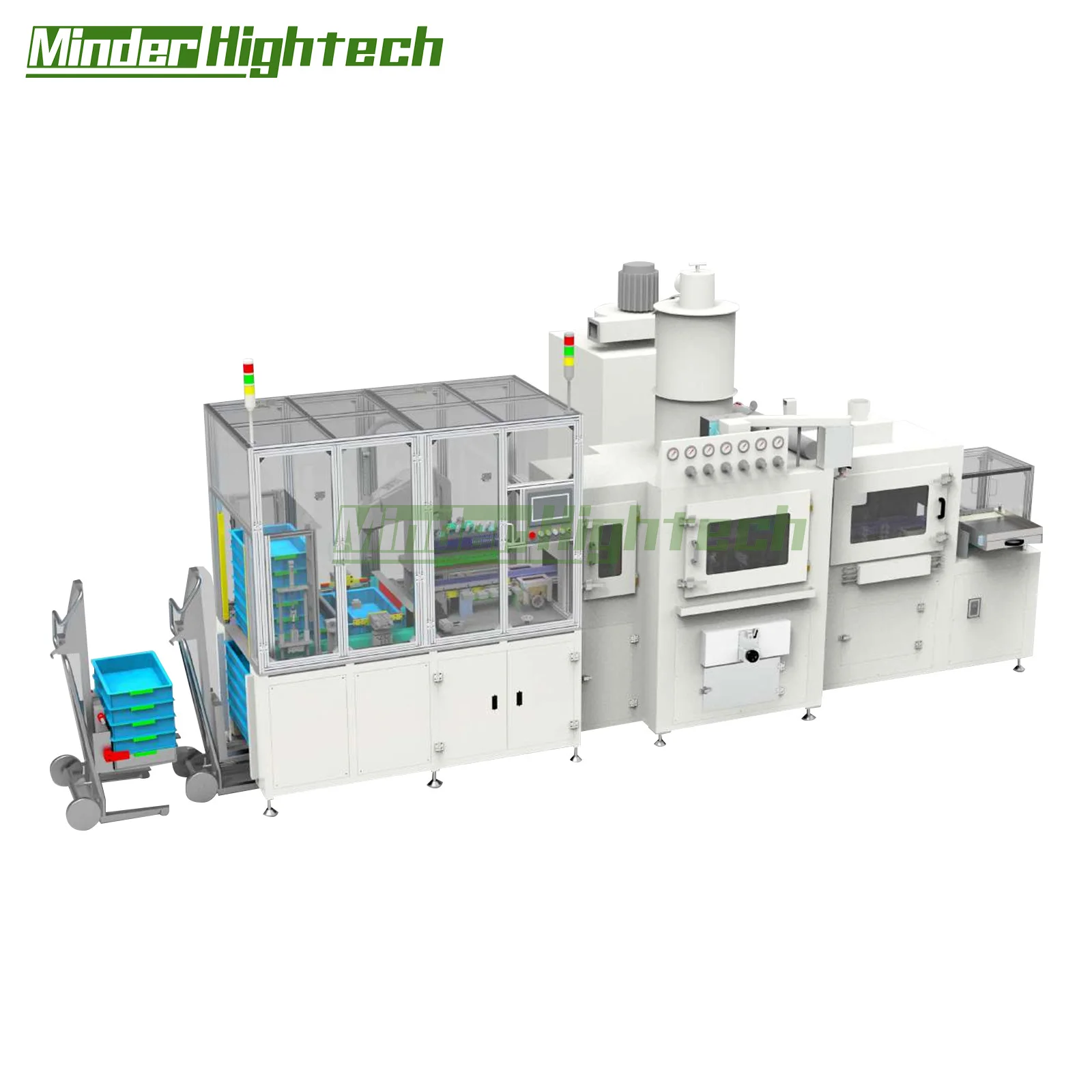

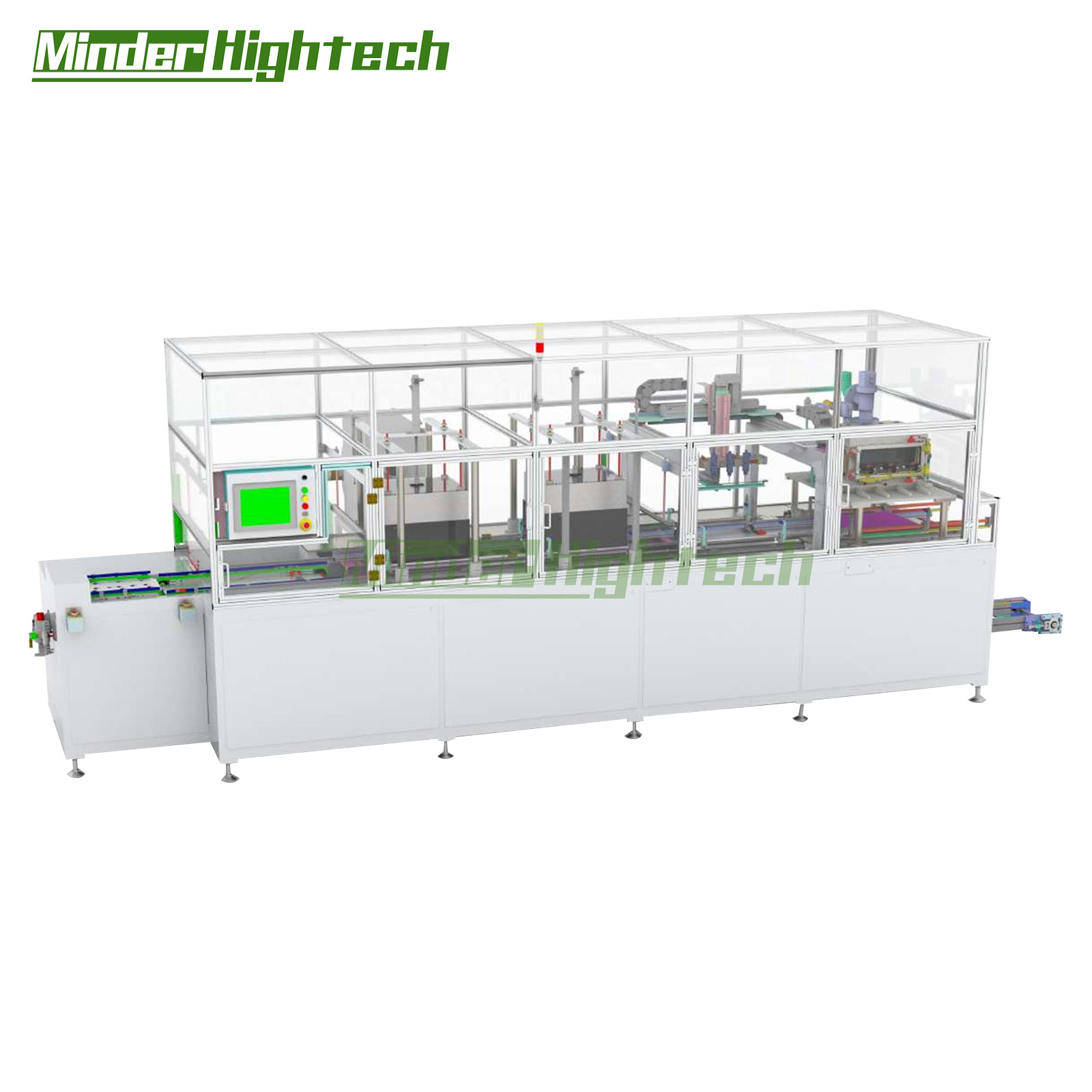

Fully Automatic Capacitor Sandblasting Machine

Functions and Workflow:
Function: To remove surface residue from metallized film capacitors using a sandblasting process.
Workflow: Automatic bin loading → Automatic conveying → Sandblasting → Automatic output → Manual unloading and stacking

Technical Parameter
NUM	Project	Content
1	Product W	20mm~90mm
2	Product L	20mm~90mm
3	Product H	15mm~60mm
4	Production speed	1200mm/min
5	Sandblasting material	glass ball GB#60~#80
6	Work volume	0.4~0.6Mpa
7	Total driving force	4.5KW/AC380/50HZ/3-phase
8	Number of spray guns	6PC
9	Equipment external dimensions	6500×1400×3000mm
10	Equipment noise	Below 90 decibels
11	Sand blasting quantity control	±10%
12	Anti static effect	<0.5kv
FEATURES
NUM	Content
1	Core tray push in, mechanical arm automatically grabs in
2	Including electrostatic dust removal station
3	Customizable functions according to customer requirements;
4	The length, width, and height of the product conveying track are automatically adjusted, and only the product size needs to be set on the touch screen
5	Sandblasting pressure0.12-0.15Mpa ± 0.05Mpa

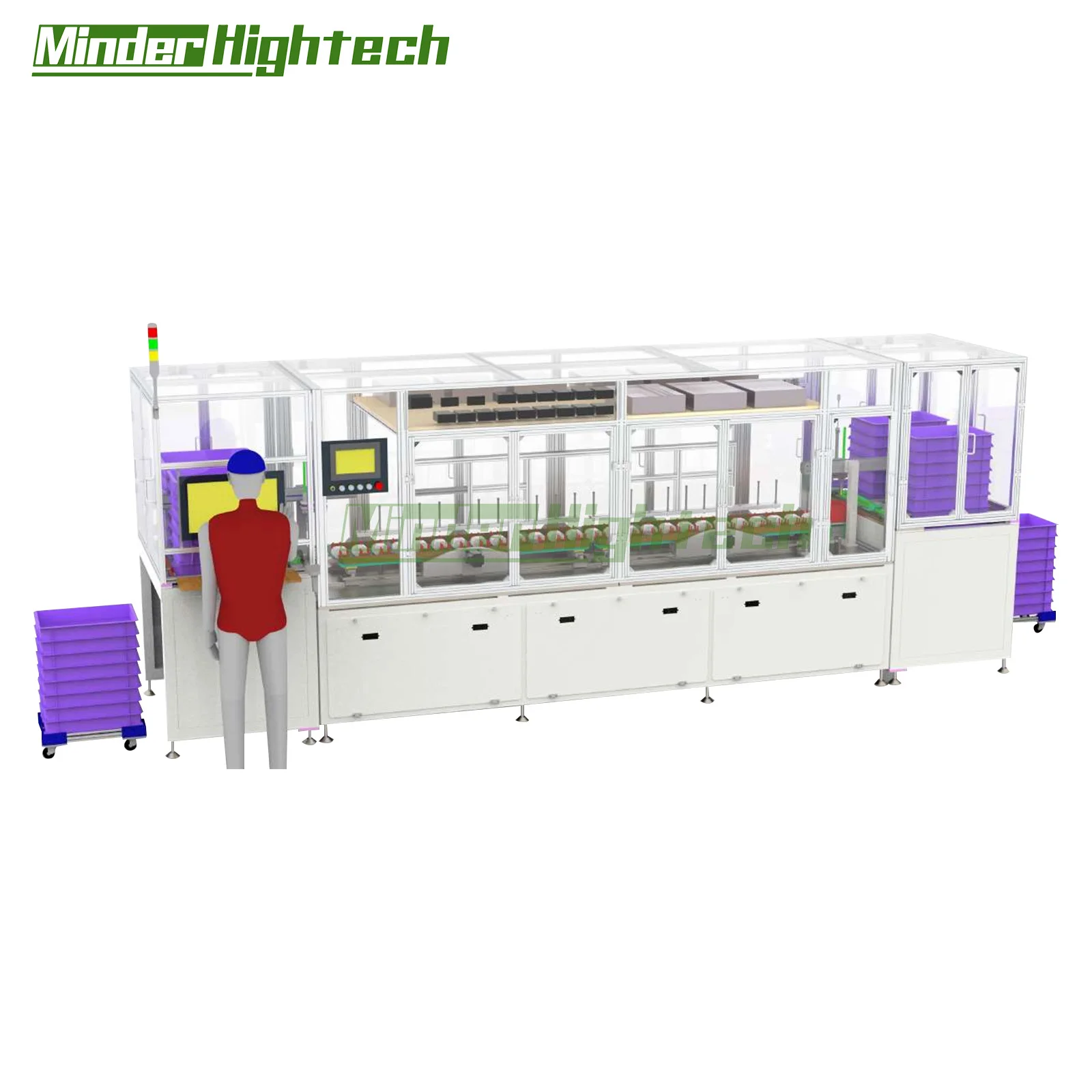

Cyclic Capacitor Enablement Machine

Function and workflow:
Function： Complete capacitor Enablement and performance check
Flow path： Core tray loading → Mechanical arm grabbing → Capacity testing → AC Enablement → DC positive phase Enablement → DC reverse phase Enablement → Capacity/loss testing → ID scanning →Mechanical lower material swinging → Pallet stacking → Data uploading to upper computer（MSE）

Linear Capacitor Enablement Machine

Function and workflow:
Function： Complete capacitor Enablement and performance check
Flow path： Core tray loading → Mechanical arm grabbing → Capacity testing → AC Enablement → DC positive phase Enablement → DC reverse phase Enablement → Capacity/loss testing → ID scanning →Mechanical lower material swinging → Pallet stacking → Data uploading to upper computer.

Technical Parameter
NUM	Project	Content
1	Product W	25mm~90mm
2	Product L	25mm~90mm
3	Product H	15mm~60mm
4	Production speed	3.5S/PCS
5	Work volume	0.5Mpa
6	Total driving force	Approximately 4.5 kW / AC 380V / 50Hz / 3-phase
7	Equipment external dimensions	7000×1400×1800mm
FEATURES
NUM	Content
1	Pushing in the core material tray and automatic gripping by the robotic arm
2	AC/DC four level empowerment;
3	Customizable functions according to customer requirements;
4	The product is transported through a circular guide rail.

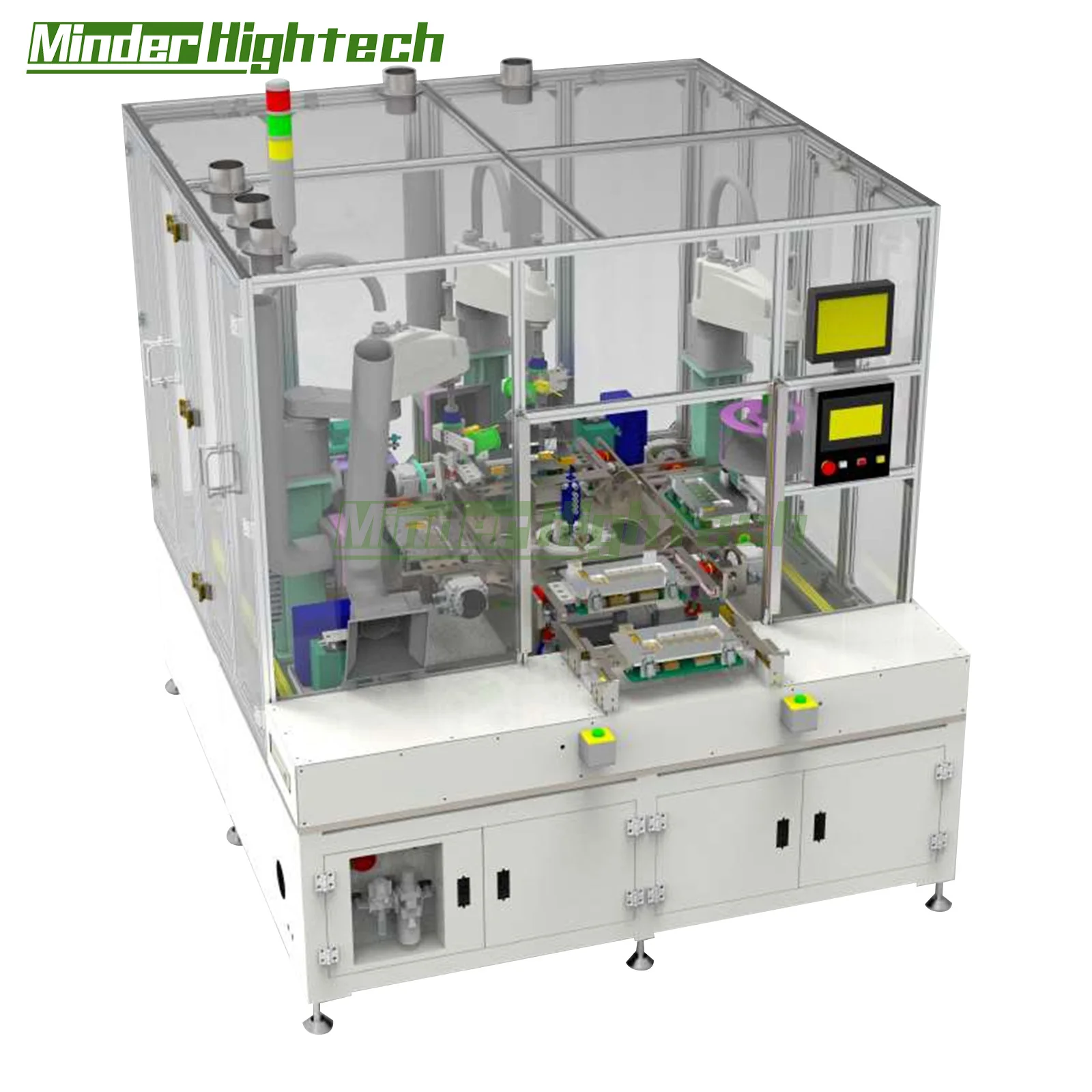

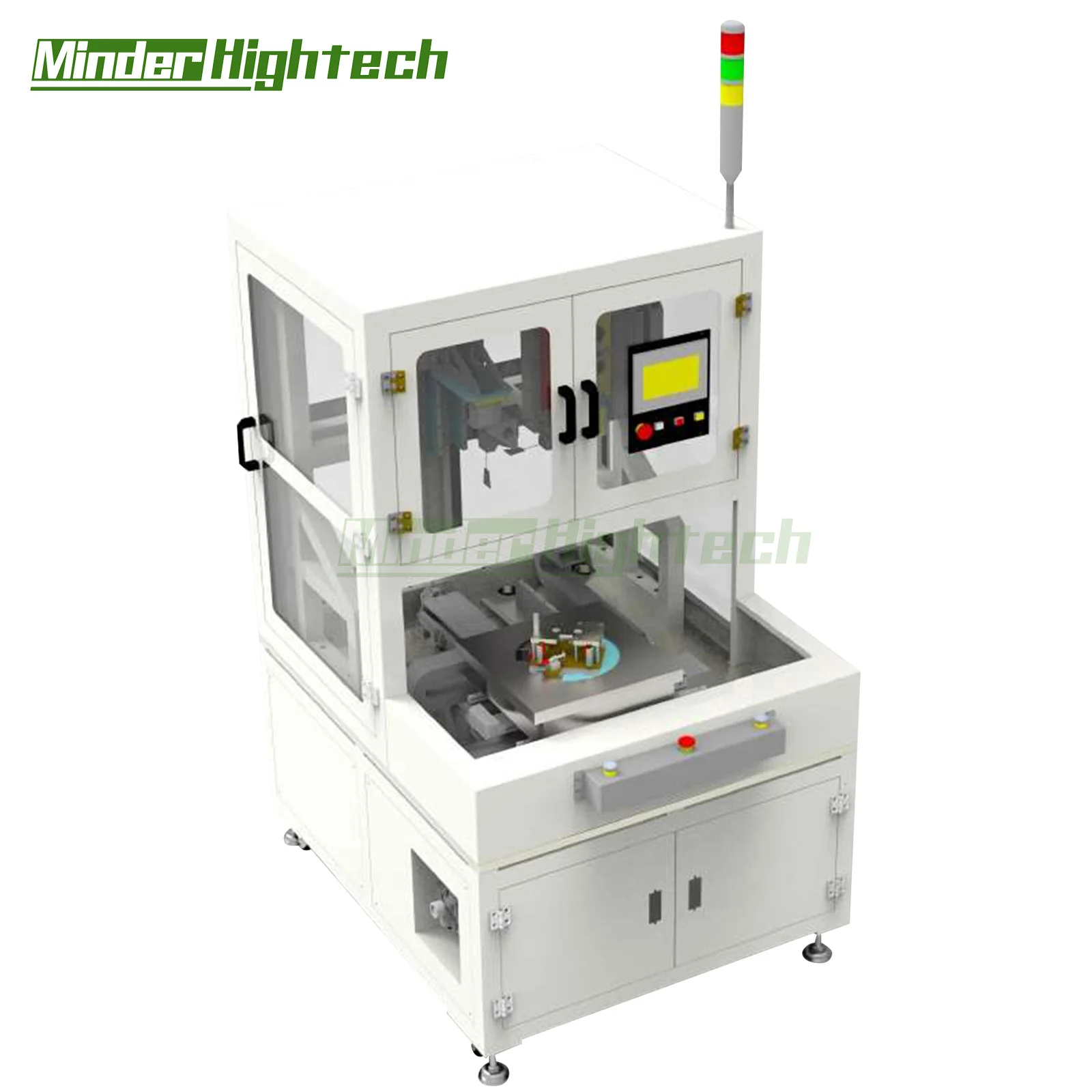

Four station rotary Capacitive Soldering Machine

Functions and Workflow:

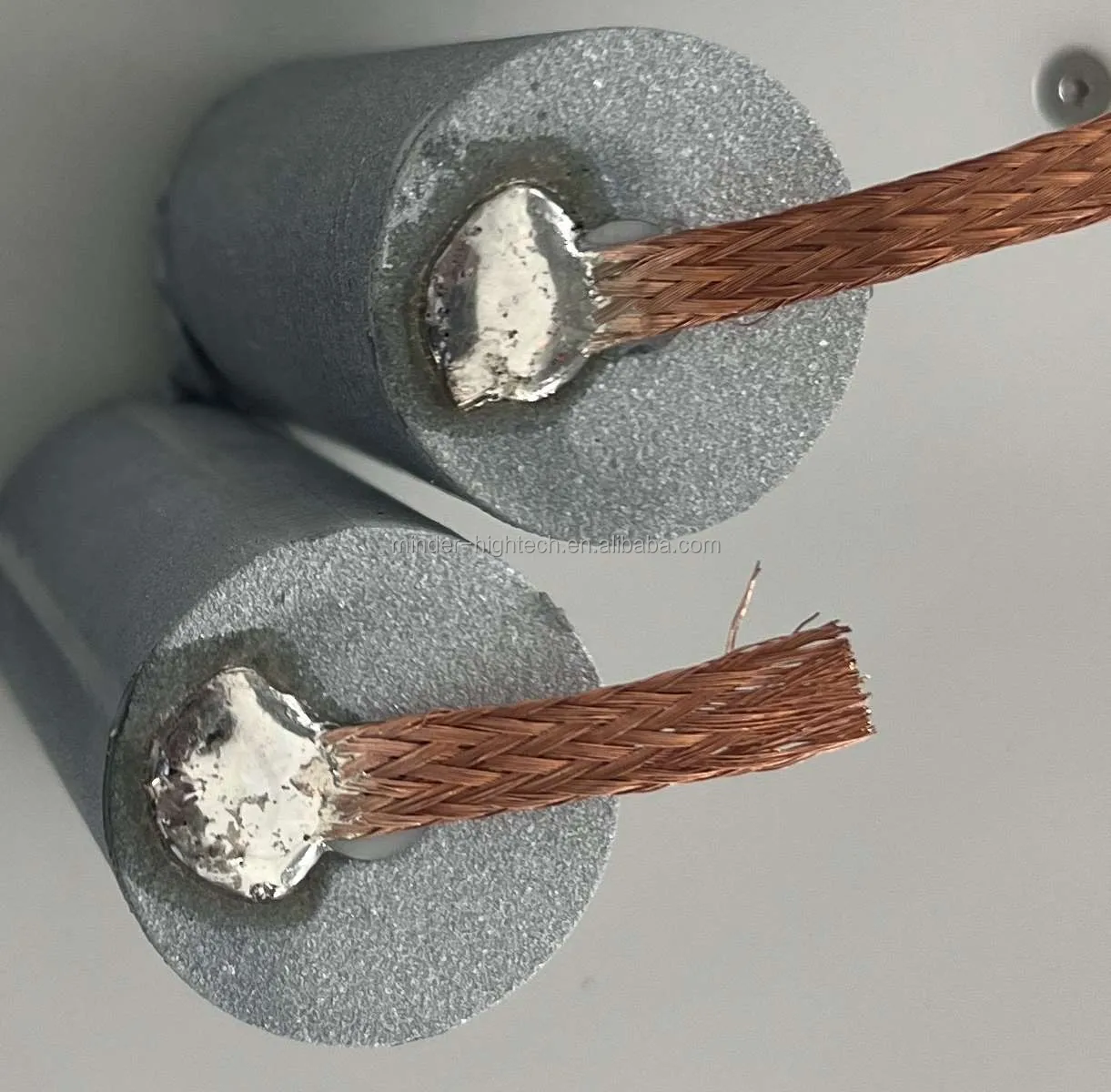

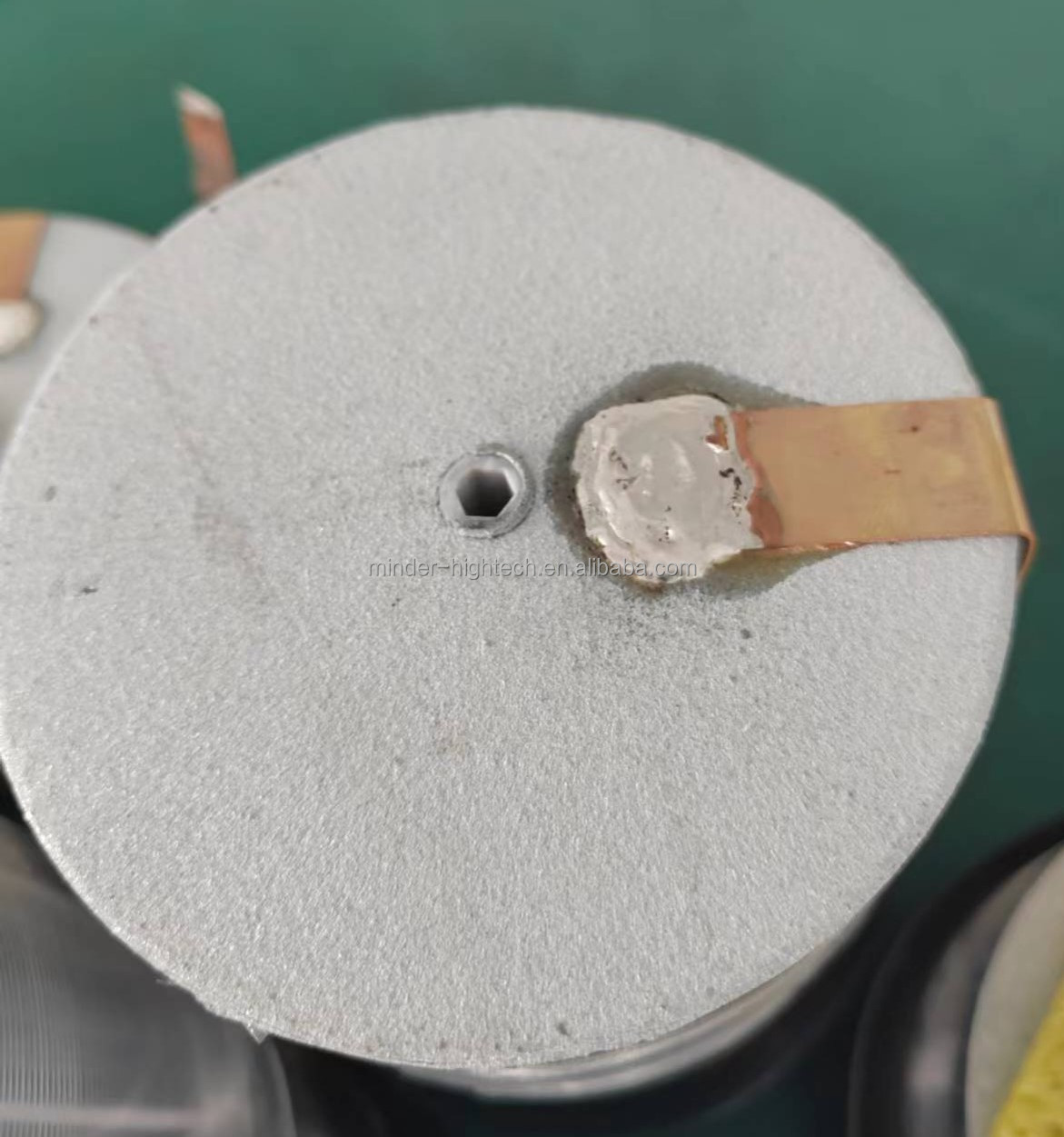

Function: To complete the welding of capacitors to conductive plates (copper plates, wires, mesh belts)
Workflow: Manual loading → Automatic positioning and flipping → Automatic solder feeding → Automatic welding → CCD automatic inspection → Manual removal of the finished product

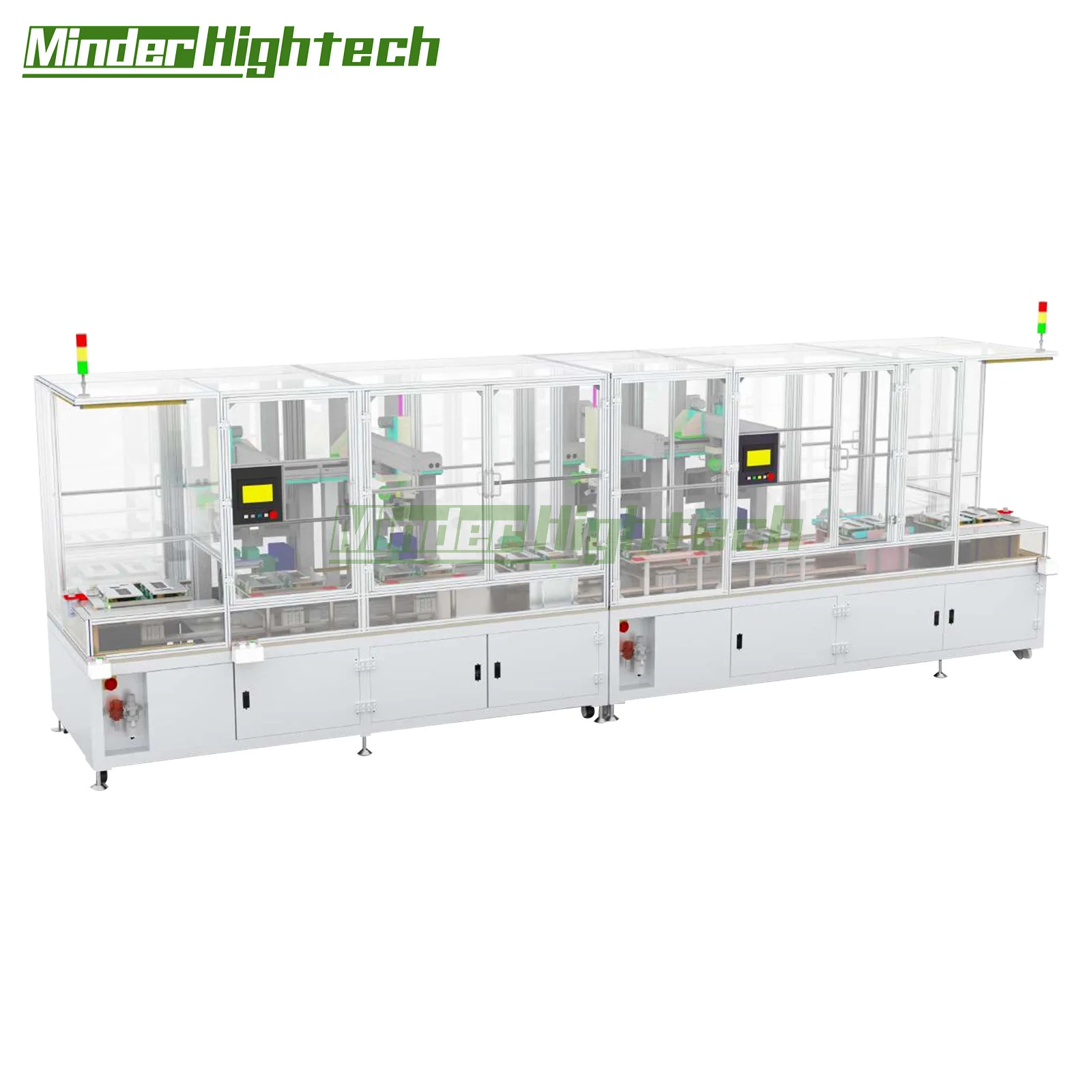

Linear Capacitor Soldering Machine

Functions and Workflow:
Function: To complete the welding of capacitors to conductive plates (copper plates, wires, mesh belts)
Workflow: Manual loading → Automatic positioning and flipping → Automatic solder feeding → Automatic welding → CCD automatic inspection → Manual removal of the finished product

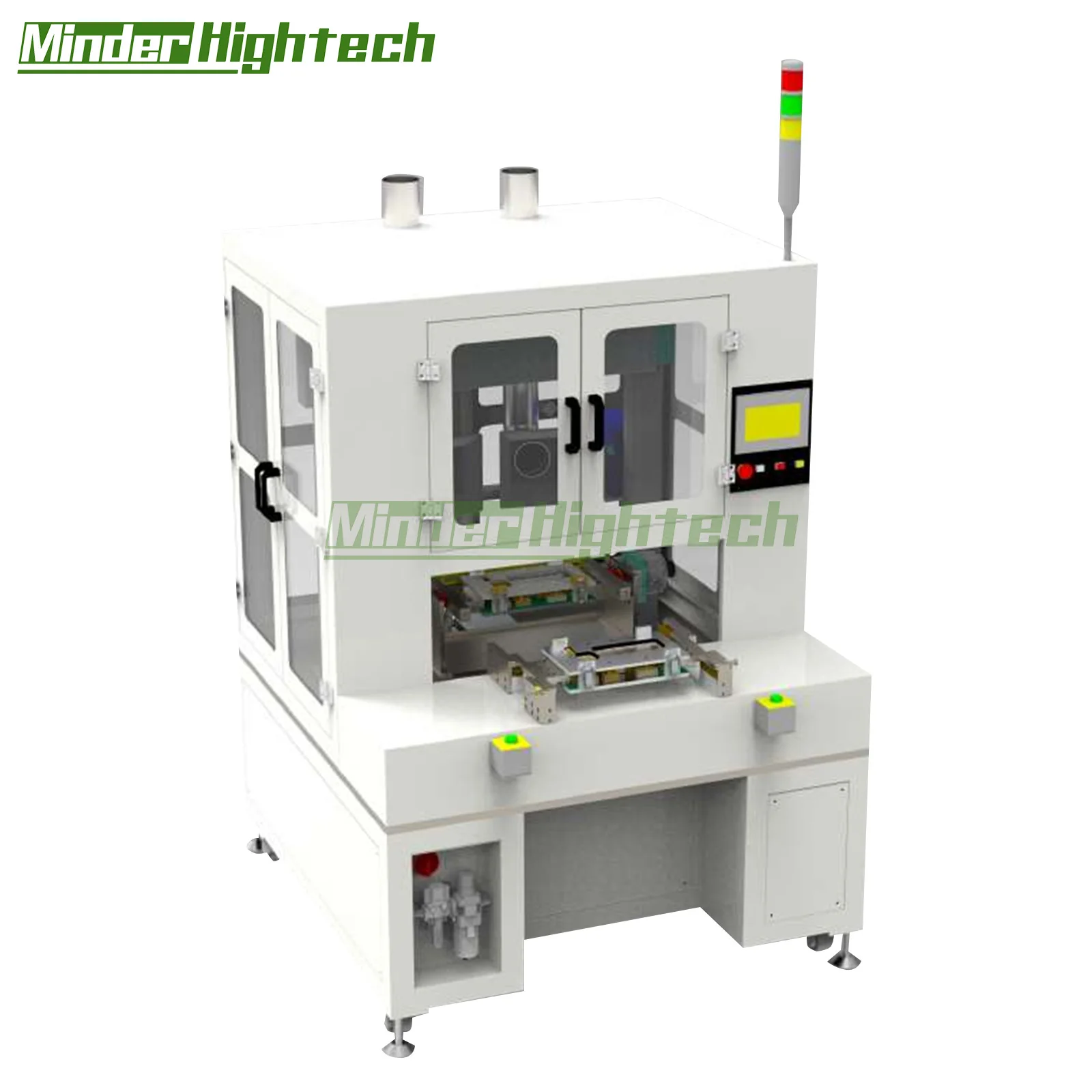

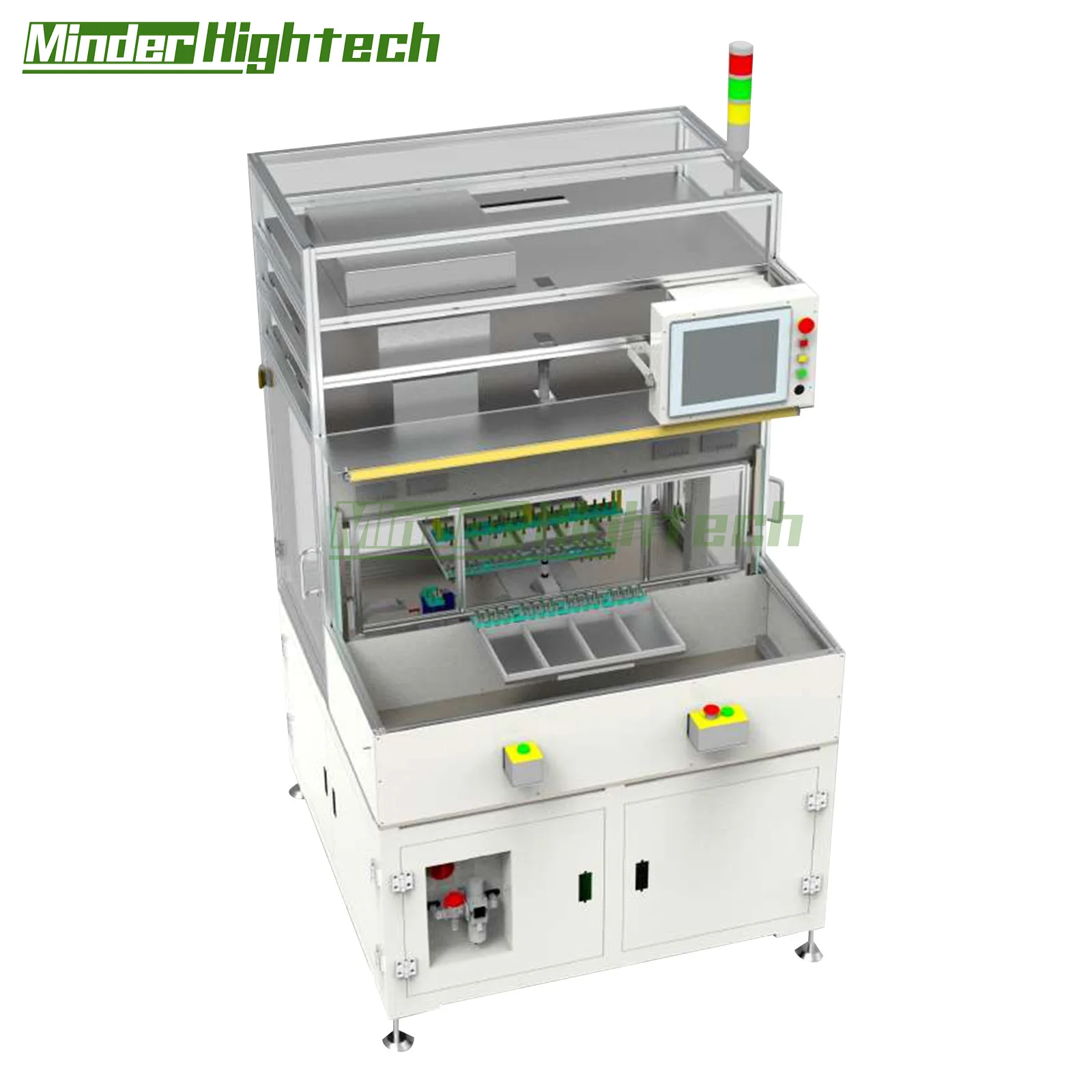

Single Station Capacitor Soldering Machine

Functions and Workflow:
Function: To complete the welding of capacitors to conductive plates (copper plates, wires, mesh belts)
Workflow: Manual loading → Automatic positioning and flipping → Automatic solder feeding → Automatic welding → Manual removal of the finished product

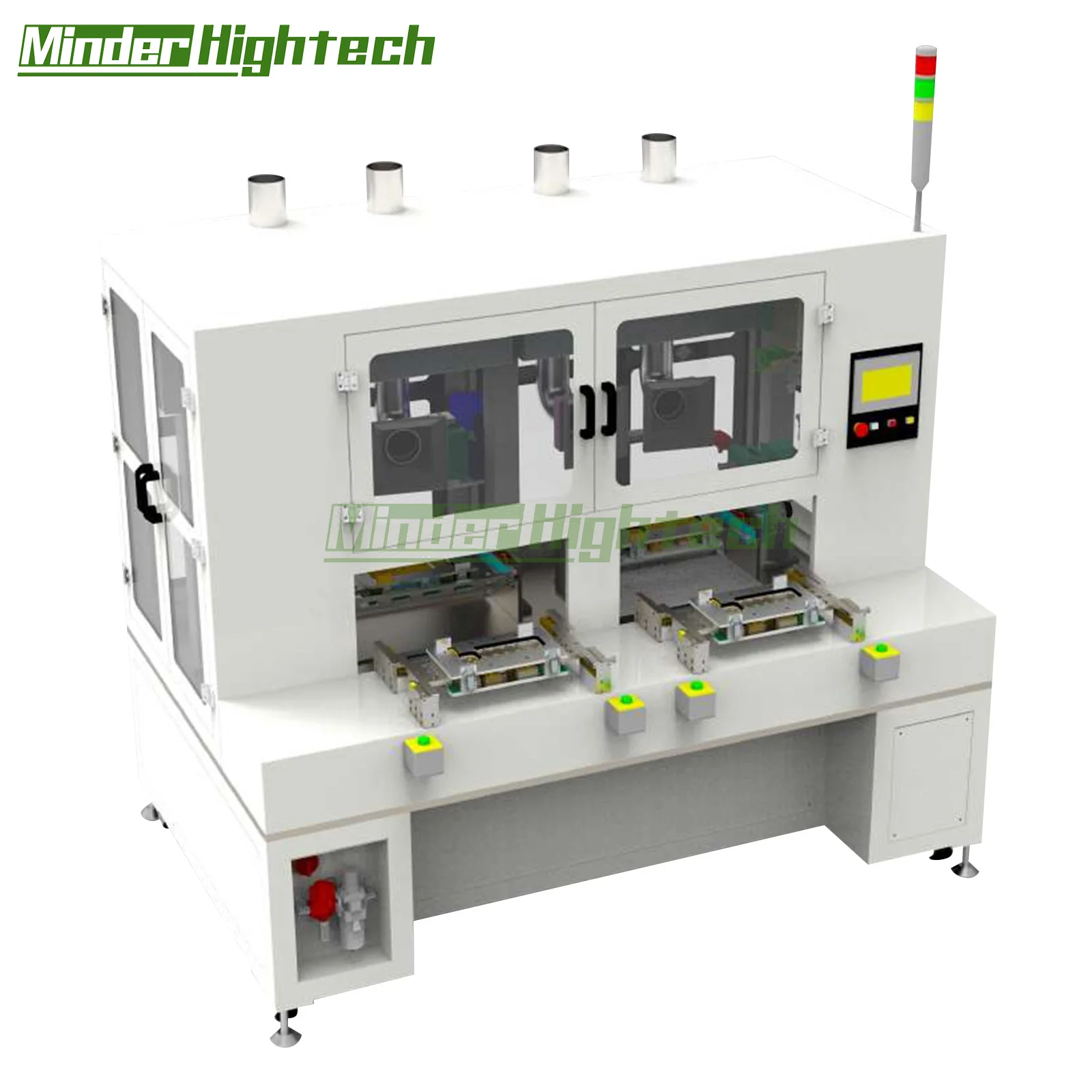

Dual station Capacitor Soldering Machine

Welding temperature drop < 5℃
Welding detachment force > 120N
Independently developed soldering station
Functions and Workflow:
Function: To complete the welding of capacitors to conductive sheets (copper sheets, wires, mesh belts)
Process: Manual loading → Automatic positioning and flipping → Automatic solder feeding → Automatic welding → Manual removal and stacking Dual-station alternating operation

Technical Parameter
NUM		Project	Content
1		Product W	400mm
2		Product L	250mm
3		Product H	150mm
4		Production speed	3s/Solder joint+3s
5		Work volume	0.5Mpa
6		Total driving force	Approximately 1.5 kW / 220V / 50Hz / 2-phase
7		Equipment external dimensions	1800×2000×1800mm
FEATURES
NUM	Content
1	Two workstation robot welding, one workstation inspection;
2	Customizable functions according to customer requirements;
3	Complete the product fixture cycle welding through the splitter turntable.
4	The fixture automatically flips and completes double-sided welding.

Capacitor Gluing Potting Machine

Function and workflow:
Function：Complete the capacitor cavity gluing machine
Flow path：Manual feeding of products → preheating of products →primary gluing → vacuum defoaming → liquid level detection →secondary gluing → product flowing into the oven → manual removal of products → lower layer of fixture flowing back.
Functions and Workflow:
Function: To complete the potting process for capacitor casings.
Workflow: Manual product loading → Product preheating → First potting → Vacuum degassing → Liquid level detection → Second potting → Product enters oven → Manual product removal → Fixture returns to lower layer.

Finished Capacitor Performance Testing Equipment

Suitable for multiple product types and small batch production
Customizable testing parameters and formulas
Compatible with both single and dual capacitors
Automatic printing of defective product labels

Function and workflow:
Function: To perform characteristic testing of single and double capacitor finished products.
Workflow: Capacitor loading → ID code reading → Initial capacitance and loss measurement → DC withstand voltage test → TE insulation test → High-frequency current test → IR insulation test → Capacitance and loss test → ESR value test → Data upload to the host computer.

Finished Capacitor Performance Testing Equipment (Multi station)

Function and workflow:
Function：Complete the finished capacitor performance inspection
Flow path：Capacitor feeding → ID code reading → Initial testing of capacity and loss → DC withstand voltage inspection → TE insulation test → High cycle current inspection → IR insulation inspection → Capacity loss test → ESR value test → Data uploading to upper computer.

Capacitor Size Inspection Machine

Functions and Workflow:
Function: To perform dimensional inspection of finished capacitors.
Workflow: Manual loading → ID code reading → Automatic dimensional testing → Automatic data recording → Automatic pass/fail judgment → Data upload to the host computer.

Technical Parameter
NUM	Project	Content
1	Product W	400mm
2	Product L	250mm
3	Product H	150mm
4	Production speed	4PCS/min
5	Work volume	0.4~0.6Mpa
6	Total driving force	Approximately 1.5 kW / 220V / 50Hz / 2-phase
7	Equipment external dimensions	1000×1500×1800mm
FEATURES
NUM	Content
1	Customizable functions according to customer requirements
2	Space for placing products on fixtures (450X350X170mm)
3	Single station dual channel detection.
4	Bad data printing

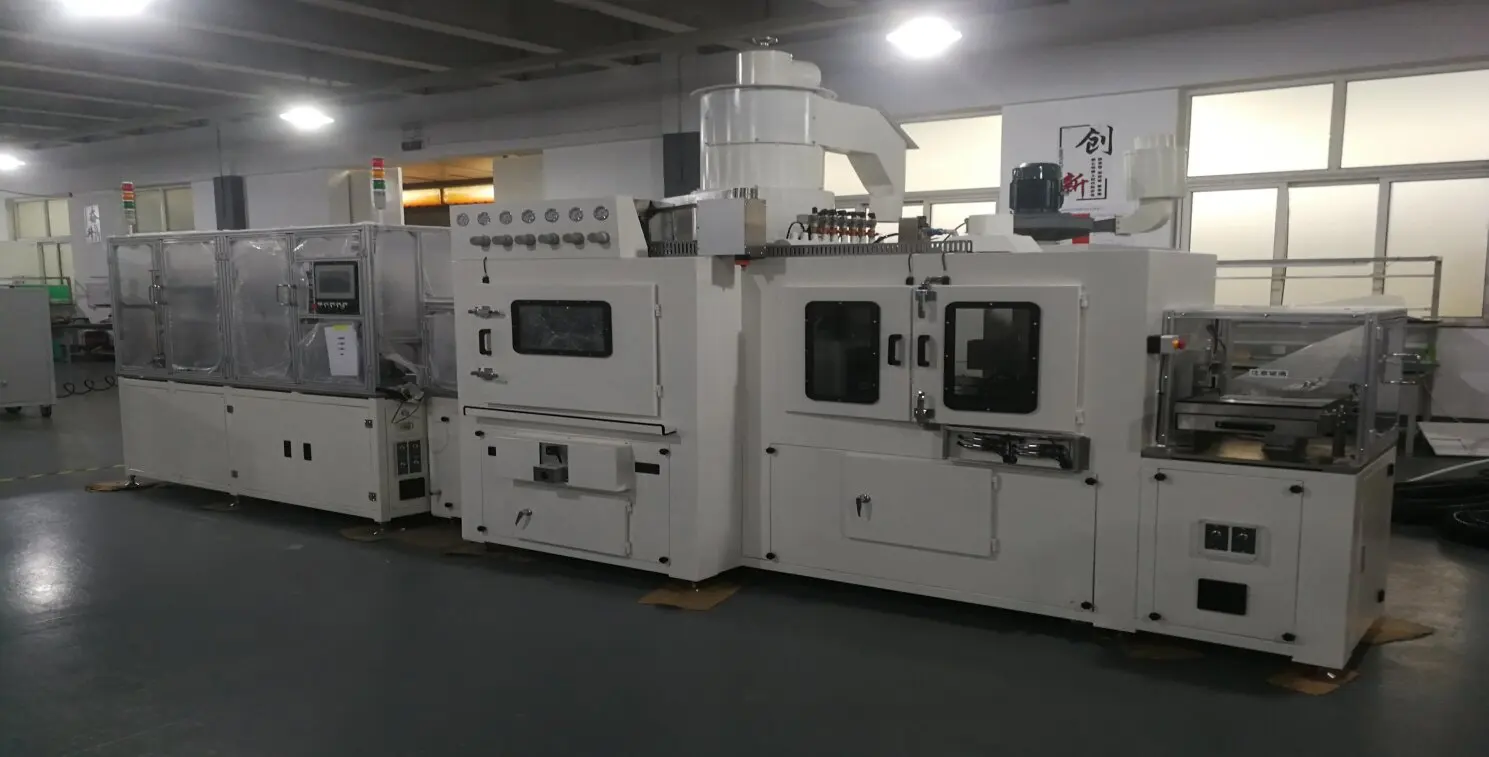

Real Shots

Packing & Delivery

Company Profile
