Automatic Lid Tacking System

Get a Free Quote
Products Description
Automatic Lid Tacking System

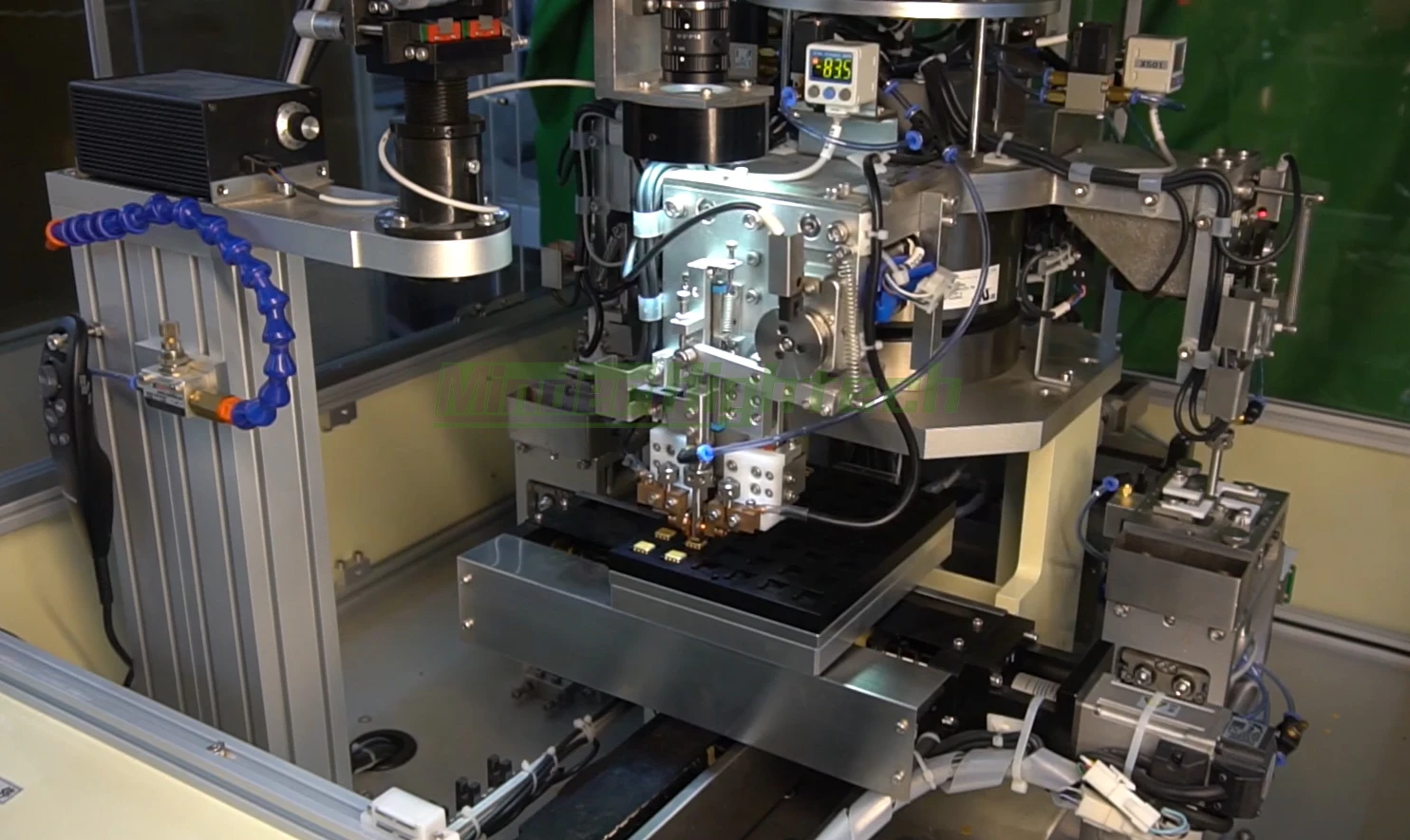

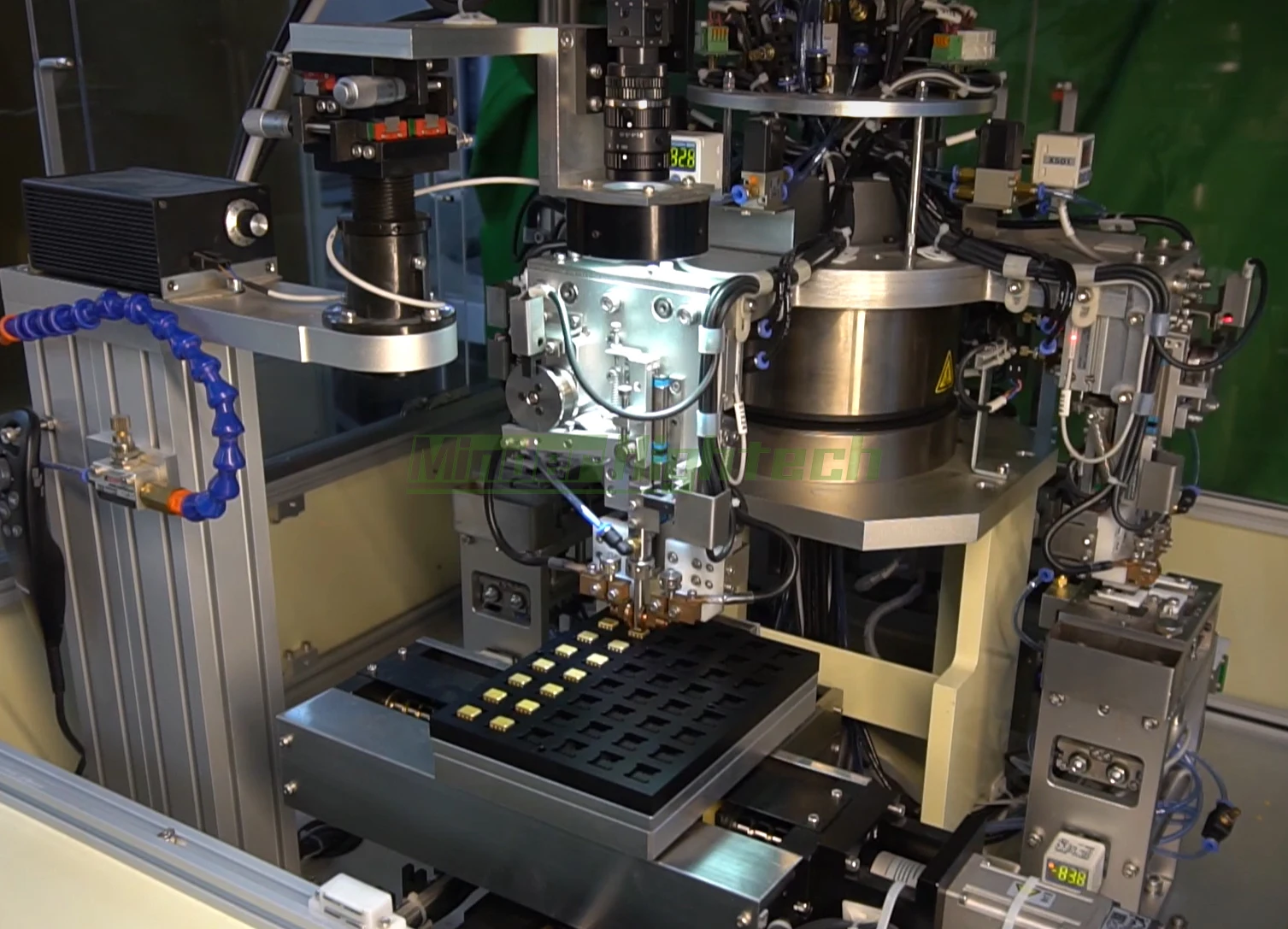

MDKX-LTM911 lid tacking machine is a automatic equipment. It is mainly composed of silo mechanism, left and right positioner, workbench mechanism, cover plate rotating conveying mechanism and CCD image processing. Position and spot weld cover plate and ceramic base. The device adopts PLC controller, CCD image processing and touch screen control, phase Angle cycle wave power discharge, dynamic response is fast, high control precision.

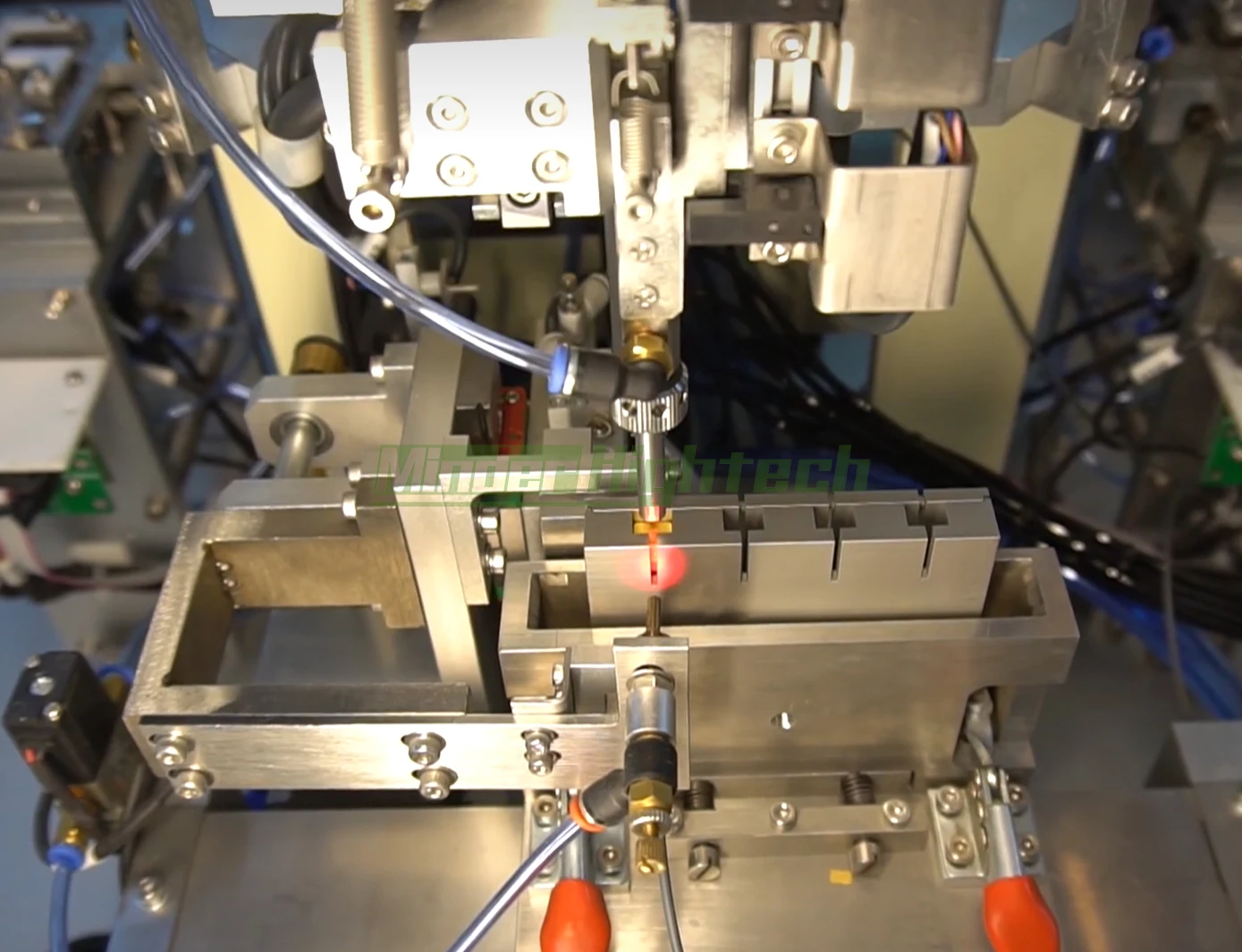

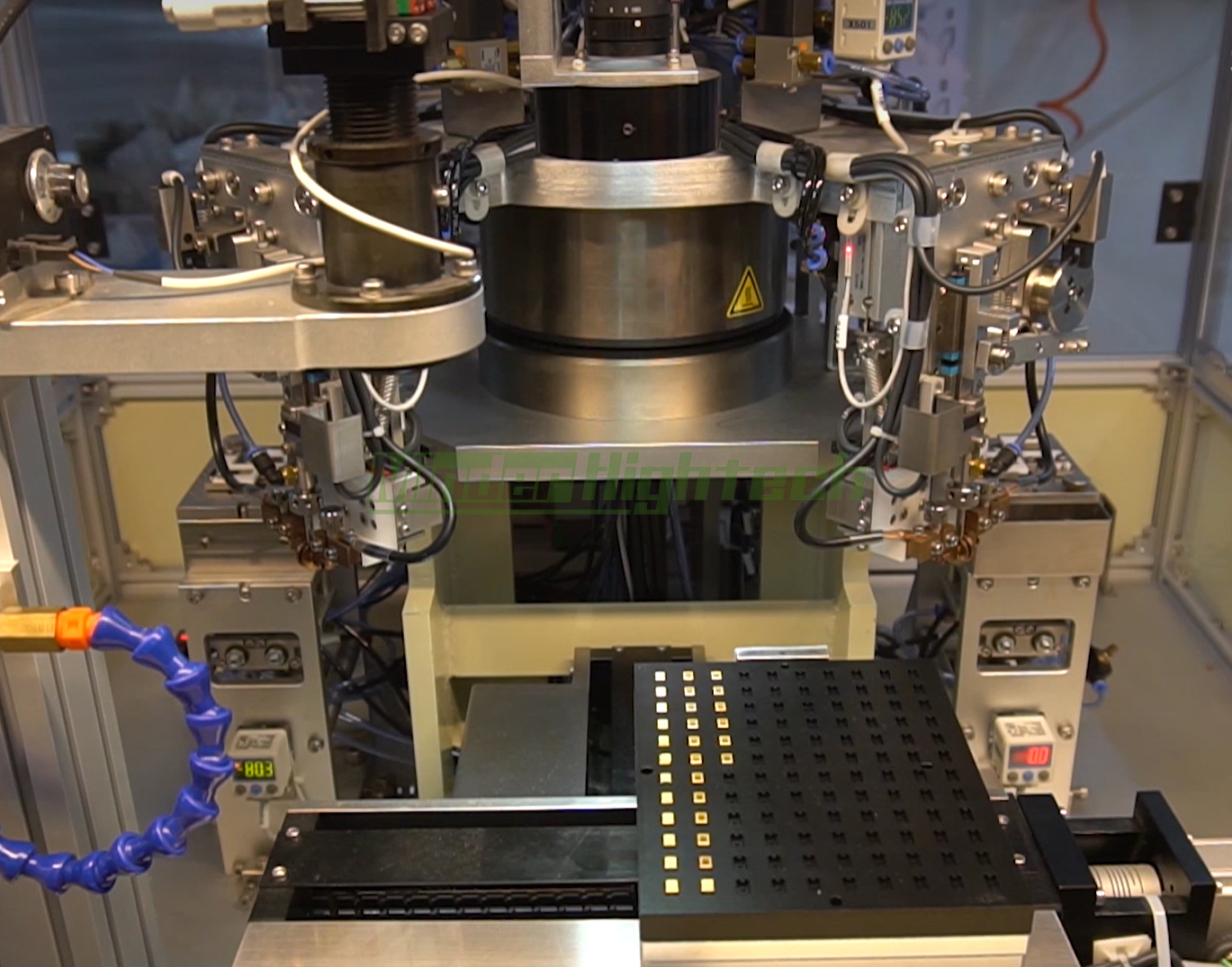

Silo mechanism is mainly to provide the cover plate loading fixture movement system; Left and right positioner is the mechanism for accurate positioning of the cover plate; The cover plate rotating moving mechanism is that the rear suction nozzle moves the cover plate in the silo to the positioner for positioning through vacuum suction, and then the welding nozzle moves the cover plate to the base through vacuum suction from the positioner and carries out spot welding at the same time; The worktable mechanism is the platform for placing the product load plate; CCD image system is the cover plate and the base for image coordinate positioning.
Main performance index specifications
Equipment Specifications
specification:
MDKX-LTM911
Overall dimensions:
1) 1000×1000×2100mm
weight:
About 300 kg
Power consumption of the machine:
2) ≤1.5KVA
Type of spot welding device
Base size:
7.0×5.0~2.5×2.0mm
Shape of the base:
rectangular
Cover plate thickness:
About 0.1 mm
Base material:
ceramic, etc
Specifications of each part of the equipment
Work table mechanism
A. Y-axis drive unit
drive：
Panasonic servo motor, NSK high precision lead screw module
trip：
135mm
b. X axis drive department
drive：
Panasonic servo motor, NSK high precision lead screw module
trip：
225mm
C. Theta axis drive unit
drive：
Panasonic servo motor, NSK high precision lead screw module, rotating mechanism
Around the corner：
±10°
Cover rotating moving and sending mechanism
a．Rotary drive unit：
CKD DD motor
b. Left and right rear suction nozzle:
drive：
Stepper motor, CAM, IKO linear guide
trip：
8mm
Suction nozzle material：
00Cr18Ni9
c．Left and right welding nozzle：
drive：
Stepper motor, CAM, IKO linear guide
trip：
5mm
Suction nozzle material：
00Cr18Ni9
d．Vacuum system:
ULVAC vacuum pump: pumping speed 100L/min,
Extreme pressure 13.3×103Pa
Bin institutions
a．Driving system:
Mori Step motor, HIWIN lead screw pair and linear guide rail
b．Lifting system：
Senchuang Stepper motor, HIWIN linear guide rail, synchronous belt, SMC cylinder
c．Bin material：
00Cr18Ni9Ti
locator
a．Drive system：
SMC rotating cylinder, CAM, IKO linear guide
b．Positioning claw material：
40Gr and cemented carbide welding
c．Vacuum system：
ULVAC vacuum pump: pumping speed 100L/min,
Extreme pressure 13.3×103Pa
Image system
CCD：
Panasonic A210
The lens：
computer 50mm
Light source:
Self - made ring - type light
display：
10.4” Liquid Crystal (Onlixin)
Basic composition and decomposition
(1)The workbench
1）X-axis 2）Y-axis 3）θaxis;
(2)Cover rotating moving and sending mechanism
1) Left and right rear suction nozzle mechanism; 2) Left and right welding nozzle mechanism; 3) Rotating mechanism; 4) Welding mechanism and loop; 5) Vacuum loop
(3)Left and right locators
1) Transmission CAM; 2) Positioning claw; 3) Positioning jaw fixing seat; 4) Positioning block; 5) Vacuum loop
The main function
(1). The cover plate rotating moving and sending mechanism is divided into two parts. When the left welding nozzle is prewelding the cover plate and the base, the right rear nozzle absorbs the cover plate in the silo at the same time. In this way, the left and right sides alternately move and weld the cover plate, saving time and improving efficiency.
(2). CCD image system is used to achieve high precision positioning.
(3). According to customer requirements can provide five specifications of products, each specification of products corresponding to the relevant image processing and various parameters. As long as you select the product specification you want to produce on the touch screen, the image and data will be switched automatically.

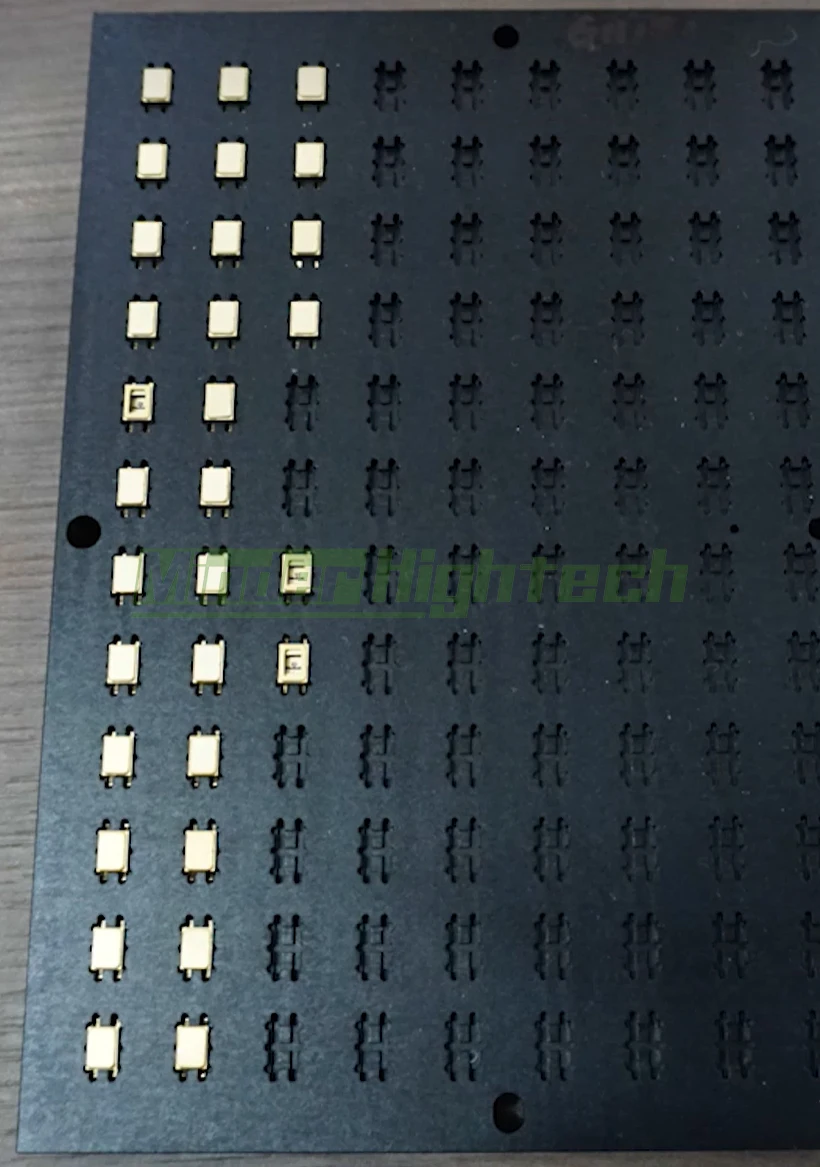

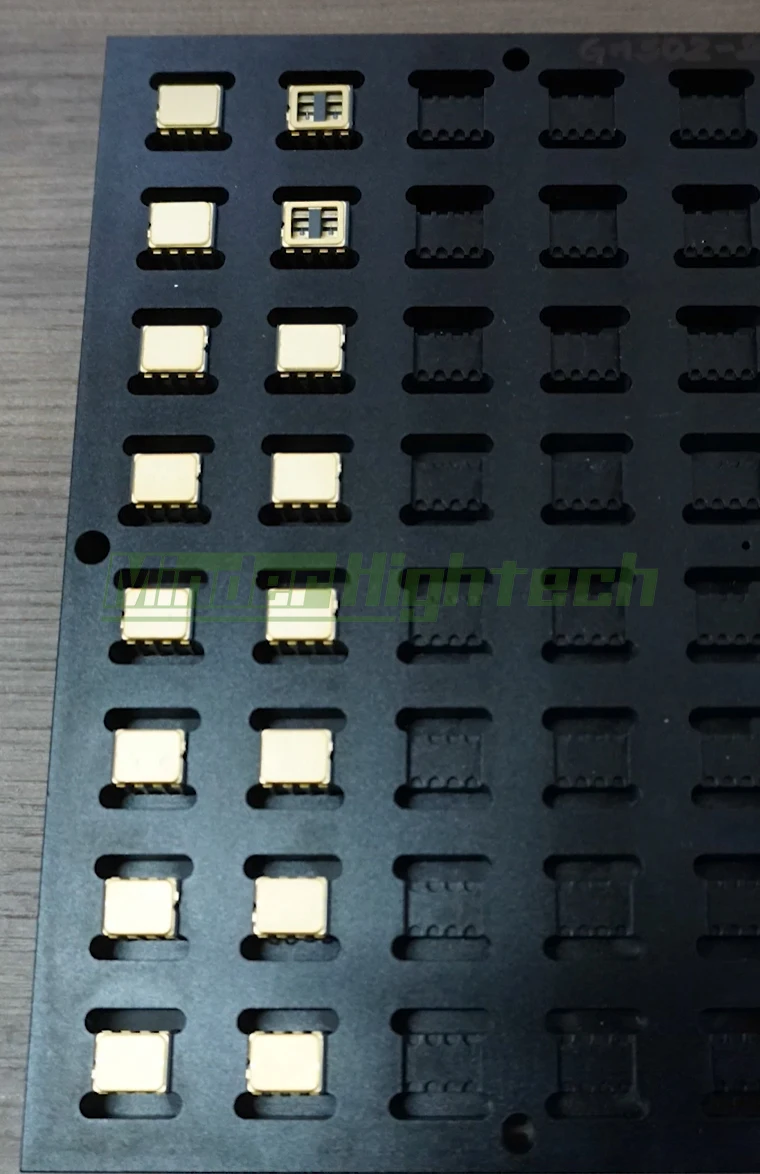

(4). Can customize three specifications of the workpiece load plate (load plate station, such as 180POS '240POS', etc.), in the defined load plate conversion, the relevant parameters automatically switch.
(5). The left and right spot welding system can be operated simultaneously or optionally on a separate side.
(6). When spot welding the cover plate and the base, local nitrogen protection is adopted to prevent the solder joint from being oxidized.
Requirements for external connection of equipment
Compressed air：
Pressure ≥0.4MPa, interface ∮8 (OD) hose.
Nitrogen:
Pressure ≥0.2MPa, interface ∮8 (OD) hose.
Vacuum:
The interface is ∮8 (outer diameter) hose.
