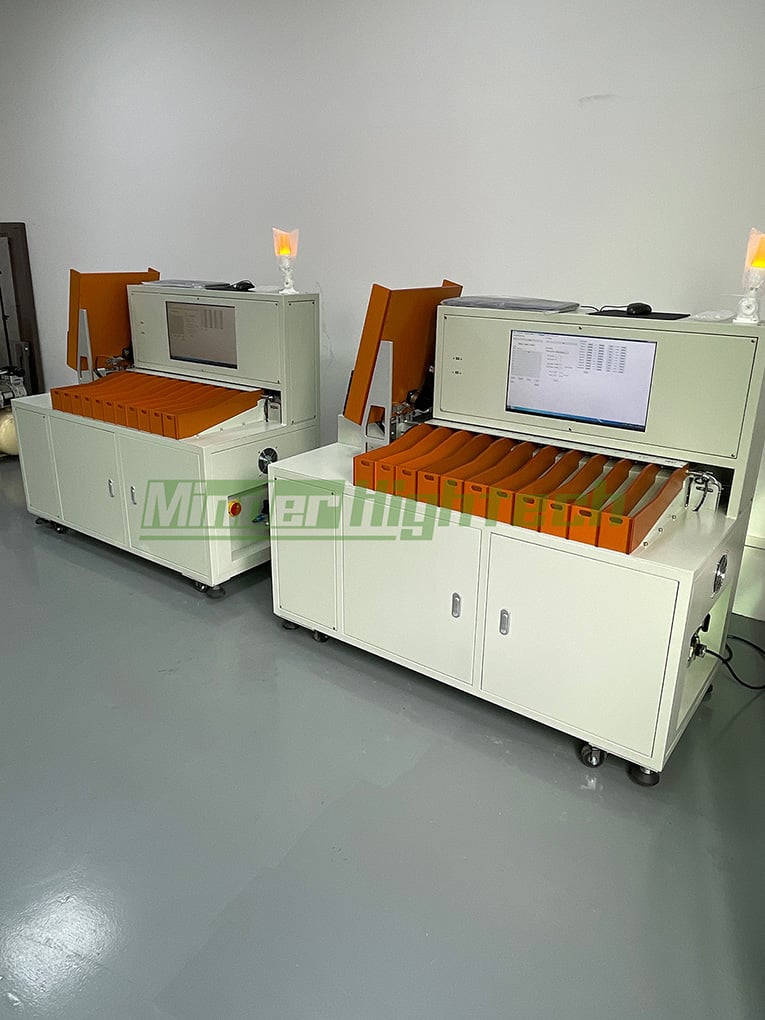

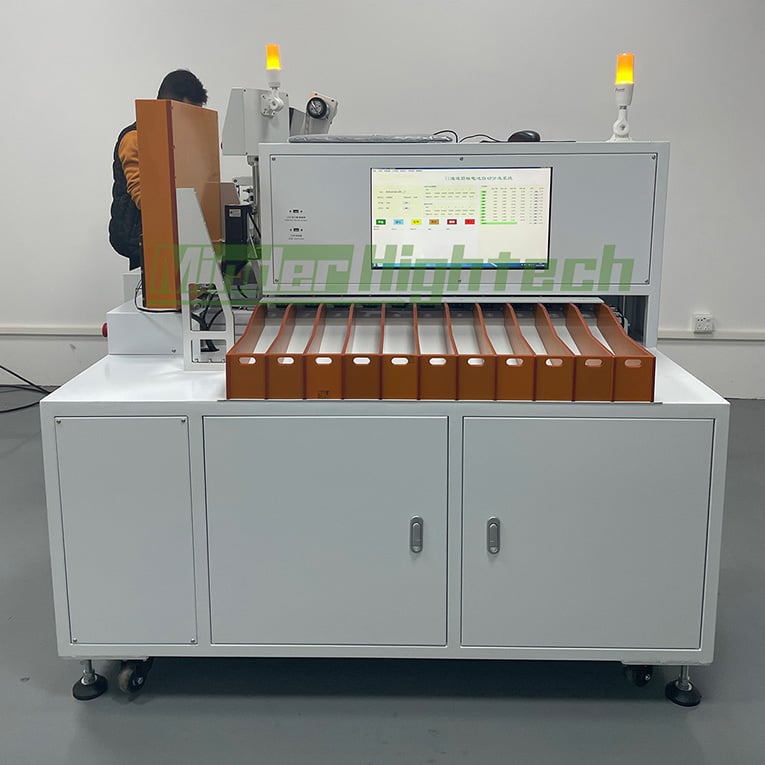

The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to different channels according to the setting.
Cylindrical battery sorter has a high precision automatic test system for internal resistance and voltage. According to the value of internal resistance and voltage set by computer software, the battery is sent to the designated gear. The system can mostly achieve 5-22 level sorting. This equipment can test and assemble about 4000-8000 cores per hour, and its structure design is simple and generous, and its performance is stable. So far it is one of the cost-effective sorting equipment in the market.
Application：
Main Features：
Model |
MD-BS5 |
MD-BS11 |
MD-BS21 |
Channels |
5 |
11 |
21 |
Output |
80pcs/minute |
60pcs/minute |
50pcs/minute |
Voltage setting |
0.000V-6.000V |
0.000V-6.000V |
0.000V-6.000V |
Voltage accuracy |
0.0005V |
0.00005V |
0.00005V |
Resistance setting |
000.0 mΩ- 999.9 mΩ |
000.0 mΩ - 999.9 mΩ |
000.0 mΩ - 999.9 mΩ |
Internal resistance accuracy |
0.01mΩ |
0.001mΩ |
0.001mΩ |
Separation efficiency |
≥83PPM |
≥83PPM |
≥83PPM |
Display Screen |
7.5 inches Large size LCD screen/Touch screen |
9 inches Large size LCD screen/Touch screen |
|
Battery tester |
Hioki 3561 |
Hioki 3561 |
Hioki 3561 |
One time feeding quantity |
200/500PCS |
200/500PCS |
200/500PCS |
Data storage |
USB drive |
USB drive |
USB drive |
Air pressure |
0.6-1.0MPa |
0.6-1.0MPa |
0.6-1.0MPa |
Size |
850mm(L)*580mm(W)*1350mm(H) |
6500mm(L)*1425mm(W)*1600mm(H) |
6500mm(L)*2100mm(W)*1600mm(H) |
